12000 Mile Service: Anyone Actually Changed The Fuel Filter

Discussion in 'Bonneville' started by steve lovatt, Oct 12, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    6,416
    1,000
    Winchester
    Just wondering.
    I know that the valve clearances need checking, along with regreasing the headstock and swing arm bearings but the Haynes manual also seems to suggest that the filter should be changed.
    Any body bothered to do this? :cool:

  2. Tiglet

    Tiglet Vintage Member
    Subscriber

    Mar 28, 2016
    3,072
    1,000
    Cheshire
    How much are they Steve.

    Seeing as the petrol tank is removed plus other bits and pieces to complete the service it may well be worth renewing.

    Or is it your Yorkshire heritage kicking in wanting to save a few bob :laughing:;);)

    • Funny Funny x 1
  3. thebiglad

    thebiglad Old fart, still riding !

    Sep 25, 2013
    5,056
    800
    Central France
    Hi Steve, as I'm sure you know, the fuel filter is within the tank adjacent to the pump. So to change the filter you need to remove the tank and disconnect the fuel lines. The connectors used to be made from plastic and would over, over time, get brittle (grrrr) the newer ones are metal and more reliable.

    Then to remove the pump/filter assy you need to unscrew the 5 or 6 allen screws and the large gasket (might be useful to have a spare in stock??).

    Once the tank is disconnected it can be quite heavy to manipulate safely, so if it's possible try to run down the amount of fuel to a minimum, before tackling this.

    Good luck mate,

    Dave

    • Like Like x 2
  4. TonyG

    TonyG Noble Member

    Dec 1, 2016
    272
    313
    Chalfont
    I changed mine at about 13,000, but only because I was having the tank resprayed, Otherwise I wouldn't have bothered. I'm guessing the dealers never do it at 12,000. I got a quality aftermarket filter, can't remember the name but they were recommended all over the net and were a fraction of the price of the Triumph part. If you have the tank off it is quite easy to do, slightly fiddly getting the fuel pump assembly out.

    • Like Like x 2
    • Useful Useful x 1
  5. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    6,416
    1,000
    Winchester
    Thanks lads. I need a new alternator cover gasket for when I check the valve clearances so will order the new filter and new gasket for the tank aswell.
    The cheaper aftermarket online version sounds good - (Yorkshire heritage kicking in there Dave!) :cool:

    • Like Like x 1
    • Funny Funny x 1
  6. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    6,416
    1,000
    Winchester
    You can get a Mahle fuel filter on Ebay for £16.99 or pay £41.99 from World of Triumph. You don't need to be from Yorkshire to avoid that one! :joy:

    • Like Like x 1
    • Funny Funny x 1
  7. capt

    capt Noble Member

    May 8, 2016
    1,866
    450
    western Australia
    I changed my fuel filter on my America , at 90,000 odd klms ! It wasn't really worth it. I broke it apart and it was reasonably clean and clear inside.
    So unless you suspected one of your local service stations had dodgy fuel :) ;)

    • Like Like x 2
  8. GPT100

    GPT100 Member
    Subscriber

    Sep 13, 2016
    68
    18
    East Durham Coast
    Out of curiosity why do you need a alternator cover gasket when you check the clearances ?
    Geoff

    • Like Like x 1
  9. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    6,416
    1,000
    Winchester
    You remove the alternator cover (and plugs) so you can turn the engine easily to position the cam lobes correctly with a 10mm hex key on the alternator rotor bolt.

  10. GPT100

    GPT100 Member
    Subscriber

    Sep 13, 2016
    68
    18
    East Durham Coast
    Hi Steve, when I had the cams checked the person who did the checking for me just took out the plugs and turned the engine over with it in gear via the back wheel, It was Muddy Sump who did the work for me.

    • Agree Agree x 1
  11. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    6,416
    1,000
    Winchester
    Yeah I thought that would be how you could do it, but just following good old Haynes manual! Probably will try turning back wheel with it gear on the centre stand. Just assumed that turning it by the rotor bolt might be more accurate. :cool:

    • Agree Agree x 1
  12. Callumity

    Callumity Elite Member

    Feb 25, 2017
    2,493
    750
    Nr Biggar
    Accuracy is not too much of an issue as you are measuring clearance on the long heel of the cam not the toe when it is in contact! Do it in first gear to minimise cam rotation...

    • Agree Agree x 2
    • Thanks Thanks x 1
  13. KC1961

    KC1961 New Member

    Nov 13, 2014
    19
    3
    West Lothian
    I changed the filter at 12000. Being Scottish I fitted a Mahle.

    • Like Like x 1
  14. Dozers Dad

    Dozers Dad Bushmills Chief Quality Controller
    Subscriber

    That's the way I'd do it as well GPT.
    I'll fix it if it's broken but I don't go looking for work.

    • Like Like x 1
  15. crispey

    crispey crispey creme de la creme
    Subscriber

    Nov 6, 2014
    6,878
    1,000
    sw london
    They probably advise turning it with the alternator if you haven’t got a centre stand

    • Like Like x 1
    • Agree Agree x 1
  16. Mischa Vladivostok

    Mischa Vladivostok Well-Known Member

    Feb 9, 2015
    211
    93
    Dublin, Ireland
    When I did valve clearance check at 12,000 I also just removed cam cover and turned back wheel with gear. It's worth it to have a spare gasket for the cam cover, although mine was in really good shape, and I ended up reusing it. No oil leaks to report.

    • Like Like x 2
  17. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    6,416
    1,000
    Winchester
    Well I did it when I had the tank off to fit the heated grips yesterday (Oxford heated grips - another thread).
    Used the centre stand and rotated the back wheel in gear as suggested - that works well enough to make the job easy. (and saves you money by not having the dealer do it for you).

    Here are some pictures, which show how easy it is and might help if anyone fancies giving it a go but wasn't too sure. :grinning:

    Remove the seat and the two bolts holding the tank on. You need to lift the tank up and lean it against yourself as you stand on the RH side of the bike so you can access the electrical connection, fuel hose and breather pipe underneath. This is why it pays to have the tank empty - its bloody heavy when full!

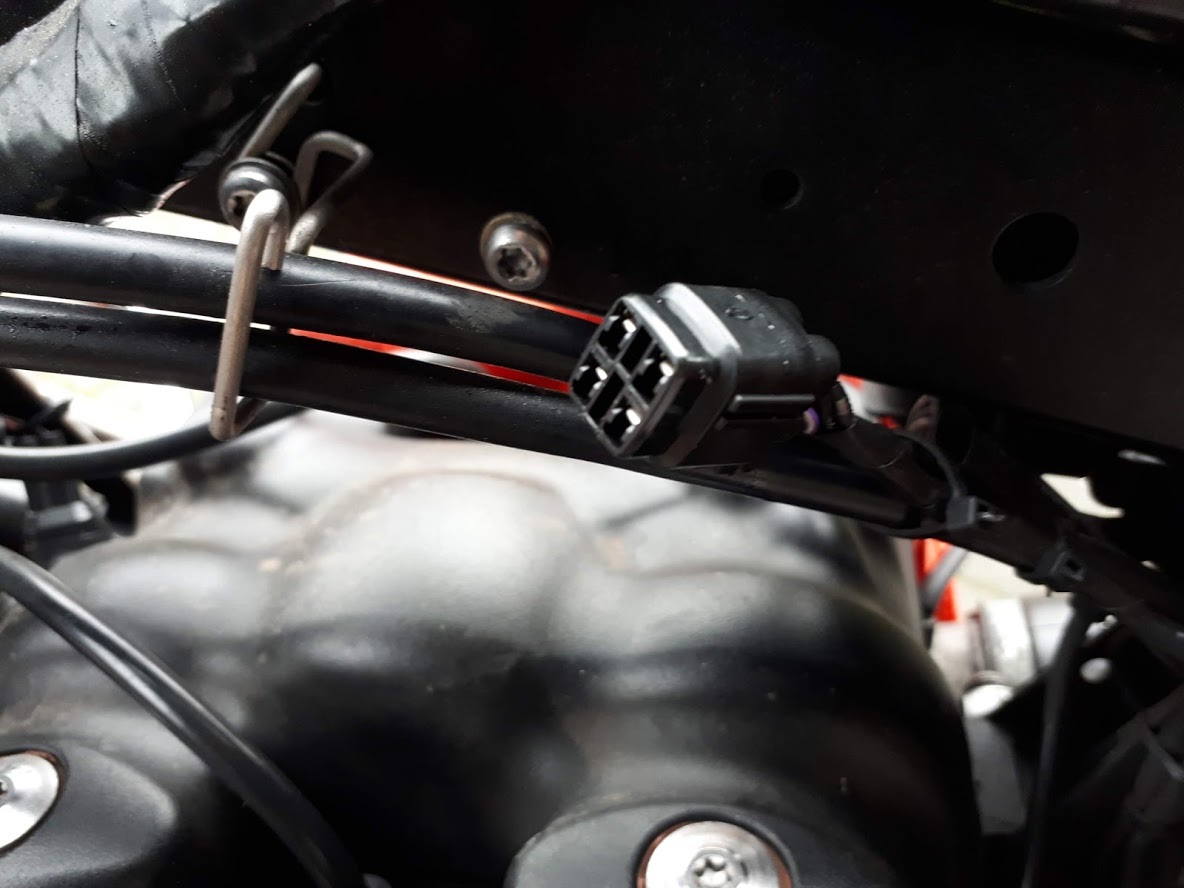

    Disconnect this connection.

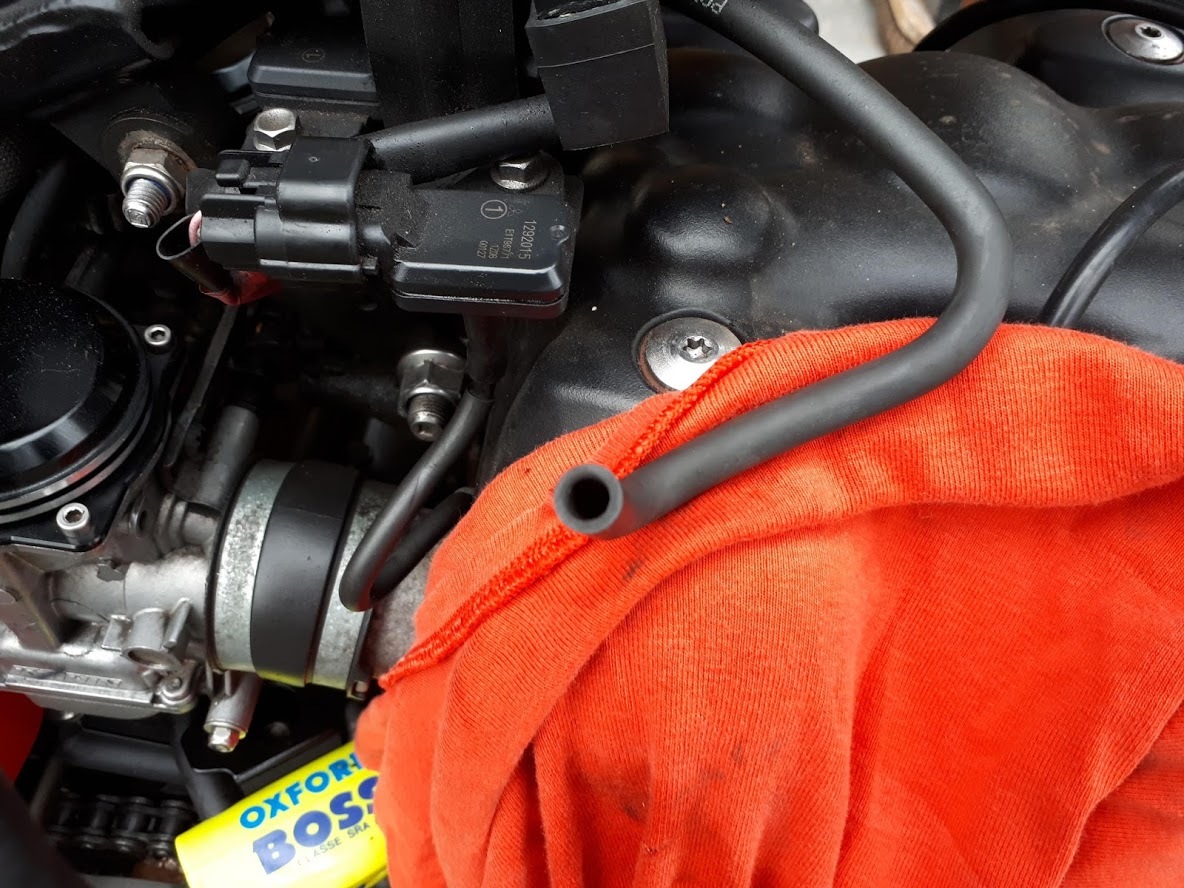

    Pull off this breather hose.

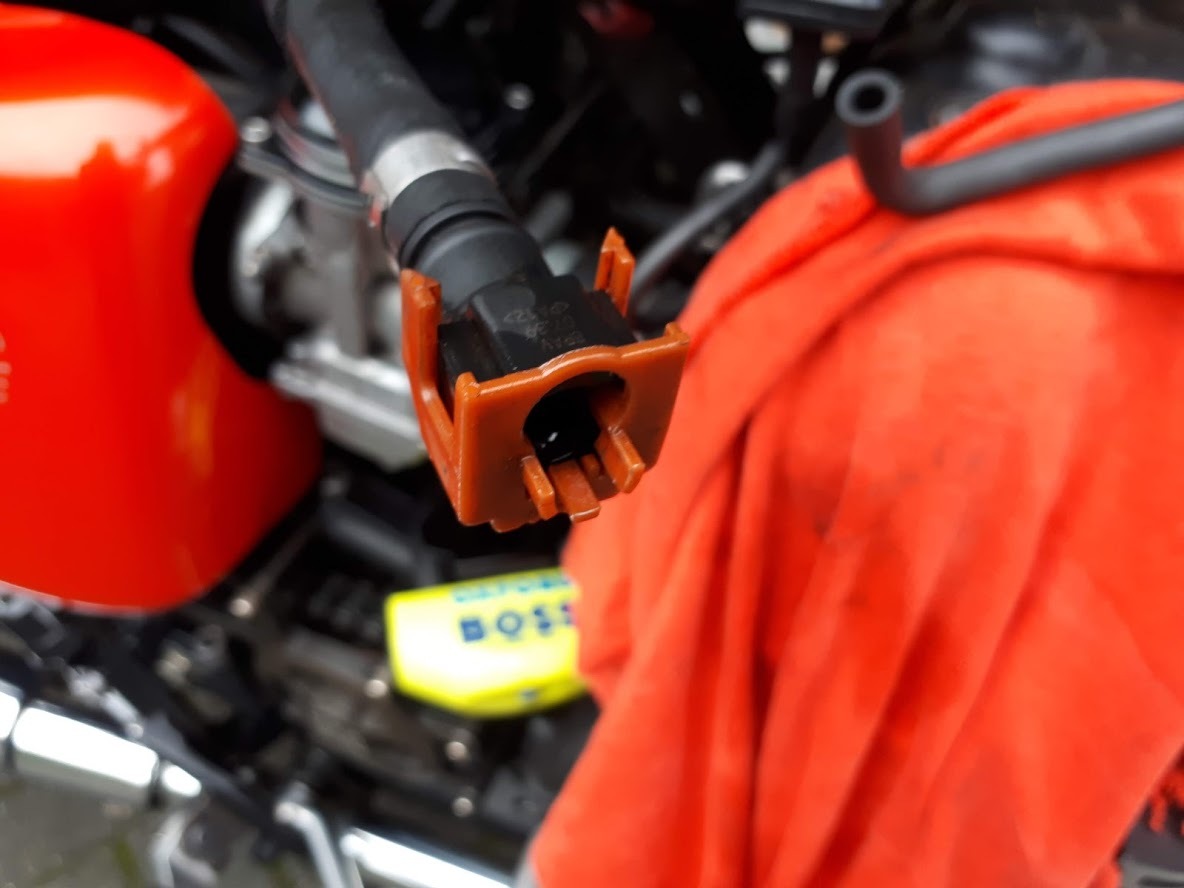

    Push the orange collar down on the fuel hose connector and squeeze both sides in until it pops off.

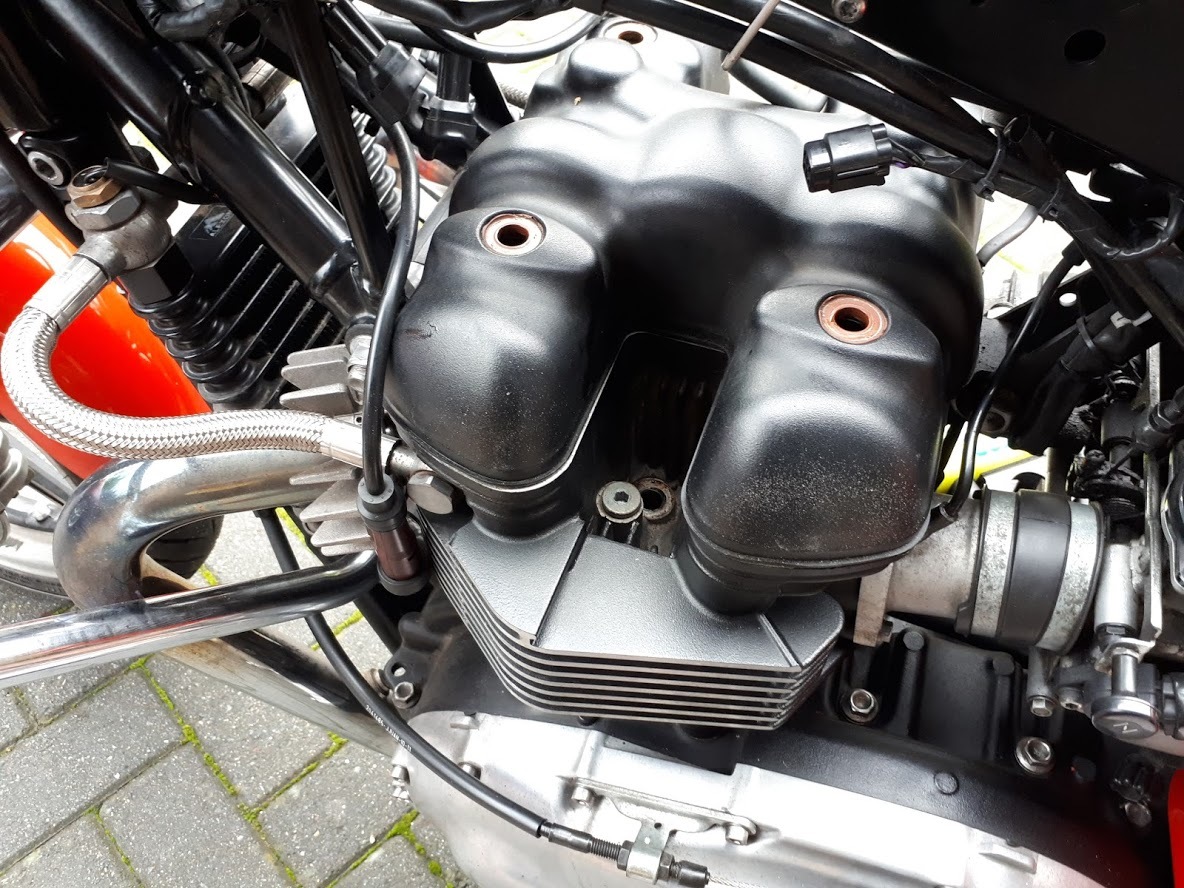

    Remove the four cam cover bolts with (they are Torx head bolts).
    Remove spark plugs.

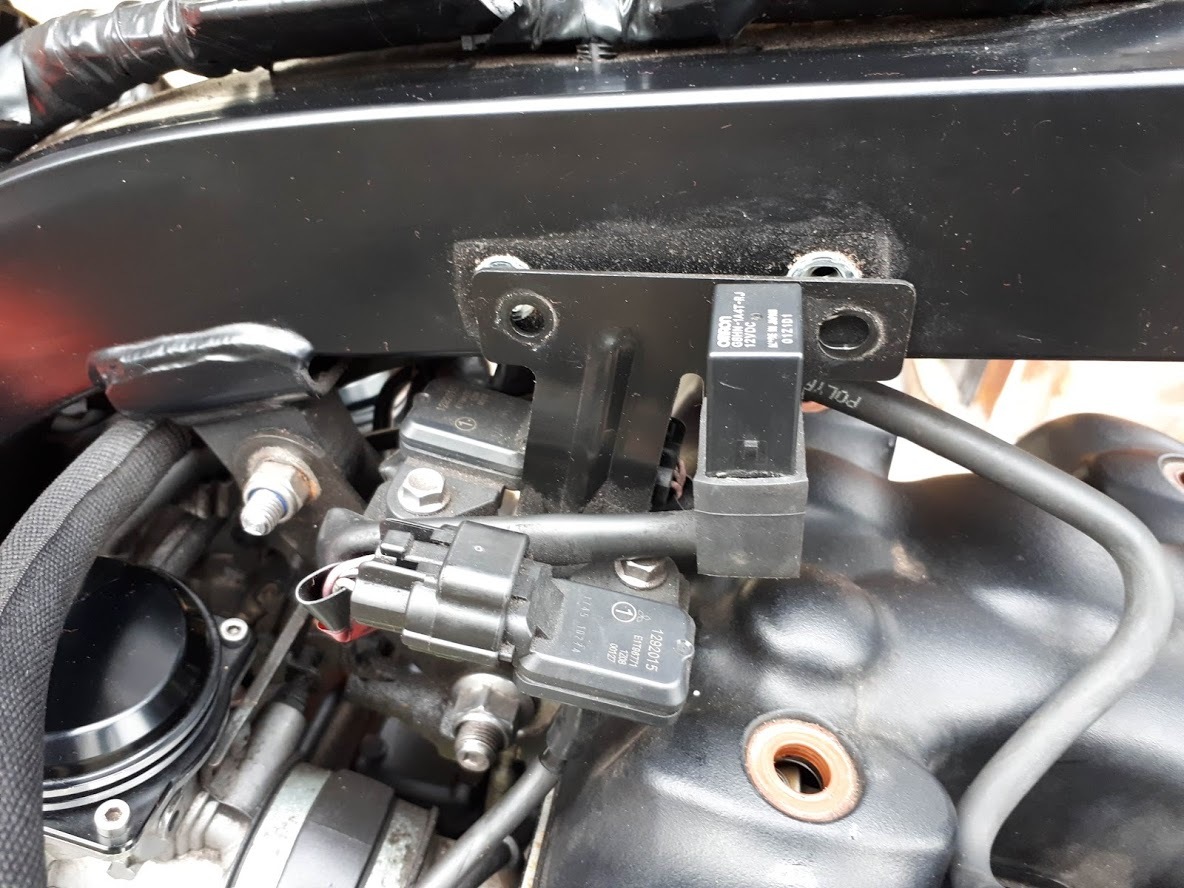

    You need to unbolt this to enable the cover to be removed.


    This is what's under there from the LH side of the bike. The cam lobe on the exhaust valve is pointing straight up, the other is the inlet valve.


    Checking the exhaust valve from the RH side - cam lobe should be at the position shown (about 11.00 o'clock). The exhaust clearance should be between 0.25 - 0.30. Mine was spot on at 0.26. (the inlet clearance is 0.15 - 0.20).


    Job done :grinning:.
    Mine were well within tolerances at 14000 miles - will check again at 24000 but I still don't think they will need adjusting then.

    • Like Like x 4
    • Useful Useful x 3
  18. Mischa Vladivostok

    Mischa Vladivostok Well-Known Member

    Feb 9, 2015
    211
    93
    Dublin, Ireland
    Very useful to post the pictures, thanks for that. Reassures me that I done it right as well! :grinning: Did you replace the cam cover seal and the bolt gaskets, or left the original ones?

  19. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    6,416
    1,000
    Winchester
    No, carefully kept the originals :cool:

  20. Tom Gillam

    Tom Gillam Active Member

    Jul 13, 2019
    174
    43
    Somerset
    Regarding the fuel filter,I’m going to fit an easily accessible inline filter together with a quick release pipe connector.
    That way,the tank can come off easily for any future maintenance.
