When Fitting Sprint 955i Luggage Rails Is The Modified Lifting Handle Required?

Discussion in 'Technical Help' started by Mark Balmer, Jul 15, 2020.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Mark Balmer

    Mark Balmer Member

    Jun 16, 2020
    20
    8
    Chepstow
    When fitting Sprint 955i luggage rails is the modified lifting handle required?
    i.e. is it part of the assembly structure or is it just a relocation of the lifting handle?
    Thanks,
    Mark

  2. capt

    capt Elite Member

    May 8, 2016
    3,052
    750
    western Australia
    Probably just a relocation of handle , as you suggested.

  3. Bad Billy

    Bad Billy Baddest Member

    Jun 1, 2017
    6,800
    1,000
    Southern Softyville

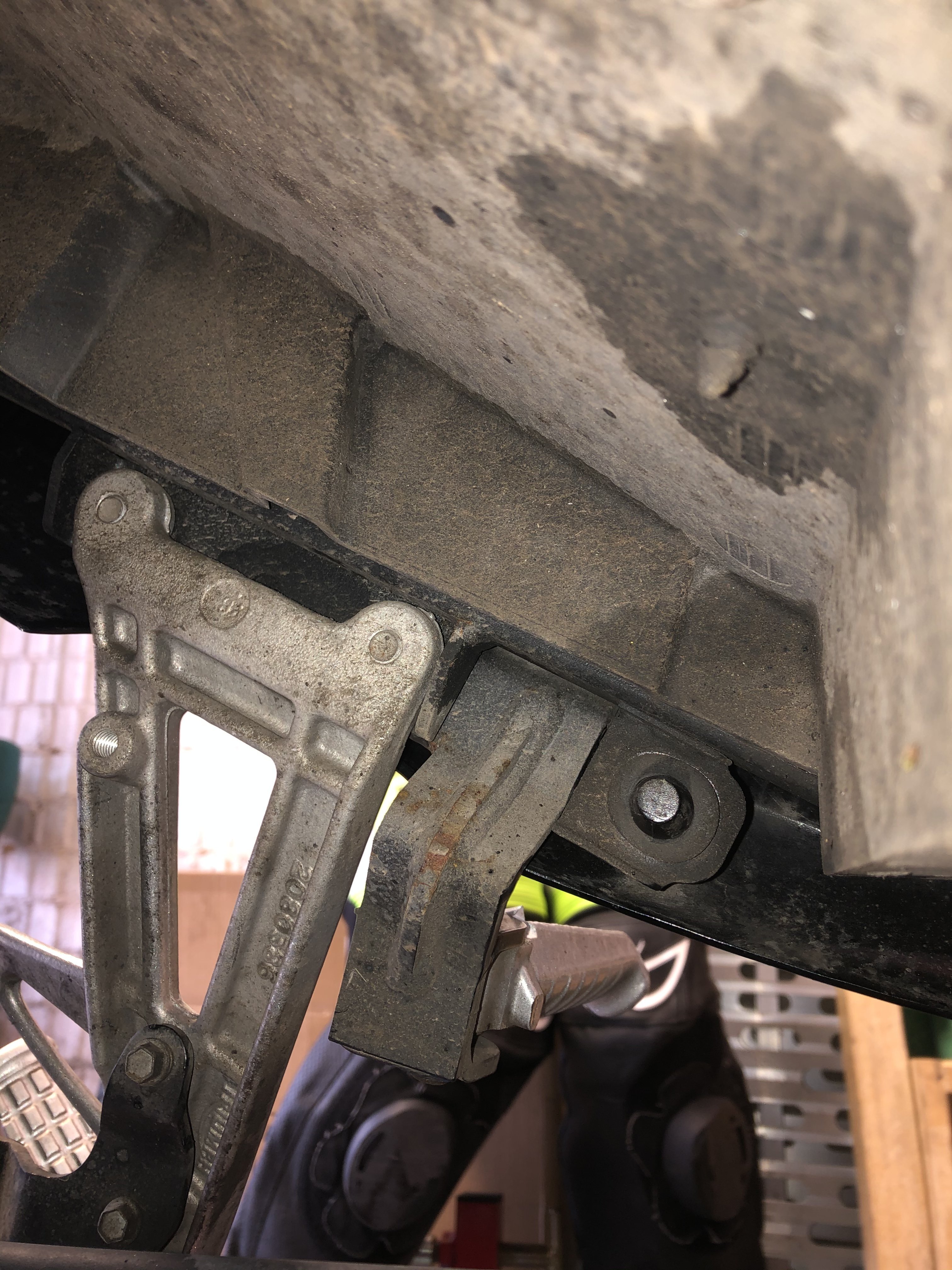

    Will take some pictures of the set up on my ST when I go in the garage later, but mine has what looks like an upside down footrest bolted on left side that acts as a lift handle.

    • Like Like x 1
  4. Bad Billy

    Bad Billy Baddest Member

    Jun 1, 2017
    6,800
    1,000
    Southern Softyville

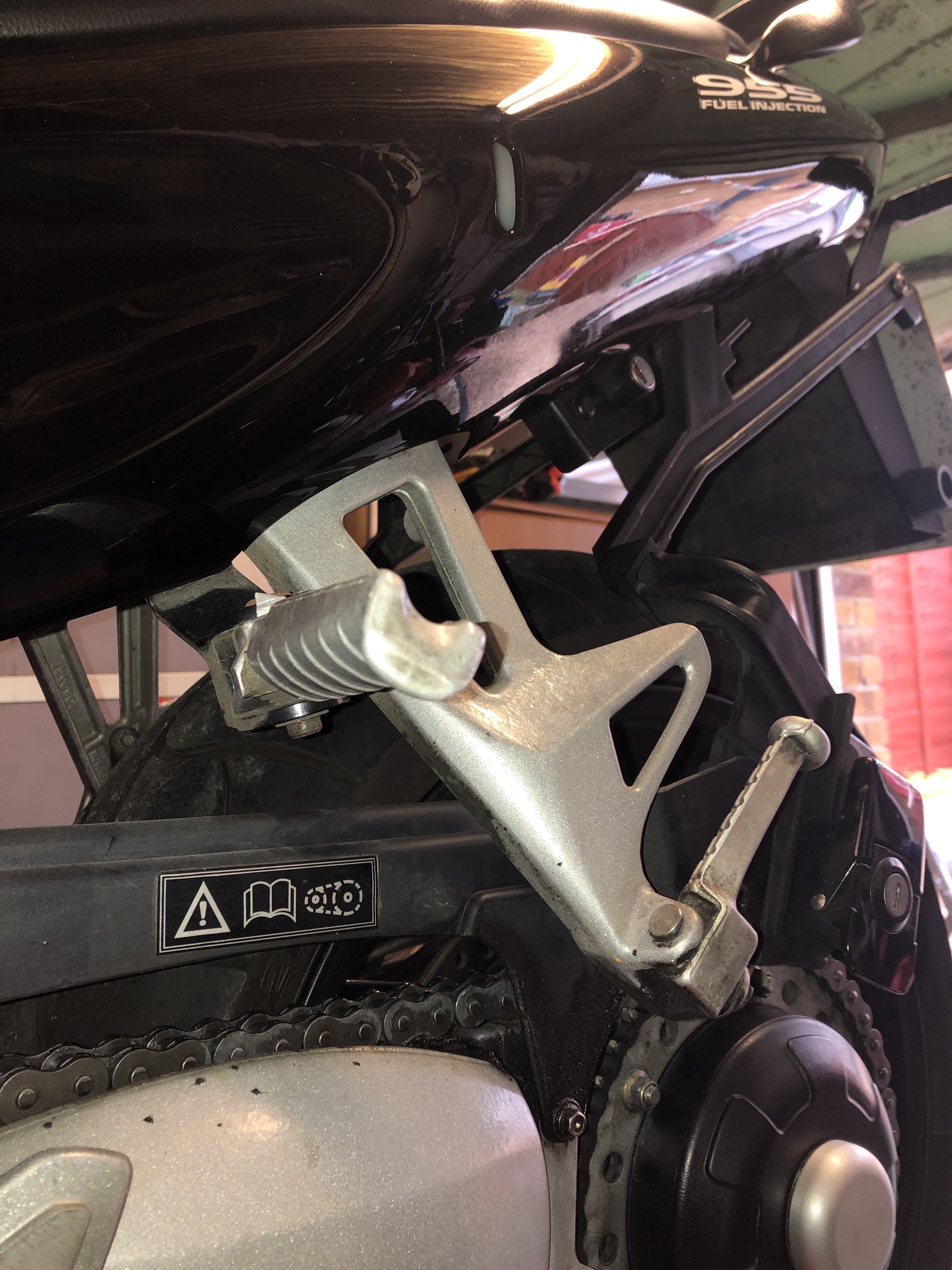

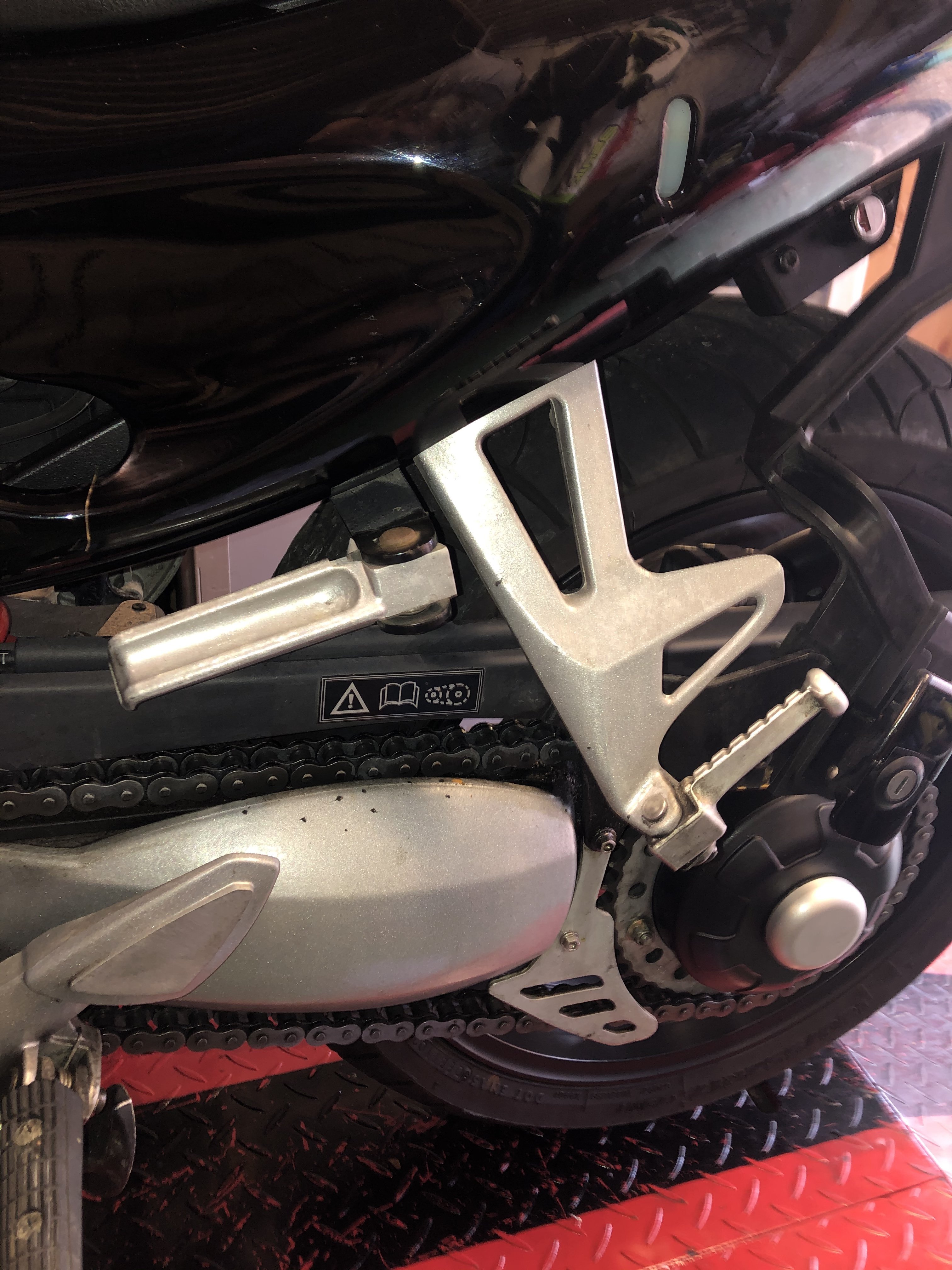

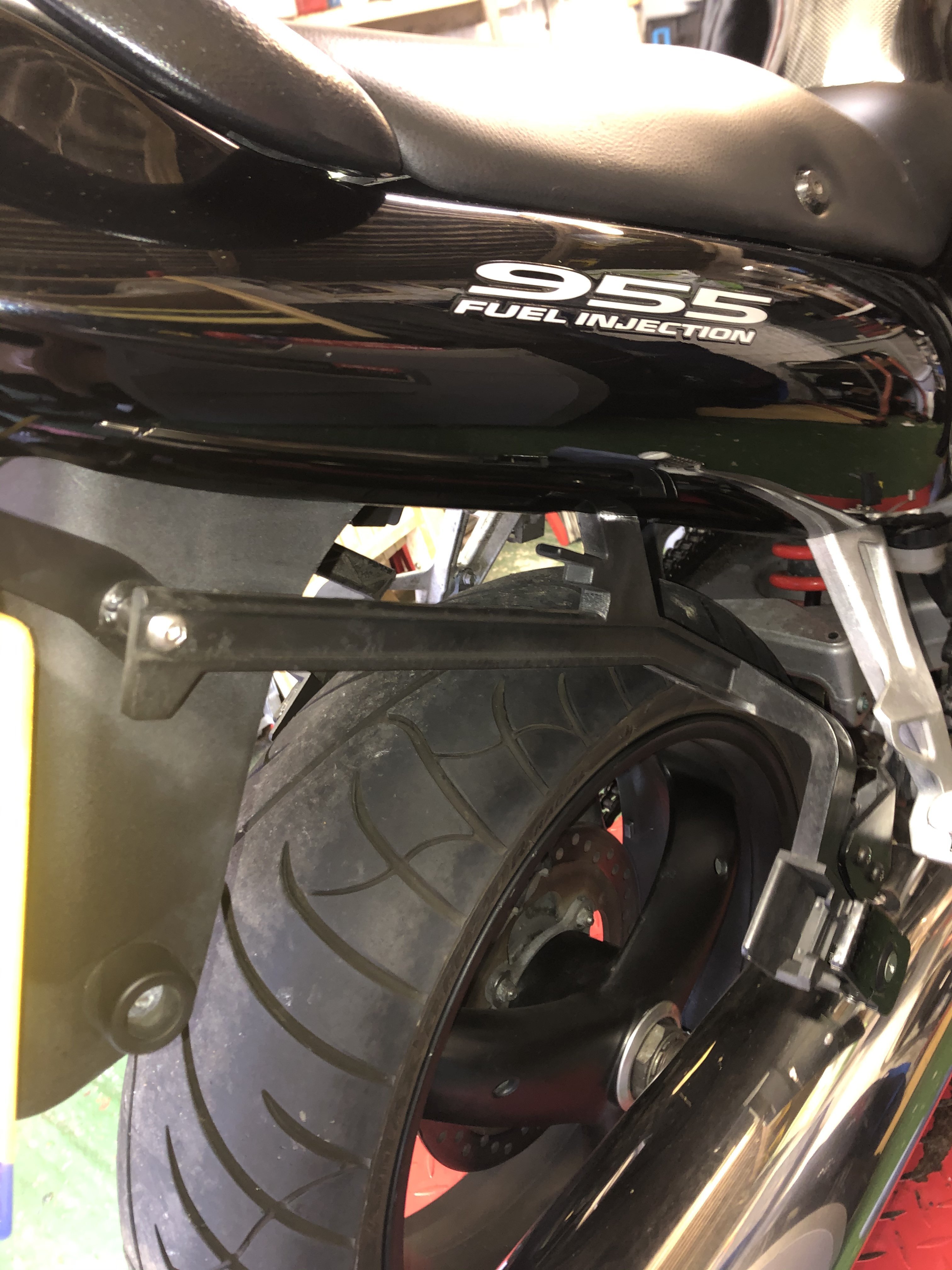

    Here you go, a few pictures of how the lifting handle & luggage rails are in mine, hope it helps.

    9B581F72-CF54-469D-8F71-2C4629E143B6.jpeg C222E0F7-6D02-41A3-9B0E-EAC7000CD2EF.jpeg 2418961D-DE43-4008-A825-4A4D03AC909A.jpeg 0CC3CAC6-C402-4AF9-9B6F-AA5A0DA62AC5.jpeg 308B91F5-278E-433B-8412-DBB82E4F86E2.jpeg 5FA9CC3E-C6EF-40E7-A3DC-6B1BCA55E1B0.jpeg

    • Like Like x 1
  5. Mark Balmer

    Mark Balmer Member

    Jun 16, 2020
    20
    8
    Chepstow
    Many thanks for that.

    It is still not clear to me if it is a required part of the structure though the pictures suggest it is not.

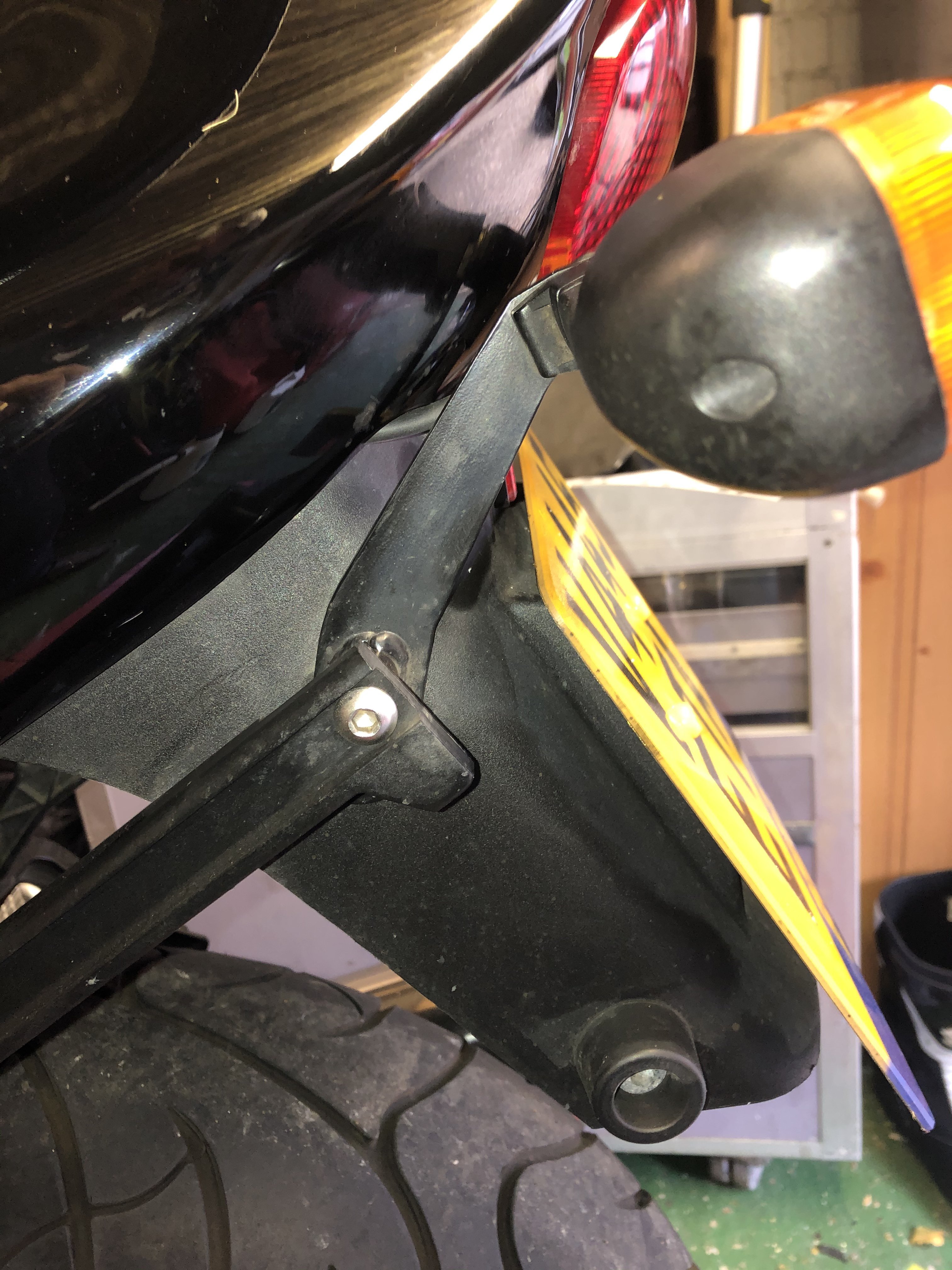

    Also can see the bumper strut on the mudguard.

    I have been following your Sprint resurrection thread. Nice one!

    • Like Like x 1
  6. Bad Billy

    Bad Billy Baddest Member

    Jun 1, 2017
    6,800
    1,000
    Southern Softyville
    Thanks, glad photos were useful, from memory I think @Adie P said the handle had been added by previous owned to assist getting it on centre stand when panniers fully loaded.

    • Like Like x 1
