What Does This Positive Cable Lead To?

Discussion in 'Technical Help' started by ThynderySugar97, Jul 16, 2025.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. ThynderySugar97

    ThynderySugar97 New Member

    Oct 2, 2024
    1
    1
    Harrogate

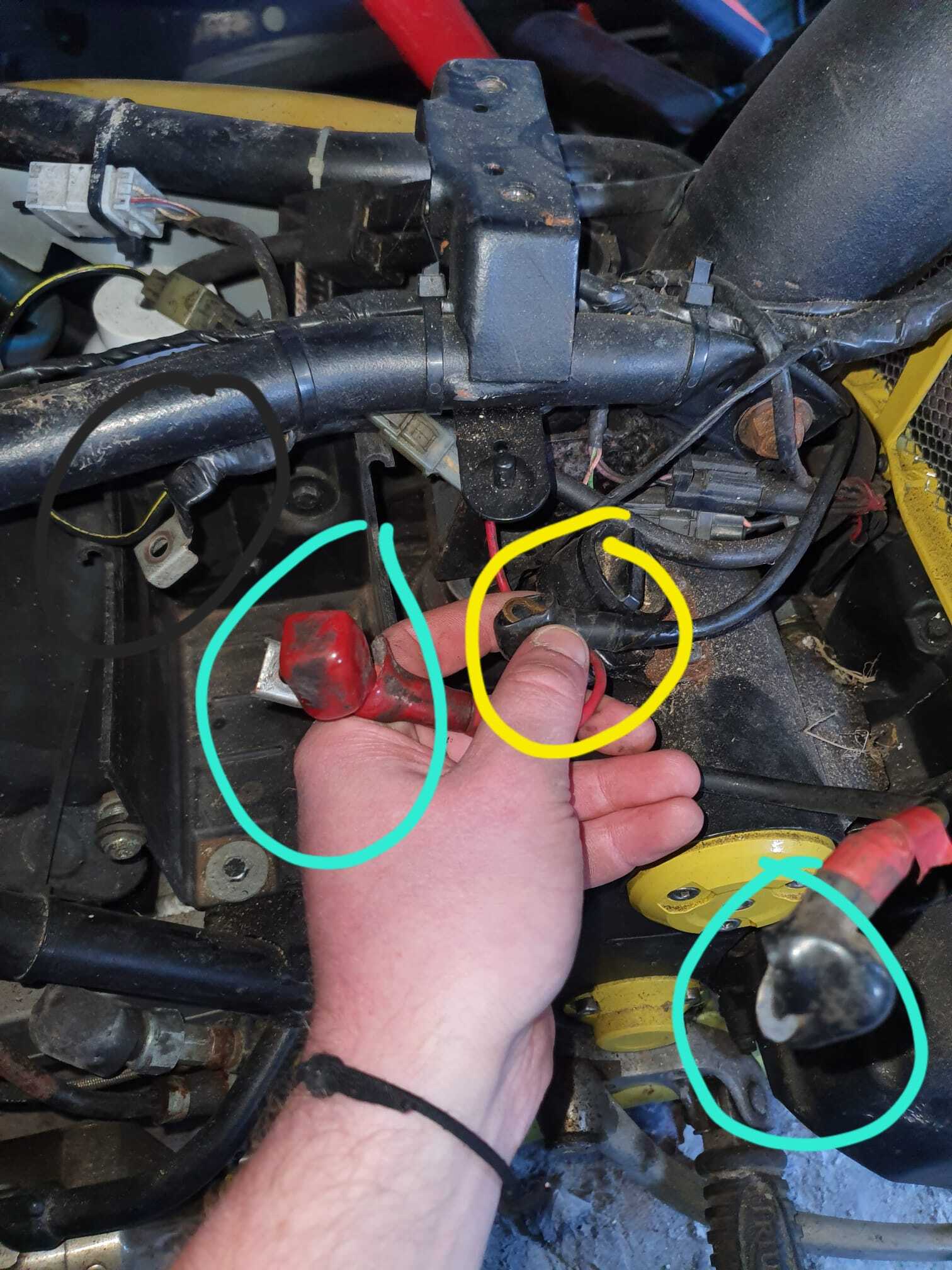

    [​IMG] The two cyan circles are both ends of one cable, the yellow circle is the starter, and the black is negative, I've tried looking through my Haynes manual for the electrics diagram but it says the yellow should go to a stater relay but I cant see one and I cant see where the other end of the positive goes. does it go to the ecu? There's a small red cable that goes to the fuse box, but I'm really struggling, any info would be greatly appreciated

    WhatsApp Image 2025-07-16 at 16.38.47.jpeg

    • Like Like x 1
  2. joe mc donald

    Subscriber

    Dec 26, 2014
    15,885
    1,000
    slough / burnham
    @ThynderySugar97 I would hazard a guess that one end goes to the battery the other to the starter relay. You will have to fine the relay unless someone has removed it for some reason. They used to be located near the battery.
