V&h Baffle Circlips

Discussion in 'Technical Help' started by Ashtons99, Jan 24, 2019.

  1. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #1 Ashtons99, Jan 24, 2019
    Ive got a pair of US spec slip ons from a mate. He has taken the baffles out and I’ve got those but he’s not kept the circlips.
    Does anyone know are these a part that can be obtained, a copy sourced or something similar.

    Thanks folks

    • Useful Useful x 1
  2. capt

    capt Elite Member

    May 8, 2016
    3,051
    750
    western Australia
    #2 capt, Jan 24, 2019
    Circlips are quite flexible , so finding one that fits should be simple, but it probably will take a bit of research . the two measurement's you need to pay most attention to are the thickness and the outside diameter. Otherwise it won't slip into the slot/groove where it should lock !

    • Agree Agree x 3
    • Like Like x 1
  3. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #3 Ashtons99, Jan 25, 2019
    Thanks for your reply. I did a bit of research on eBay and there are circlips without the “eyes” in them called snap clips. I’m just trying to figure out how to measure the diameter I need. I’ve got the width by trying different width washers in the gap.
    I’ll get there

    • Agree Agree x 1
  4. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    #4 Callumity, Jan 25, 2019
    • Agree Agree x 1
  5. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #5 Ashtons99, Jan 25, 2019
    • Agree Agree x 1
  6. Glyn Phillips

    Glyn Phillips Old’N’Slow

    Jun 21, 2018
    967
    750
    Essex
    #6 Glyn Phillips, Jan 25, 2019
    Last edited: Jan 25, 2019

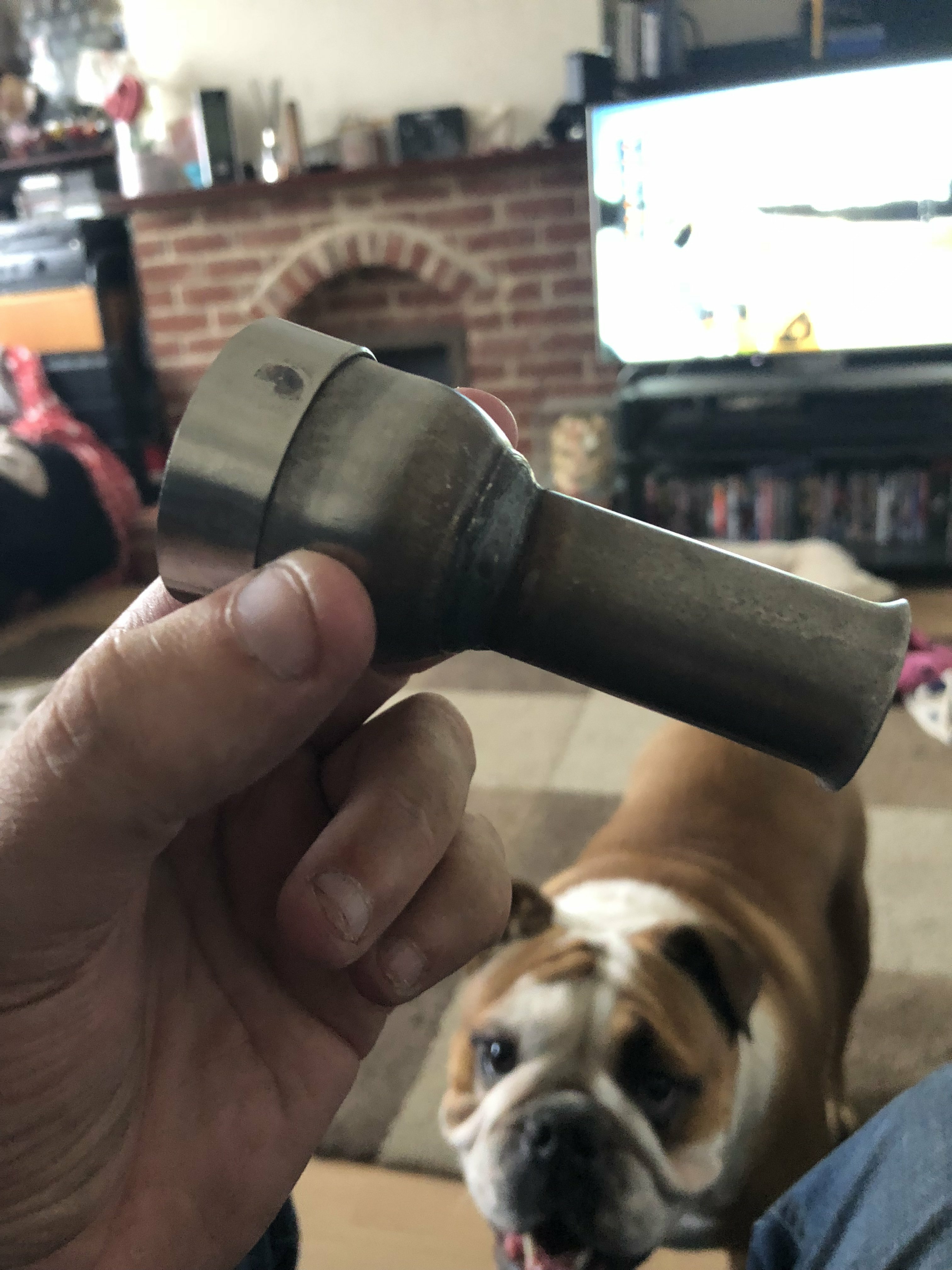

    I’ve got my circlips in the garage. I’ll dig them out tomorrow and measure for you.mine are Thruxton 1200. This is the baffle does it look the same?


    • Like Like x 1
  7. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #7 Ashtons99, Jan 25, 2019
    That looks right Glyn. My mate says they were just ordinary type circlips but had a blob of weld so he knackered them getting them out then lost them !

    • Like Like x 1
  8. joe mc donald

    joe mc donald Joe
    Subscriber

    Dec 26, 2014
    14,691
    1,000
    slough / burnham
    #8 joe mc donald, Jan 26, 2019
    Ashtons99
    Well if you do try Vance and Hines I wish you more luck than I had. I had my wide glide and oxford Harley tried for a year to try and get me a replacement hanger as mine was cracked. Eventually they said after a year they didn't sell parts just complete systems. Hence the reason I would never use them for anything I own.
    Ride Safe
    Joe.

  9. Glyn Phillips

    Glyn Phillips Old’N’Slow

    Jun 21, 2018
    967
    750
    Essex
    #9 Glyn Phillips, Jan 26, 2019
    .




    • Like Like x 3
  10. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #10 Ashtons99, Jan 26, 2019
    Last edited: Jan 26, 2019
    Glyn.
    It seems that circlips are measured from outside of one side to inside of other. Any chance you can get verniers out again. Could you also measure thickness just to be on safe side. Sorry to be a pain [​IMG]

    • Like Like x 1
  11. Glyn Phillips

    Glyn Phillips Old’N’Slow

    Jun 21, 2018
    967
    750
    Essex
    #11 Glyn Phillips, Jan 26, 2019
    Will do mate, but it’ll be tomorrow

    • Like Like x 1
  12. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #12 Ashtons99, Jan 26, 2019
    No rush, appreciate your help

    • Agree Agree x 1
  13. Glyn Phillips

    Glyn Phillips Old’N’Slow

    Jun 21, 2018
    967
    750
    Essex
    #13 Glyn Phillips, Jan 26, 2019
    • Agree Agree x 1
  14. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #14 Ashtons99, Jan 26, 2019
    Thanks Glyn.
    I can find it on there but can’t find that measuring system on eBay circlips. They all seem to be measured as my previous post.
    If you get 5 mins some time. Thanks again

    • Agree Agree x 1
  15. Glyn Phillips

    Glyn Phillips Old’N’Slow

    Jun 21, 2018
    967
    750
    Essex
    #15 Glyn Phillips, Jan 27, 2019

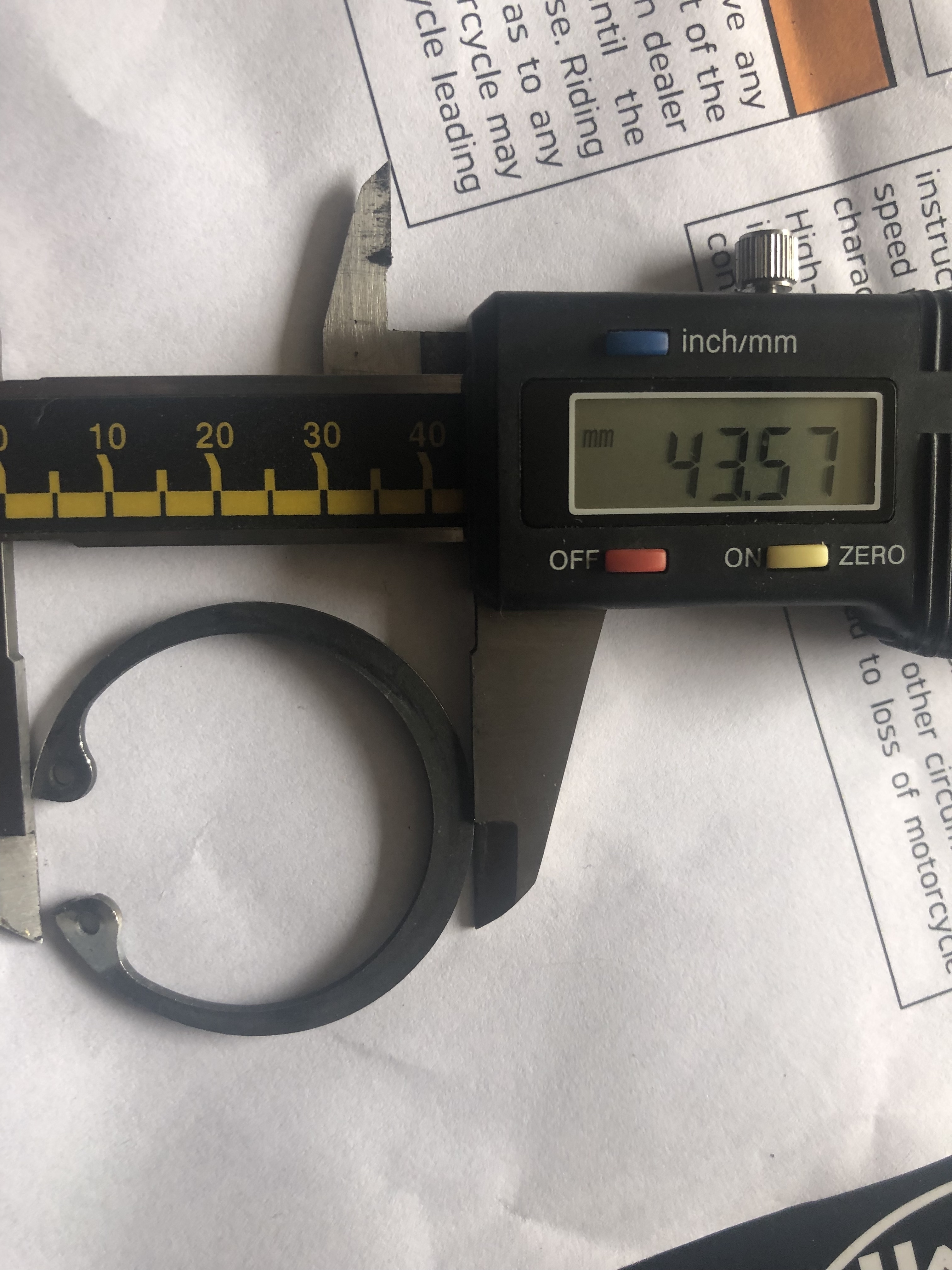

    That’s as close as I can hold it as it’s in and out


    • Like Like x 1
  16. Ashtons99

    Ashtons99 Well-Known Member

    Nov 11, 2018
    69
    68
    Doncaster
    #16 Ashtons99, Jan 27, 2019
    That’s great Glyn. Thanks so much for your time and effort on this. Much appreciated

  17. Glyn Phillips

    Glyn Phillips Old’N’Slow

    Jun 21, 2018
    967
    750
    Essex
    #17 Glyn Phillips, Jan 27, 2019
