Usb Port Replacement On My Street Twin

Discussion in 'Technical Help' started by Sam Wells, Jan 8, 2024.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Sam Wells

    Sam Wells Well-Known Member

    Apr 2, 2022
    20
    53
    Bristol
    Good evening all, my underseat usb port has failed on my Street Twin and I have established that the fault is the short length of cable between the socket and where is plugs in about 10 inches down stream. Before I spend out on a new one from Triumph, has anyone fitted a more robust option to the plastic socket?


  2. Eldon

    Eldon Elite Member

    Nov 14, 2018
    4,166
    800
    North Yorkshire
    I fitted one onto the handlebars, so with a quadlock and short lead all good.
    It seems a strange idea to me having it under the seat.

  3. beerkat

    beerkat Senior Member

    Aug 14, 2019
    840
    243
    Cheshire UK
    I've had the same issue as Sam Wells and I know another owner who also had the underseat USB fail. So Eldon, which one have you fitted?
    I'll also be asking a similar question elsewhere.

  4. Sam Wells

    Sam Wells Well-Known Member

    Apr 2, 2022
    20
    53
    Bristol

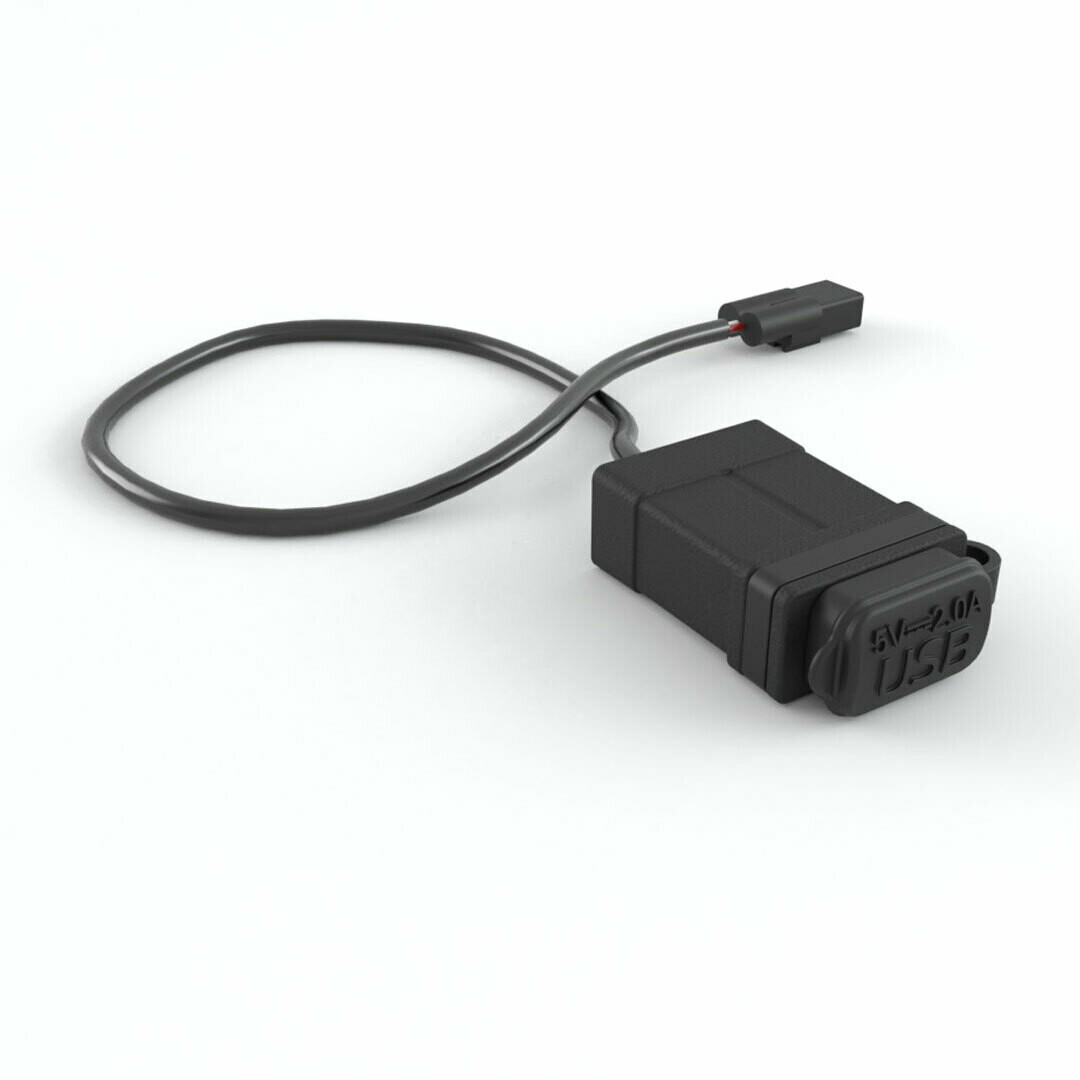

    I ended up buying the genuine Triumph lead for anout £25 all works fine now!

  5. learningtofly

    learningtofly He’s not the Messiah, he’s a very naughty boy!
    Subscriber

    Sep 25, 2018
    1,986
    1,000
    Hertfordshire
    #5 learningtofly, Feb 23, 2024
    Last edited: Feb 23, 2024
    I just had the OEM cockpit USB fitted when I bought the bike. It’s perfect, and having spent £14k on the bike I was hardly going to skimp on another 30!

  6. Eldon

    Eldon Elite Member

    Nov 14, 2018
    4,166
    800
    North Yorkshire
    I just used a cheap handlebar mounted ebay one for about £12 IIRC.
    I previously used a fly lead I had installed under the seat on a Honda. A few days into one Outer Hebrides trip saw me get off at a petrol station and absent mindedly rag the cable as my phone was in my pocket. Luckily the phone charging port wasn't damaged, just the lead was no longer any use.

    Handlebar mounted is the way to go and hard wire it direct to the battery with an inline 3A fuse.

  7. beerkat

    beerkat Senior Member

    Aug 14, 2019
    840
    243
    Cheshire UK
    Any chance of a pic or two?

  8. learningtofly

    learningtofly He’s not the Messiah, he’s a very naughty boy!
    Subscriber

    Sep 25, 2018
    1,986
    1,000
    Hertfordshire
    No, sorry - I’m in hospital right now having just had major surgery. Just buy it & have it fitted, it’s chump change.

  9. beerkat

    beerkat Senior Member

    Aug 14, 2019
    840
    243
    Cheshire UK
    You've talked me into it, I'll do it at the next service. Get well soon (grapes and Lucozade in the post ;)).

    • Thanks Thanks x 1
    • Agree Agree x 1
  10. learningtofly

    learningtofly He’s not the Messiah, he’s a very naughty boy!
    Subscriber

    Sep 25, 2018
    1,986
    1,000
    Hertfordshire
    #10 learningtofly, Feb 24, 2024
    Last edited: Feb 24, 2024
    Thanks matey :)

    Remember to ask for the cockpit version.

    • Like Like x 1
