Triumph Trw500

Good afternoon everyone,
I have fitted the original rack onto my civillianised Triumph TRW500 with the bolt brackets at the top.
I am trying to find out how the pannier rack is steadied at the bottom edge ie- what original fittings were used.
I cannot find any photographs as it is not in the downloaded technical manual i have downloaded.
Any suggestions or info Please...
Regards
Jeff

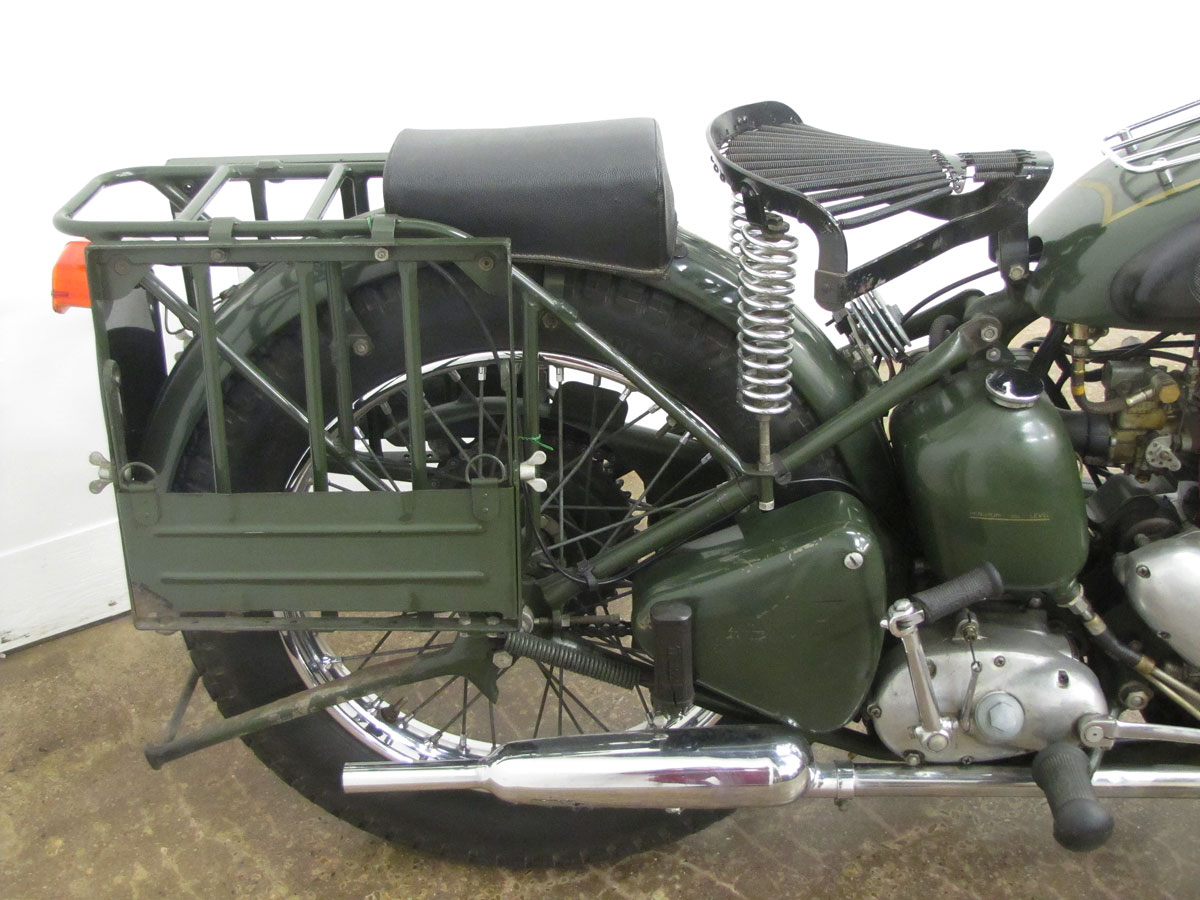

Thank you Crispey for the pictures, the top pictue wont zoom for some reason but its a start.
it looks like an "angle "bracket to an upright on the carrier frame at the front.
I think i will try looking at a pannier frame as well to see what is supplied .



Hi Darkman, I have tried google pictures but its the time needed to trawl through them. maybe the only option unless someone else owns one with standard panniers !
Thanks Jeff
