Triumph #t3880330 Camshaft Locking Pin Tool

Discussion in 'Technical Help' started by Dave Caddy, Oct 30, 2024.

  1. Dave Caddy

    Dave Caddy Member

    May 19, 2018
    35
    18
    Somerset
    #1 Dave Caddy, Oct 30, 2024
    Attempting to make Camshft Locking Pins prior to carrying out check on valve clearances on my 2011 T100.

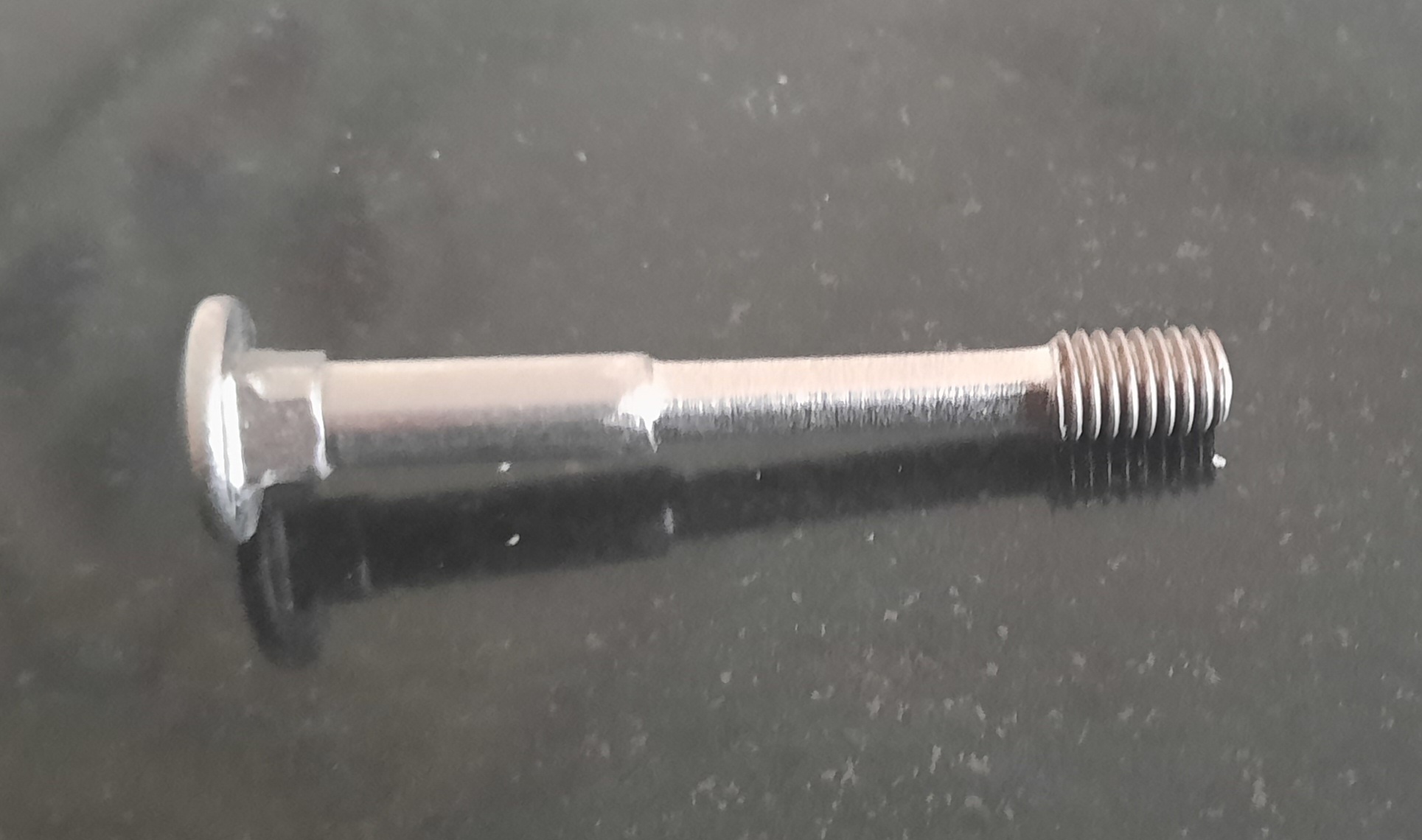

    I have some M6 Coach bolts and have filed down the threaded section to 4mm.
    Can anyone advise the minimum lengths of each section? Currently I have 15mm of 6mm dia and 20mm of 4mm dia. (The threaded end has been held in my drill chuck to get a nice round 4mm section and will be cut off).


  2. Samsgrandad

    Samsgrandad Senior Member

    Dec 15, 2019
    662
    243
    Somerset
    #2 Samsgrandad, Oct 30, 2024
    Hi Dave,

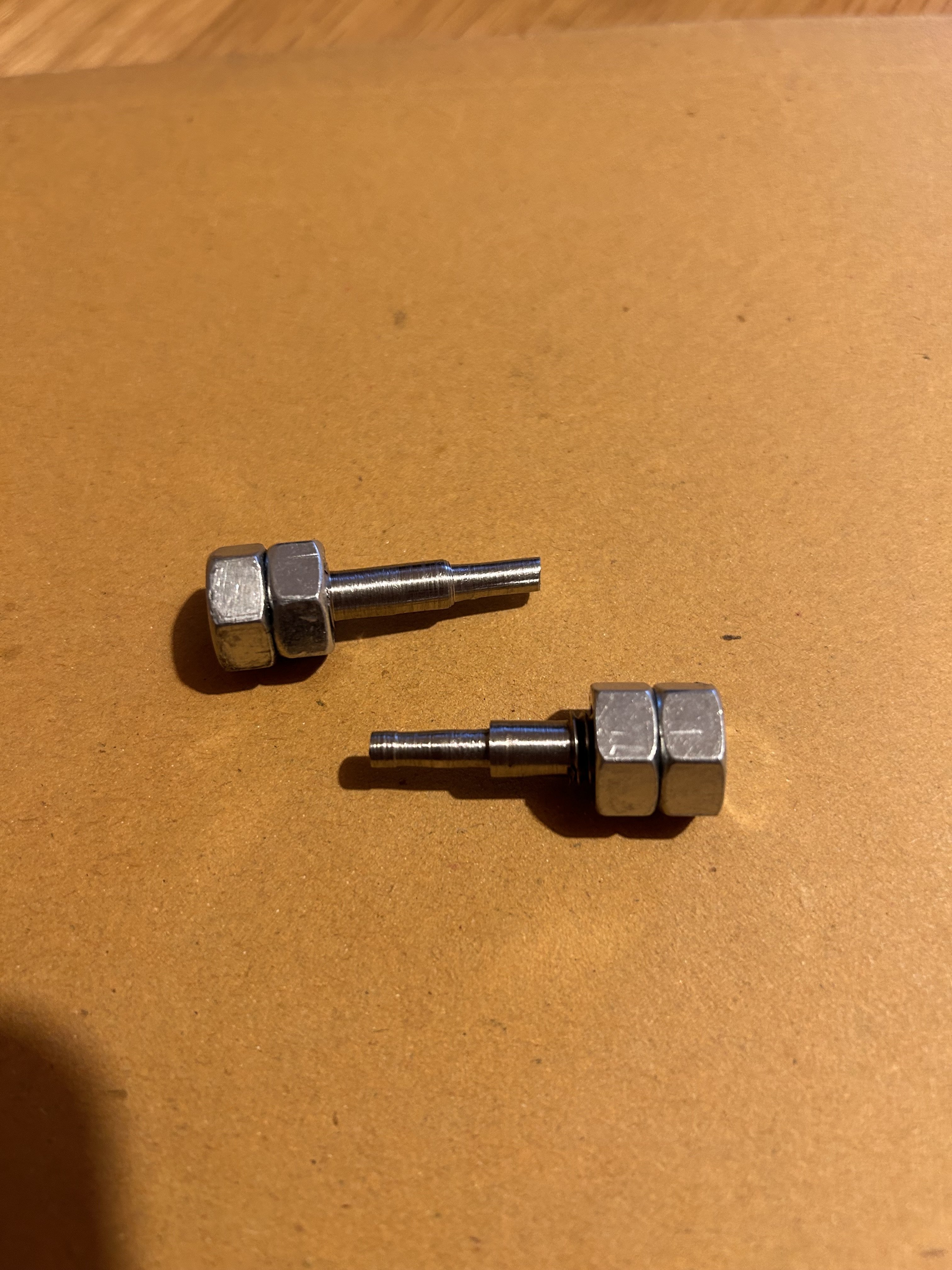

    Whereabouts in Somerset are you? I have a pair of crankshaft locking pins which I made and used on my 2006 T100.
    You are welcome to them as I have sold the T100 and am unlikely to buy another one.
    I am near Langport. If you are fairly local then you are welcome to come and get them.


    • Like Like x 5
  3. Dave Caddy

    Dave Caddy Member

    May 19, 2018
    35
    18
    Somerset
    #3 Dave Caddy, Oct 30, 2024
    Thanks for the offer, Im in Crewkerne so will contact you next week if thats OK

  4. Samsgrandad

    Samsgrandad Senior Member

    Dec 15, 2019
    662
    243
    Somerset
    #4 Samsgrandad, Oct 30, 2024
    PM sent
