Discussion in 'Builds & Projects' started by darkman, Oct 27, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth

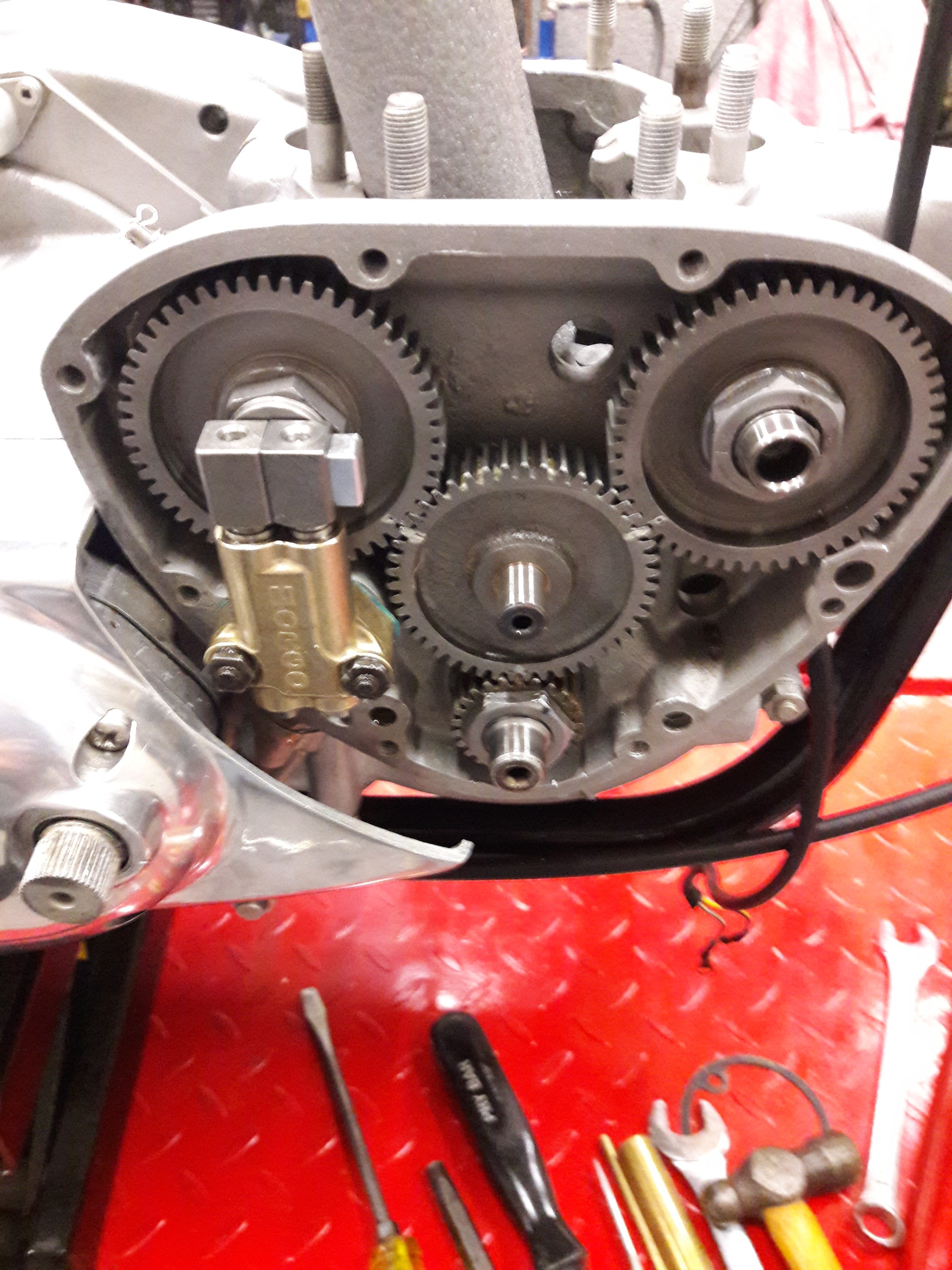

    So the Daytona restoration has to take a back seat for a few weeks as i strip n build a new motor, the motor was supposed to have been rebuilt awhile back lol and the problem was a flickering oil light on tickover but ran real nice otherwise. So out with the oil switch to test another only to find loads of sealer floating around in the oil :-( at this point i decided to remove the timing cover and that's when i decided to rebuild the motor myself as this is what i found, some twat had fitted the intermediate spindle the wrong way round :eek: Engine out and full strip n check and it looks like a few new parts and i will have a nice motor to fit back in soon :)


    • Like Like x 6
  2. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth

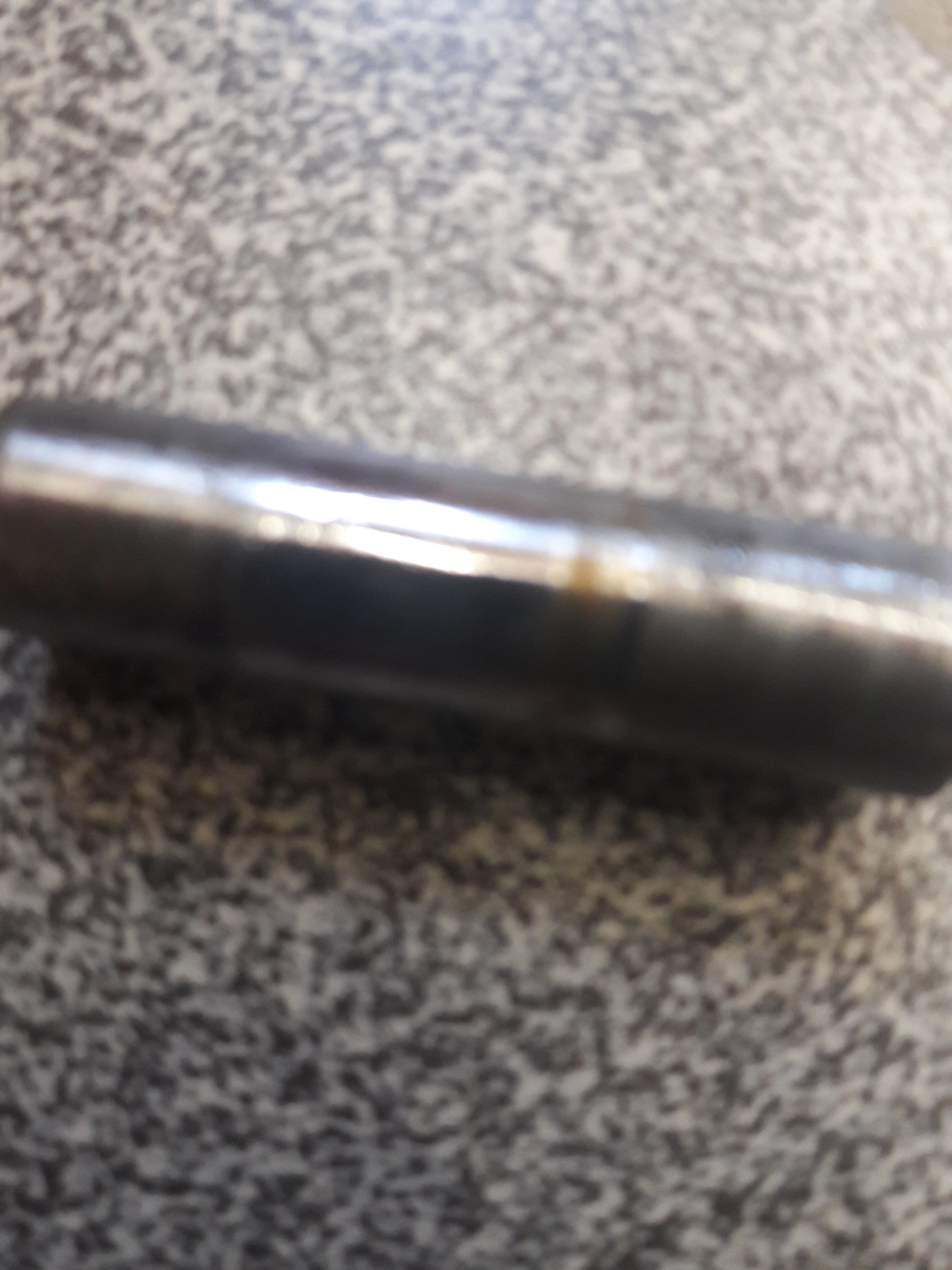

    Progress at last, engine stripped and new parts sorted. Managed to get the incorrectly fitted intermediate shaft out and the badly fitted camshaft bearings out today so the cleaning and rebuild can start :)



    • Like Like x 5
  3. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth
    At last, managed to sort out a special tool for reaming the camshaft bushes :) hope to start some rebuilding work soon.


    • Like Like x 8
  4. Sprinter

    Sprinter Elite Member
    Subscriber

    Aug 17, 2014
    3,098
    800
    Grampian.
    Its greek to me but Im glued

    • Funny Funny x 2
    • Like Like x 1
    • Agree Agree x 1
  5. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth

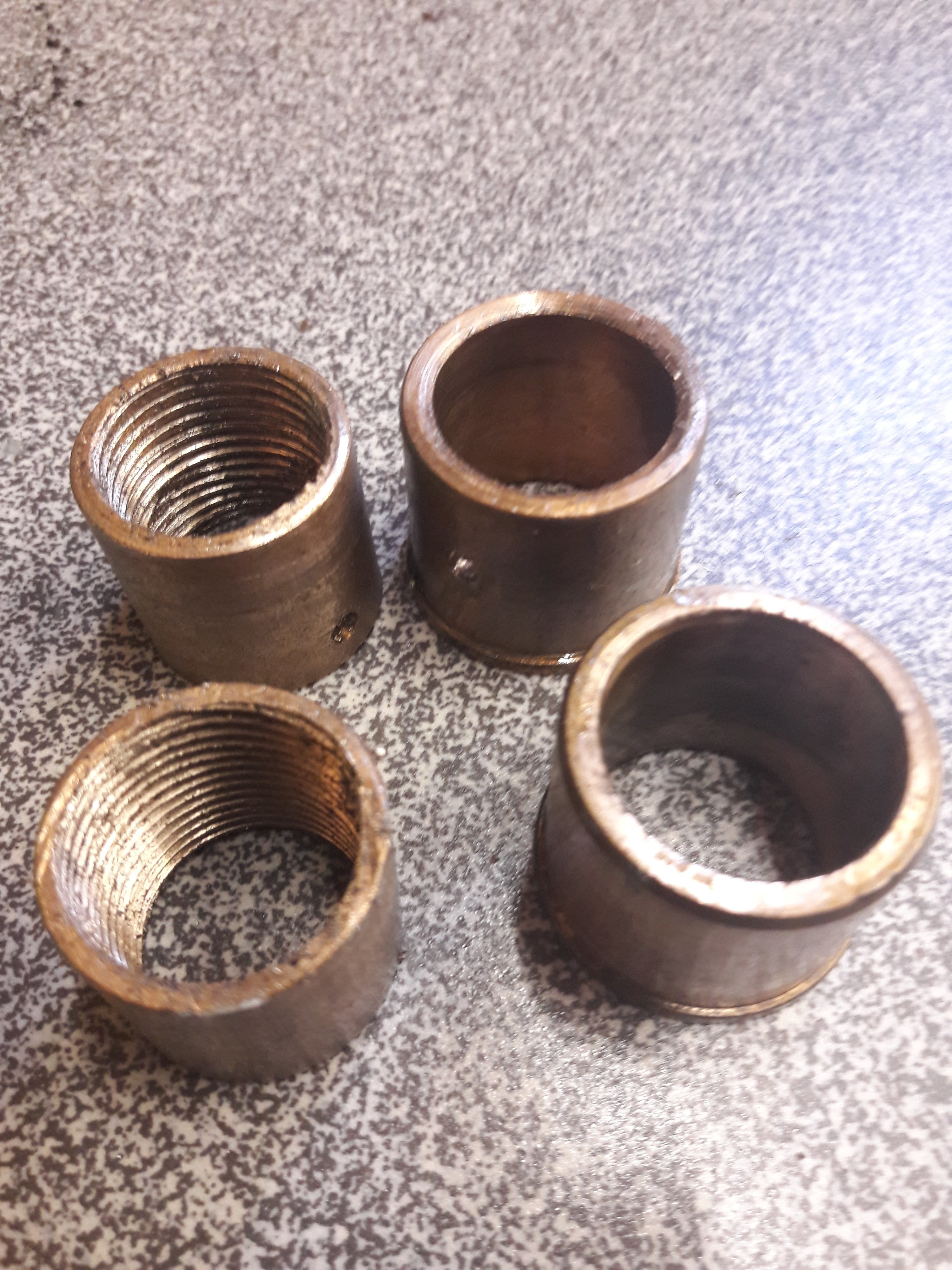

    Great new today as i managed to fit the new cam bushes and ream them after cleaning the cases earlier in the week so i can now start the nice bit of building the motor :)



    • Like Like x 5
  6. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth

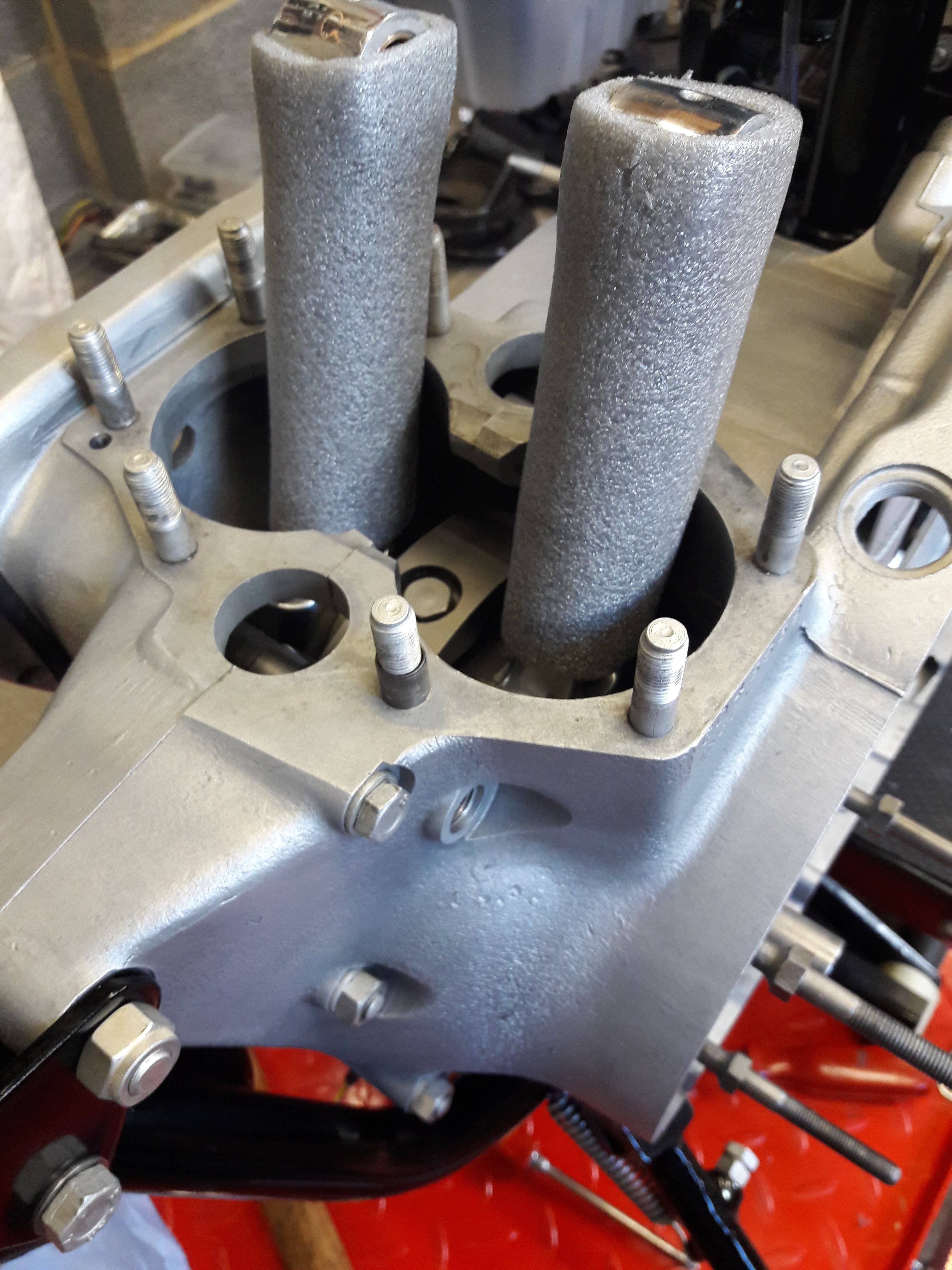

    This weekend i have built the bottom end and fitted it back in the frame, new rods n shells, new cams n bushes, new crank bearings so all should be well, gearbox and primary side next.



    • Like Like x 5
  7. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth
    Its turning into a total rebuild lol, fitted some new shocks to the rear as well this afternoon :)



    • Like Like x 5
  8. Dozers Dad

    Dozers Dad Bushmills Chief Quality Controller
    Subscriber

    It's looking the dogs bits (as your rebuilds always do) darkman.
    Will you be taking the opportunity to relocate the gear change onto the correct side? :cool: :p

    • Like Like x 1
    • Funny Funny x 1
    • Agree Agree x 1
  9. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth
    It's never bothered me left or right as long as its correct for the year :)

    • Like Like x 3
    • Agree Agree x 1
  10. Dozers Dad

    Dozers Dad Bushmills Chief Quality Controller
    Subscriber

    Respect!
    Coz I can never easily swap sides without hysterical consequences for those watching :rolleyes:
    A mate used to own an early Enfield 500 Bullet.
    Not only was the gear lever on the "wrong" side.
    It was 1 up & the rest down. I swear he only allowed me to ride the feckin thing when he needed a laugh! :confused:

    • Funny Funny x 5
    • Agree Agree x 1
  11. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth
    Lol, BSA twins of old are the same, up then down. I guess as i ride both classic and modern bike regularly it's imprinted in me head somewhere :)

    • Agree Agree x 4
    • Like Like x 2
  12. Adie P

    Adie P Well-Known Member

    Jul 7, 2018
    297
    63
    MID DEVON

    Darkman, do you mind me asking if your cases were shot, bead or aqua blasted? And who did them, please?

    Many thanks,

    Adie

    • Agree Agree x 2
    • Like Like x 1
  13. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth
    I do them myself Adie, i use a coarse glass for any areas i repair or detail and fine glass beads to clean and finish off. If you are paying someone to do some work for you go for aqua blasting :)

    • Like x 4
    • Thanks x 1
    • Useful x 1
    • Agree x 1
    • Cheers x 1
  14. Adie P

    Adie P Well-Known Member

    Jul 7, 2018
    297
    63
    MID DEVON
    Hmmmm - OK, thanks for the reply and advice. Most helpful and much appreciated.

    Did you make your own blast cabinet or buy a proprietary one? I've got a LOT of restoration work to do so I'm thinking of getting my own cabinet for the run of the mill stuff (no pun intended) and use commercial/specialist aqua blasting for the motor internals or delicate parts, etc.

    I imagine even a medium msized cabinet would pay for itself eventually - depending on the blast media costs!

    Thanks again, Darkman - and my compliments on the work. Looks amazing.

    Adie

    • Like Like x 2
    • Agree Agree x 1
  15. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth
    As my workshop is alot smaller than my old one i just make a frame out of dustbins and hang sheets from it outside lol i did have a big cabinet at the old workshop and it was far easier.

    • Like Like x 2
    • Agree Agree x 1
  16. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth

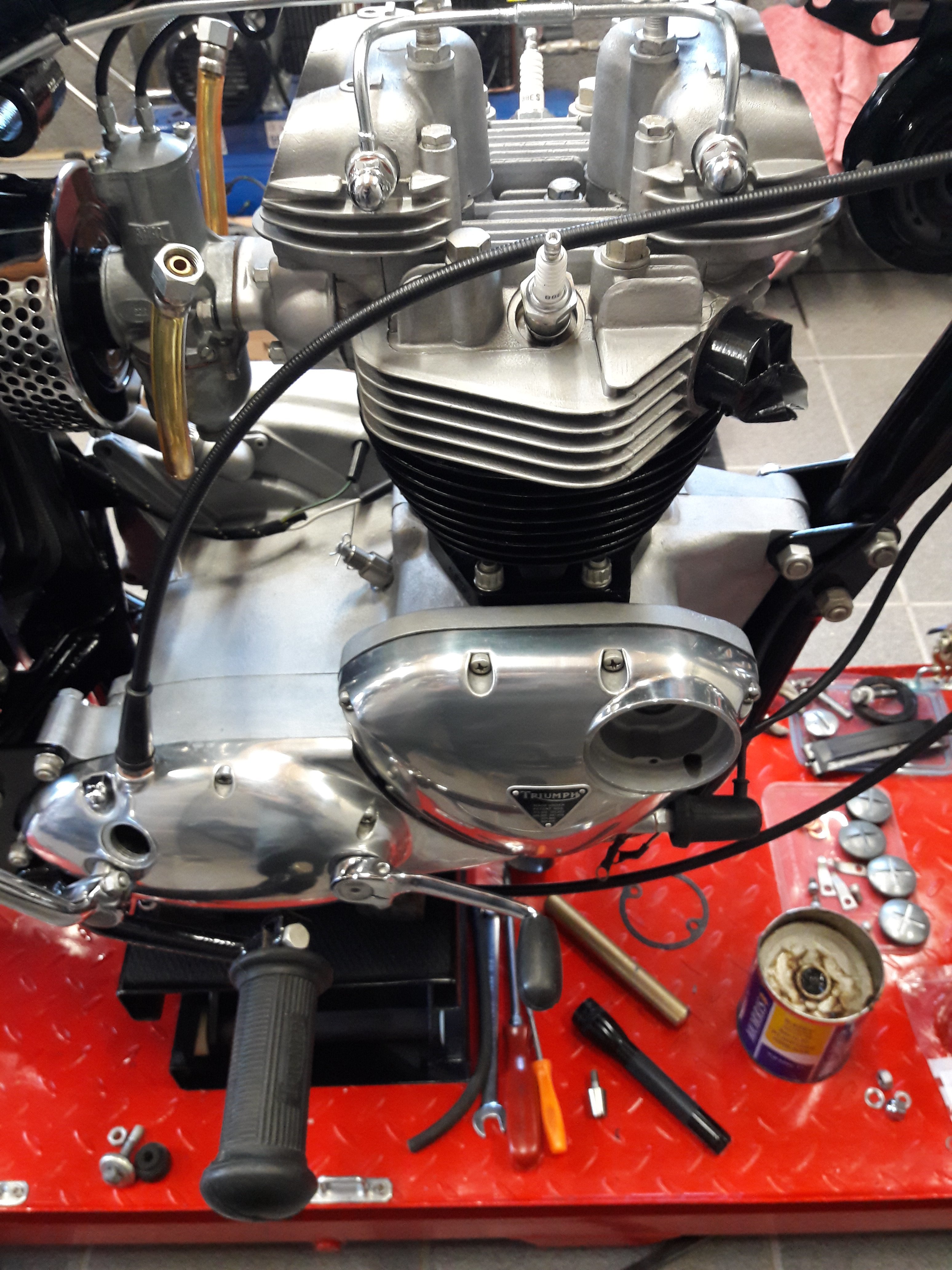

    Another job done, wish i had done it with the engine out as its far easier on its side but makes the engine to heavy for me to lift in then, fought me all the way but gearbox is back in and cams timed up.



    • Like Like x 5
  17. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    3,841
    1,000
    Washington Tyne & Wear
    Looking good mate :cool:

    • Like Like x 2
    • Agree Agree x 1
  18. Adie P

    Adie P Well-Known Member

    Jul 7, 2018
    297
    63
    MID DEVON

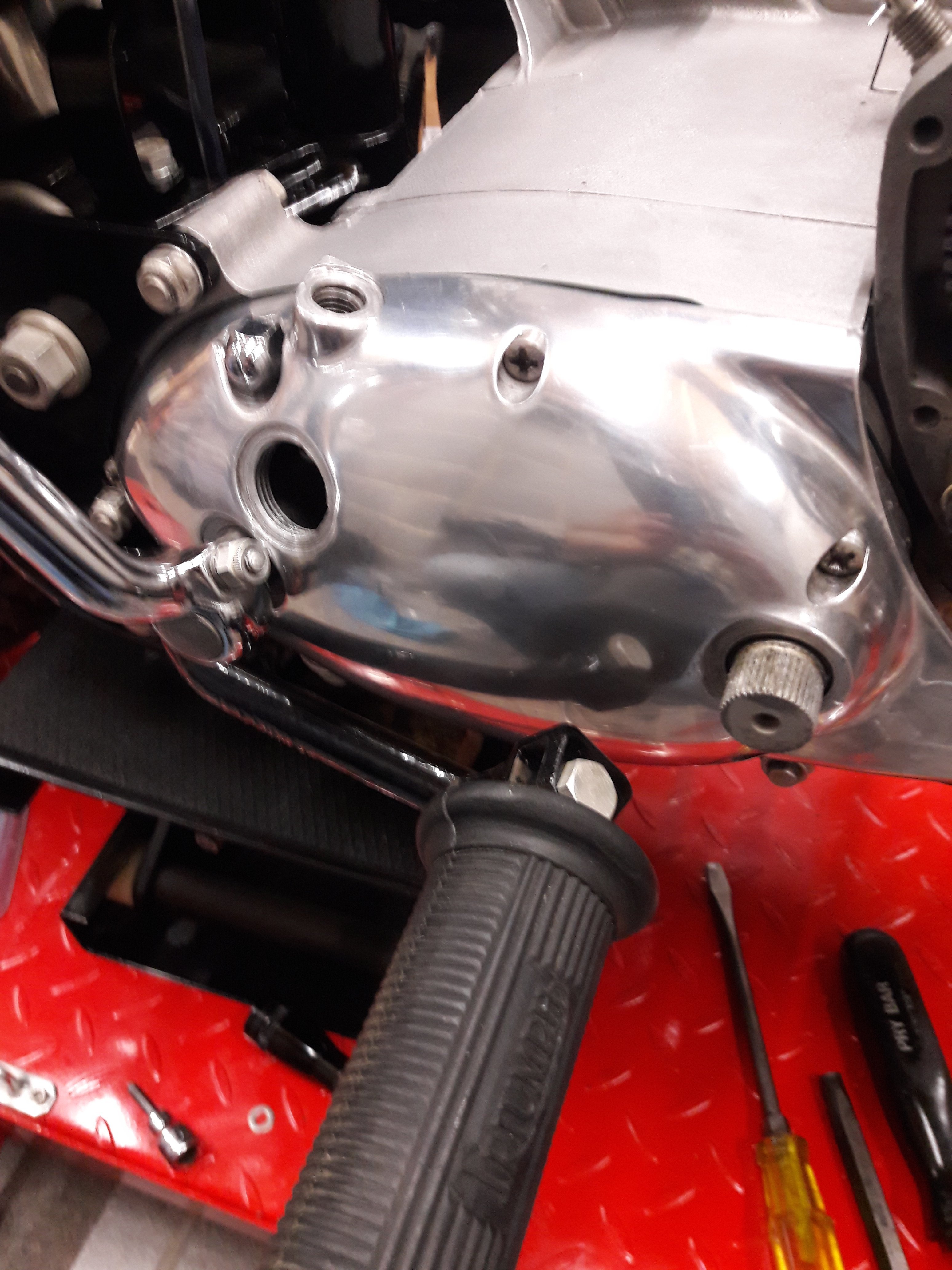

    That looks fantastic! And SO nice to see that you're using cross head machine screws rather than Allen screws in the case covers! Can you still get the proper, original style cross head case screws or did you salvage those?

    • Like Like x 1
    • Agree Agree x 1
  19. darkman

    darkman First Class Member

    Oct 26, 2015
    1,354
    500
    Southcoast of the UK Earth
    These are the originals, yes you can still get them :)

    • Like Like x 1
    • Thanks Thanks x 1
    • Useful Useful x 1
    • Agree Agree x 1
  20. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    1,748
    1,000
    south shields
    Great work Darkman, when you do a job you do it more than right better than new. well done keep up the good work. :cool::cool::cool::cool::cool::cool:

    • Agree Agree x 4
    • Like Like x 2
