Thunderbird Rear Suspension

Discussion in 'Technical Help' started by Naked Wanderer, Jun 5, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Naked Wanderer

    Naked Wanderer New Member

    Apr 7, 2017
    3
    3
    North Yorkshire
    Hi There,

    Recently purchased a 2014 Thunderbird, which I am very happy with.

    Rear suspension is set to 1, which is solo rider.

    I wanted to take a pillion for a long ride and the manual advises setting suspension to 5.

    I located the question mark tool under the pillion seat, which is for adjusting the suspension.

    The problem is, the end of the tool does not fit in the holes, which allows the adjustment to be made.

    I am either doing something wrong, or the tool is badly made.

    Any thunderbird riders out there that have had similar problems?


    Thanks for any advice.

    Raz.

  2. Hack Driver

    Hack Driver Well-Known Member

    Oct 12, 2017
    455
    63
    Denton, Maryland USA

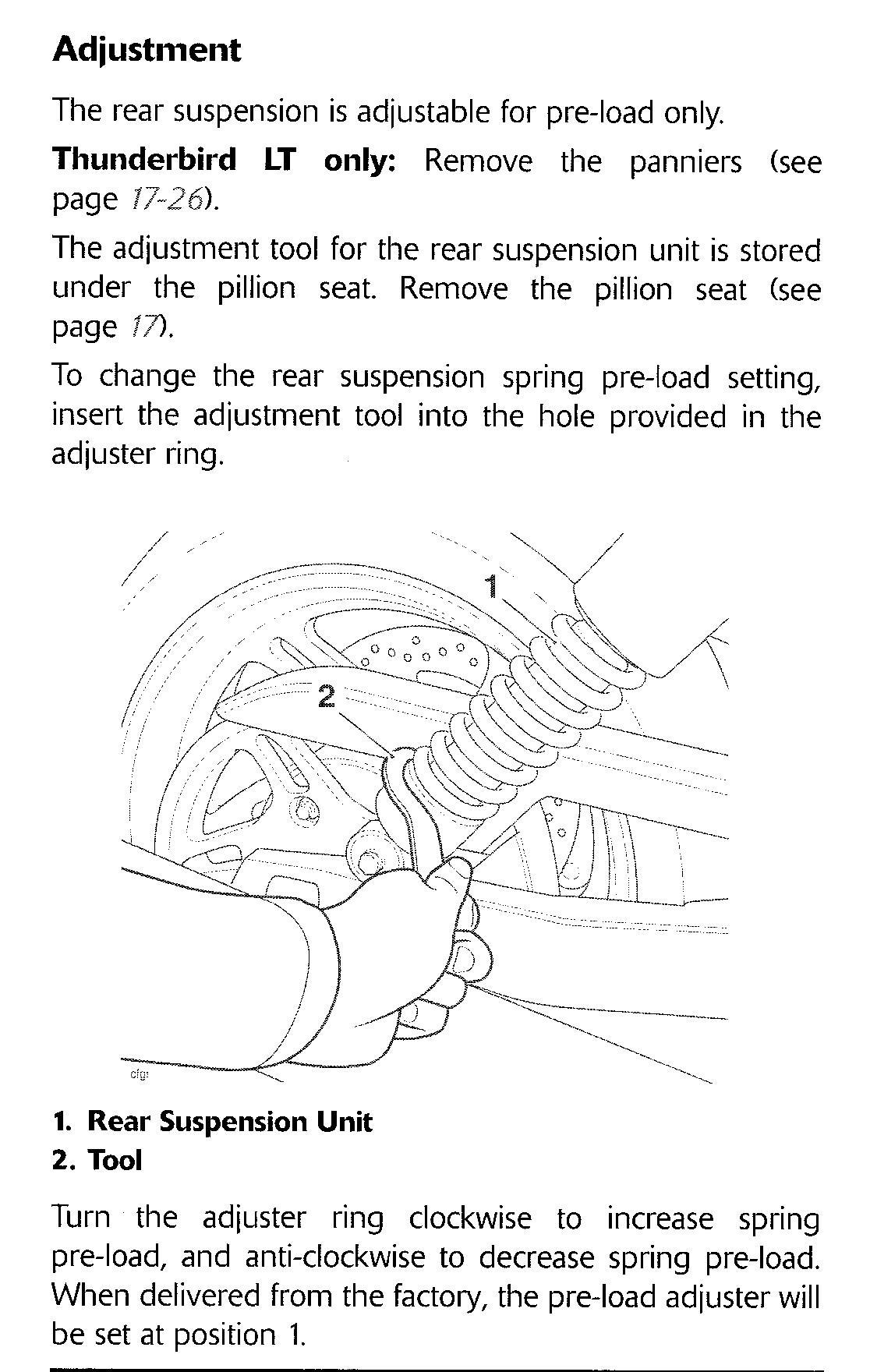

    Just in case you aren't using the tool the right way, here is the diagram for it's proper use. You may also want to push on the curved part of the tool to keep it from slipping out of the hole. If this is what you are doing, the tool may be the wrong one for the bike, or the nib may be worn down which isn't likely.


    • Like Like x 1
  3. Graham.db

    Graham.db Member

    Sep 26, 2016
    22
    18
    Wiltshire
    Setting will all so depend on the weight of your passenger, me and the wife, is set on 4, 5 was to hard, try them all, see what suits you, not what the book says

  4. Naked Wanderer

    Naked Wanderer New Member

    Apr 7, 2017
    3
    3
    North Yorkshire
    Thank you for your reply.
    I have used the tool as shown, I take it the 'nib' fits into the holes shown under 1, 3 and 5 settings?
    If so there is no way the nib will fit.

  5. Graham.db

    Graham.db Member

    Sep 26, 2016
    22
    18
    Wiltshire
    Take a trip to your local dealer, all will be well,

  6. Tucker 1963

    Tucker 1963 Elite Member

    Sep 7, 2017
    3,451
    800
    Newmarket
    Me and the wife have it set on 3 tried all the settings and 3 was the best for us.
    You might need a long bar too go over the tool handle when you want too go lower.
    Tucker: unamused: _20180607_020345.jpg

    • Funny Funny x 1
  7. Naked Wanderer

    Naked Wanderer New Member

    Apr 7, 2017
    3
    3
    North Yorkshire

  8. Naked Wanderer

    Naked Wanderer New Member

    Apr 7, 2017
    3
    3
    North Yorkshire
    Thank you everyone, for the helpful advice.
    Went to the Triumph dealer in York and bought the correct C spanner.
    Suspension now set at 5 and will experiment from there, to find the best setting for our lass and I.

    • Like Like x 1
