Thruxton (05) Clutch Cover, Push Rod ?

Discussion in 'Technical Help' started by Dazzzzz, Apr 2, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Dazzzzz

    Dazzzzz New Member

    Apr 2, 2018
    4
    3
    Australia
    Hi all,

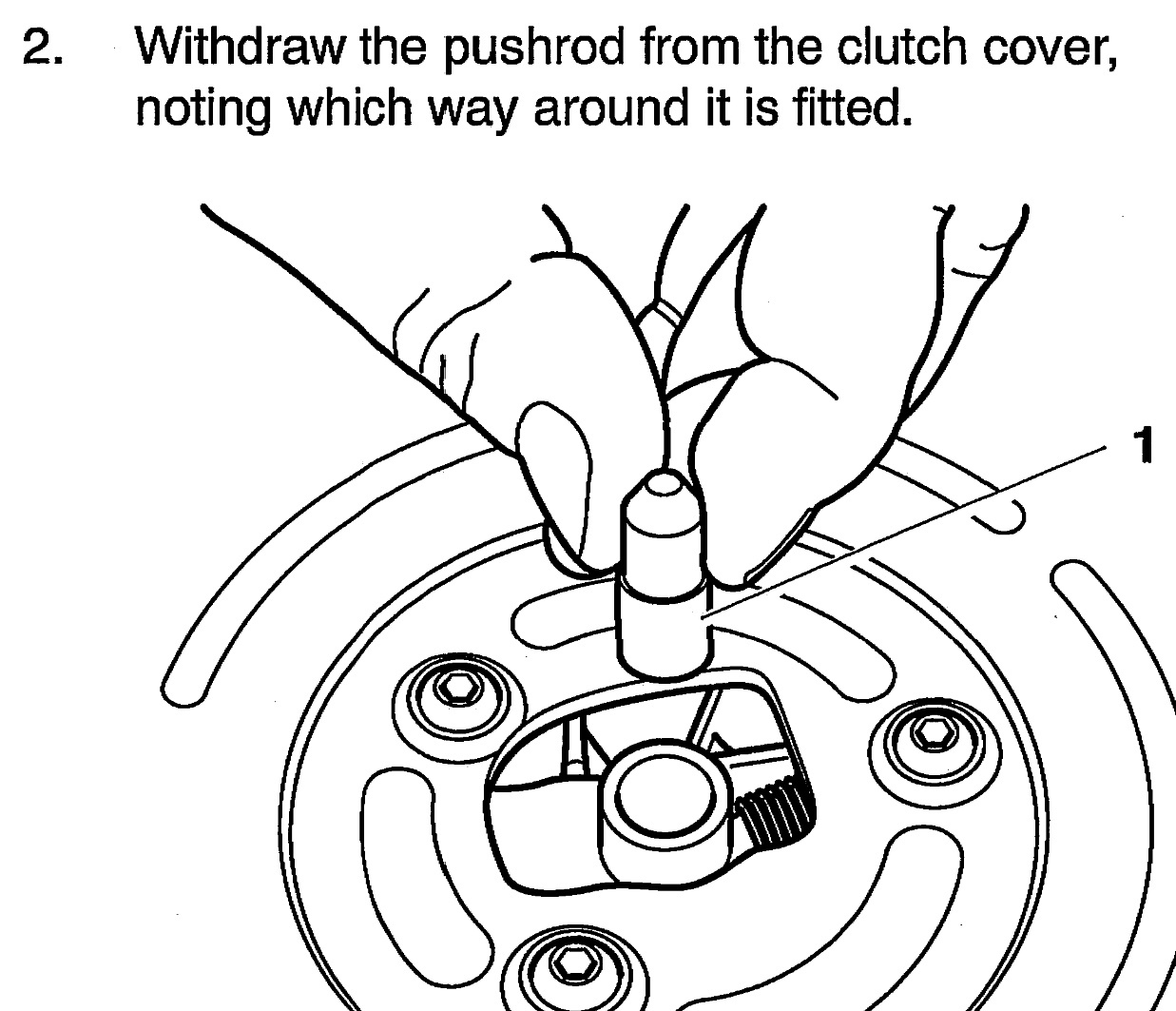

    I have tried looking into the SM but the comments say “Withdraw the pushrod, noting which way around it is fitted” .....but I didn’t get a chance as it dropped out. My fault as I pulled the covers for polishing before I sourced the SM.
    What direction is the rounded end ment to be located?
    Many thanks.

  2. Dazzzzz

    Dazzzzz New Member

    Apr 2, 2018
    4
    3
    Australia
    Pushrod rounded end point towards engine.
