Tiger 800 Taking Of Front Sprocket Cap

Discussion in 'Tiger / Explorer' started by XCx800, Jan 12, 2019.

  1. XCx800

    XCx800 New Member

    Nov 10, 2018
    2
    3
    Belgium
    #1 XCx800, Jan 12, 2019
    Needs to be don in near future because of leaking grease on the floor.
    On my Transalp it was a easy job ,on the Tiger looks different....

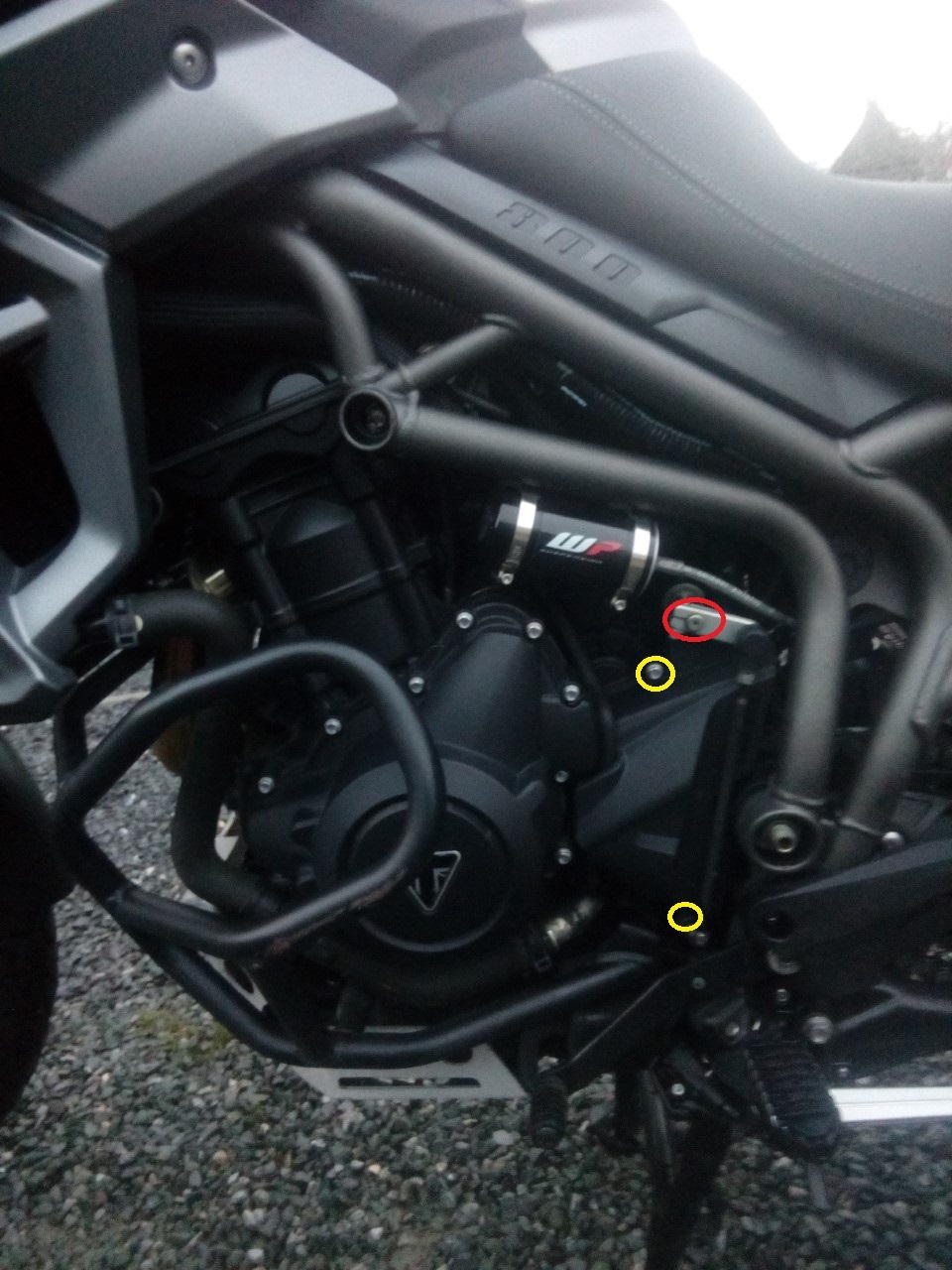

    What is the regular way? First loosen this bolt (see red dot in picture) so that i can slide away the long bar attached to it and then loosen these 2 bolts (see yellow dots ,lowest bolt not visible) so the cap is free to be taken of?

    Is there a technical handworkbook available on the Tiger 800 XCx?


  2. Sprinter

    Sprinter Kinigit

    Aug 17, 2014
    5,995
    1,000
    uk
    #2 Sprinter, Jan 12, 2019
    • Like Like x 1
  3. Sandalfarm

    Sandalfarm New Member

    Dec 23, 2017
    24
    3
    Scottish highlands
    #3 Sandalfarm, Jan 19, 2019
    That's what I did and filed a groove to line up the groove in the split of the gear selector , hope this makes sense after a bit of wine

    • Useful Useful x 1
  4. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,280
    1,000
    Uk
    #4 crispey, Jan 20, 2019
    Yup as he says mark the spline on gear selector for easy relocation

  5. Tiglet

    Tiglet Vintage Member

    Mar 28, 2016
    4,434
    1,000
    Cheshire
    #5 Tiglet, Jan 20, 2019
    Is there not a punch mark on the gear selector shaft that lines up with the slot in the clamp.

    There was on my 2013 Tiger800

    • Agree Agree x 1
