    #1 MrAliT, May 28, 2020
    Hi All

    Im in the midst of putting a Daytona T595 back together and have got stuck on a couple of cables and their destinations.

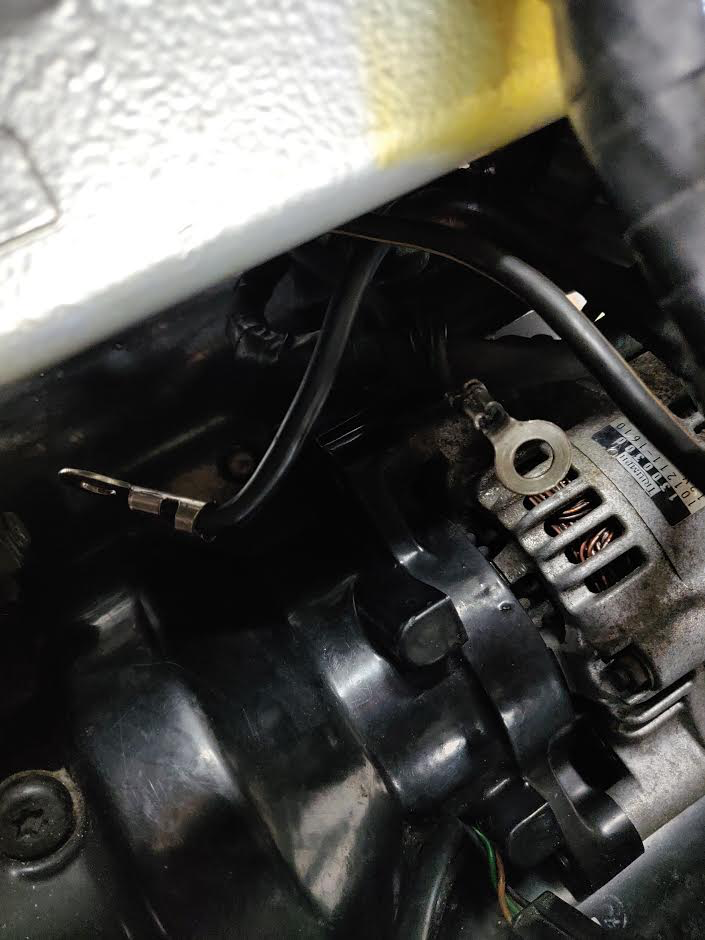

    From the starter solenoid there are 2 black earth wires. These are both short but I can't see anywhere to ground them near the solenoid...any ideas?

    I also have a long black with white (maybe yellow...it's pretty old) wire...where does this go? Pics attached below and any help gratefully appreciated.

    Alistair

    image.png image.png
