T595 Daytona Fuel Leak

Discussion in 'Technical Help' started by Tommo64, Dec 12, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Tommo64

    Tommo64 New Member

    Dec 12, 2021
    3
    3
    UK
    I have a 1998 T595 which has a small fuel leak. The fuel is leaking from one of two small nipples on the bottom left side rear of the tank behind the seat bodywork unit. What are they? Drain plugs? One has a rubber seal which I suspect may be perished.

    • Agree Agree x 1
  2. joe mc donald

    Dec 26, 2014
    13,874
    1,000
    slough / burnham
    Tommo64
    Welcome to the family. I would say the o'ring on your fuel connection is perished. Yes also there it an overflow pipe there that does block every so often piece of fine wire usually clears that out. Best chance of knowing is take a couple of pictures and then hit the upload a file button bottom right corner and we can see what it looks like.
    Joe.

  3. Tommo64

    Tommo64 New Member

    Dec 12, 2021
    3
    3
    UK

  4. Tommo64

    Tommo64 New Member

    Dec 12, 2021
    3
    3
    UK

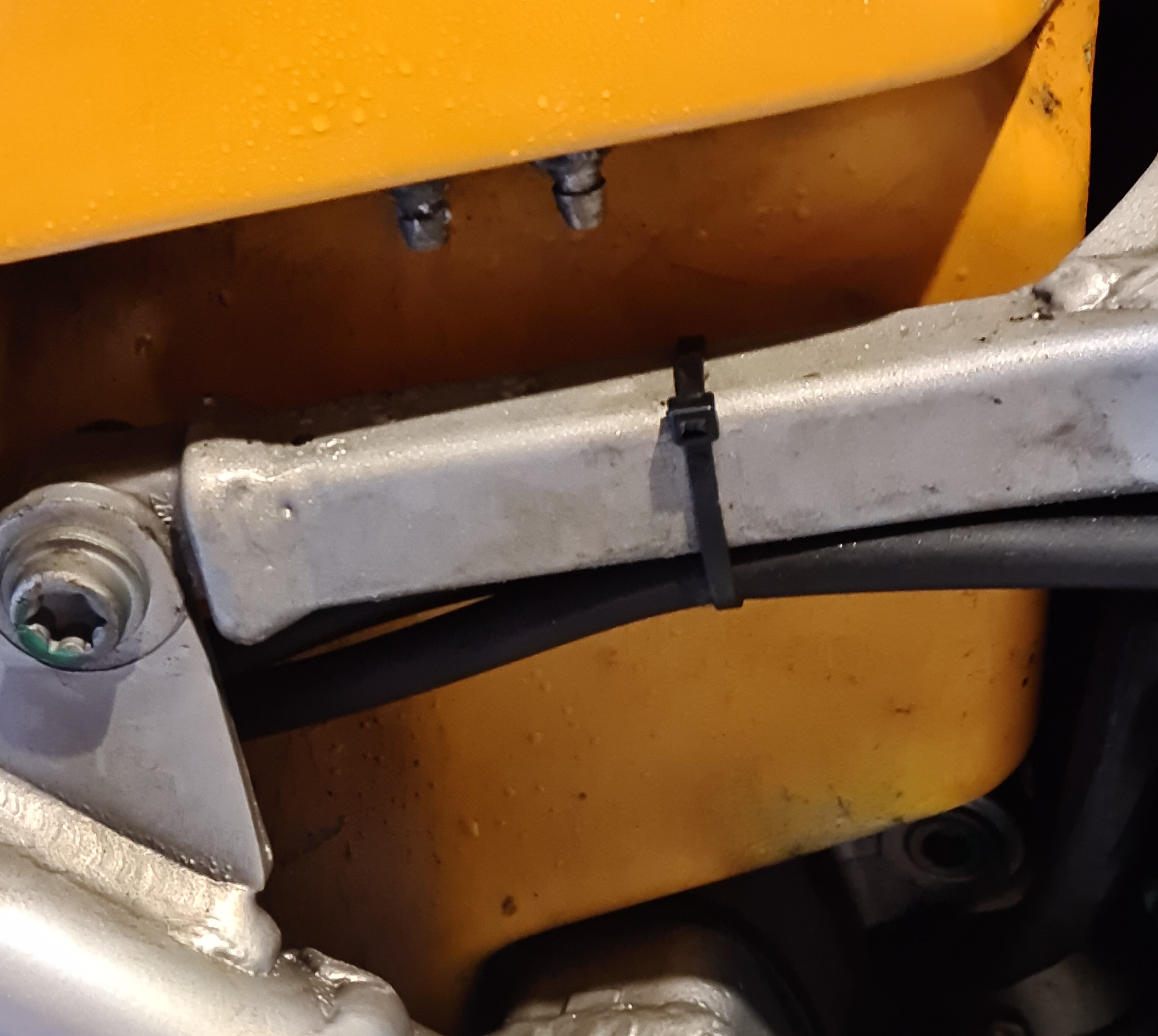

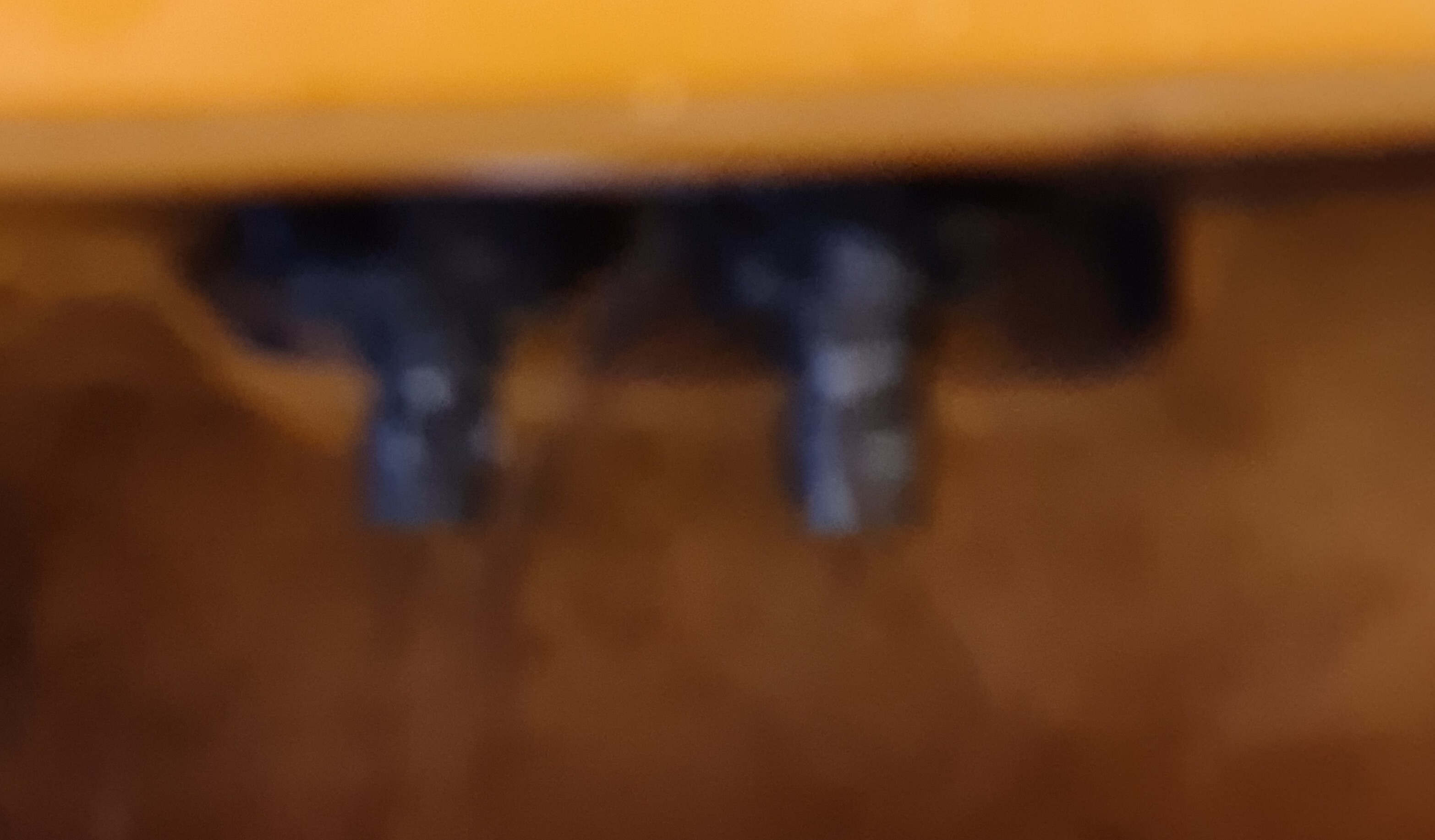

    Best I can get without the file being too large


    • Like Like x 1
  5. Tommo64

    Tommo64 New Member

    Dec 12, 2021
    3
    3
    UK
    • Like Like x 1
  6. joe mc donald

    Dec 26, 2014
    13,874
    1,000
    slough / burnham
    Tommo64
    Yes i would think one of you fuel connectors the o'ring has perished.
    Joe.

  7. Tommo64

    Tommo64 New Member

    Dec 12, 2021
    3
    3
    UK
    Thanks Joe. That's what it looks like

    • Like Like x 1
  8. joe mc donald

    Dec 26, 2014
    13,874
    1,000
    slough / burnham
    Tommo64
    You will be up and running in no time atall.
    Joe
