T140w Tss Help Please!

Discussion in 'Technical Help' started by Chilly, Jun 18, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Chilly

    Chilly New Member

    Jun 17, 2019
    2
    3
    St Neots
    Morning all!
    I have just acquired a 1982 T140w Tss. The engine has had some work done on it (and had a few goodies bought for it as well)

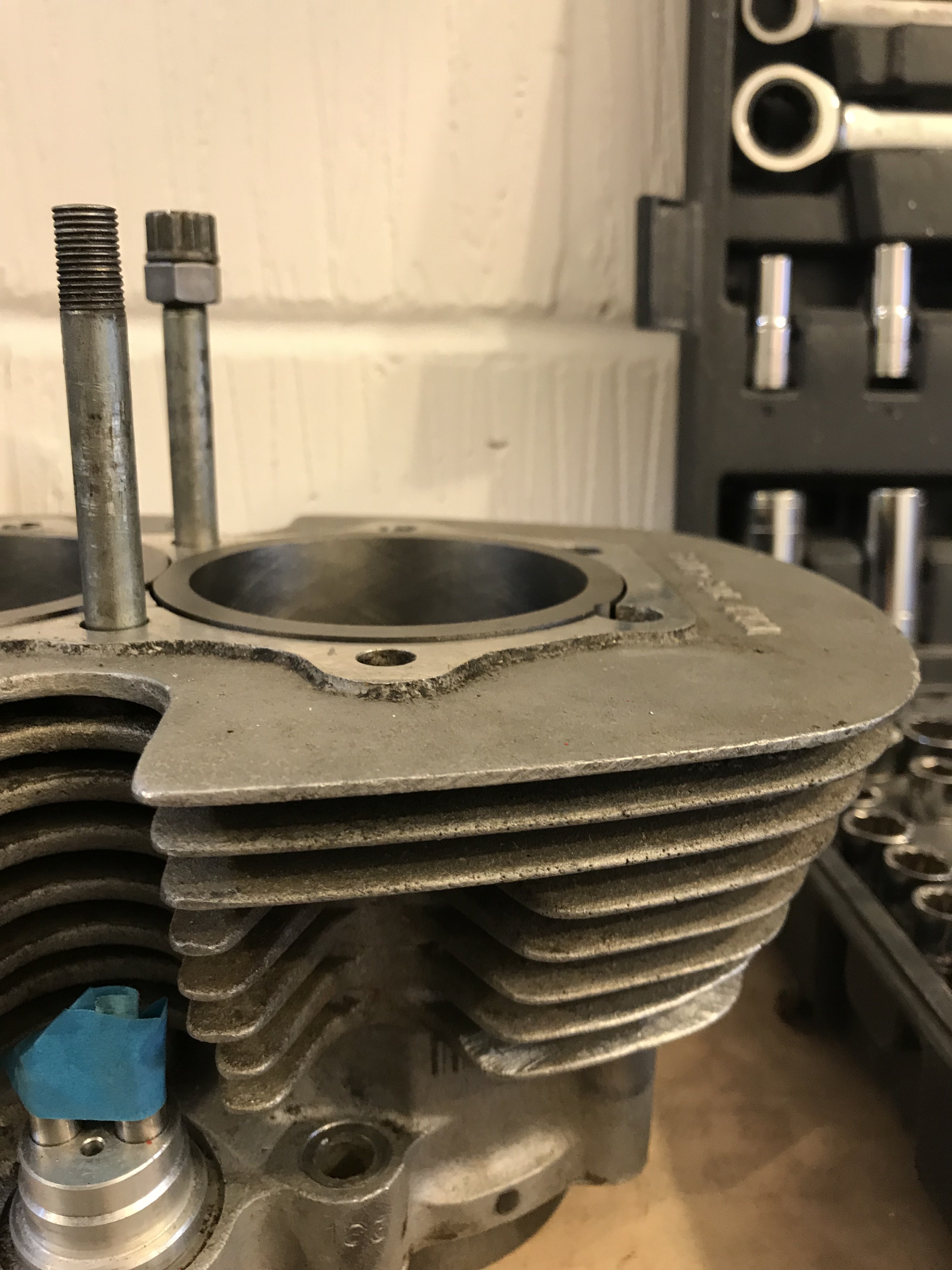

    The barrels have been re sleeved and the sleeves are sitting proud, is this correct? If so does anyone know how much they should protrude by? If anyone has any good links to technical info as well I'd be most grateful. Thanks.

    • Agree Agree x 1
  2. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    2,413
    1,000
    Southcoast of the UK Earth
    I have never seen liners that protrude, sorry i can't help more. Great bikes :)

    • Agree Agree x 2
    • Like Like x 1
  3. Tricky-Dicky

    Tricky-Dicky Senior Member

    Dec 12, 2016
    636
    243
    Norfolk UK
    Me neither have you got pics?

    • Agree Agree x 1
  4. Chilly

    Chilly New Member

    Jun 17, 2019
    2
    3
    St Neots
    Not at the moment, I'll get some later. Cheers.

    • Agree Agree x 1
  5. capt

    capt Senior Member

    May 8, 2016
    1,313
    250
    western Australia
    I'VE only seen liners that protrude on heavy diesel engines. Never heard of it on small engines such as motor cycles. On diesels it helps hold compression by providing protection to Head gasket.

    • Like Like x 1
    • Agree Agree x 1
  6. Chilly

    Chilly New Member

    Jun 17, 2019
    2
    3
    St Neots

    • Like Like x 1
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    2,413
    1,000
    Southcoast of the UK Earth
    Interesting, never seen one apart. Poss that is how they are as other 8 valves used copper rings to seal heads.

    • Like Like x 1
  8. Chilly

    Chilly New Member

    Jun 17, 2019
    2
    3
    St Neots
    I’m not really sure, I know they had an issue with sealing so maybe the previous owner thought it may be better to leave the sleeves a little proud to help? This is all new to me, only ever had std T140’s before

    • Like Like x 1
  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    2,413
    1,000
    Southcoast of the UK Earth
    • Like Like x 1
    • Thanks Thanks x 1
    • Agree Agree x 1
  10. Tricky-Dicky

    Tricky-Dicky Senior Member

    Dec 12, 2016
    636
    243
    Norfolk UK
    • Agree Agree x 1
  11. Chilly

    Chilly New Member

    Jun 17, 2019
    2
    3
    St Neots
    The heads are recessed as standard as the use a ‘cooper’ ring instead of a head gasket. They are like the copper exhaust sealing rings you get on jap bikes.

    • Useful Useful x 1
  12. Chilly

    Chilly New Member

    Jun 17, 2019
    2
    3
    St Neots
    The heads are recessed as standard as they use a ‘cooper’ ring instead of a head gasket. They are like the copper exhaust sealing rings you get on jap bikes.

    • Agree Agree x 1
  13. joe mc donald

    Subscriber

    Dec 26, 2014
    4,548
    1,000
    slough / burnham
    Chilly.
    No they are to proud. There are some people that still work on the TSS. I love them.
    There is a chap on ebay called Bonnie Tyler he sells the stickers and he is tops for rebuilding them. He purchased my TSS.
    there Is also Cosmo Classics. He is tops on the TSX. One thing I will advise you to do when rebuilding the head scrap those washers and replace with with 3 / 4 though compression washers you will never have a leaking head again. As it was never the heads it was the oil pressurising up the studs and forcing its way out around the studs. I love the TSS it to me was one of the best bike produced by Triumph and they handle fantastically.
    Hope This Helps.
    Joe.

    • Like Like x 3
  14. Rocker

    Rocker Noble Member
    Subscriber

    May 1, 2016
    597
    300
    Suffolk
    Thought I was told that the liners protrude which creates a firewall my 1970s trident triple was the same

    • Like Like x 1
    • Useful Useful x 1
    • Agree Agree x 1
  15. joe mc donald

    Subscriber

    Dec 26, 2014
    4,548
    1,000
    slough / burnham
    Rocker.
    I won't disagree but if memory serves me right my TSS was flush with a recess around for the gasket. But really worth checking first.
    Ride Safe
    Joe.

    • Like Like x 2
  16. Chilly

    Chilly New Member

    Jun 17, 2019
    2
    3
    St Neots
    Thanks Joe, much appreciated

  17. Tricky-Dicky

    Tricky-Dicky Senior Member

    Dec 12, 2016
    636
    243
    Norfolk UK
    I have a T160 and it has no protruding liners.

    • Like Like x 2
  18. feckless

    feckless Well-Known Member

    Apr 16, 2019
    89
    68
    UK
    Rocker you are right Trident liners are supposed to be proud of the block. I thought it was to help with sealing ie bites into the gasket.

    • Like Like x 2
  19. Tricky-Dicky

    Tricky-Dicky Senior Member

    Dec 12, 2016
    636
    243
    Norfolk UK
    Don't know where you guys are getting your info from but i can tell you that neither the 70s T150 or the T160 have protruding liners....having built one...have a look here..
