Suspension Tutorial?

Discussion in 'Technical Help' started by DanielB, May 6, 2022.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. DanielB

    DanielB Noble Member

    Jan 13, 2019
    882
    393
    Abingdon, Oxfordshire
    Would anyone mind providing a suspension 101 for the middle-aged and overweight?

    2010 Tiger 1050.

    Front suspension.

    I get that there is rebound and compression adjustment. I get that there is preload adjustment.

    But...what do these things actually mean. And, not only what do they actually mean...but what does one actually feel?

    Do I want more rebound? Or more compression? What will I feel with which?

    What will less preload mean?

    I spend a lot of time finding with setup when it comes to positions of clutch or levers, handlebar rake etc...but never suspension as it seems like a dark art.

    I'm not racing or anything...just pottering round Oxfordshire, speed humps etc...may be a pillion now and again.

    Thank you!


  2. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,318
    1,000
    North West England
    I have always avoided messing with the suspension settings. The factory settings normally work for me. However since putting flat bars on my Thruxton I have booked the bike in to a specialist suspension shop to hopefully get a softer ride. It cost £40 which would seem like money well spent. :)

    • Like Like x 1
  3. DanielB

    DanielB Noble Member

    Jan 13, 2019
    882
    393
    Abingdon, Oxfordshire
    yeah, that sounds reasonable in both cost and thinking... I don't think I have a refined enough riding palette to notice much difference...

    I go over bumps...and the bike goes up and down... :blush: Maybe there's not much more to add!?

    • Like Like x 2
  4. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Oct 3, 2018
    6,095
    800
    Three Counties

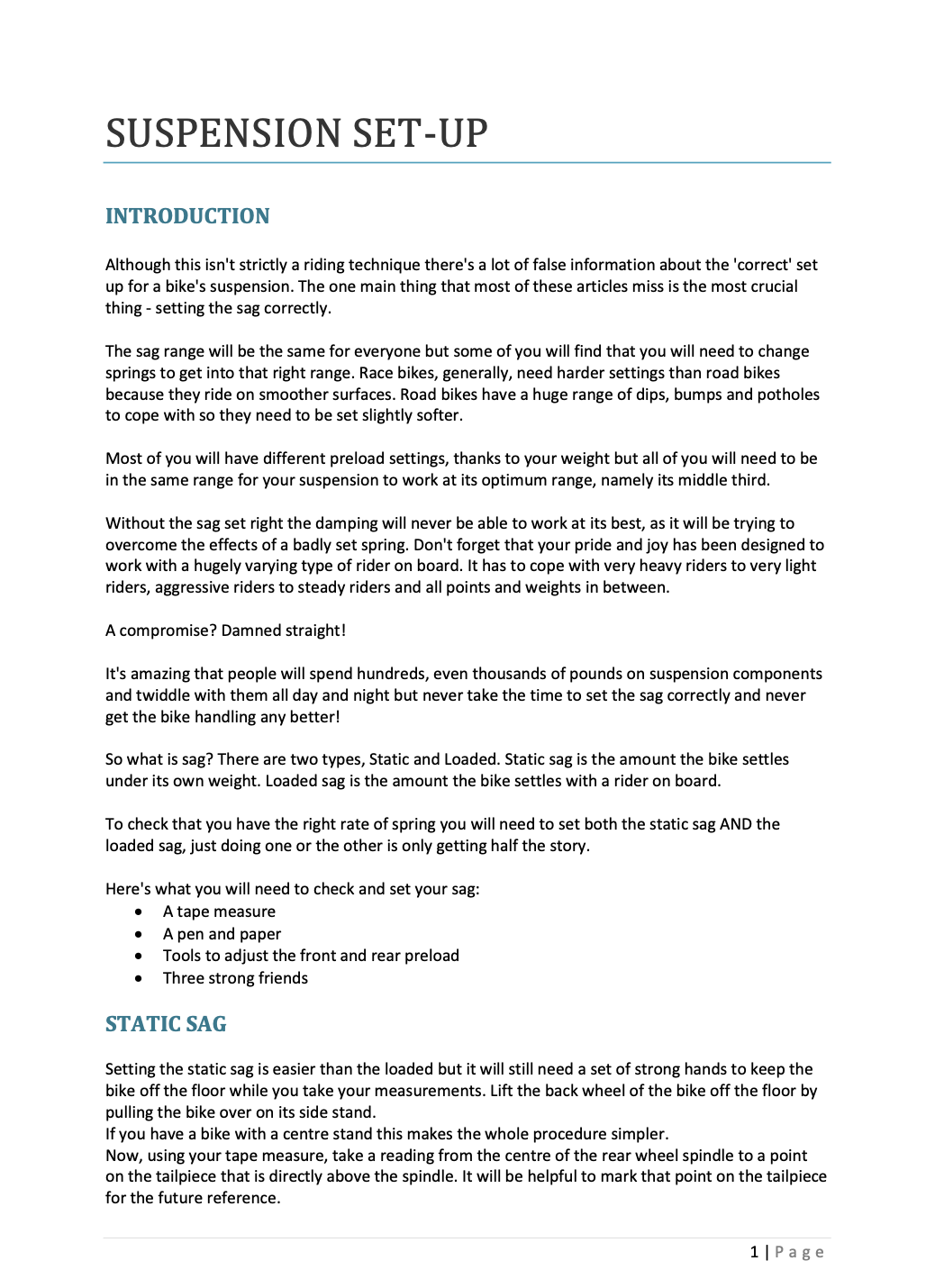

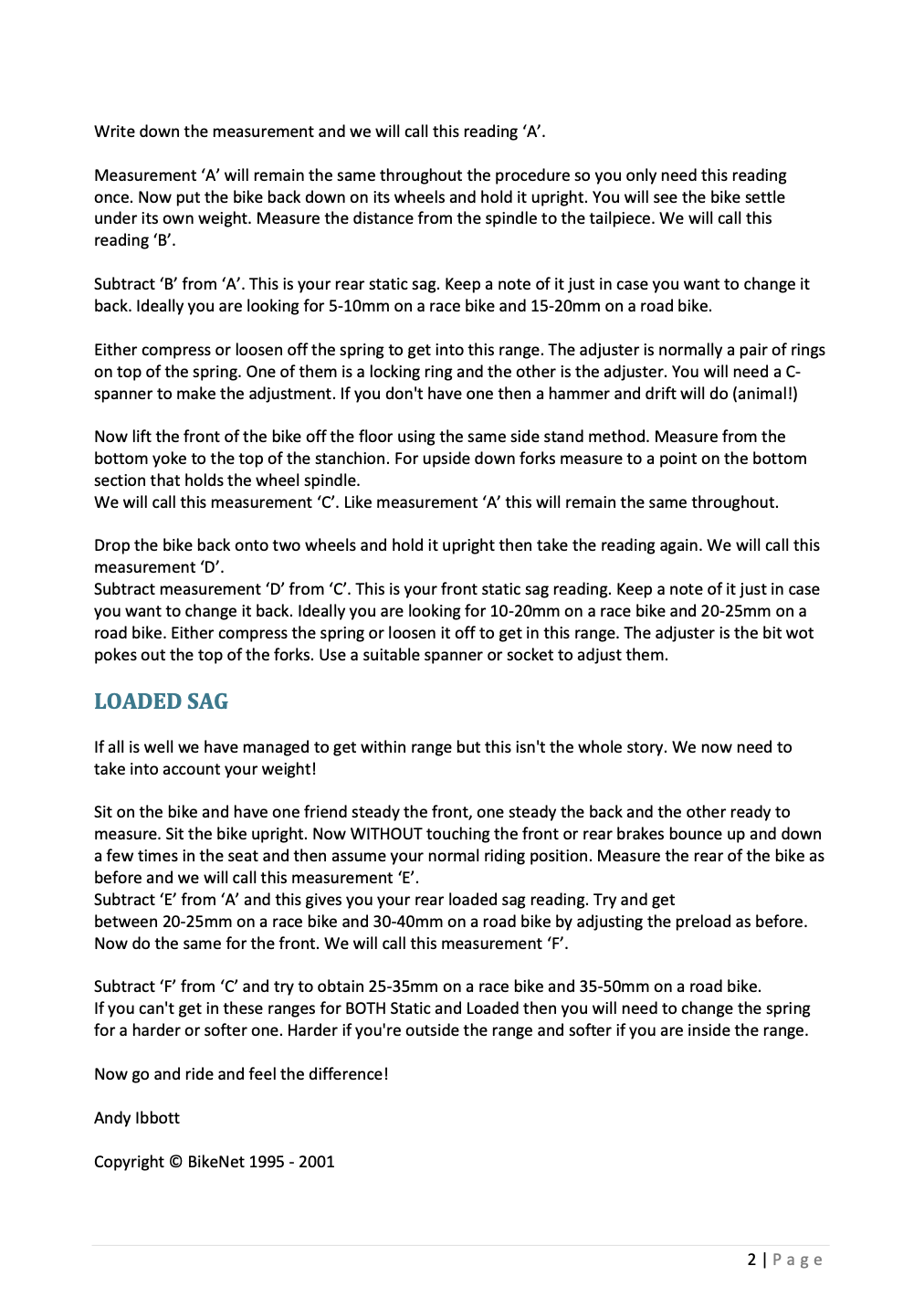

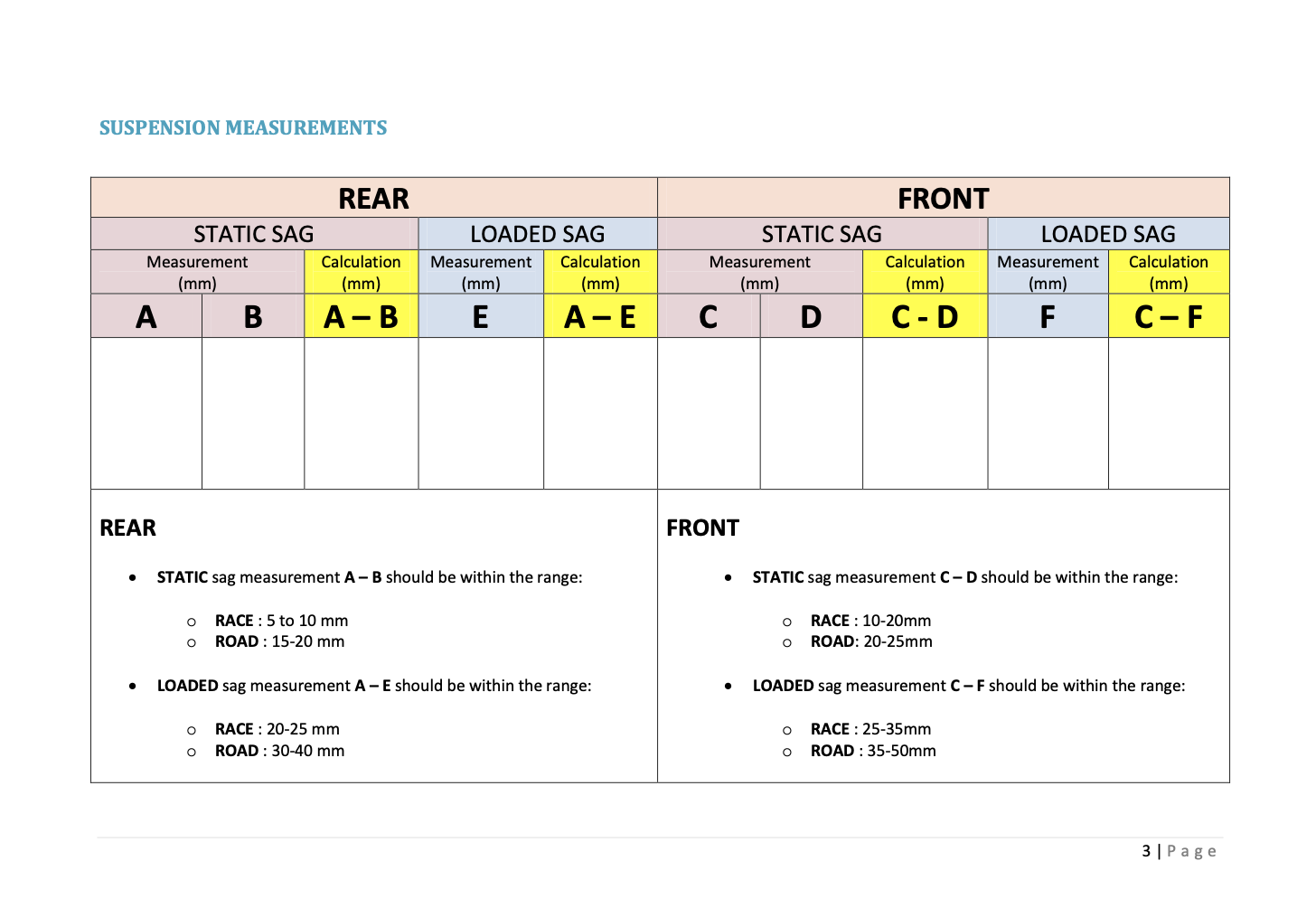

    Screenshot 2022-05-06 at 16.26.38.png Screenshot 2022-05-06 at 16.26.56.png Screenshot 2022-05-06 at 16.27.09.png

    • Like Like x 1
    • Useful Useful x 1
    • Agree Agree x 1
  5. DanielB

    DanielB Noble Member

    Jan 13, 2019
    882
    393
    Abingdon, Oxfordshire
    This is excellent @Helmut Visor ; tonight's whiskey homework!

    • Like Like x 1
  6. jdwalmsley

    jdwalmsley Well-Known Member

    Apr 30, 2021
    52
    63
    british columbia
    A master class!
    Thanks
