Street Triple Rs Ignition Problem

Discussion in 'Technical Help' started by Rexdrumer, Dec 29, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    Hey all,,Thanks for accepting me into the forum,,Ok here goes first post,,I had a 2018 Triumph street triple 765 RS stolen off me 5 weeks after I bought it and got payd by insurance,,They recovered the bike recently and I had the option to buy it back which I did,,But the ecu and fuel pump was missing (have since replaced) and the ignition barrel is a bit busted,,Now Ive plugged everything in and all I get are headlights and tail lights,,no power anywhere else,,no dash either,,the barrel is only the bottom part which can be turned with a screwdriver and has 2 wires hanging to nowhere,,white and brown skinny ones,,I cant find any info as to where they would go,,now I dont have a key anymore as I didnt think Id need to keep it,,so tell me do i need a whole new ignition with key,,what else would i be looking at getting,,Any help would be much appreciated,,I just wanna ride it again,

    • Agree Agree x 1
  2. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,144
    1,000
    Rothwell
    I would definitely get a key set and start from there.
    If possible, pics always help if you have them?

    • Agree Agree x 1
  3. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia

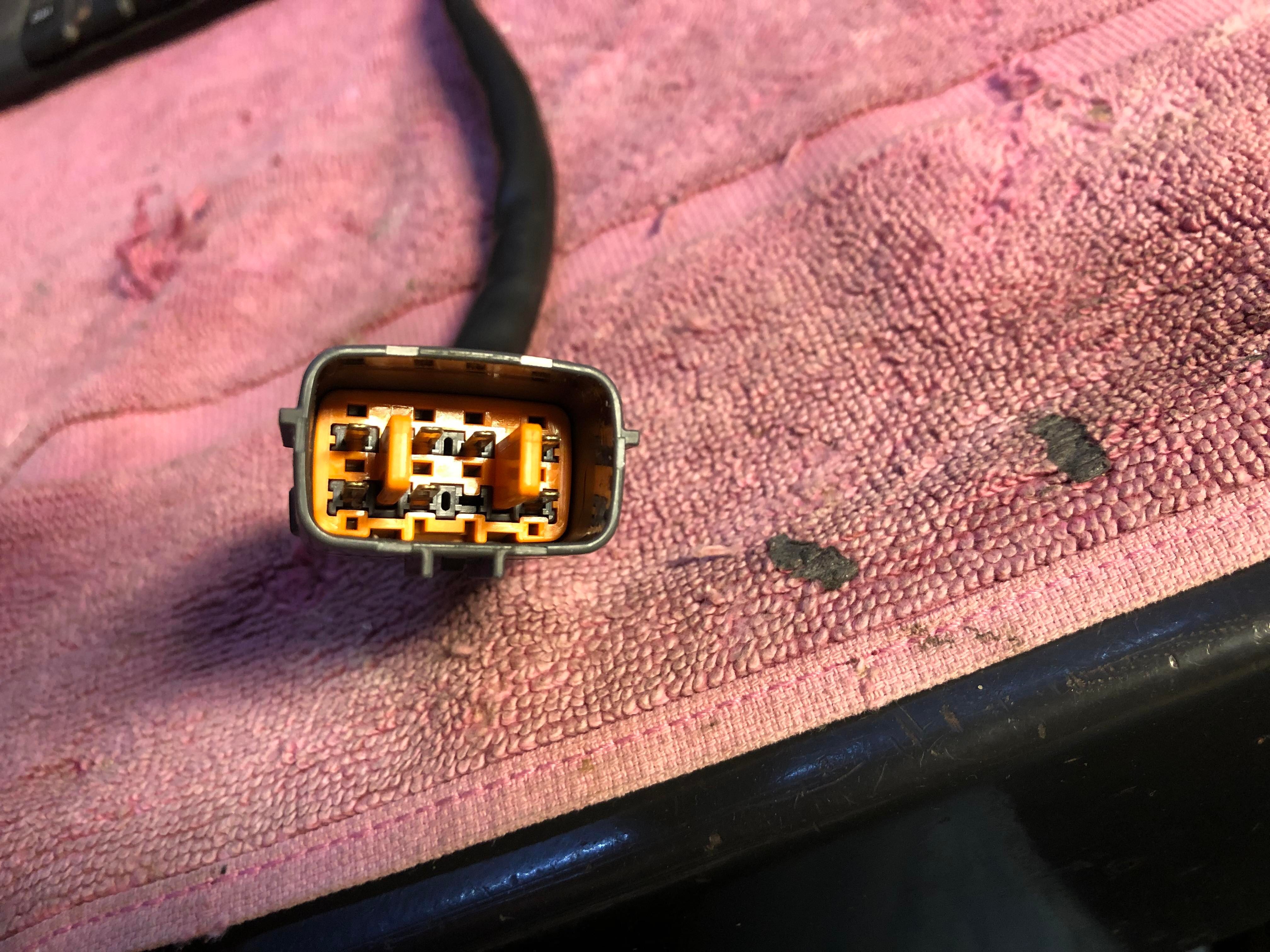

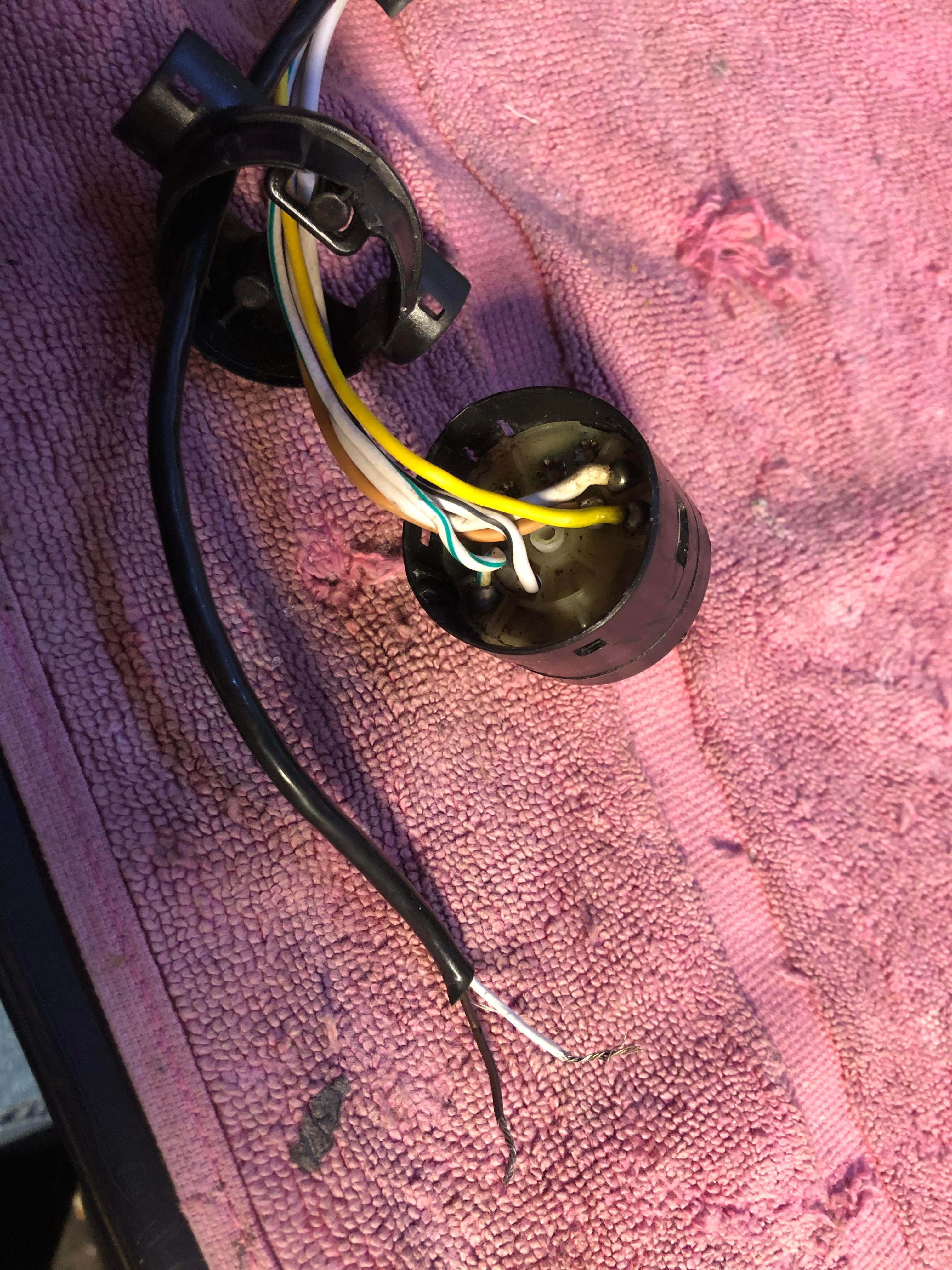

    Couple of pics of the ignition barrel




    • Like Like x 1
  4. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia

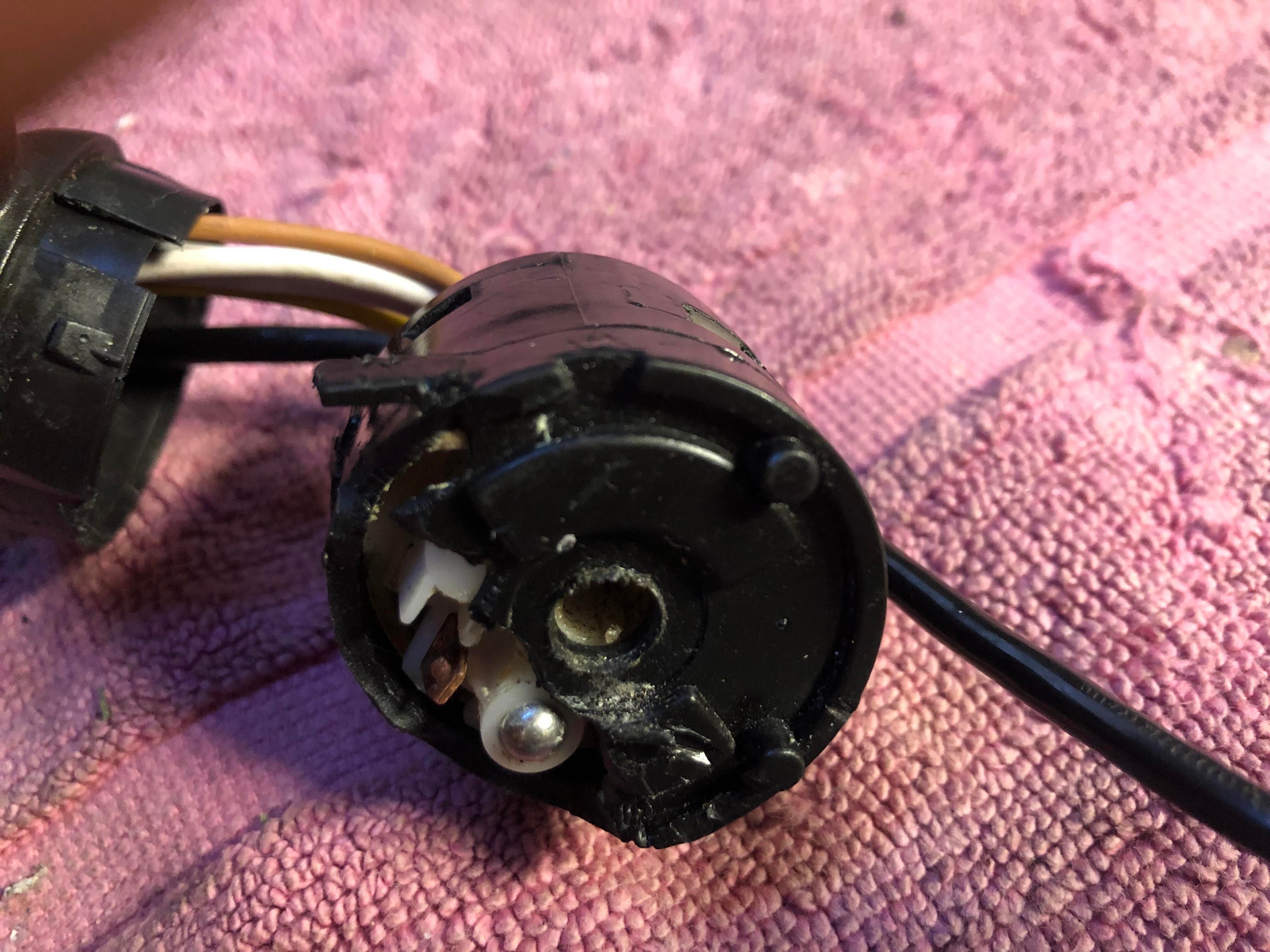

    ignition




    • Like Like x 1
  5. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    Just out of curiosity is there another year key kit that would fit,,im not having much luck on ebay but did find similar on an earlier model,,plug is different but could probably wire new one to existing plug

    • Useful Useful x 1
  6. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,144
    1,000
    Rothwell
    • Agree Agree x 1
  7. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    OMG looking at that site theres so many components,,Am I going to have to get a new immobiliser with seperate lock barrel then get an immobiliser key etc,,sounds expensive,,maybe I shouldnt have bought it back

    • Agree Agree x 1
  8. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,144
    1,000
    Rothwell
    You can sometimes find the FULL set (ecu, seat, tank, ignition, immobiliser etc) as a whole lot on fleabay.
    Get looking as it's very probably the easiest way for you?

    • Useful Useful x 1
    • Agree Agree x 1
  9. Iceman

    Iceman Noble Member

    Apr 19, 2020
    979
    443
    Lancashire
    Hi Rexdrumer and welcome to the forum, the issue you describe is fairly straightforward, first the keys you had originally are programmed to the ECU, the most cost effective way forward is a complete secondhand lock set with ECU, there are a few on e bay at present, they come complete with everything you need, as yours is a 2018 model you can only use up to the 2020 model RS, from 2020 onwards the machines are very different, wiring, engine lights etc, and are not interchangeable. Presumably you handed the keys back to the insurance company, therefore ring them up and ask if they still have them. Good luck with whatever you decide.

    • Agree Agree x 1
  10. joe mc donald

    Subscriber

    Dec 26, 2014
    13,707
    1,000
    slough / burnham
    Rexdrumer
    Real bummer getting your pride and joy stolen by tail rags. But welcome to the family. Yes do try for a complete kit for a straight sway and tune. But all won't be lost as the parts sell for great money and are in demand.
    Joe

    • Agree Agree x 2
  11. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    Yeah Ive tried the insurance company already for the keys but no luck there so I ended up buying a 2nd hand ecu off ebay from the uk,,Thats the one thats in there now,,Im guessing its no good judging by your post of needing the matching keys and locks?could you send me a link for the conplete key lock and ecu set I cant seem to find the ones your talking about

    • Agree Agree x 1
  12. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    Hey Iceman could you please post a link to the key ecu set your talking about,,I cant find anything on ebay

    • Agree Agree x 1
  13. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,144
    1,000
    Rothwell
    #13 Ducatitotriumph, Dec 30, 2021
    Last edited: Dec 30, 2021
    • Like Like x 1
  14. Iceman

    Iceman Noble Member

    Apr 19, 2020
    979
    443
    Lancashire
    • Agree Agree x 2
  15. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    Thanks to all the advice with my problem,,I have since bought a new key and ecu kit including tank seat and barrel key with immobiliser and ecu,They are in the post on theyre way,My new dilema is my bike has a total of 800kms as it wasnt ridden much from new but im guessing the ecu on its way being used is going to show a different mialege to mine,,can it be corrected to what my bike originally was or am i going to have to go with whatever miles will come on the ecu,,

  16. Ducatitotriumph

    Ducatitotriumph Crème de la Crème

    Apr 25, 2019
    2,144
    1,000
    Rothwell
    Go with whatever miles i think.
    If it's a NEW one, triumph can program it with the current mileage if THEY replace it.
    I think it's been asked before somewhere on here.
    Basically, take pics, document it and keep the receipts as it'll help enormously when selling it.

    • Agree Agree x 1
  17. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    Hey guys so i bought a ignition kit as reccomended with immob and ecu key takn and seat lock and plugged it all in and same thing headlight working but no ignition functions,,there are 2 singlt wires on the ignition loom that dont seem to go anywhere,,anybody have any ideas what it could be,,checked fuses and relays etc and just doesnt seem to be any ignition or turning on function anywhere

  18. capt

    capt Elite Member

    May 8, 2016
    2,999
    750
    western Australia
    Put your parts on the bike and then go to the main Triumph Dealer in your area , get it all reprogrammed.

  19. Rexdrumer

    Rexdrumer New Member

    Dec 29, 2021
    2
    3
    Gold Coast Australia
    I was under the impression if i bought a new ecu immobaliser ignition barrel as a kit they should plug in and work fine as theyre all matched to each other,,what else has to be programmed

  20. capt

    capt Elite Member

    May 8, 2016
    2,999
    750
    western Australia
    If it's in the shop and it doesn't work , then technician can login and reset everything.
    Some vehicles have coded ancillary equipment that needs to be "set" in the ECU , or it will ignore them and there will be issues.

    Issues that might arise - Speedo won't work , lighting , indicators , side stand and clutch switching. Thing's from the engine , temperature gauge , atmospheric pressure sensor , crank position sensor ????
