Street Cup Handlebar Change

Discussion in 'Triumph Twin Power' started by Celticages, Oct 20, 2017.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    Background information: I intended and even spoke with the tech about swapping the Clubman bars on my Street Cup for a more traditional tracker set (like the street twin) before I purchased my bike and he quoted me a price of about $350 US. Apparently, I have to go aftermarket however if I just want to change the bars because the Street Twin uses 7/8" bars and risers while the Street Cup uses a 1" bar (I'm not sure the tech knew this when I asked because we talked of just swapping out the bars from a Street Twin demo). One large question I have is whether I can use the stock cables or will I have to replace them? Also, does anyone know if doing the work myself will void my warranty? Any advice, pictures, thoughts, etc. will be welcome. Maybe someone wants to trade or sell me their bars and risers from their Street Twin?

  2. OsteKuste

    OsteKuste Intergalactic Warlord
    Subscriber

    Oct 22, 2017
    2,015
    943
    Tennessee, United States
    Just picked up my Cup and my dealer cautioned me that Triumph are being really picky about aftermarket parts and how they affect the warranty. That being said, they do have experience with certain aftermarket brands which they (the dealer) have no problem working with. Best thing to do is research the crap out of anything first and see what your dealer will vouch for if you are worried about your warranty.

    • Like Like x 1
    • Agree Agree x 1
  3. Dave61

    Dave61 New Member

    Sep 4, 2017
    16
    3
    England

    Hi Celticages, I had the street twin bars and seat put on my street cup, there didn’t seem to be an issue at the dealers.

    • Like Like x 1
  4. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    Hey Dave, they must have had to change the risers to accommodate the smaller diameter bar?

  5. Dave61

    Dave61 New Member

    Sep 4, 2017
    16
    3
    England
    I’m not sure to be honest, I bought the bike from new and they fitted the bars for me. Would you like me to take a pic for you to look at? You would probably have a better idea than me.

    • Like Like x 1
  6. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    That would be above and beyond and I would really appreciate it!!

  7. Dave61

    Dave61 New Member

    Sep 4, 2017
    16
    3
    England

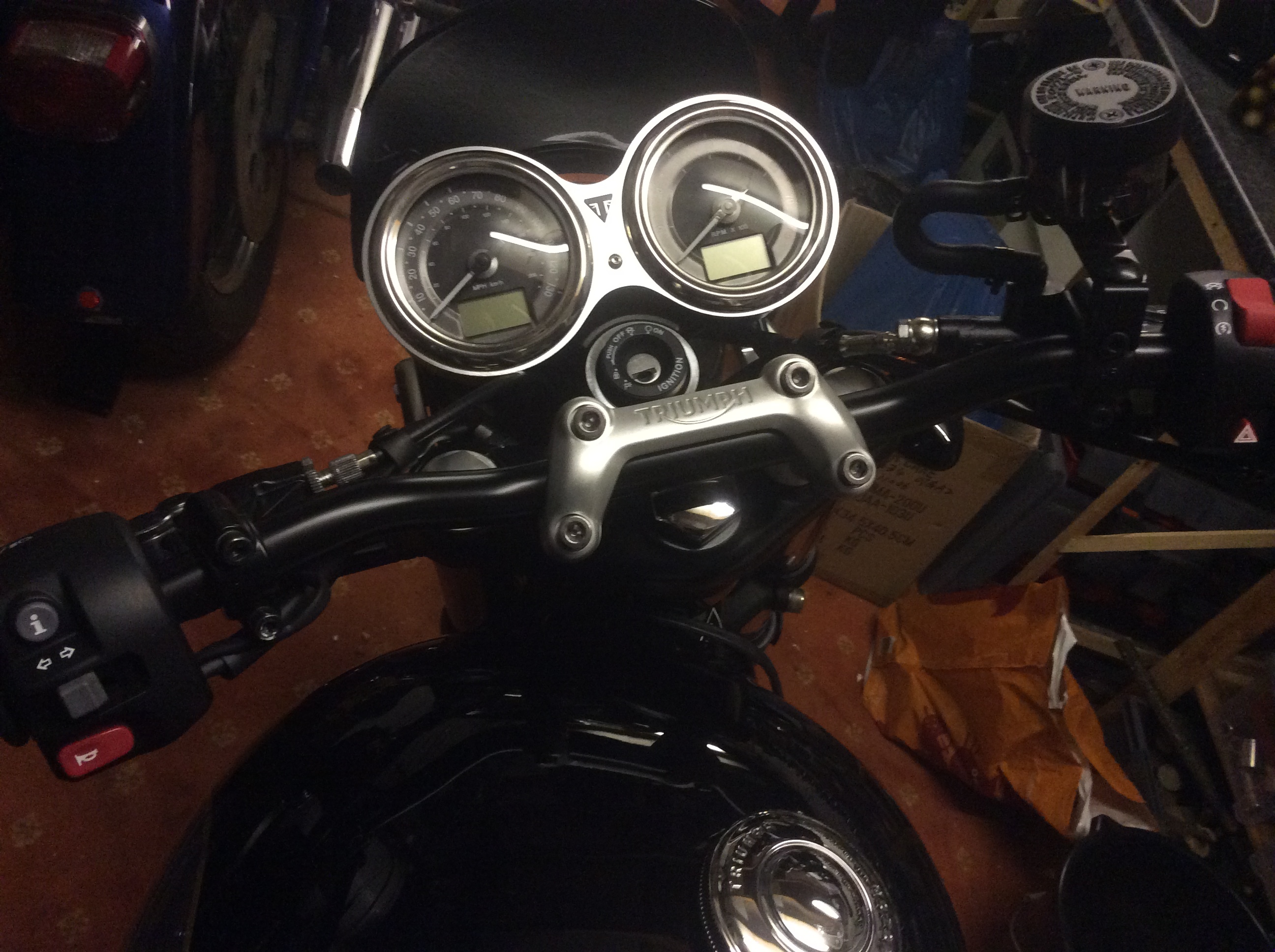

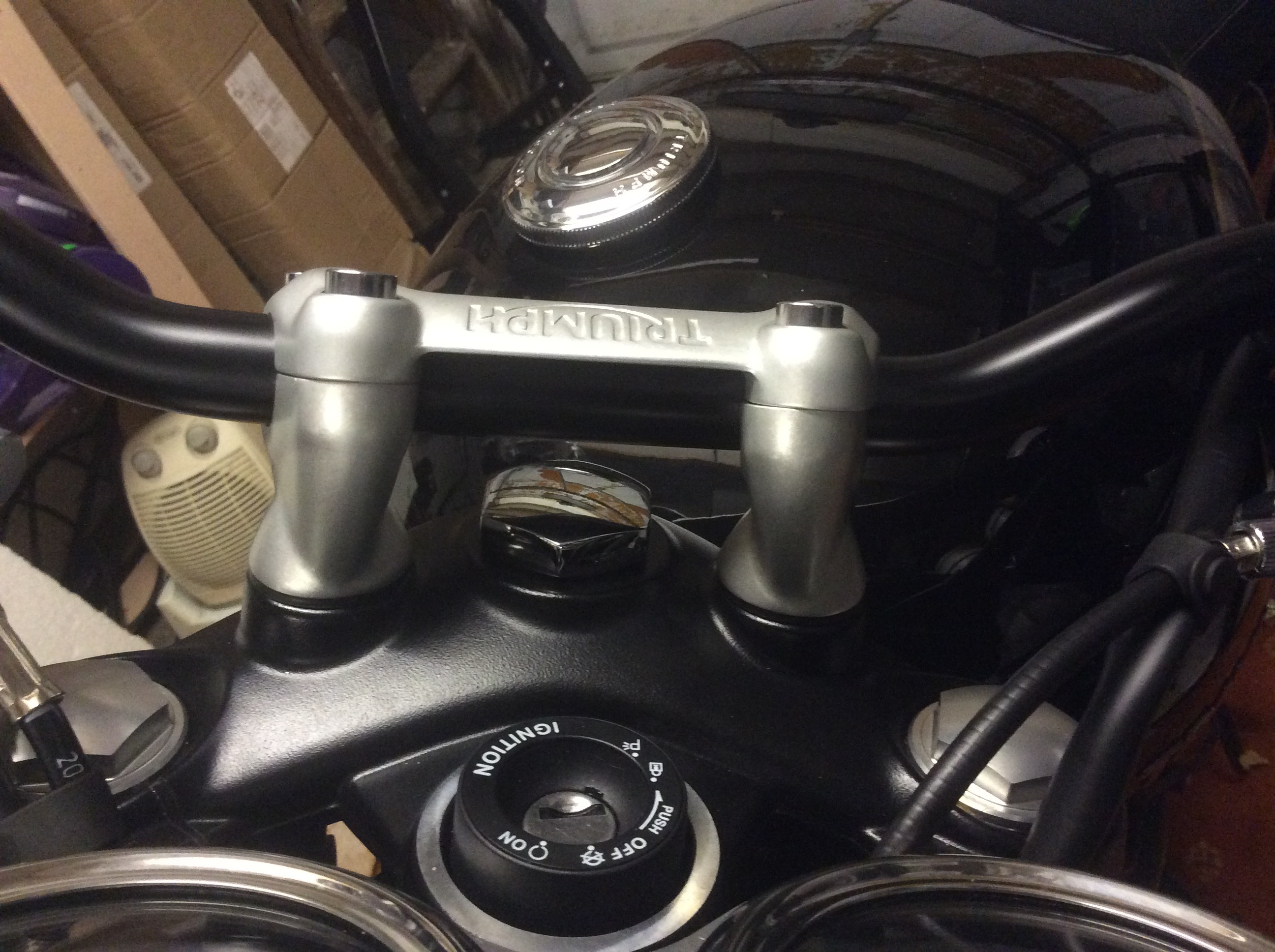

    D48C9B5F-ECDD-4BEA-9AEE-B16E1B4A2154.jpeg 90028776-0B34-45C7-8F38-0F83E025ED77.jpeg 9708F287-719A-4387-9C6D-84F6DDB2CD93.jpeg

    • Like Like x 2
  8. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    This looks fantastic! I know it's what I want to do now. Can I ask approx. how much they charged you to do that? I believe those are the 7/8" risers to go with the Street Twin bars.

  9. Dave61

    Dave61 New Member

    Sep 4, 2017
    16
    3
    England
    There was a deal on which was about £500 of extras. I had the bars fitted, Street Twin seat, grab rail and a deal on ‘bike track’ Also it looks as if I posted the same pic twice, so will try again.

    • Like Like x 1
  10. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    It looks fantastic. Do you know if the dealer used the switchgear, etc. from the Street twin or were they able to keep your switches and add spacers?

  11. Dave61

    Dave61 New Member

    Sep 4, 2017
    16
    3
    England
    It’s all the original switchgear as far as I’m aware Celticages.

  12. Dave61

    Dave61 New Member

    Sep 4, 2017
    16
    3
    England
    It’s all the original switchgear as far as I’m aware Celticages.

    • Like Like x 1
  13. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    Just an update...I decided to go with the Biltwell Tracker bars. They are 1" diameter and should be a direct swap. I will post pics as I progress with some verbal feedback as well if I run into any snags.

    • Like Like x 4
  14. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    Snag!! Of course. The definitive answer regarding handlebar changes is this. The riser clamps and original clubman bars are 1" diameter in the center. However, the ends where the switchgear, etc. go are 7/8". Go figure! So the 1" Biltwell bars I bought are useless and back for sale on Ebay. This is why the 7/8" bars from the Street Twin fit the switchgear from the Street Cup. I would imagine then that the dealer, when doing the bar swap, also use the risers from the Street Twin along with the bars. Sigh



  15. OsteKuste

    OsteKuste Intergalactic Warlord
    Subscriber

    Oct 22, 2017
    2,015
    943
    Tennessee, United States
    Nothing is ever easy, is it?

  16. Dave61

    Dave61 New Member

    Sep 4, 2017
    16
    3
    England
    How annoying. Like OsteKuste says ‘nothing is ever easy’

    I’d go and have a friendly chat with your local Triumph dealer and see if you can do a deal. They might want your bars for a customer build?

  17. Pete Farrell

    Pete Farrell Active Member

    Oct 4, 2017
    84
    28
    Lancashire
    Why change the bars surely that's part of the bikes style/attraction? Maybe its just me.

  18. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    Yes I agree that the clubman bars lend itself to the bike's intended style. I am of the age and belief, however, that I would rather ride in comfort than ride as a poser. The bars are just a bit too low for long-ride comfort. The bars are too low and although I am almost 5'11" leaning forward draws me closer to the tank and further away from the nice wide part of the seat. With that being said, I don't think it will detract from the style at all and will make it more appealing to me....and likely others.

  19. Celticages

    Celticages Well-Known Member

    Oct 9, 2017
    74
    68
    New Hampshire, USA
    Update #999: Made an appointment with the dealer for next month. They came back with a $520 price tag to swap my bars to the Street Twin bars. I almost choked...That's about $200 more than I was quoted last year and more than I've ever heard anyone having to pay. So...I am now actively looking for used OEM Street Twin bars and risers to purchase if anyone has a set or knows of one. Thank you!

    • Like Like x 1
  20. MaT s

    MaT s New Member

    Jul 5, 2018
    12
    3
    Bangkok
    Hey all, thanks very much, because of this thread I managed to avoid a few mistakes raising the handlebars on my streetcup, actually used some old bars the triumph shop had with some older risers to match the size. The dealership helped me drill the holes needed for the gear, very easy in the end. Got a second hand seat while I was there too. I actually prefer the bike now. Basically, changed the bars after some neck problems, I'll post some pics

    • Like Like x 4
