Speedmaster Shock Upgrade

Discussion in 'Builds & Projects' started by Dartplayer, Dec 3, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    #1 Dartplayer, Dec 3, 2019
    Last edited: Dec 4, 2019

    After seat and pipes upgrade, I really wanted to save for a better ride. The standard mono has good adjustments but still bottoms out on B Roads.

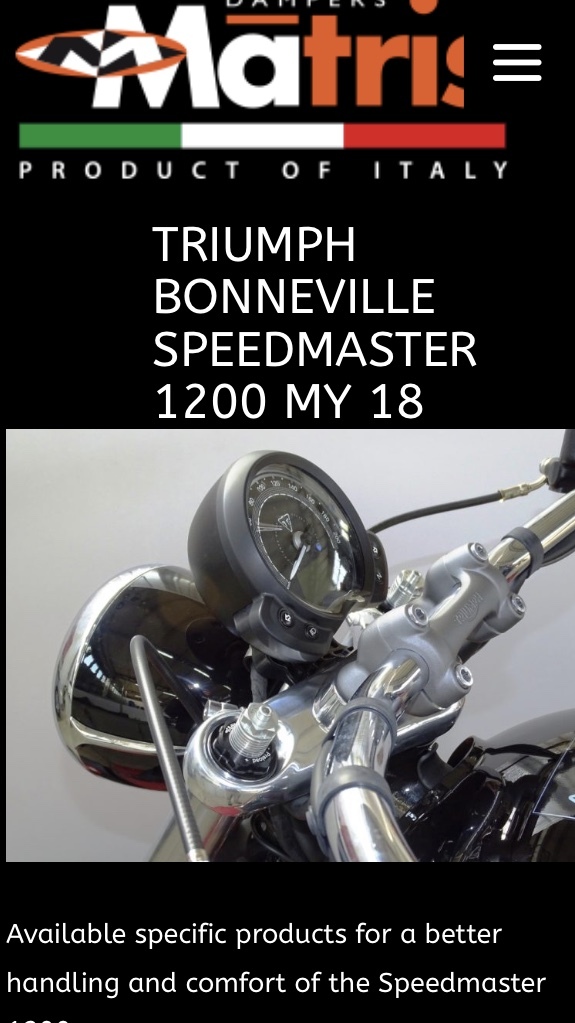

    At 110kg I looked at the options and decided on Matris.




    • Like Like x 2
  2. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand

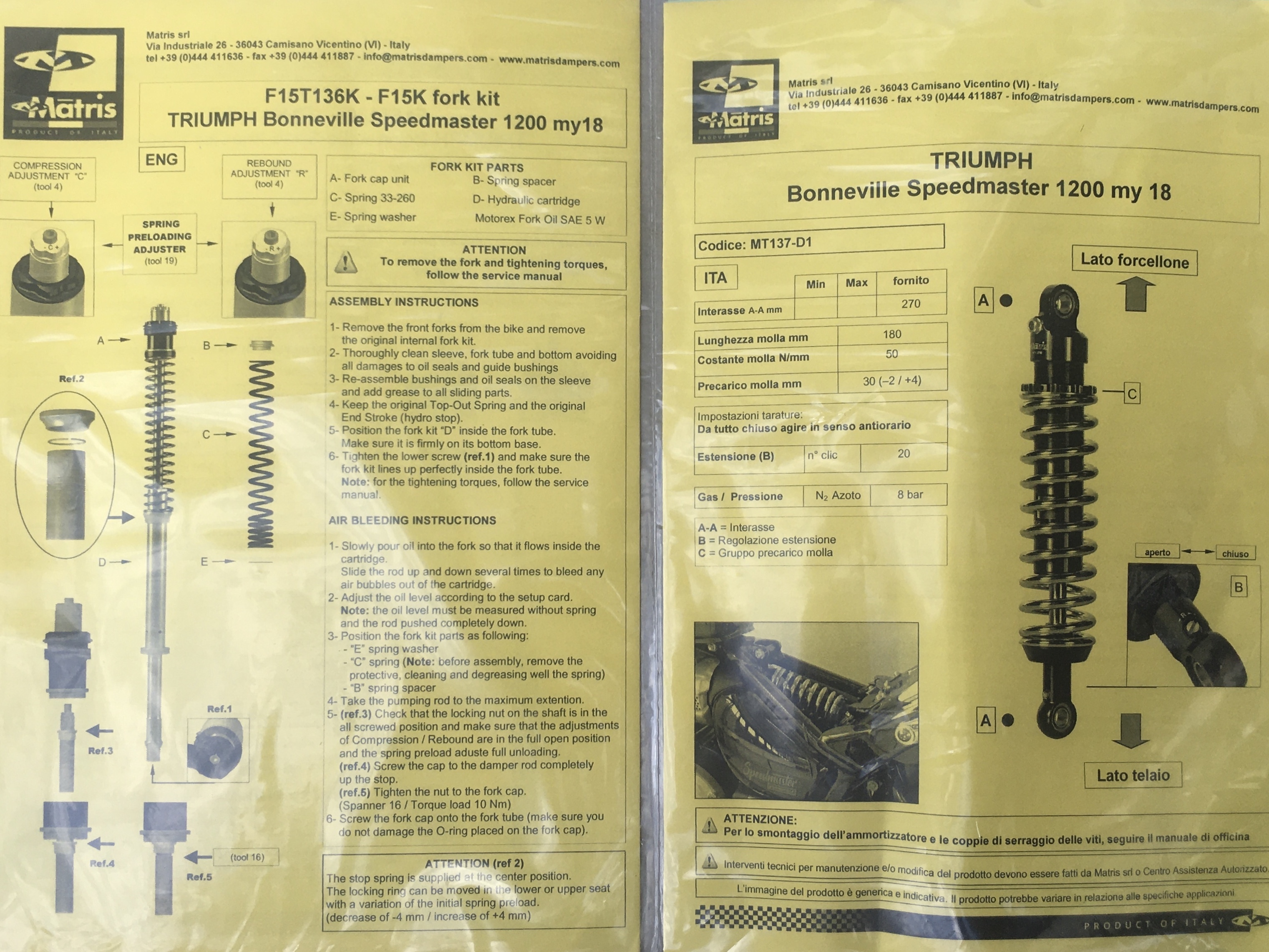

    With fully adjustable damper and preload setting to allow 60kg pillion and luggage, I feel I have purchased what will make my bike complete.
    Reading instructions before embarking on the mono and then will tackle the front shocks.
    Was good following @Duckadiledundee progress and posted video to see what I need to remove the front and clear the oil.

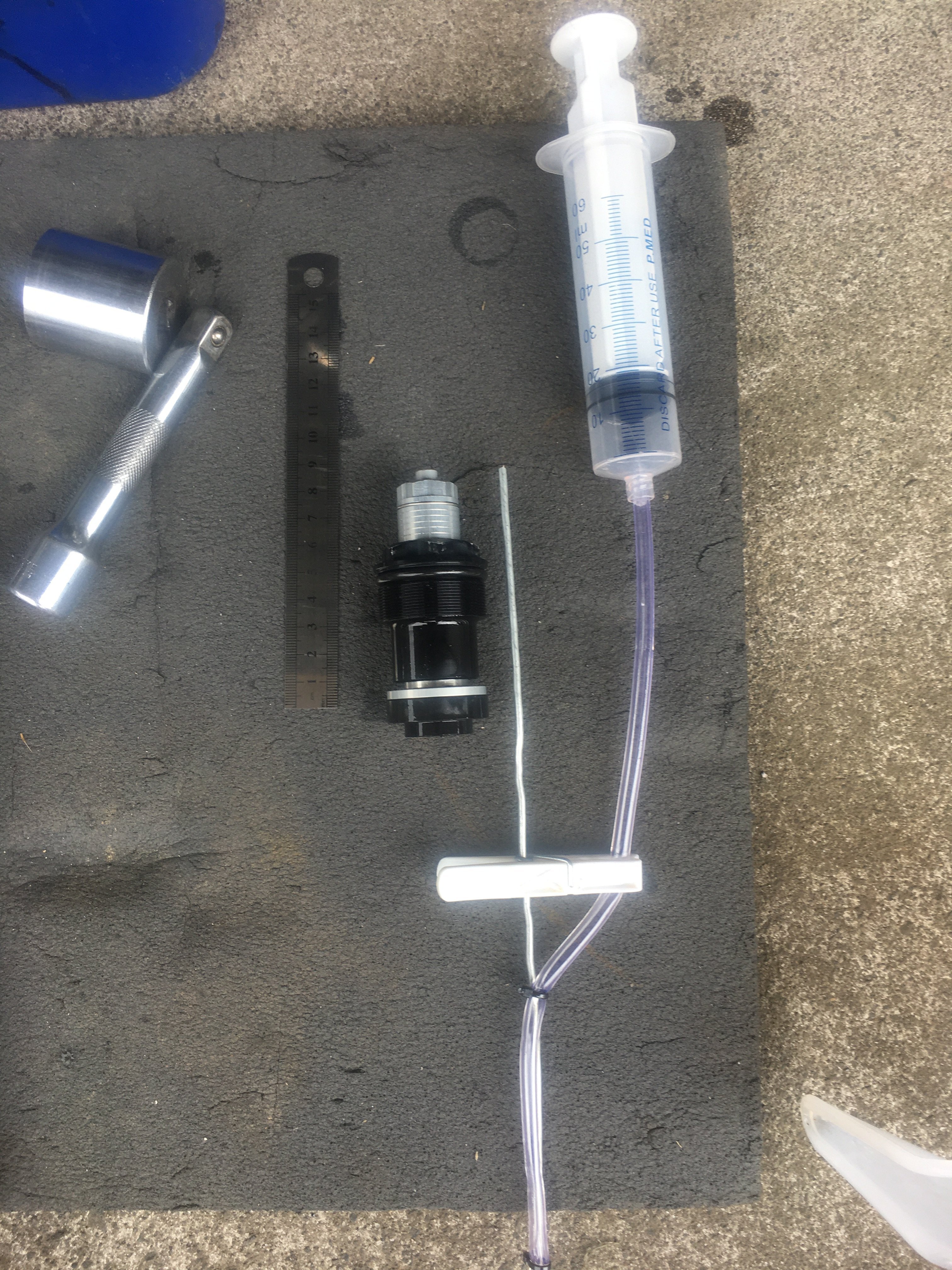

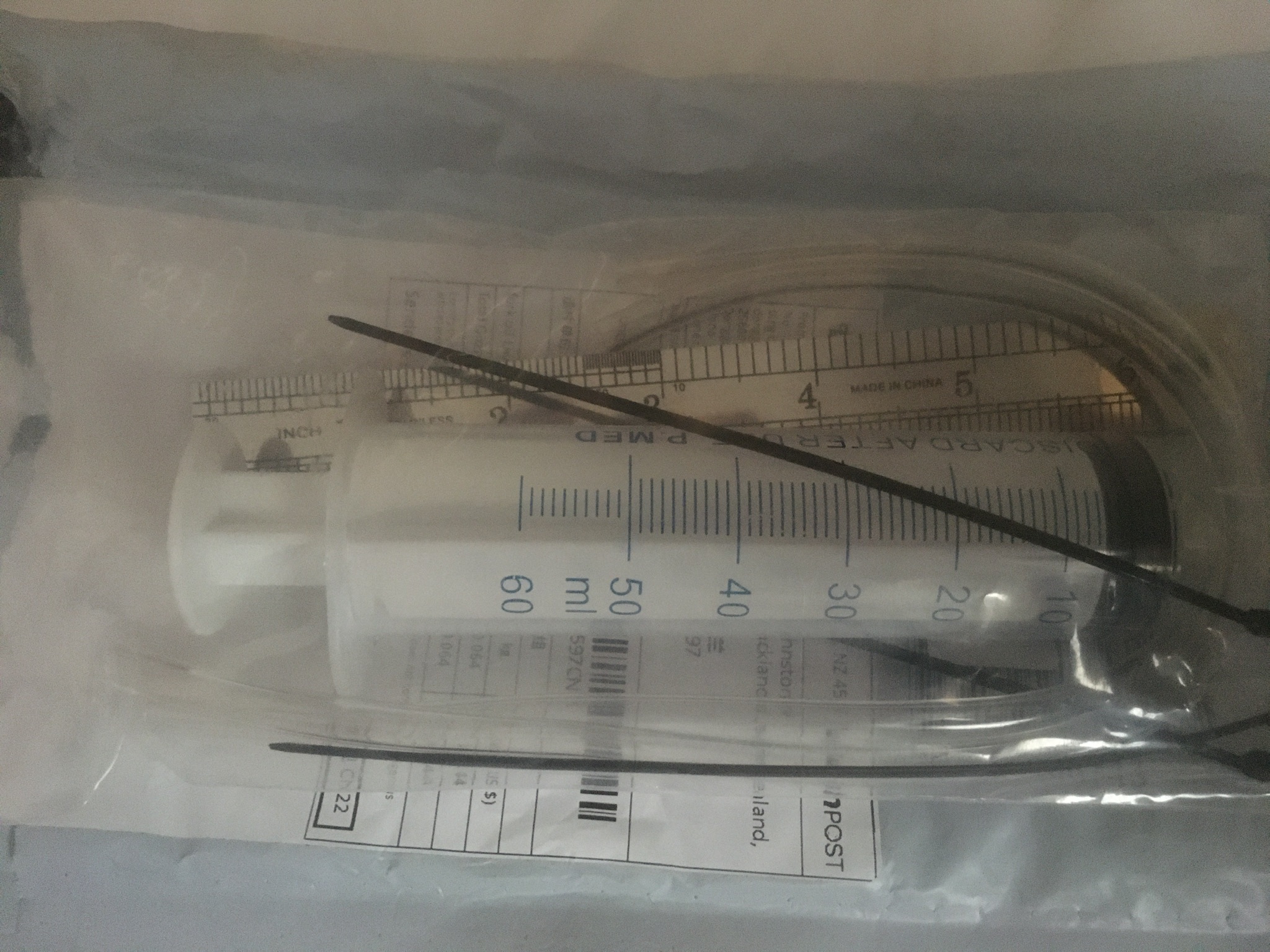

    Oil level syringe and ruler are on there way, but do not think I can wait.


    • Like Like x 2
  3. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,427
    1,000
    Stabby Town
    On my Street Twin TEC progressive front springs the tight wind end is up. In your photo it shows them downwards ?

    • Like Like x 1
  4. dilligaf

    dilligaf Guest

    Yeah but he’s in New Zealand :joy:

    • Funny Funny x 5
  5. Repooh

    Repooh Rarely Satisfied

    Jan 5, 2018
    1,427
    1,000
    Stabby Town
    That will be it Dilli, see it took an engineering mind to work it out

    • Funny Funny x 3
  6. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    #6 Dartplayer, Dec 3, 2019
    Last edited: Dec 9, 2019

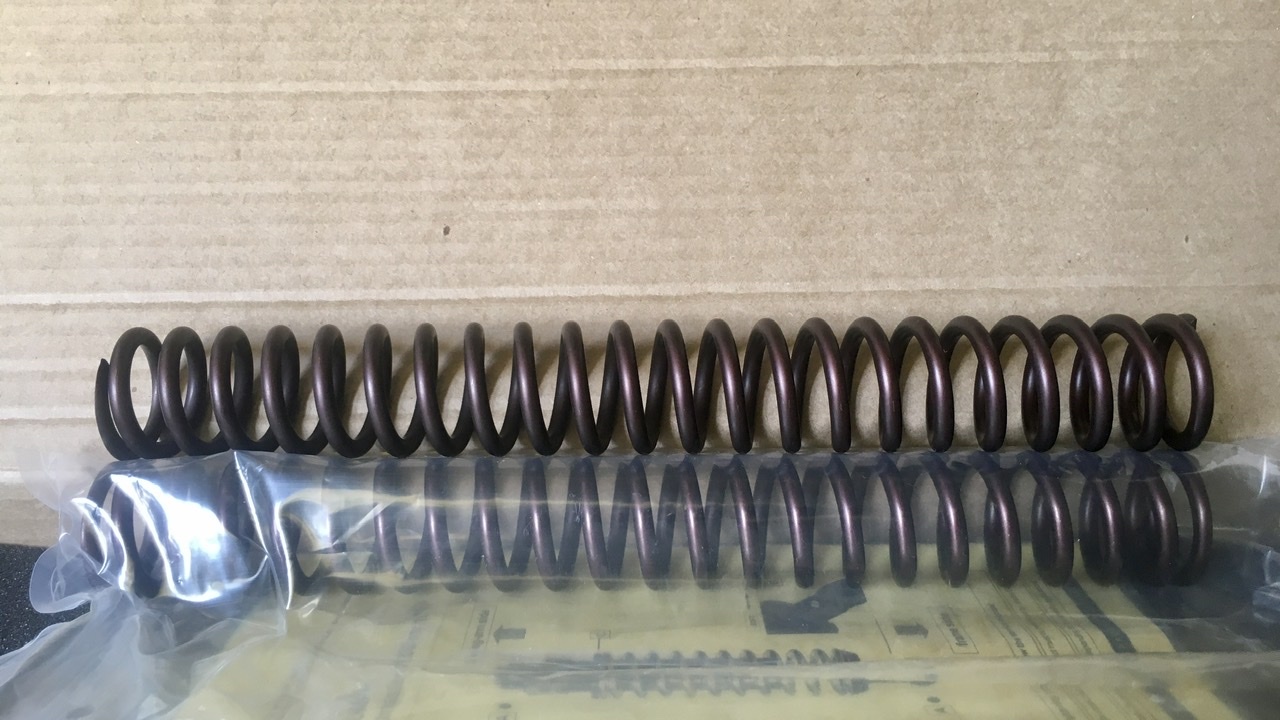

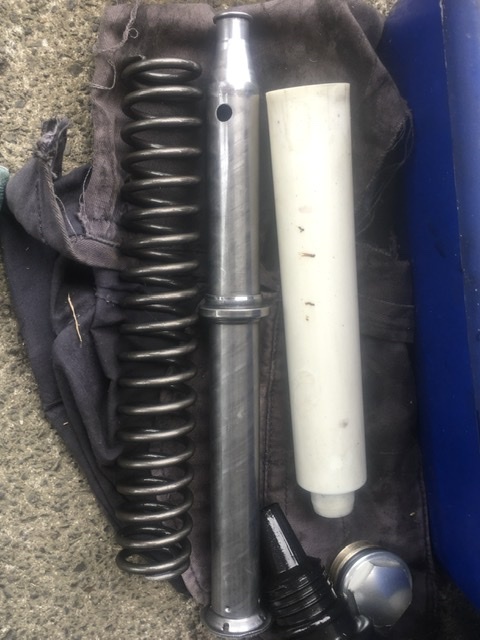

    Generally the progressive (soft) part is at the load end which is the top for regular forks. This set has evenly tempered springs, so drawing is incorrect (although I liked Dilli’s thinking).


    • Like Like x 1
  7. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    #7 Dartplayer, Dec 4, 2019
    Last edited: Dec 4, 2019

    Stage 1, rear mono removal went well until I had to clear the swing arm as very tight.:tired_face:

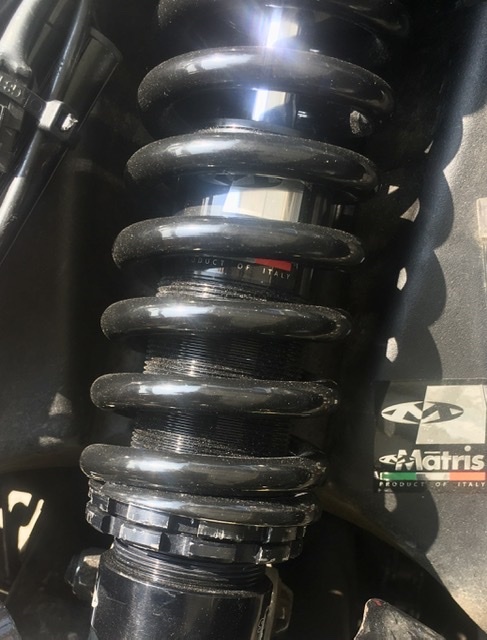

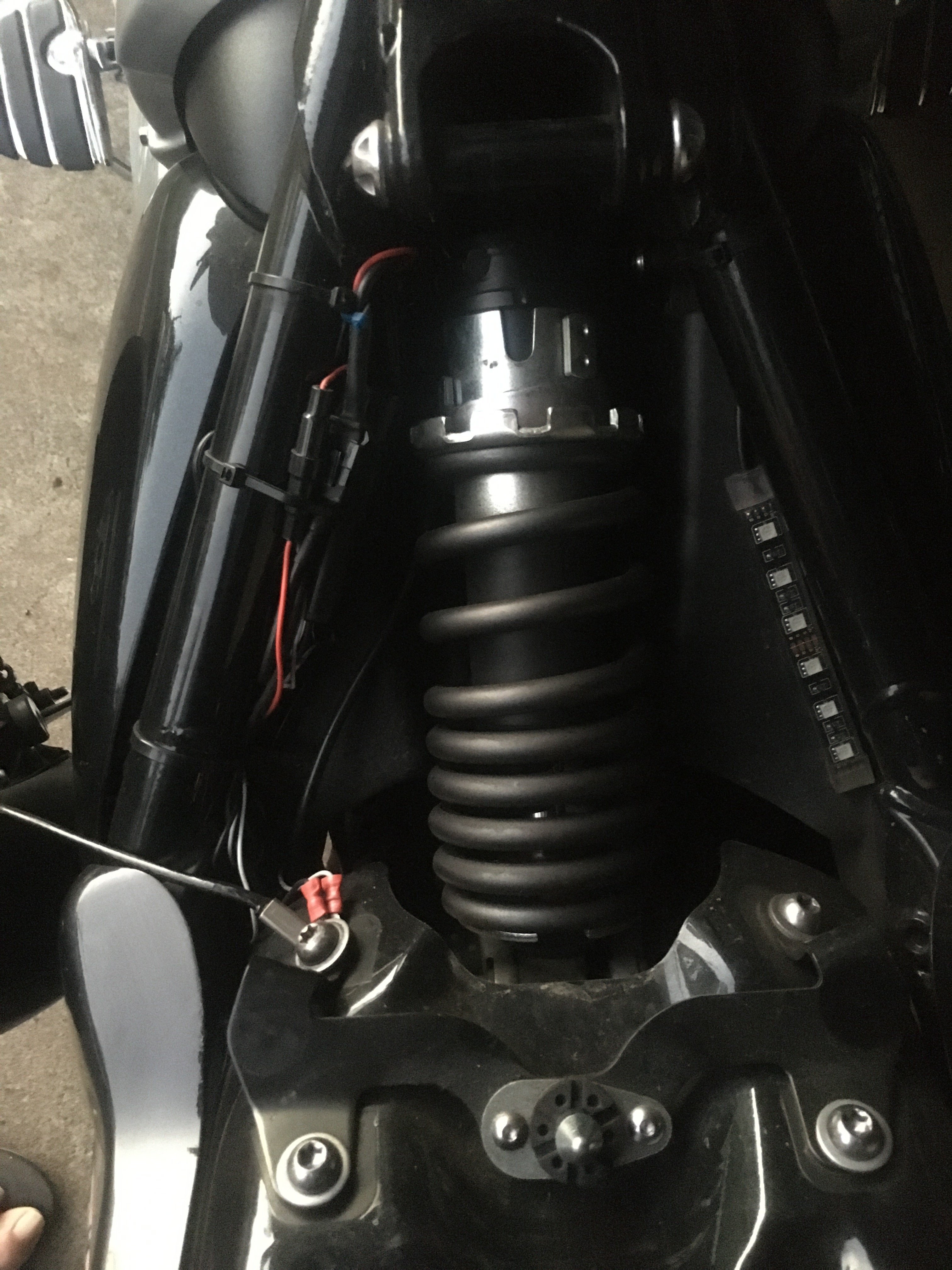

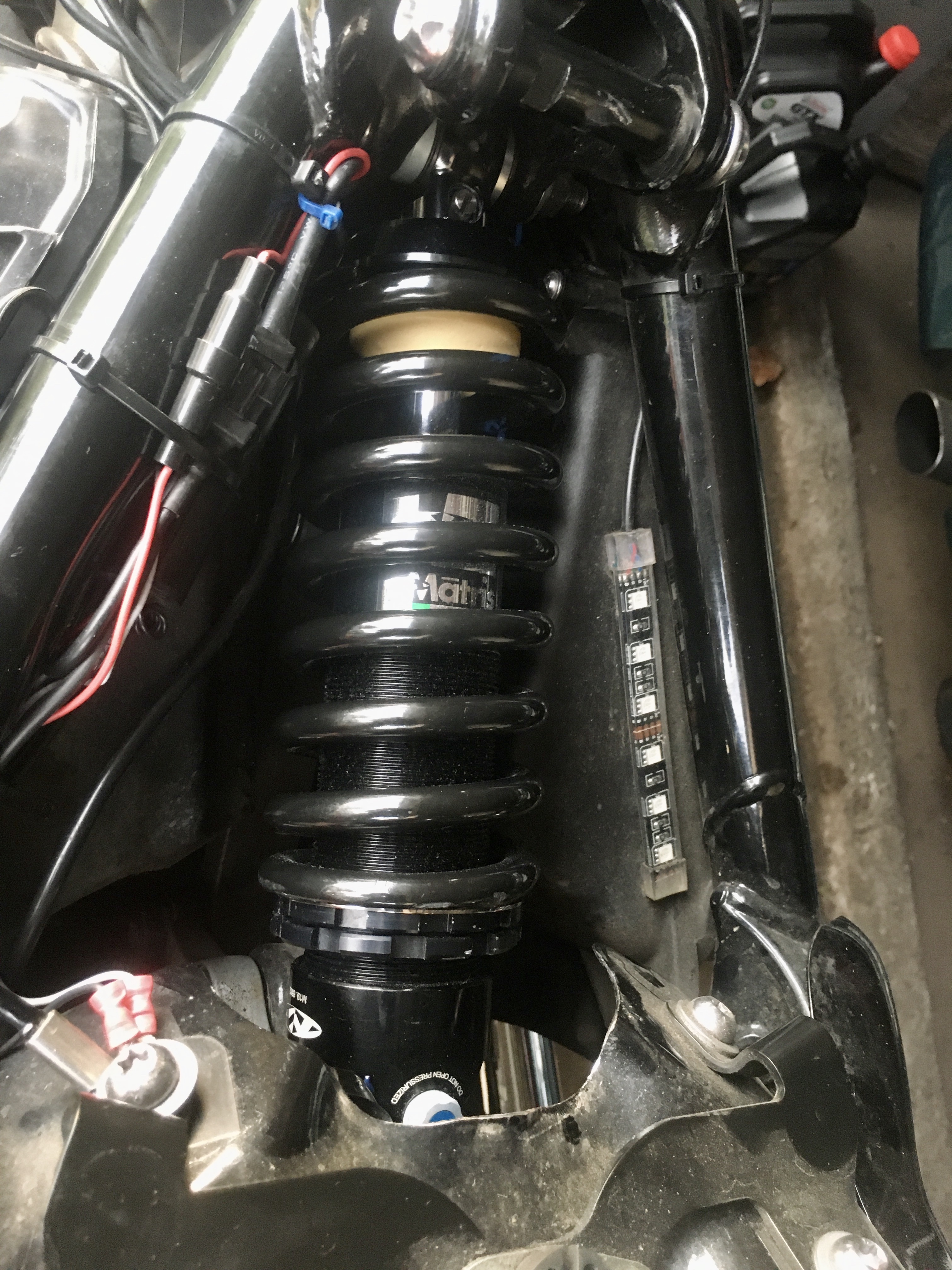

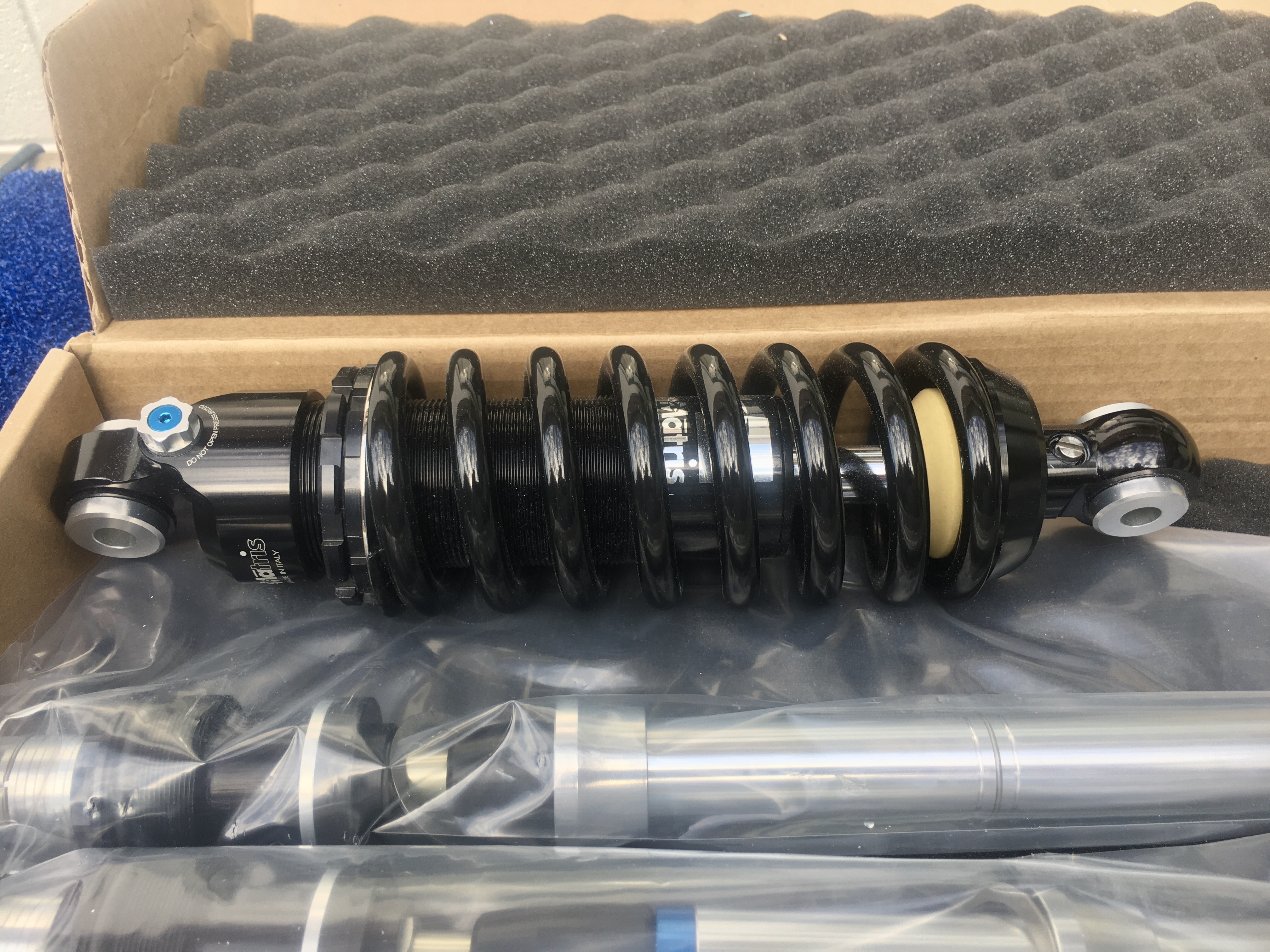

    Managed to drop the rear wheel to get just enough room to lever the old shock out. Was good using the car jack to support the wheel, making it easy to raise again when I needed to bolt up the new Matris mono. (Rear shock series M40D Black&Black, adjustable in Rebound and Preload)


    • Like Like x 2
  8. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    I will test ride Tomorrow to see how the adjustment is for me.
    Was good learning to lift the bike and chock the centre while supporting the rear wheel to allow simple removal of the shock bolts.

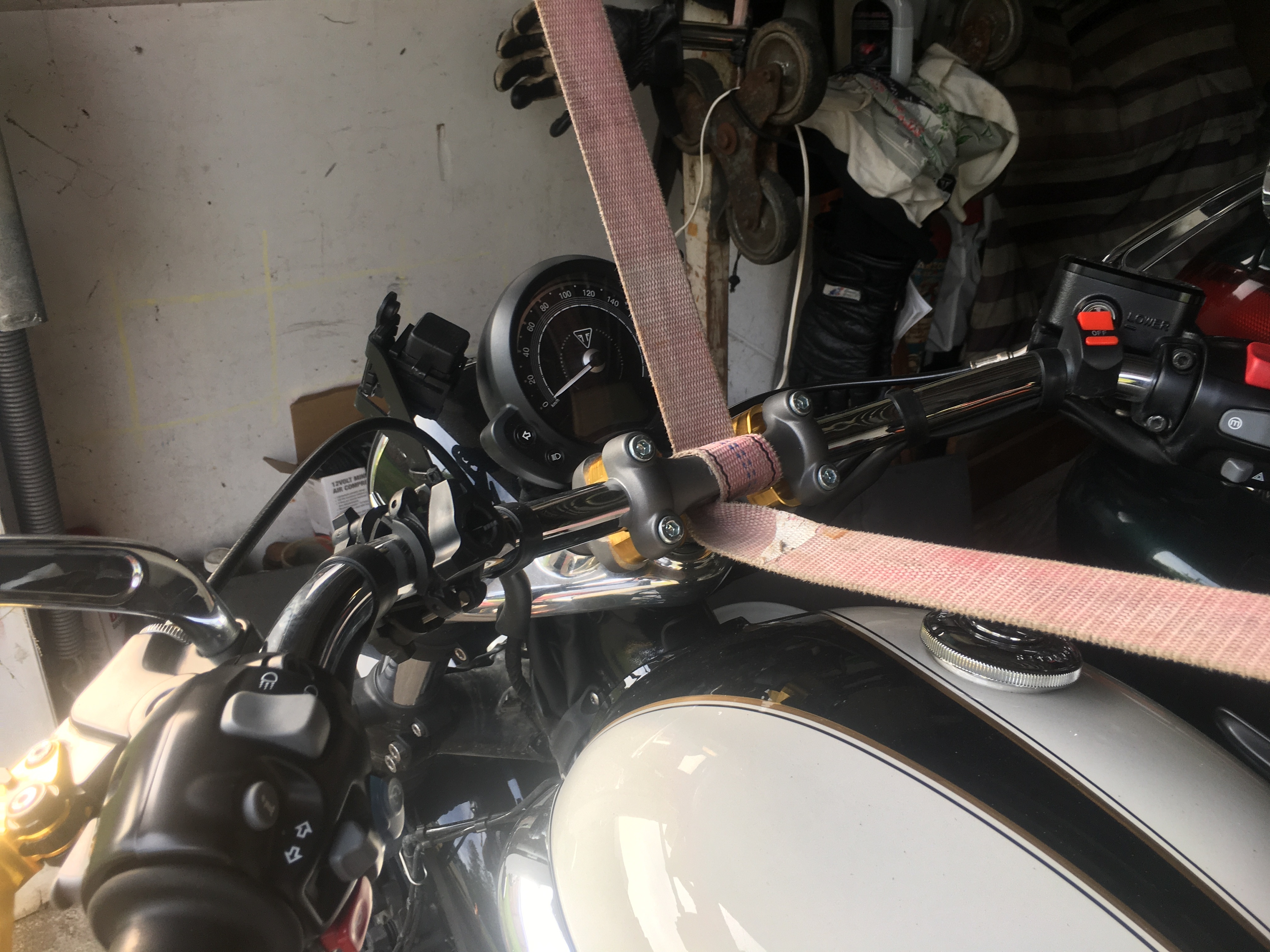

    Strapping bike for safety was awkward with only roller door frames to support, but worked well.



    • Like Like x 2
  9. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    I managed to only get 2 short rides to work, but the damping over a undulating B Road was great. Noticeable on potholes and firmer smoother ride.
    My oil measure kit arrived, so front adjustable fork dampers next.


  10. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    After a couple of how-to videos on changing springs and fork seals, I was ready (or so I thought).
    I recall @Yorkshireman (I think) saying to make sure you have all the tools required before you start, so when I went to remove the front wheel for the first time, I realised I did not have a 1/2’ hex.

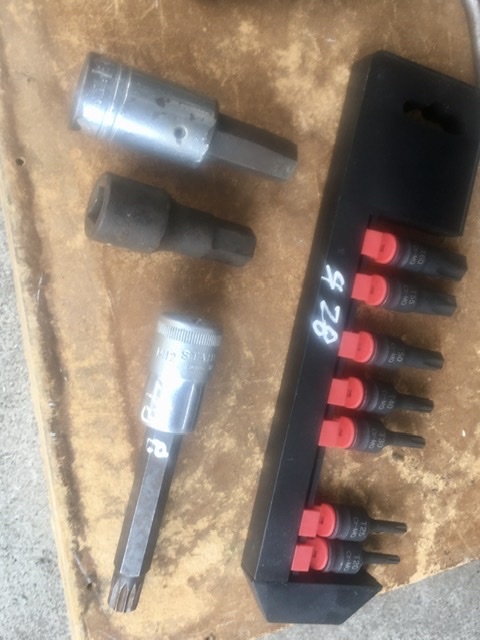

    After driving to a auto shop, they only had 10mm. Found a second hand tool shop open and scored some


    • Like Like x 2
  11. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand

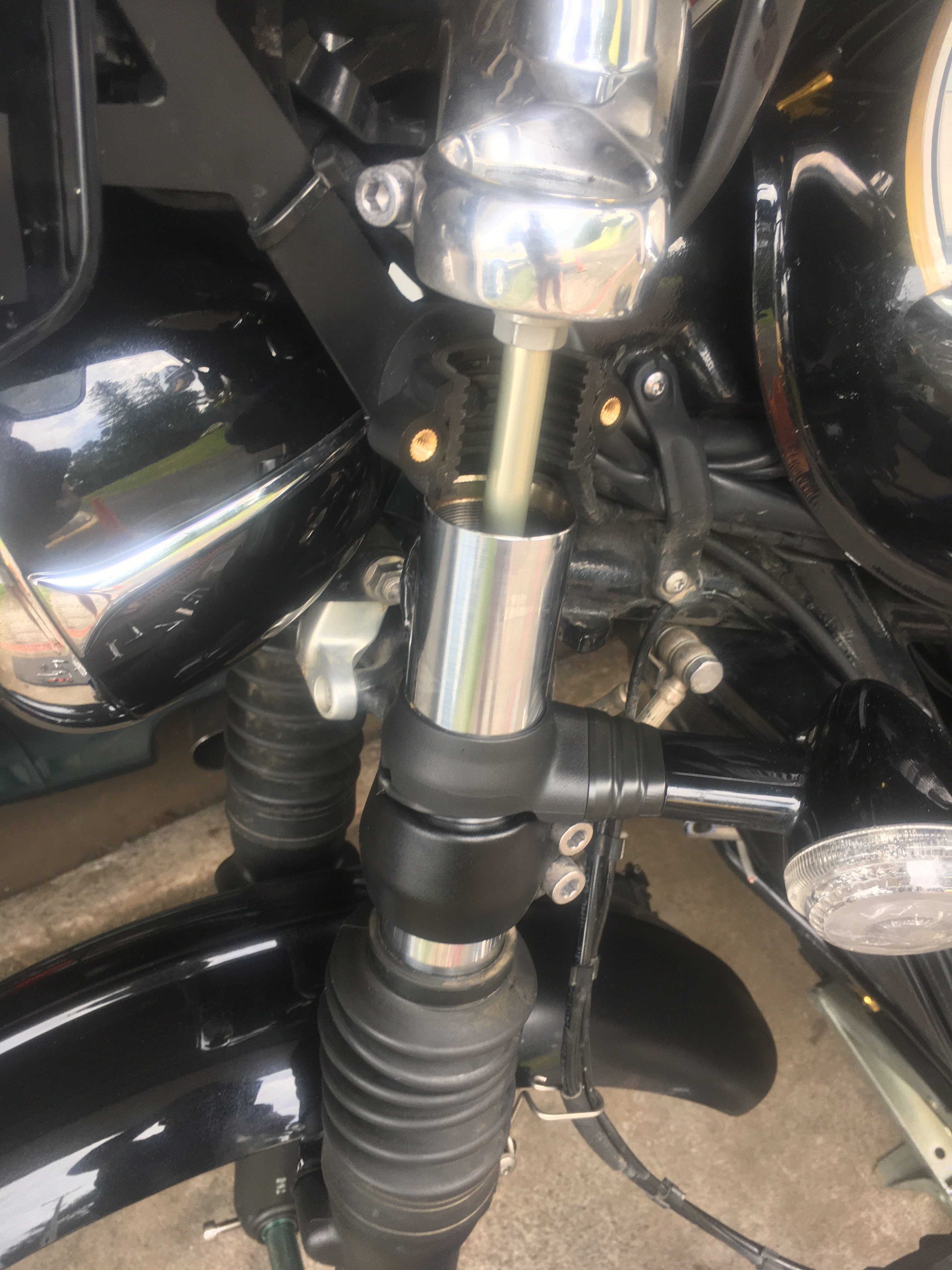

    Now with drive for wheel removal, I could continue to remove the left fork. It really does pay to do one at a time to ensure all the bits are in order and locating the completed fork back is so much safer using the axel to line it up.



    • Like Like x 1
  12. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    #12 Dartplayer, Dec 9, 2019
    Last edited: Dec 9, 2019
    Now with drive for wheel removal, I could continue to remove the left fork. It really does pay to do one at a time to ensure all the bits are in order and locating the completed fork back is so much safer using the axel to line it up.

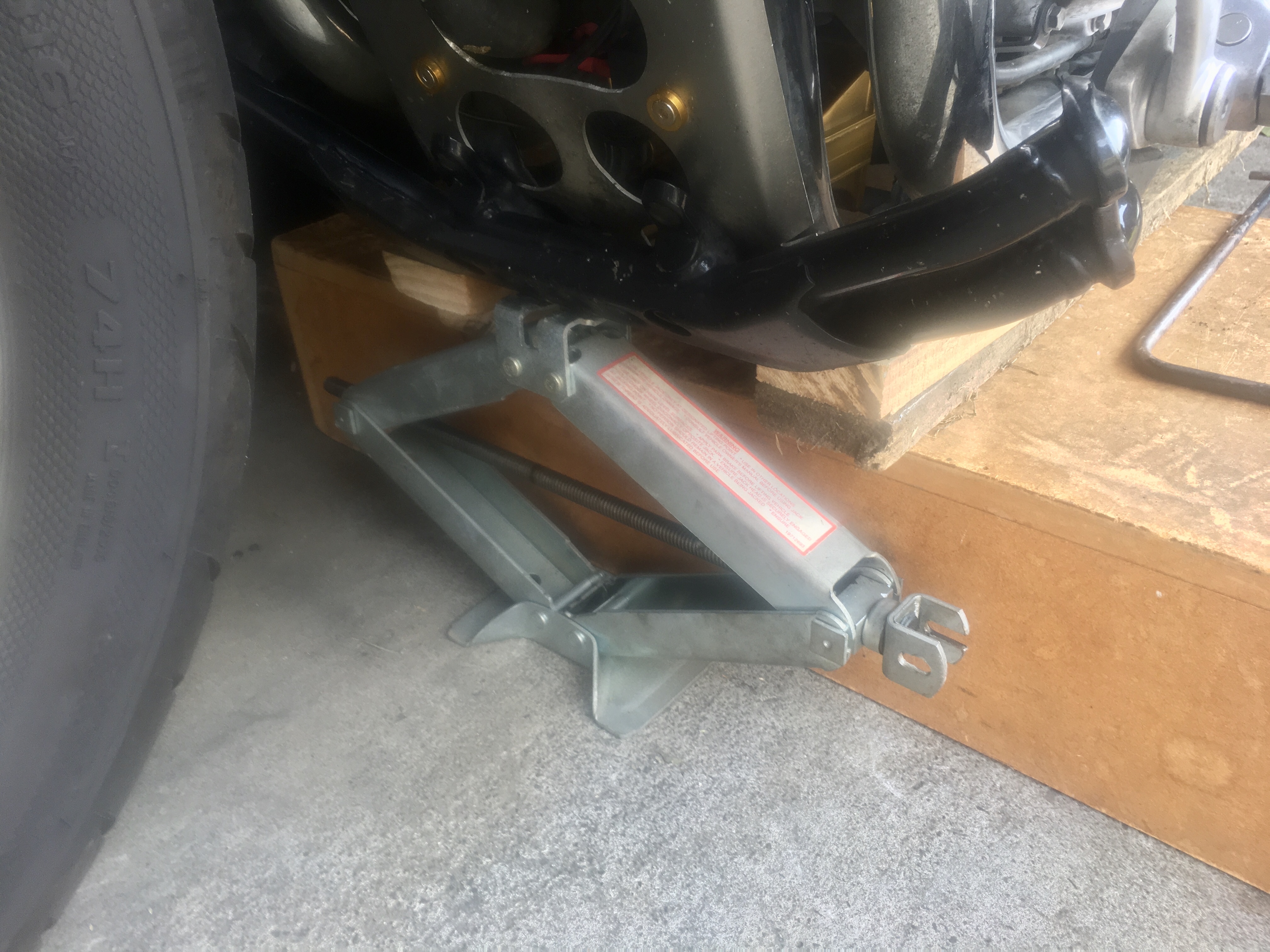

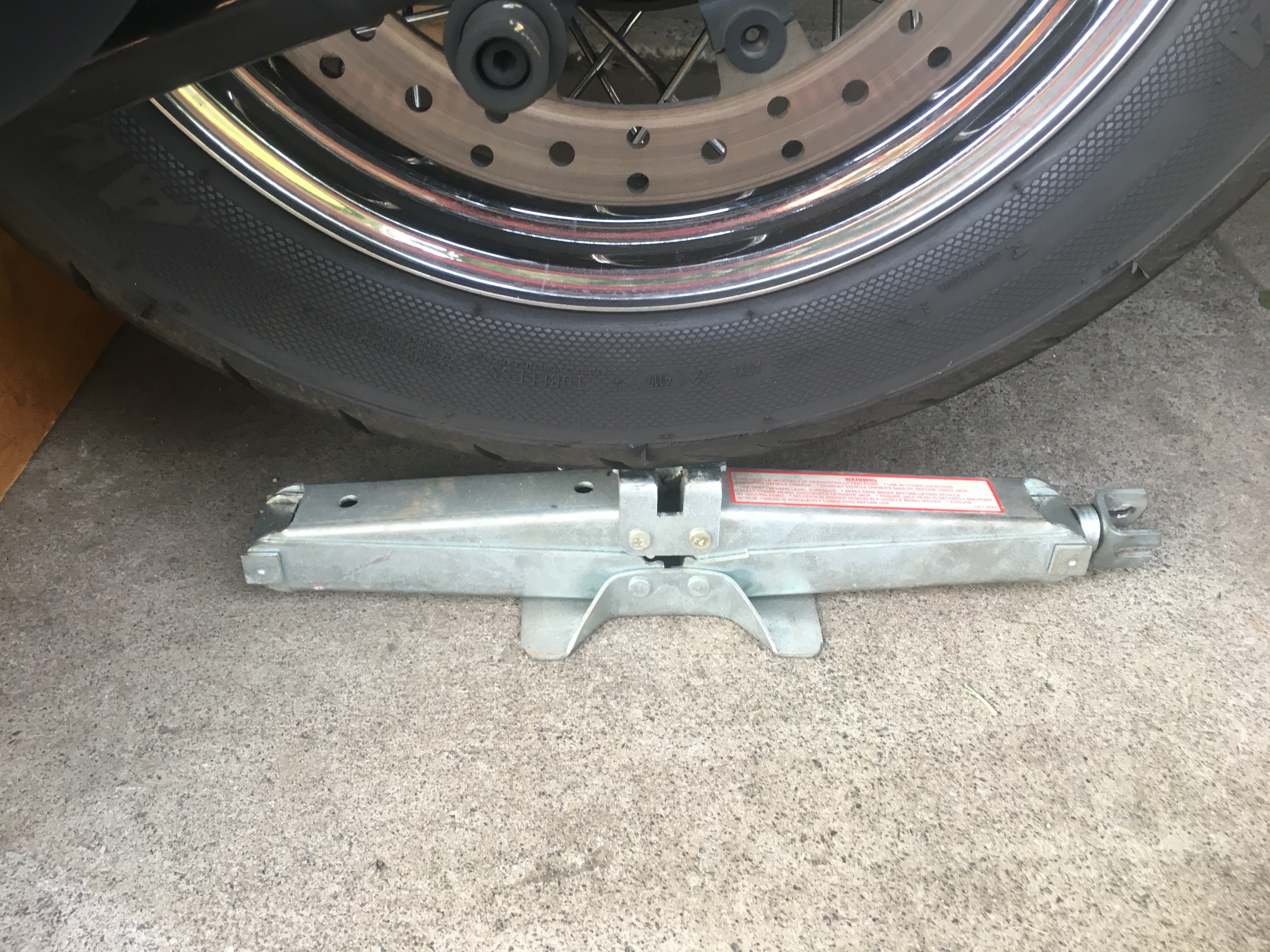

    I also found using the car scissor jack to raise and lower the bike while on the paddock stand was really simple. Old step box with some small chocks on the frame was great support while working on the bike.

    • Like Like x 1
  13. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    #13 Dartplayer, Dec 9, 2019
    Last edited: Dec 9, 2019
    Assembly was slow due to caution, but I learned a lot about fork shocks on the way. I will post a full upgrade pictorial in the gallery.


    finished into the night, so cleaned up and will test tomorrow and report.

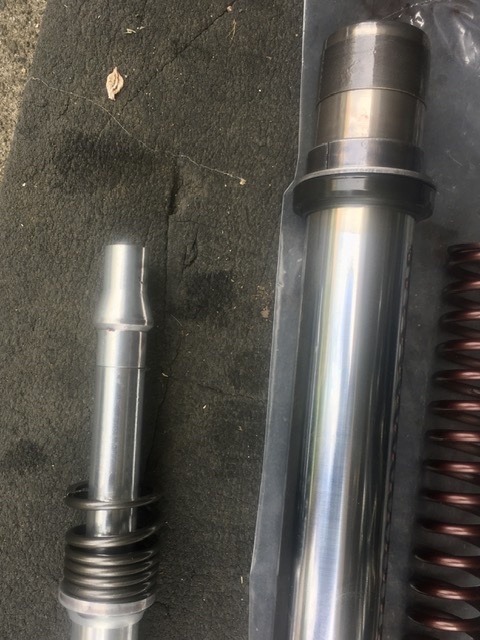

    The right fork had a damper rod, so was different to remove and reassemble, looking forward to seeing what preload and damping will be like on base settings before any adjustments.

    • Like Like x 3
  14. dilligaf

    dilligaf Guest

    Looking forward to your report mate :)

    • Like Like x 1
    • Agree Agree x 1
  15. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand

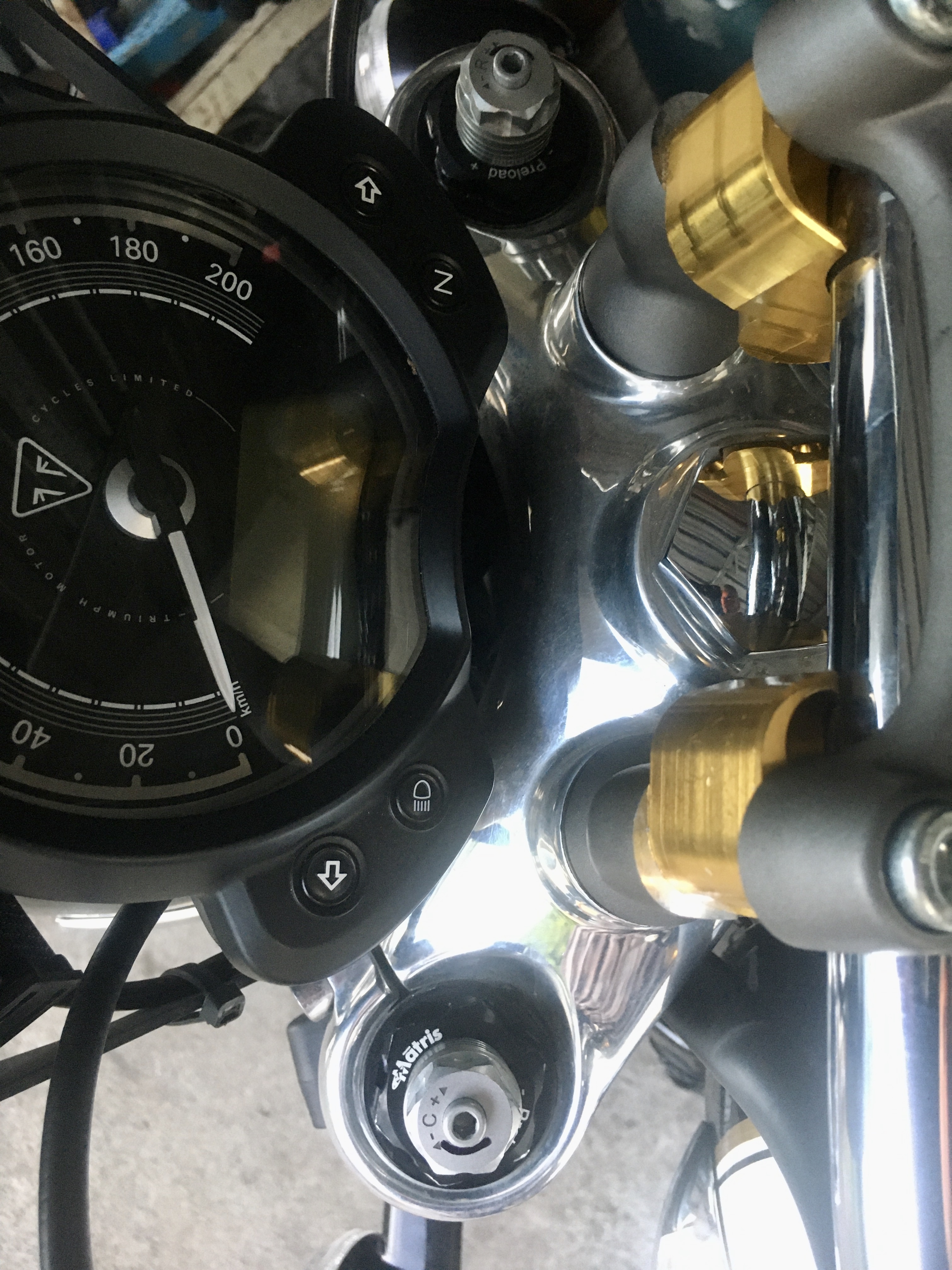

    Initially the front was too hard and took some adjustments of the compression preload to soften it up.
    Issue, too much oil. I had taken the level measures with the springs out, but extended and not fully compressed. 70ml adjustment to the correct level (160mm) and we had success.
    It will take some more fine tuning (only 3 rides of 30km), but well worth it so far.



    • Like Like x 3
  16. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    Thanks for the interest @dilligaf, with this time of year it took me longer to test and adjust before deciding to recheck levels over the weekend. Will be next week until I can fully test and start minor adjustments for my riding style.



    • Like Like x 3
  17. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    Finally got a chance to trial pillion setup. I was shocked at how little preload I needed for such a smooth ride.

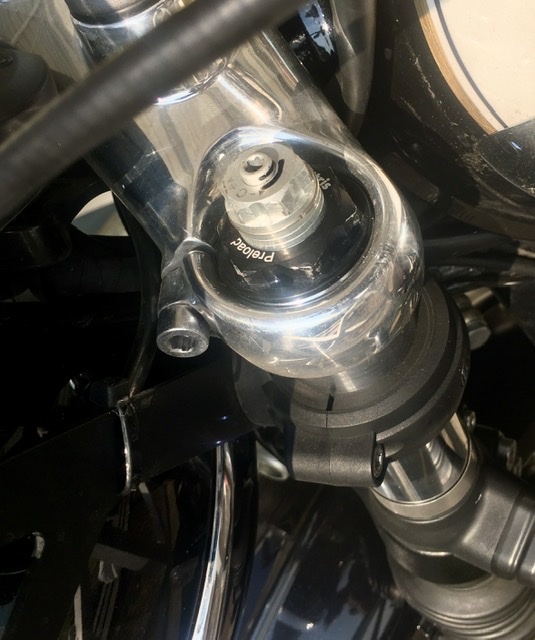

    3 turns of the mono adjusters and 2 turns of the fork spring preload (took 5 clicks out of compression setting).
    Night and day compared to standard :cool::party::sun:



    • Like Like x 2
  18. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    @Dartplayer I'm thinking of getting this Matris shock and have a couple of questions I hope you can answer... Is the rear shock a drop-in replacement for the stock one, i.e. doesn't require any extra fittings? Also, is there a reason you fitted it upside down compared to the stock one?

  19. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    6,912
    1,000
    New Zealand
    #19 Dartplayer, Apr 29, 2021
    Last edited: Apr 29, 2021
    Hi @brown mouse, straight swap with a bit of levering to get it in.:p
    Position was based on load and rebound adjustments being assessable from the base rather than the top.:cool:

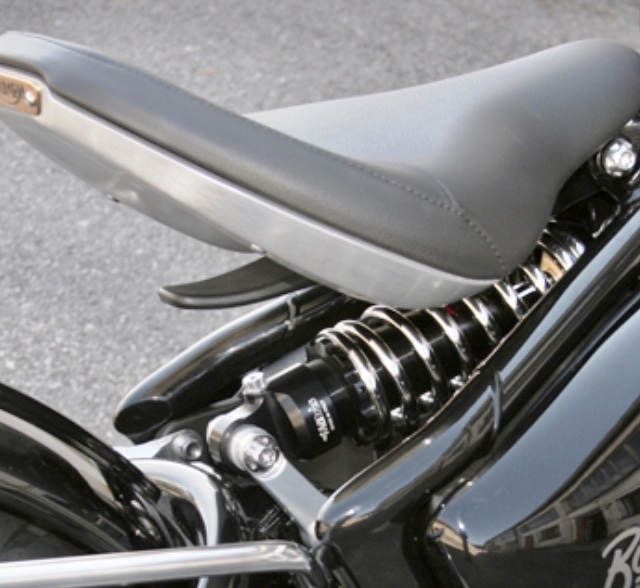

    See Bobber pic showing rebound adjustment at the rear.


    • Like Like x 1
  20. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    Thanks :) Just checked my Speedmaster and can see adjusters would be accessible that way.

    Still debating whether to try and change things. Main motivation is to try and avoid bottoming out with Mrs Mouse on back and she says not to bother with the expense just for her. And she does have that nice padded seat I made to help :)

    • Like Like x 1
