Relay And Paint

Discussion in 'Speed Triple' started by David Cockerell, Jan 12, 2018.

  1. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    Hi all, silly question but have just bought a replacement indicator relay from square deals (recommended on here) but wondered where on the bike it's situated (2015 speed triple) also, has anyone a good source for wheel touch up paint (black)

    All replies appreciated (sensible ones, lol)

  2. stevethegoolie

    stevethegoolie Noble Member

    Oct 16, 2014
    1,132
    300
    East Riding of Yorkshire
    I used a rattle can of satin black on my 2002 Daytona wheels which was a perfect match. Can't remember the manufacturer although CarPlan would be my best guess (it was over 10 years ago!).

  3. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    I did wonder if it might be satin black but thanks for the info.

  4. MrOrange

    MrOrange The Lunatics have definitely taken over !!!!
    Staff Member Subscriber

    Oct 28, 2015
    3,355
    800
    the Heart of Darkness
    Upol are my favourite brand of rattle cans. Seem to spray better than other brands. £7 for 2 cans off of eBay.
    Just got a couple to touch up bits on the Tuono. Sit on a radiator or warm. Water before use, get better results.

  5. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    That's great Mr Orange, thanks for that.

    • Like Like x 1
  6. Yorkshireman

    Yorkshireman Well-Known Member
    Subscriber

    Dec 12, 2015
    269
    63
    Barnsley
    The relay is located under the seat towards the right side (as you sit on it) of the bike. To be certain you can switch the indicators on and actually feel it as it clicks in time with the flashing. It’s held in place in a rubber sleeve nothing more than that.

  7. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    Thanks for the info Yorkshireman but I looked under the seat yesterday and all the relays there were much smaller than the one I have?

  8. Col_C

    Col_C Huge Member
    Subscriber

    Aug 5, 2015
    456
    113
    Cornwall
    I can confirm Yorkshireman is correct, original relay is square section plastic body, the replacement to run LED indicators is round and metal body. It's over on the far right side to the rear of the fuse blocks (not the group of 5 smaller relays nearer the tank)

  9. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    OK Col C, I'll check again, I must have missed it, thanks for the info, much appreciated.

    Dave.

  10. Sprinter

    Sprinter First Class Member

    Aug 17, 2014
    1,647
    500
    uk

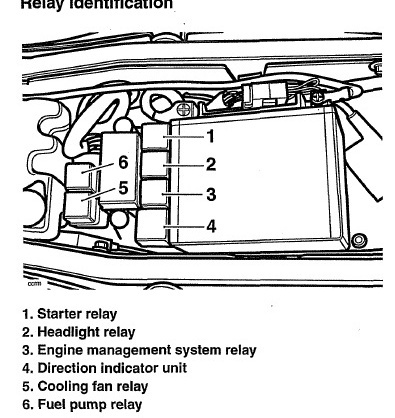

    Is yours any thing like this?

  11. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    No it doesn't to be honest Sprinter, the relay in the diagram looks like it could be the same size but the layout isn't the same, my battery is under a cover at the front of the tank.

    • Like Like x 1
  12. Yorkshireman

    Yorkshireman Well-Known Member
    Subscriber

    Dec 12, 2015
    269
    63
    Barnsley

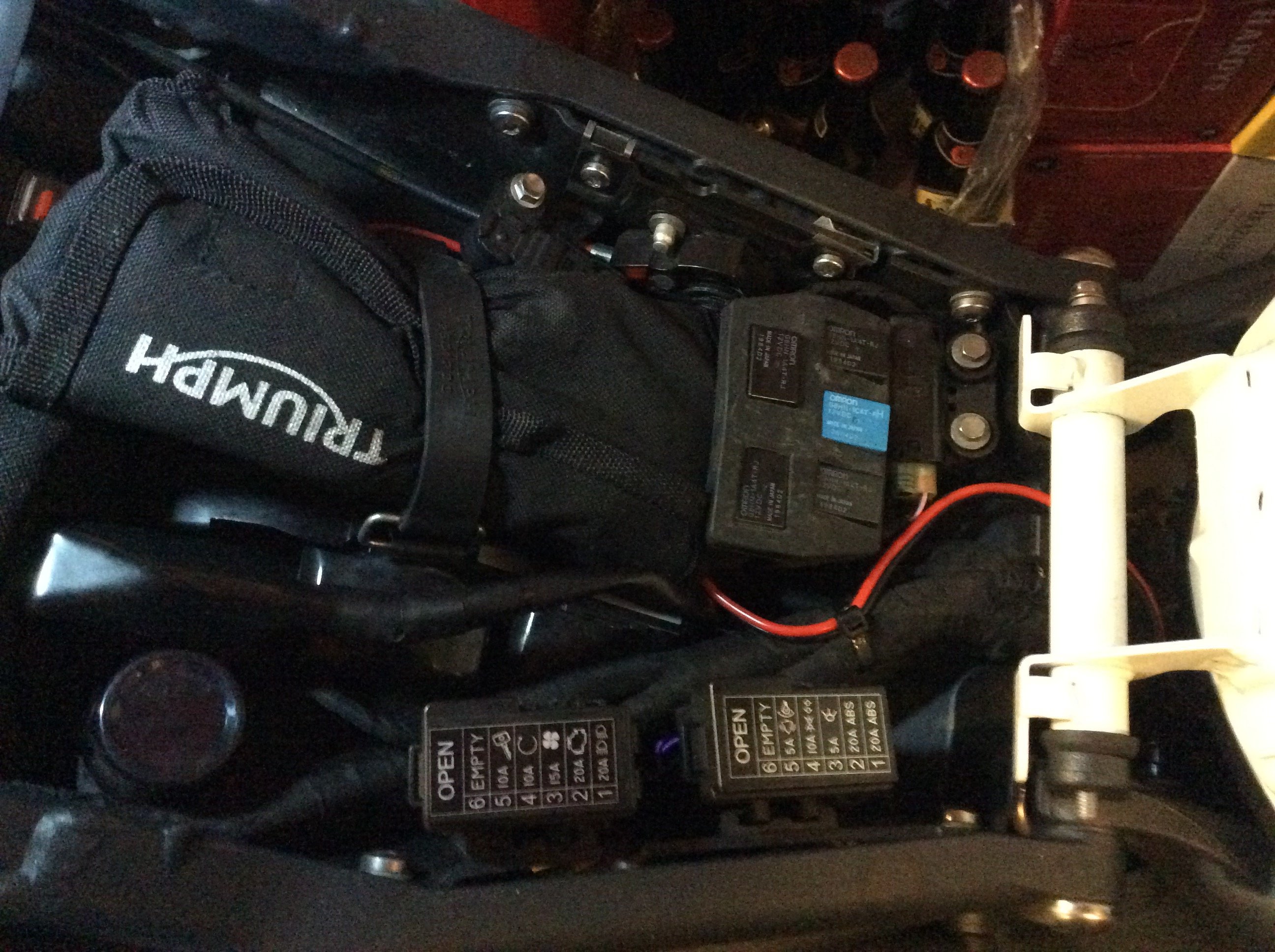

    92E6D797-F674-4AE6-9BE7-BAB3504605E4.jpeg Here ya go, the flasher relay is the round black thingy in the bottom left of picture. It’s an LED relay, the original was square but in the same location

  13. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    Ahh, brilliant, that may be where I've gone wrong as I was looking for a square thingy opposed to a round thingy, thanks Yorkshireman

  14. David Cockerell

    Dec 22, 2017
    27
    18
    North Dorset
    Well chaps, I did find the relay, in my dark shed I'd missed the fact that it was covered by the ecu plug, anyway, fitted the relay and way hey, result, no more quick flashing indicators, thanks for all the pointers.

    • Like Like x 1
