Speedmaster Rear Suspension

Discussion in 'America, Speedmaster & Rocket' started by dilligaf, Feb 9, 2018.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Looking to replace the rear shocks on my BPOS:confused:
    After getting Avon’s fitted to my bike it’s improved the handling beyond what I was expecting :grinning:
    However it has highlighted just how bad the rear shocks are :(
    I’m okay with the front end :)
    But the rear is far too harsh and I would like a smoother ride...better damping and preload and maybe (not as important to me) rebound adjustment as well :)
    Quite like the look of PROGRESSIVE SUSPENSION (usa) but can’t find a uk distribution source :(
    Anyone know where to go?
    Any other options?
    What you got on your Speedmaster/America?
    Cheers
    Dilligaf

  2. BIG AL

    BIG AL Retired and loving every minute of it

    Hi Dilligaf,
    Have you had a look at tecbikeparts.com to see if they have any shocks that would suit you?
    BigAl

  3. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    6,187
    1,000
    sw london
    [​IMG]

    • Funny Funny x 2
  4. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Cheers Al
    Yeah mate I’m trying to look at all options :)
    Just wondered who’s fitted what and what they think :)

    • Like Like x 1
  5. thebiglad

    thebiglad Old fart, still riding !

    Sep 25, 2013
    4,619
    800
    Central France
    I fitted tecbikeparts rear gas shocks on my T100 and they were a massive improvement for £90 at the time.

    • Like Like x 1
  6. Dougie D

    Dougie D Crème de la Crème

    Jan 30, 2016
    6,923
    1,000
    Blairgowrie Perthshire
    • Like Like x 1
  7. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Cheers mate :p
    That’s the sort of thing I was looking for :)
    Bit more research to be done and then I’ll make a decision and spend some money :confused:

    • Agree Agree x 1
  8. Scoot65

    Scoot65 Well-Known Member

    Dec 3, 2015
    231
    93
    DURHAM
    • Like Like x 1
  9. capt

    capt Senior Member

    May 8, 2016
    1,262
    250
    western Australia
    I put IKON on the 09 America, done over 60,000 klms and they are still good ! I had to put new rubbers bushings in top and bottom on both shocks at around 30 thousand because the originals weren't designed to handle towing a 200 kg + camper, got tougher/harder neoprene bushes and all looking good still ! You can get whatever rated spring's installed when you order them, if you want to sharpen up the steering ,,put longer rear shocks on, stiffer front springs and then drop triple clamps down the stanchions, my setup is :- 10 mm longer rears about 15% stiffer springs , front end is much stiffer about 20/25% stiffer short springs over emulators, with tapered head stem bearings, the front end has been dropped 12/14 mm at present (sag was 15/16 mm on original springs) this gives me much sharper / quicker steering ! I've been round Wanneroo race track (North Perth suburb ) could match the sports bikes on the cornering but not keep up on the straights ( no big bore or porting done then) handled the track well

    Cheers capt

    • Like Like x 2
  10. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
  11. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Cheers Capt:)
    Don’t think I’ll be doing any track days on my speedmaster :confused:
    Like I said mate I feel quite happy about the front end at the moment although I did raise the forks through the clamps 10mm a while back to try and improve the handling :confused:
    Since fitting the Avons the handling is massively improved and I’ve left the front end as is :)
    My problem is now more of a comfort thing :worried:
    When riding over large unavoidable pot holes which are plentiful in this bloody country the front end behaves fine but a split second later the back end sends a shockwave up my already fragile spine :confounded:(glassback)
    The bike doesn’t get out of shape at all it’s just a comfort thing :p

  12. Gopherit

    Gopherit New Member

    Feb 13, 2018
    10
    3
    NSW
    Hello again Dilligaf,
    The Ikons are an excellent set of shocks for Speedmasters and according to what I read and have researched, they are well worth the money. Apparently, they will make your bike a much better proposition day to day and improve the handling as well. A guy I know has them and is very impressed. He reviews and writes for a motorcycle site.
    Currently saving up for a set!!.
    https://motorbikewriter.com/ikon-suspension-ugrade-review/

    • Cheers Cheers x 1
  13. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Cheers mate
    Still doing my research at the moment :confused:
    Can’t really find much bad said about most suspension :)
    Only bad reviews I can find are TEC shocks :(
    Plenty people praising TEC shocks as well :)
    Other problems seem to be people ordering the wrong shocks for their bikes....too heavy duty etc :confused:

    • Like Like x 1
  14. capt

    capt Senior Member

    May 8, 2016
    1,262
    250
    western Australia
    Hi Dilli, you read TOO much into the mentioned trip round the Wanneroo race track ! If it handle's that well it must absorb the bumps properly !!! My bike is very comfortable and flexible, it can be adjusted to suit most type's of loads and use's, my shock's have the piggy back reservoirs which are damping adjusted via air pressure over hydraulic oil !
    I am 56 and swmbo is a few years older ! We both have age related issues with back,hips,knee's etc, with the ikon shocks adjusted right for the conditions it's not an issue to ride 200 to 300 klms in an afternoons ride out .

    • Like Like x 1
    • Love You Love You x 1
  15. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Been in touch with Ikon uk:)
    Asked for advice and have been advised ikon adjustable 7610 shocks are the way to go :)
    :eek::eek:£458.26:eek::eek: that’s the starting price :eek:
    Delivery and tax has to be added :eek:
    They do some non adjustable ones from £230.22:confused:
    Gotta clip board at work with a list of options written down :p
    Ikon now has a big cross drawn over it:(

  16. Gopherit

    Gopherit New Member

    Feb 13, 2018
    10
    3
    NSW
    QUOTE="dilligaf, post: 165947, member: 6630"]Been in touch with Ikon uk:)
    Asked for advice and have been advised ikon adjustable 7610 shocks are the way to go :)
    :eek::eek:£458.26:eek::eek: that’s the starting price :eek:
    Delivery and tax has to be added :eek:
    They do some non adjustable ones from £230.22:confused:
    Gotta clip board at work with a list of options written down :p
    Ikon now has a big cross drawn over it:([/QUOTE]

    Dilligaf:
    Bloody Hell! That's expensive (understatement)!
    Over here in OZ they are half that price. https://www.ikonsuspension.com.au/shop/7610-1502/
    Between A$550 - A$660.
    Maybe buy them here and have them sent across!

    • Like Like x 1
  17. Gopherit

    Gopherit New Member

    Feb 13, 2018
    10
    3
    NSW
    Dilligaf; A bit more information on Ikon shocks for Speedie 865. Ikon site indicated a Max spend of A$792. Depends on how much chrome you want on the shockies!
    Still think it would be better to buy here and ship across to UK! upload_2018-2-16_14-5-13.png

    • Like Like x 1
  18. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Cheers @Gopherit
    Looking like I’m gonna go for Progressive 412 shocks :)
    Can get them over here for about £270:eek: in BLACK :cool:
    Bit more searching to see if I can get them cheaper but will probably order today :)

    • Like Like x 2
  19. dilligaf

    dilligaf GRRRRRR
    Subscriber

    Mar 30, 2017
    6,550
    1,000
    Washington Tyne & Wear
    Ok so I’ve just changed my mind :confused: again

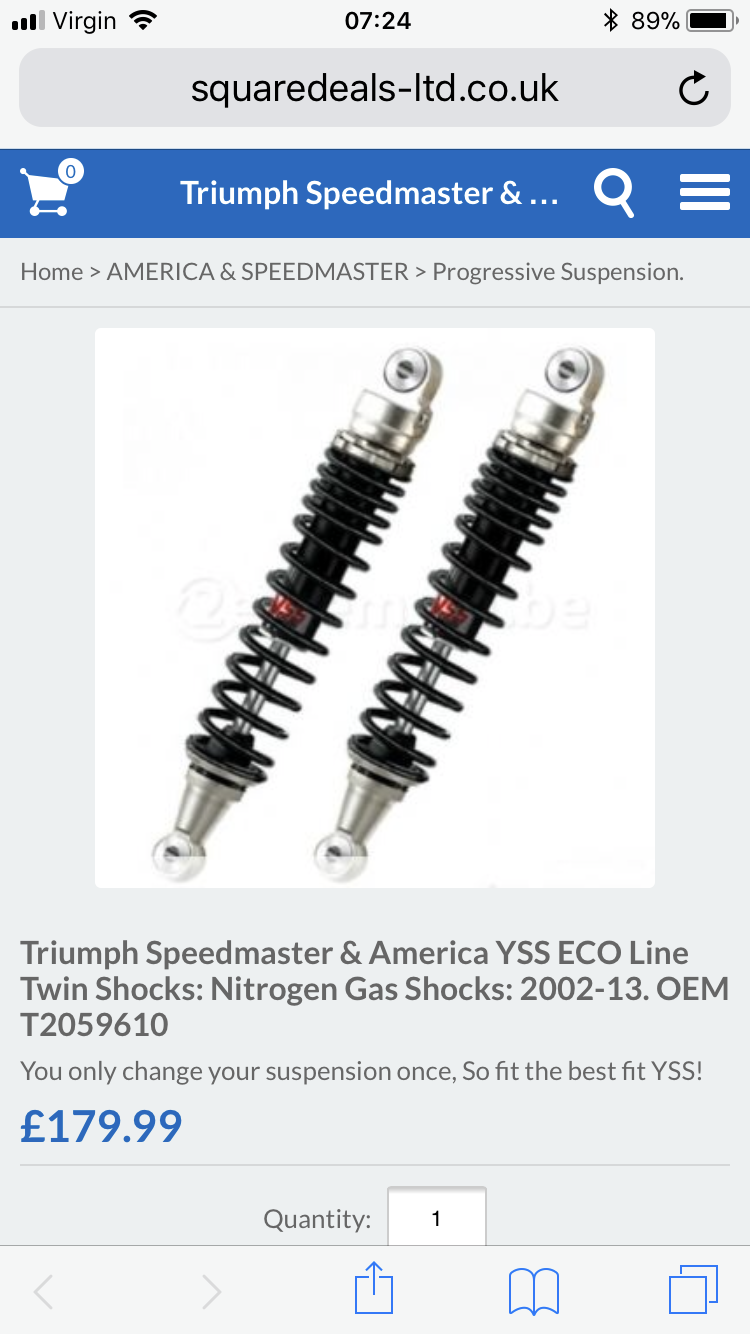

    Can’t find any negative reports on these :) so I’ve just ordered a pair :eek:
    Cheaper than the rest but it’s a cruiser at the end of the day and it’s not like I’m trying to improve my lap times or something :eek:
    Got one of the original shocks off my bike and measured it eye to eye and it’s 12.5”
    The progressive ones that I was looking at in BLACK :cool: are 11.5”:confused:
    Don’t want to alter the ride height either up or down so YSS it is :)
    Hopefully I’ll get the smoother ride I’m after.....gotta be better than standard which might as well be bits of scaffolding bar:confounded: they’re that harsh :confounded: D0765EFF-C92C-4C5F-8CE7-3A75CB521DBD.png

    • Like Like x 2
  20. BIG AL

    BIG AL Retired and loving every minute of it

    Hi Dilligaf,
    I look forward to hearing a report from you as I might consider putting these on my America if they are any good.

    Cheers
    AL

    • Like Like x 1
