    Hi, I bought a Tiger 800 XCA last weekend and love it, few questions though.

    I have a fog lamp out and can't find a link to a replacement ?

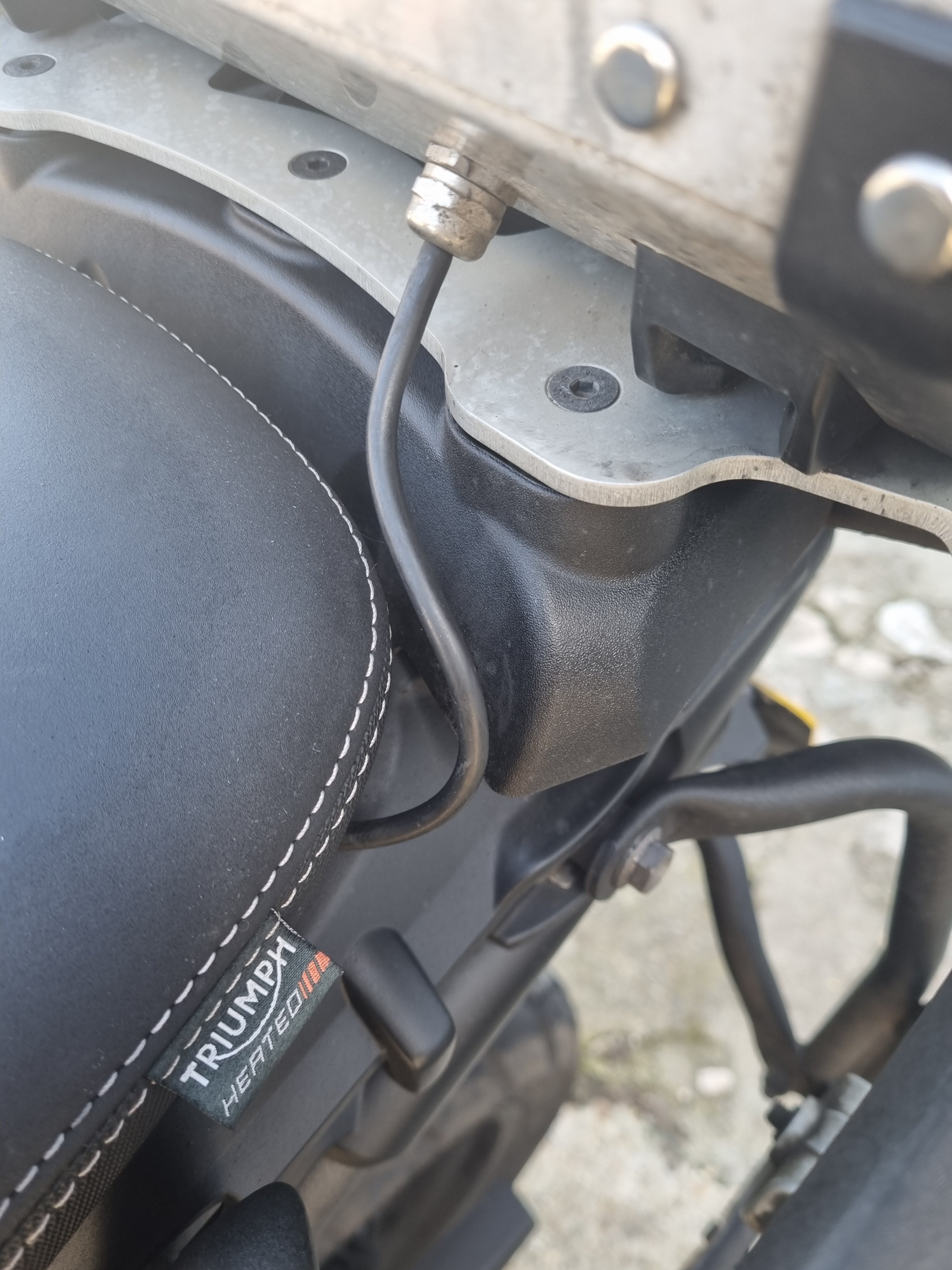

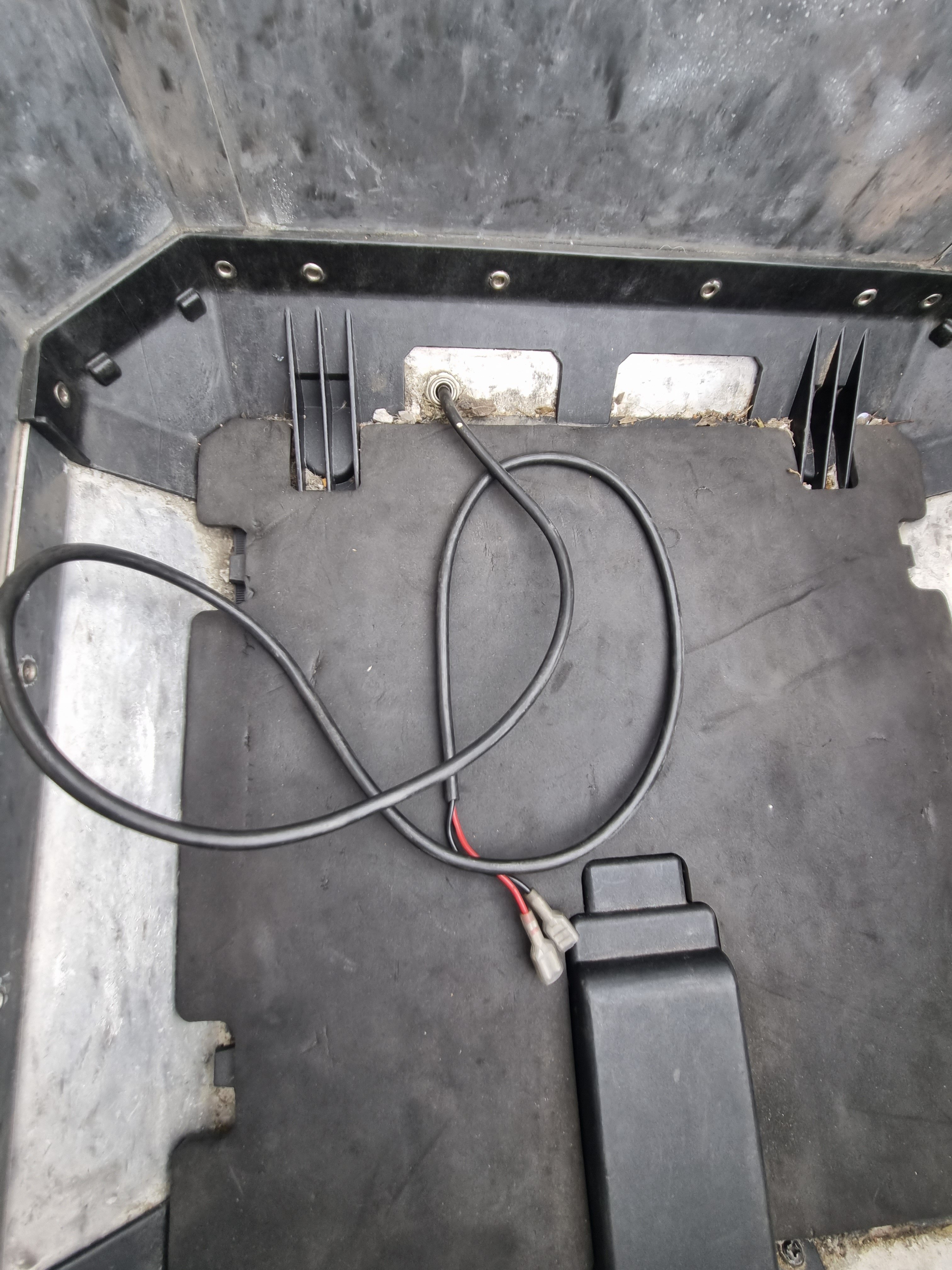

    Also It came with a powered top box which I gather is only supposed to be on the 1209 explorer, but it's connected, to what I'm not sure but it's def connected, what can I plug in and how (see picture)




  2. Samsgrandad

    Samsgrandad Senior Member

    Dec 15, 2019
    499
    213
    Somerset
    #2 Samsgrandad, Apr 19, 2022
    Hi and welcome to the forum, a great choice of bike!
    I would assume that the fog lights are the LED type, (the early ones had halogen bulbs) fitted to the later models. If so it appears that you have to replace the complete light unit, go onto www.worldoftriumph.co.uk or www.fowlersparts.co.uk. The part number you need looks as if it is either T2701465 or T2706027 depending on the model year you have, a warning however the price of a light unit is just over £140!! I suggest you check the wiring first to make sure that it is the light unit that is defective.

    Your second query regarding the powered top box, this looks like a home made addition, the genuine Triumph one had contacts under the top box and a socket on the plate so that it disconnected when you took the top box off.
    You need to check whether your leads are powered all the time or just ignition live and you need to check the feed and fuse rating to see what load it can carry.

  3. Neil Poyner

    Neil Poyner New Member

    Apr 18, 2022
    0
    1
    Bn177de
    #3 Neil Poyner, Apr 19, 2022
    Thanks, the fog light has randomly sorted itself so I'll dig a little deeper to check the connection and the top box power disappears further under the seat so may have to remove more things to find what it's connected too
