Led Indicators

Discussion in 'Technical Help' started by In my own world, Mar 29, 2019.

  1. In my own world

    In my own world Senior Member

    Dec 22, 2018
    277
    113
    West Sussex
    #1 In my own world, Mar 29, 2019

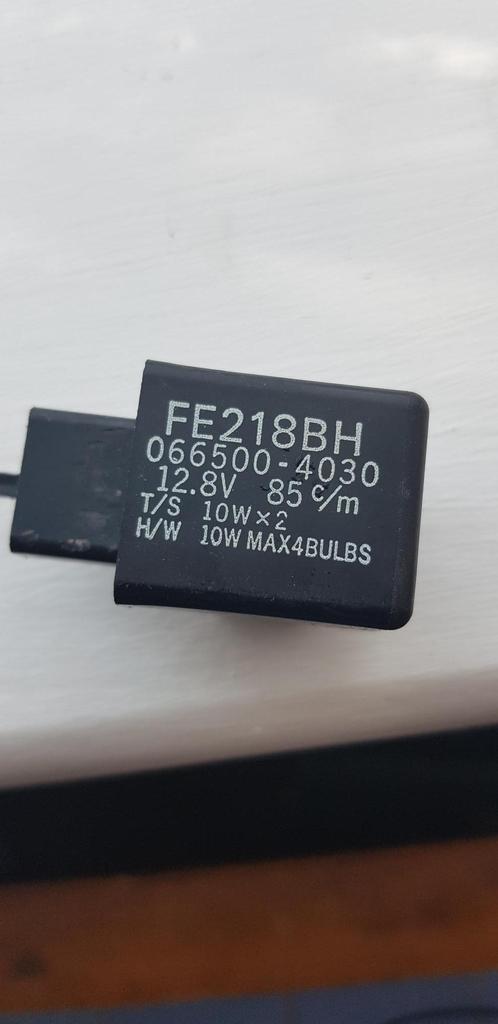

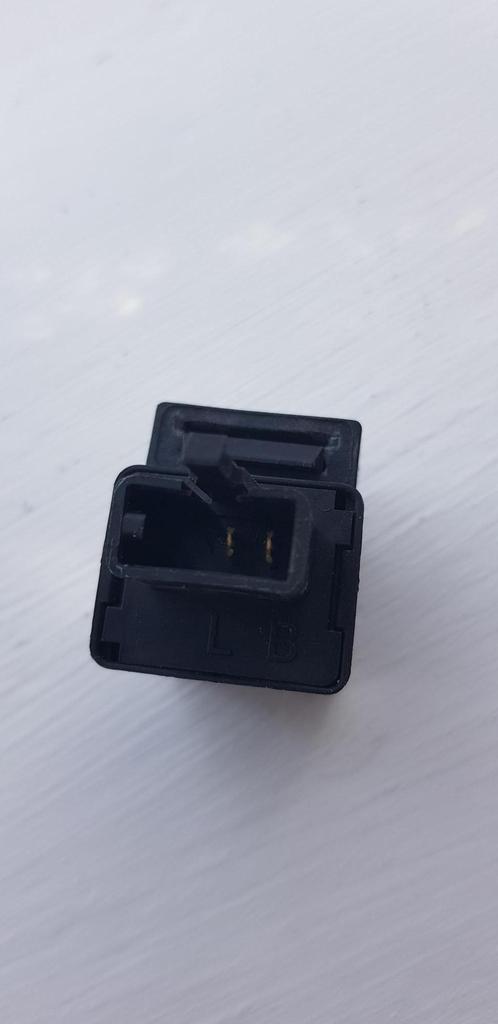

    Swapped my standard indicators for some LED ones. They have built in resistors, so that saved me some pounds. I was informed i need to change my flasher relay to a CF13 JL-02. It arrived today but this is a 3 pin relay and mine turns out to be a two pin, like in the pictures. Can someone tell me where and what is the right one i need?.
    [​IMG]
    [​IMG]

  2. andyb57

    andyb57 Senior Member

    Apr 15, 2017
    284
    113
    Devon
    #2 andyb57, Apr 2, 2019
    I'm definitely not an expert but if resistors are built in surely you won't need to change the relay?? I thought you needed one or t'other to get the correct flash rate, not both....

  3. In my own world

    In my own world Senior Member

    Dec 22, 2018
    277
    113
    West Sussex
    #3 In my own world, Apr 3, 2019
    Found a 2 pin relay, plugged in and hey presto the indicators work. Even though the indicators say they have built in resistors i don't think they have. Like you said with the resistors a new relay should not be needed.

    • Like Like x 2
  4. Artemij

    Artemij Well-Known Member

    Feb 24, 2019
    48
    68
    Tockwith
    #4 Artemij, Apr 15, 2019
    Hm... newer heard about relay build in to an indicator, it must be a bloody big indicator to take relay :)
    Btw went to Triumph York this Saturday to check new stuff and had a chat about swapping indicators on my speed triple and I have to put relay which is £20 from the dealer, not such a big of a deal, but the whole set of four indicators and relay £200

  5. In my own world

    In my own world Senior Member

    Dec 22, 2018
    277
    113
    West Sussex
    #5 In my own world, Apr 15, 2019
    Not Relay, they have built in resistors. New flasher relay cost me £3.45.
    In all, i cost me £11.41 for the whole lot. The indicators are much smaller than the stock items. All my lamps are now LED. Overall took me under an hour to fit them. This is if i had the right relay to hand i had to wait 3 days for the relay to be delivered.

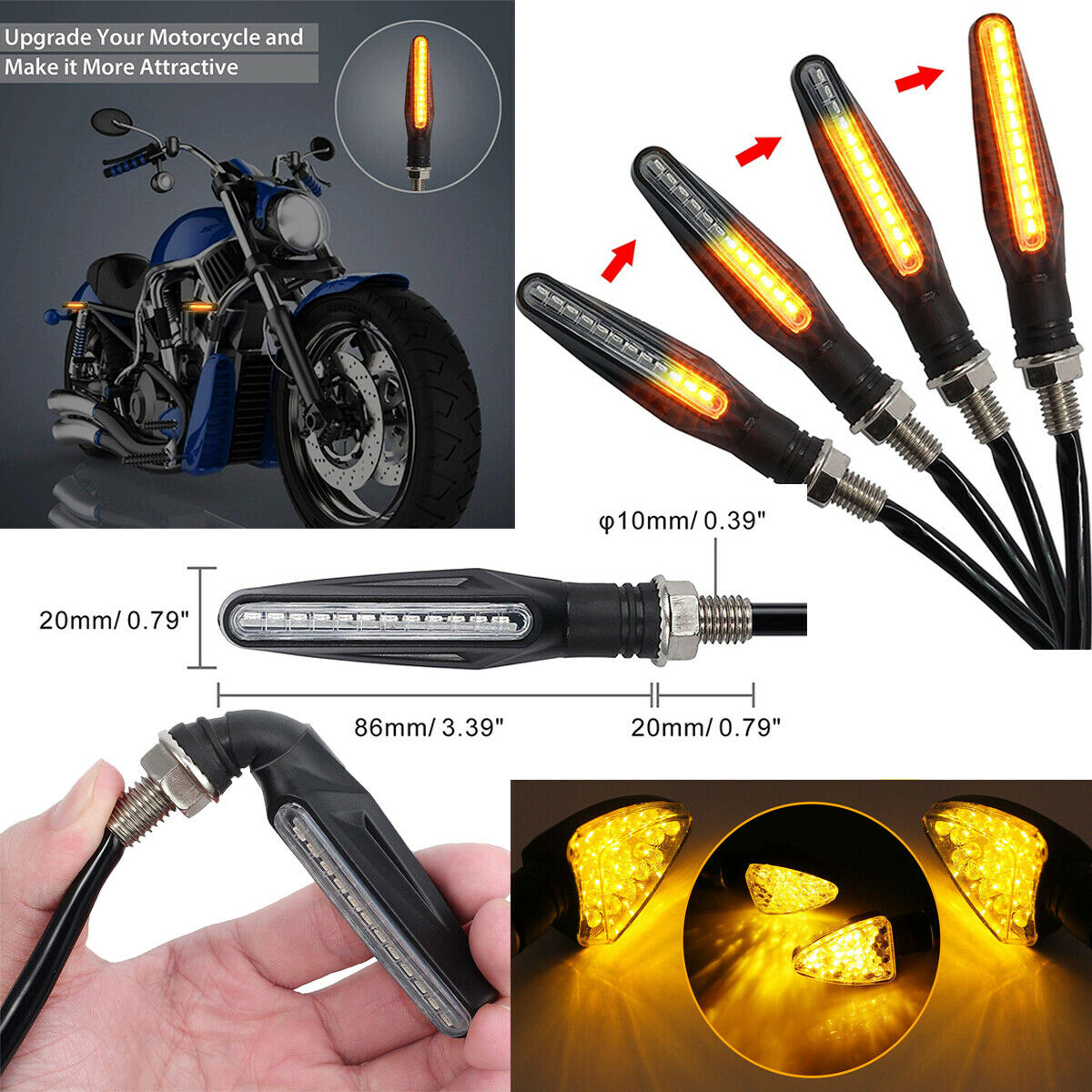

    These are the one's i fitted
    [​IMG]

    • Like Like x 2
  6. Vulpes

    Vulpes Confused Member

    Mar 14, 2018
    18,562
    1,000
    Netherlands
    #6 Vulpes, Apr 15, 2019
    I've got similar ones. No relays needed, just one extra live wire for the DRL.

  7. In my own world

    In my own world Senior Member

    Dec 22, 2018
    277
    113
    West Sussex
    #7 In my own world, Apr 15, 2019
    Didn't want DRL. Don't like them if they're not in the headlamp.

  8. Vulpes

    Vulpes Confused Member

    Mar 14, 2018
    18,562
    1,000
    Netherlands
    #8 Vulpes, Apr 15, 2019

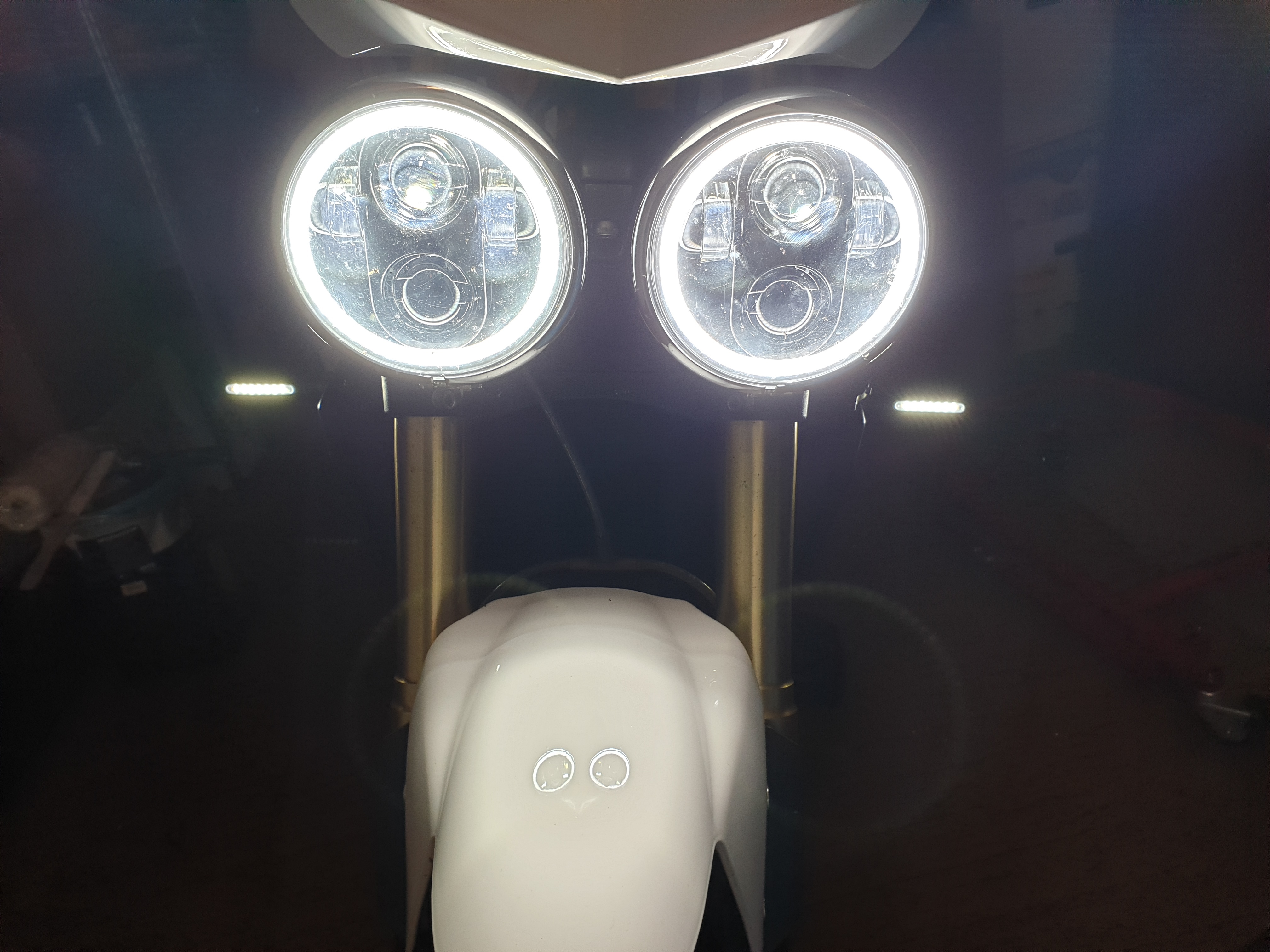

    I've got both - I like it a lot. 20190415_173827.jpg

    • Like Like x 3
  9. Artemij

    Artemij Well-Known Member

    Feb 24, 2019
    48
    68
    Tockwith
    #9 Artemij, Apr 15, 2019
    Wow, £200 or £12 massive savings, i wonder what the look and feel like.
    I had a close look at the Triumph ones and felt in love with them straight away, amazing build quality and attention to details no wonder they so costly. Really want to get those, but its hard to resist the bargain of £12.....hmmm not sure

  10. Artemij

    Artemij Well-Known Member

    Feb 24, 2019
    48
    68
    Tockwith
    #10 Artemij, Apr 16, 2019
    Are DRLs and indicators in the same unit and change from white to amber when indicating?
    Thanks

    • Agree Agree x 1
  11. Vulpes

    Vulpes Confused Member

    Mar 14, 2018
    18,562
    1,000
    Netherlands
    #11 Vulpes, Apr 16, 2019
    Yep.

    • Like Like x 3
  12. Artemij

    Artemij Well-Known Member

    Feb 24, 2019
    48
    68
    Tockwith
    #12 Artemij, Apr 16, 2019
    Nice

    • Thanks Thanks x 1
    • Agree Agree x 1
