Led Indicators With Drl

Discussion in 'Technical Help' started by Vulpes, Jan 27, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands

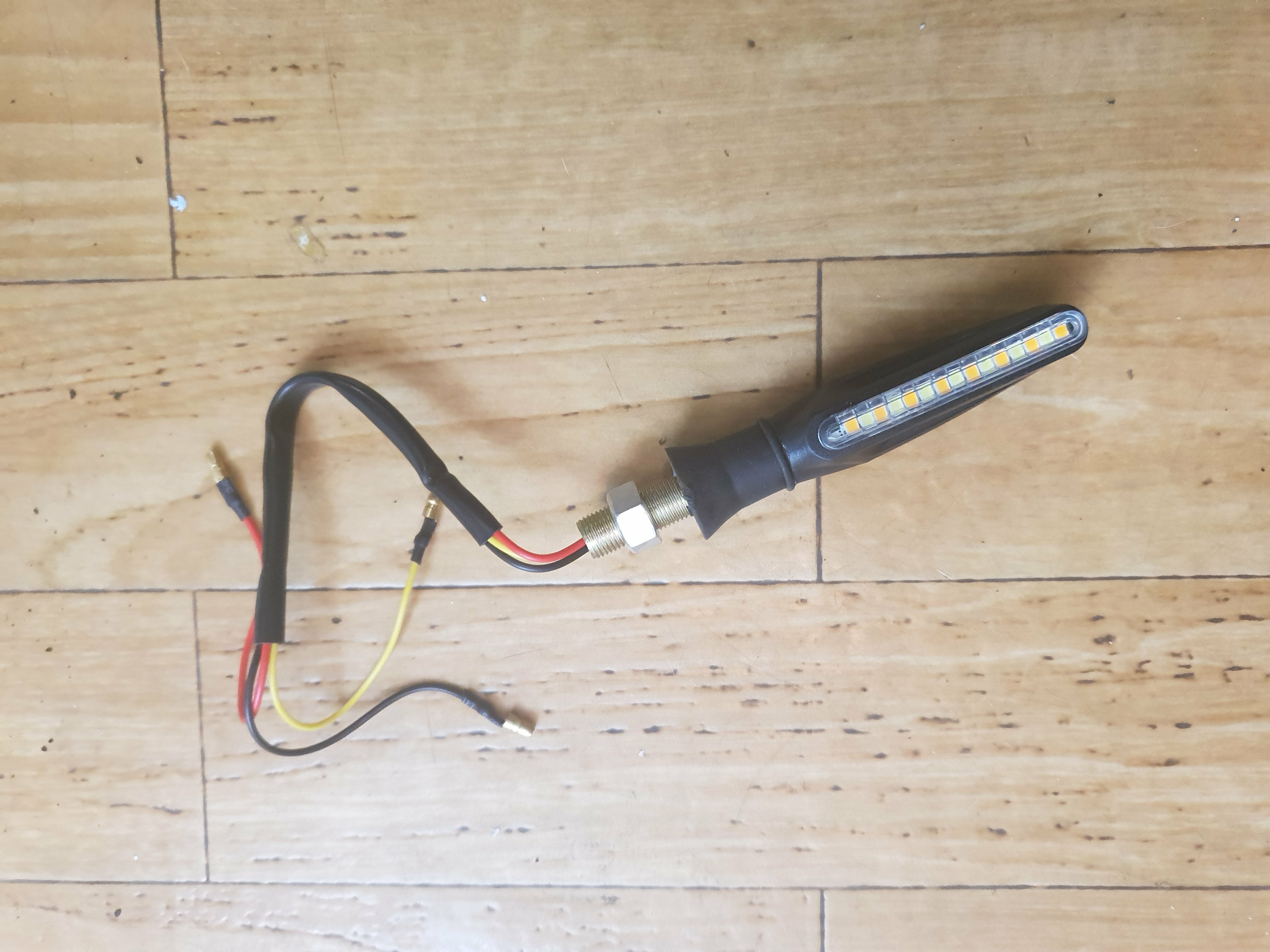

    Trying to install these. They're supposed to "stream" amber when indicating, and show a white DRL when not. It says to connect the red and yellow to the positive (which one's that? o_Oo_O) and the black one to earth. I can only get them to show a white light indicating though?

  2. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    Normally Black= Earth/negative. Red = Positive/live and yellow normally indicator signal wire
    Try connect black to Earth and touch red to positive,(white light) then try the yellow (indicator amber) see what results you get.

    • Agree Agree x 1
  3. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands
    Thanks for that. The present indicator only has two leads though, black and white?

  4. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    #4 TEZ 217, Jan 27, 2019
    Last edited: Jan 27, 2019
    black to black , yellow to white
    Blue to bits

    Nah just messing I would try as stated black to black, touch yellow to white (with indicator switch on )
    worse result is you blow a fuse.

    Unless you have a meter to check wires or even a test bulb

    • Like Like x 1
  5. Dozers Dad

    Dozers Dad Bushmills Chief Quality Controller
    Subscriber

    They look good & the functionality sounds cool Vulpes. Follow Tez's instructions & see how it goes. It's good/logical advice so it should work?

    PS... I think I've solved how to get the action camera clamp mount to fit the handlebars of your bike?
    Look out for an update later when I've found enough motivation to get cracking :kissing:

    • Like Like x 2
  6. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    THANKS FEZ
    :D:D:D:D:D:D:D

    • Funny Funny x 2
  7. Dozers Dad

    Dozers Dad Bushmills Chief Quality Controller
    Subscriber

    Sorry mate, new phone.
    They have to learn new words or they change what you type thinking you spelt it wrong? :rolleyes:

    • Like Like x 1
    • Agree Agree x 1
  8. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands
    If I put black on black and red on white it flashes white. Any other combination does nothing... Oh and I've got a meter, but no clue as to how it works.. :confused:o_O

  9. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands

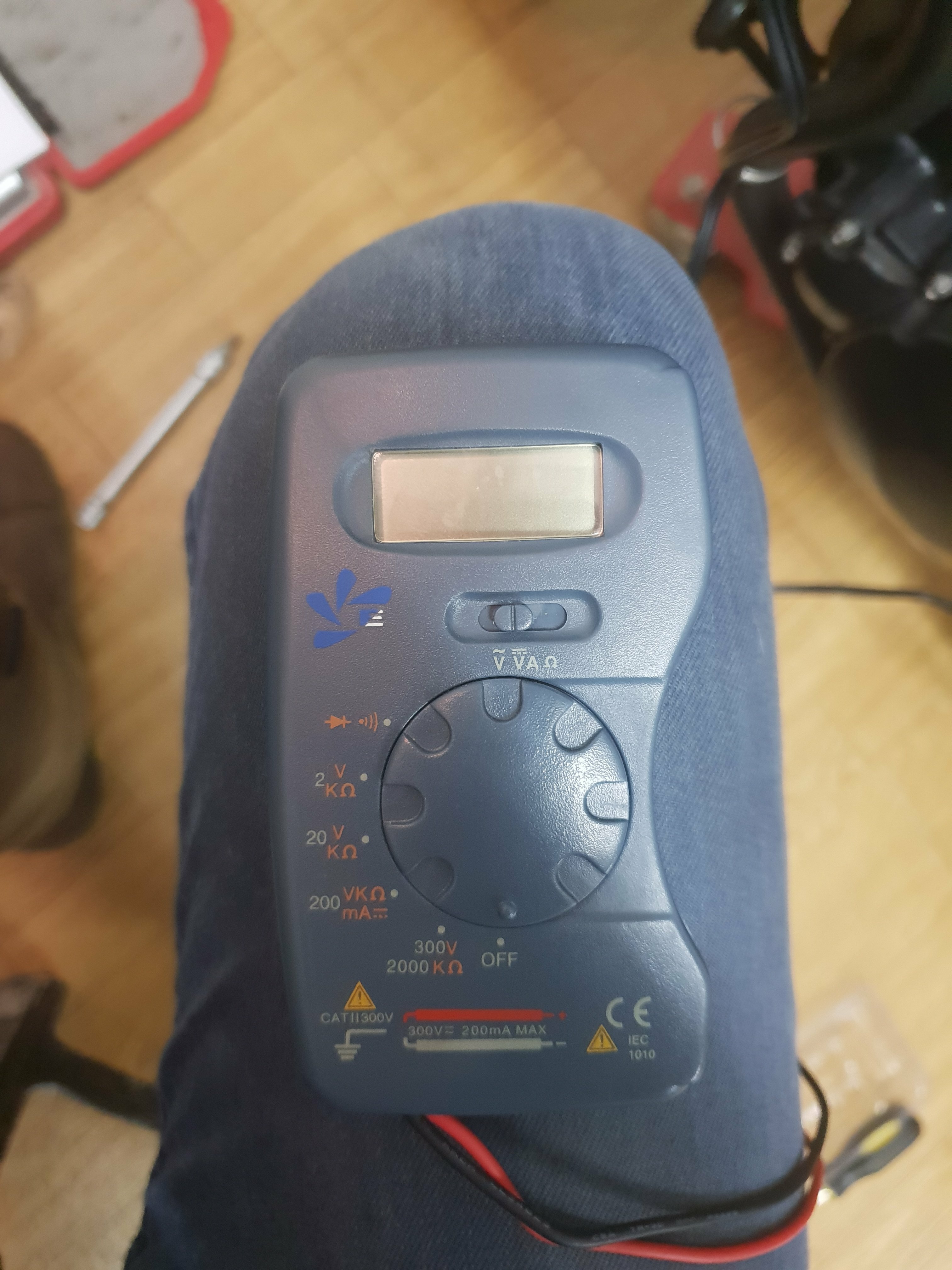

    Got this...

  10. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands

    Sorted. I need an extra live lead, connect that to a switched circuit, put black on black and yellow on white. Just wondering where to get the switched lead from.

    • Like Like x 3
  11. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    Is that the same results when swapping to another indicator ?

    seems BLACK is Earth and your White is turn signal wire (through Flasher)
    Its flashing white - shows Red is white DRL wire
    therefore Yellow should be indicator wire (amber light)

    But not working !!! o_O need another live

  12. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands
    Got it sorted mate, see previous post. Cheers!

  13. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    Yep needs another live feed, would show drl light immediately all the time though.

  14. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    Maybe pinch a switched lead from headlights (so works continuous only with lights on) otherwise DRL's would be on constant

  15. Dozers Dad

    Dozers Dad Bushmills Chief Quality Controller
    Subscriber

    Very cool mate! :grinning:
    They'd look a bit daft on Annie but cool on ASBO. Do you have a link to where you purchased them please?

    • Like Like x 1
    • Agree Agree x 1
  16. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    In the meantime please send me your meter :D, as easier to give away to a fellow member that can use it, rather than entering into intensive training on how to use it :rolleyes::rolleyes::rolleyes::rolleyes::rolleyes:

    • Funny Funny x 3
  17. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands
    That was my idea too - and I will have to take the fuel tank off to get the wires in place. Tnx Tez!

  18. TEZ 217

    TEZ 217 Crème de la Crème

    Mar 6, 2016
    2,290
    1,000
    south shields
    Can you not pick up via rear of headlight ,? what bike ?

    Great ya got sorted well done Vulpes

    • Thanks Thanks x 1
  19. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands
    • Like Like x 1
    • Cheers Cheers x 1
  20. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    3,704
    1,000
    Netherlands
    It's a 2005 speed triple. I've worked out how to measure current with the meter :oops:, so I'll find an appropriate lead.
