Vintage Tiger Ignition Barrel Wiring Diagram

Discussion in 'Tiger / Explorer' started by jon fen, Oct 1, 2024.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. jon fen

    jon fen New Member

    Aug 21, 2023
    5
    3
    cornwall
    #1 jon fen, Oct 1, 2024
    hi all,
    my 1998 885i has a shot ignition barrel. does anyone have a link to the wiring diagram for the barrel, as im looking to bypass it somehow. or possibly fit a cheap patent part if anyone has a recommendation?

    thanks

    • Useful Useful x 1
  2. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #2 Flay, Oct 19, 2024
    I have the works diagrams for the 955i (2003)

    • Useful Useful x 1
  3. jon fen

    jon fen New Member

    Aug 21, 2023
    5
    3
    cornwall
    #3 jon fen, Oct 20, 2024
    ah, great ! any chance you could post up a pic. i just need a close up of the ignition switch wiring diagram showing the colours.

    • Agree Agree x 1
  4. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #4 Flay, Oct 21, 2024
    What is the best way to do this. There are several pages. WhatsApp ?
    Simply put, there are 2 leads to the ign switch.
    Brown - to the main power relay
    Green to the engine kill switch and green/brown onward from that to fuse 5

    • Useful Useful x 1
  5. jon fen

    jon fen New Member

    Aug 21, 2023
    5
    3
    cornwall
    #5 jon fen, Oct 21, 2024
    strange! heres a pic of my ignition with 7 wires. i just need to know what colours go where.
    the white wire (main feed i believe) was off, so resoldered back on
    tiger inition.jpg

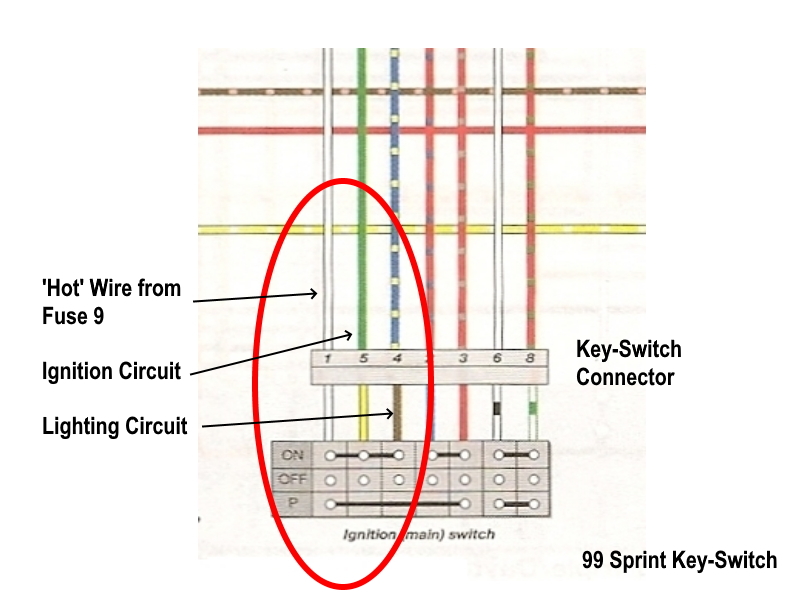

    this what im looking for, just need confirmation of the tiger colours..

    sprint 99 ig.jpg

    sprint 99 ig.jpg

  6. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #6 Flay, Oct 21, 2024

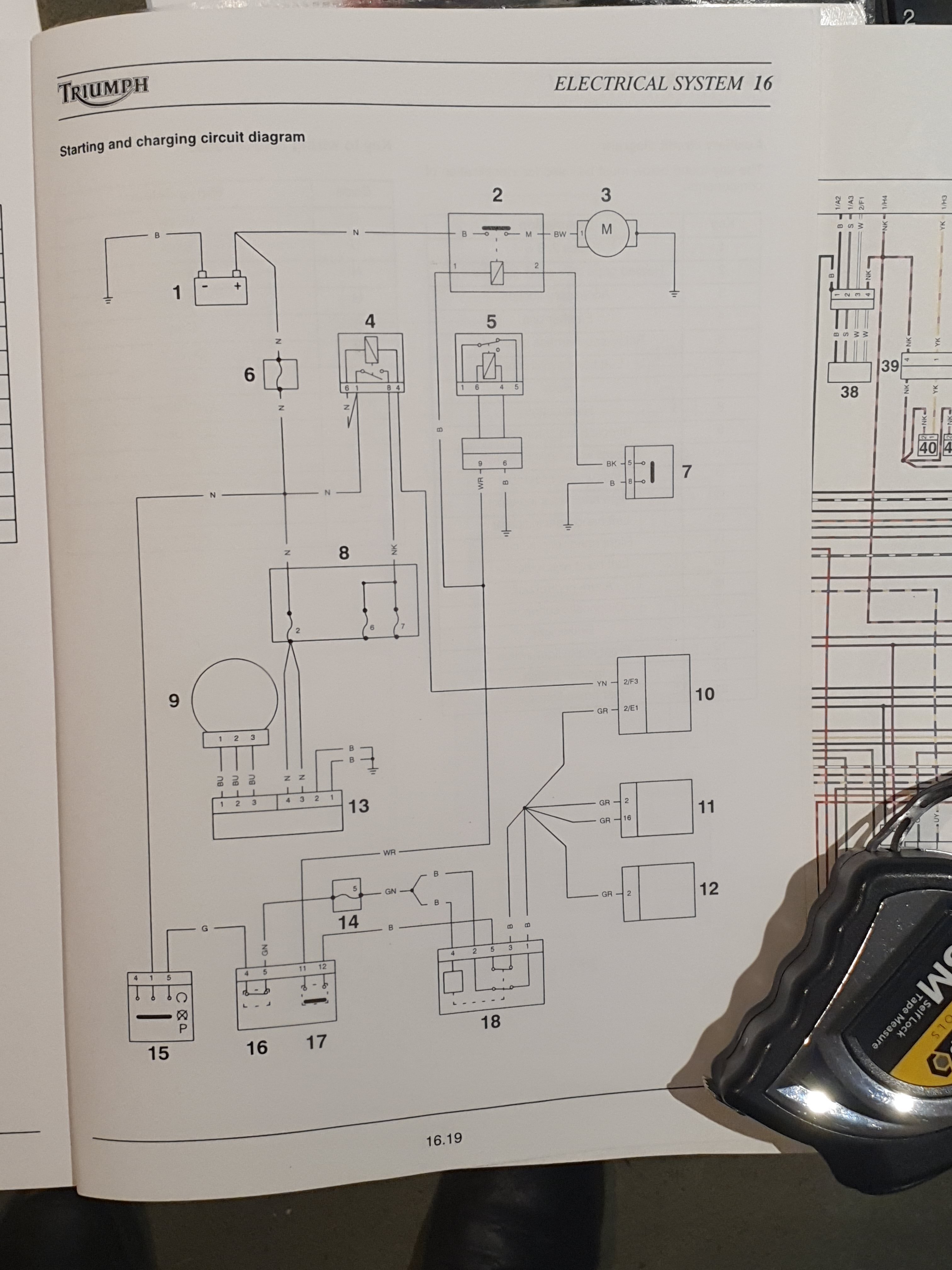

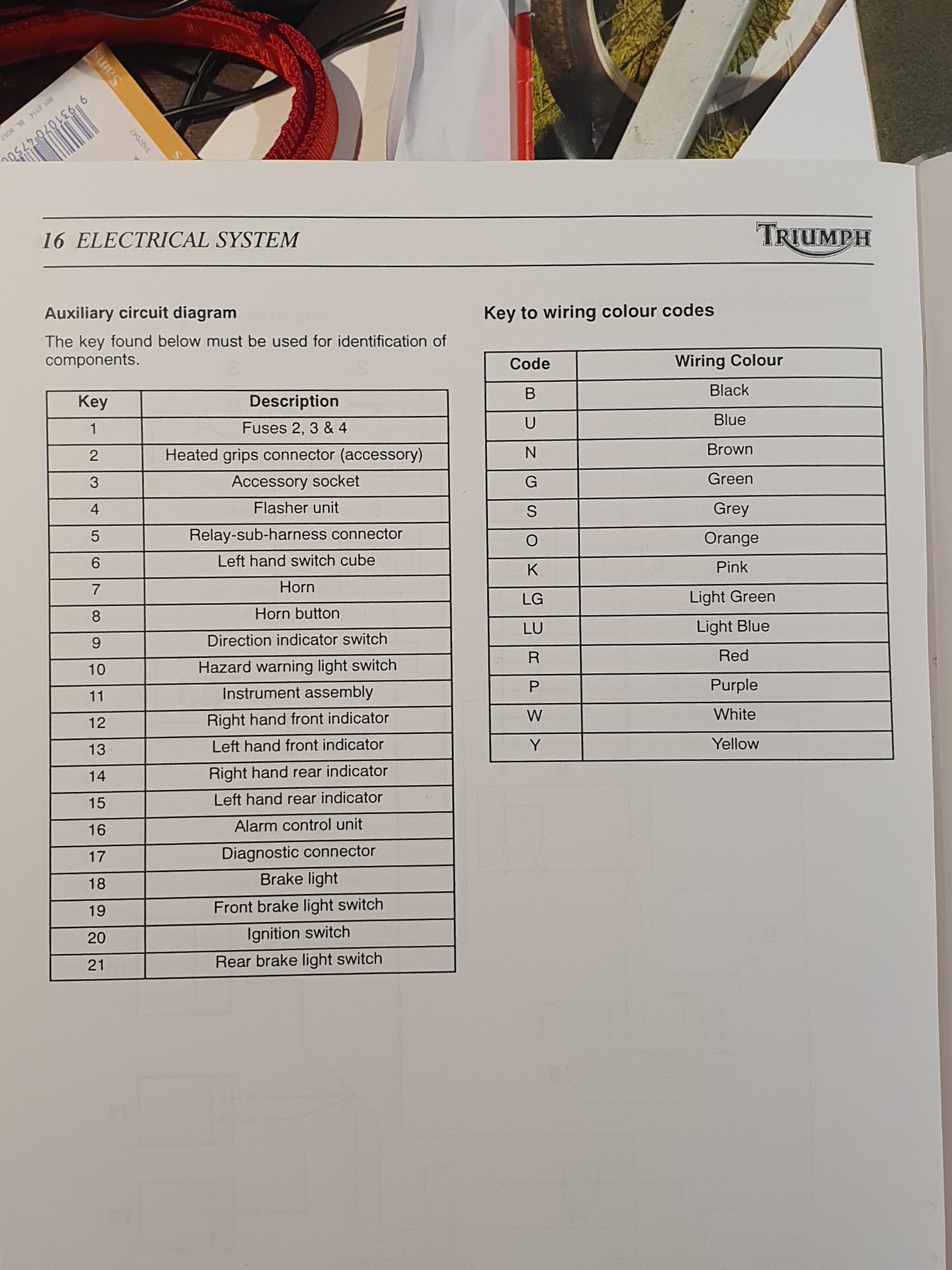

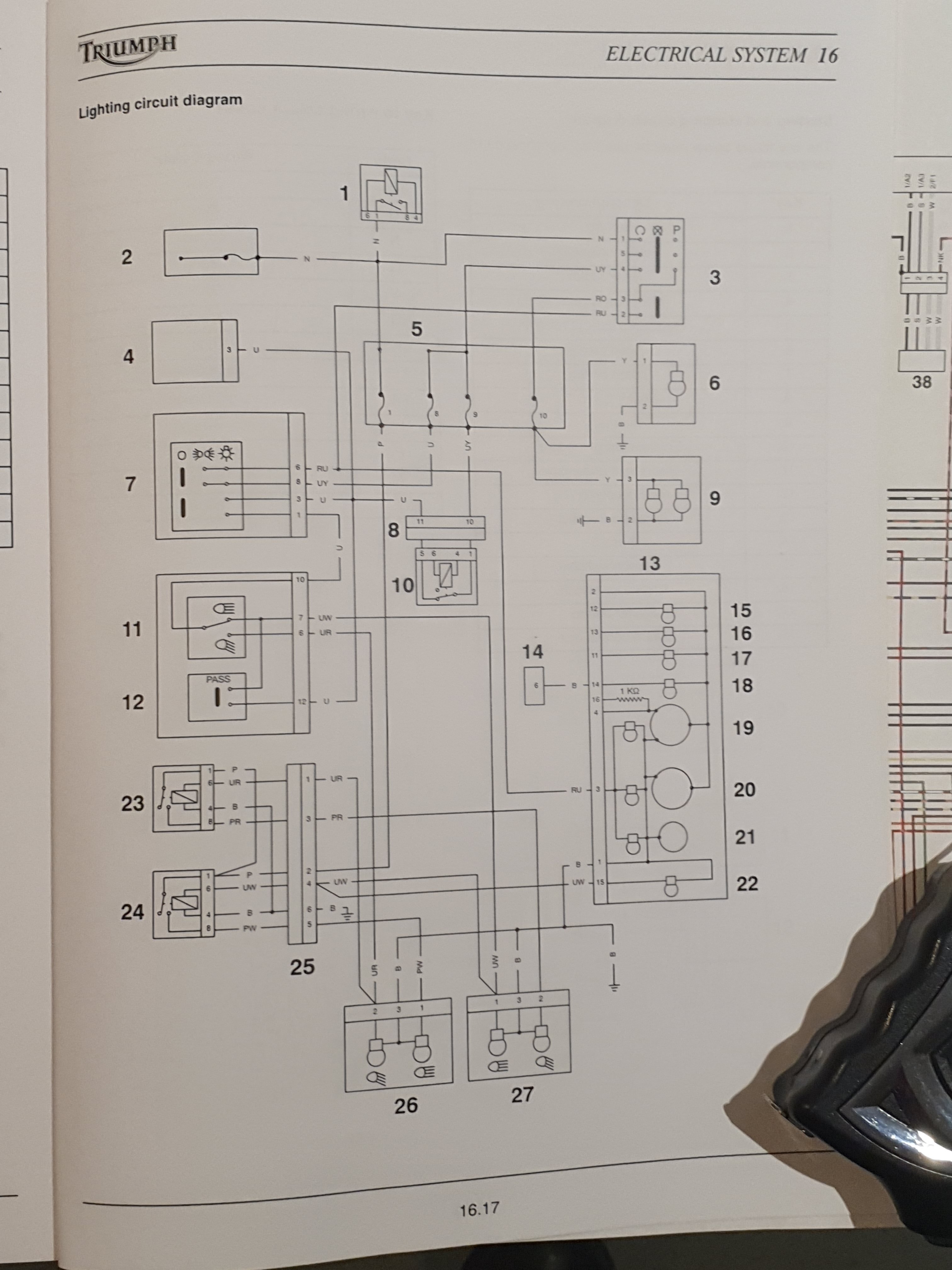

    In the manual there is a complete circuit diagram and also separated out diagrams for lighting, charging etc.
    How do I send these images ?
    My experience of this ended when photobucket collapsed !

  7. Boothman

    Boothman Elite Member

    Jul 26, 2023
    1,109
    800
    Wigan
    #7 Boothman, Oct 21, 2024
    @Flay Assuming you’ve a smart phone - photograph the relevant parts of the wiring diagram, then open the forum on your phone and copy/paste the photos in to a ‘post reply’

  8. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #8 Flay, Oct 21, 2024

    • Thanks Thanks x 1
  9. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #9 Flay, Oct 21, 2024

  10. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #10 Flay, Oct 21, 2024

  11. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #11 Flay, Oct 21, 2024

  12. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #12 Flay, Oct 21, 2024
  13. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #13 Flay, Oct 21, 2024

  14. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #14 Flay, Oct 21, 2024

  15. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #15 Flay, Oct 21, 2024

  16. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #16 Flay, Oct 21, 2024

  17. Flay

    Flay Well-Known Member

    Sep 2, 2016
    226
    93
    Gondwanaland
    #17 Flay, Oct 21, 2024
    I hope that lot is useful.

    • Like Like x 1
  18. jon fen

    jon fen New Member

    Aug 21, 2023
    5
    3
    cornwall
    #18 jon fen, Oct 22, 2024
    thank you Flay. item 74 on the first diagram is just what i needed. thanks for your help. :kissing_heart:

    • Like Like x 1
