High Gear Needle Bearings

Discussion in 'Technical Help' started by PaulLev, Apr 4, 2022.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. PaulLev

    PaulLev New Member

    Mar 24, 2021
    5
    3
    Hailsham, East Sussex
    Hi ,Can anyone tell me on a 5 speed 1976 t140 the best way to replace/remove the two needle bearing in the high gear. Do they push out either end or is there only one way? Thanks in advance

    • Agree Agree x 1
  2. Iron

    Iron Elite Member

    Dec 29, 2021
    2,554
    943
    Bob Ross Studios
    Have a look at these. Todd doing his thing
    Needle bearing removal from casing at about 32.30 minutes


    And needle bearing insert on inner gearbox at about 37.18 minutes


    easier to see rather than describe. oh and welcome to another T140

    • Like Like x 1
  3. PaulLev

    PaulLev New Member

    Mar 24, 2021
    5
    3
    Hailsham, East Sussex
    Hi, Thanks for the quick response, but I'm looking to replace the two needle bearings that are inside the high gear as opposed to the one in the cases.

    • Agree Agree x 1
  4. Iron

    Iron Elite Member

    Dec 29, 2021
    2,554
    943
    Bob Ross Studios
    #4 Iron, Apr 4, 2022
    Last edited: Apr 4, 2022

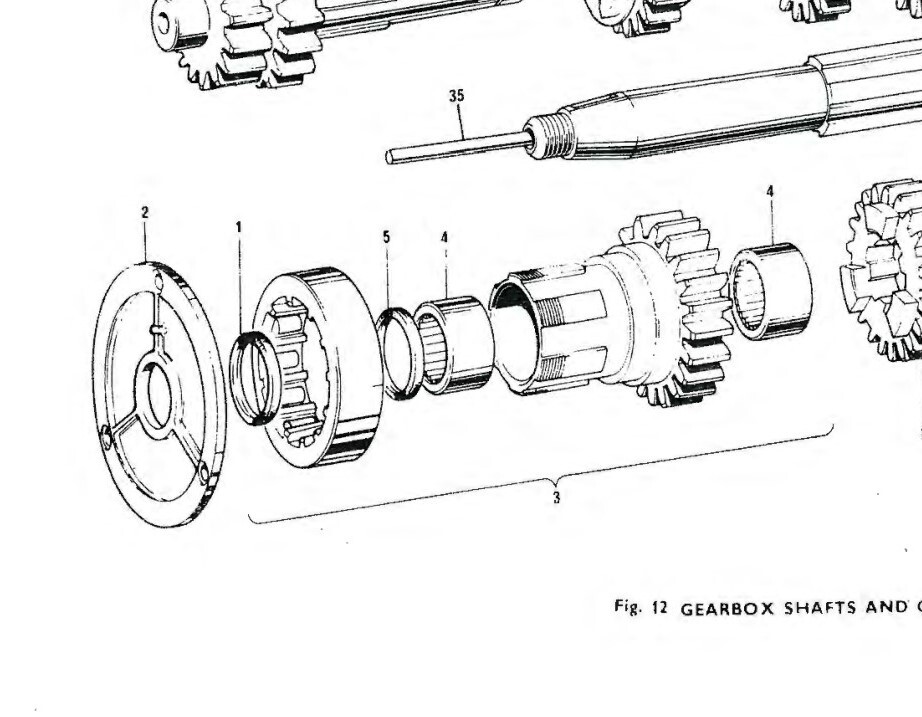

    Sorry my bad. You mean these numbered 4

    Screenshot 2022-04-04 220958.jpg

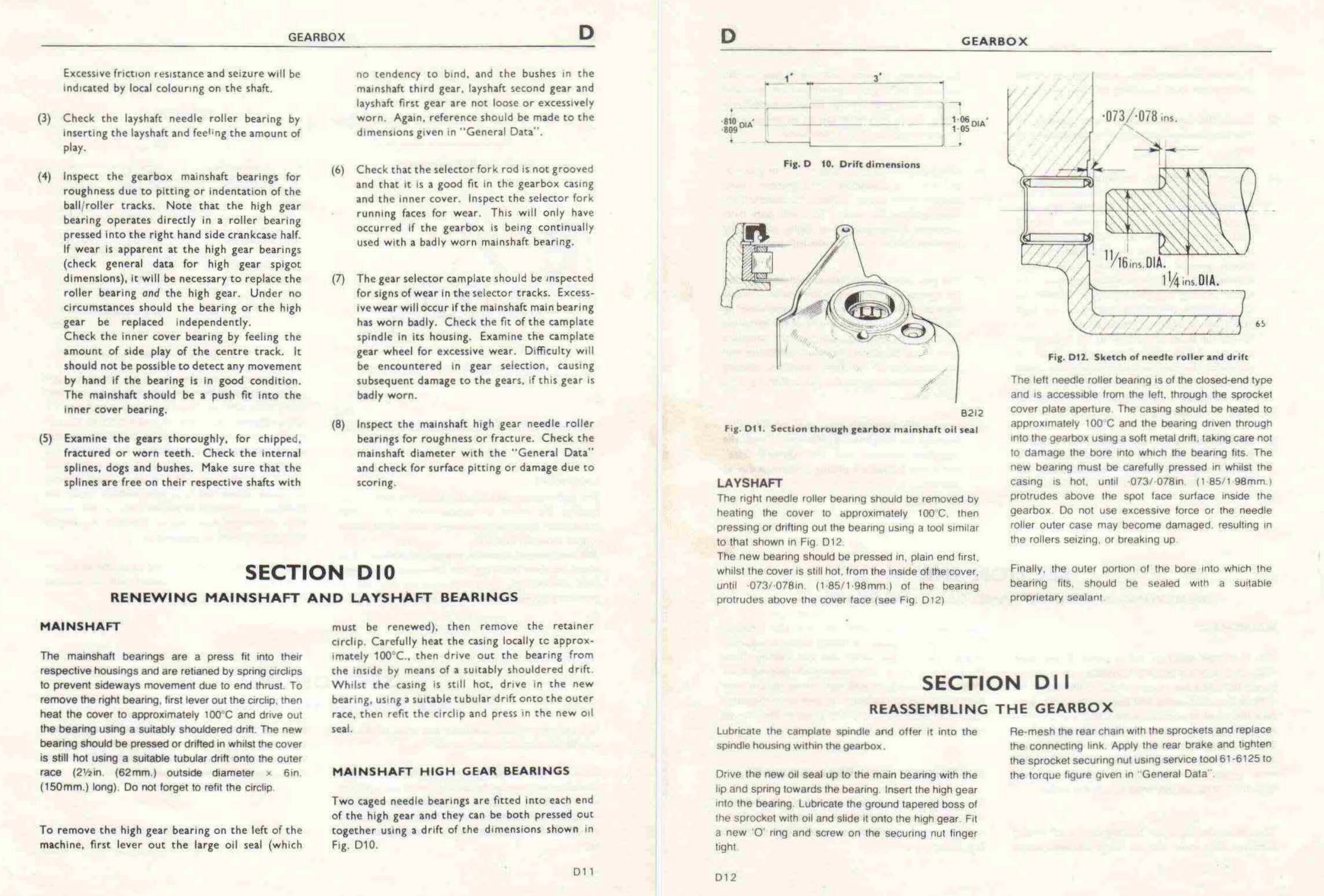

    Here's the workshop, which you probably have, showing the drift required.

    Screenshot 2022-04-04 220719.jpg

    I can't say I remember doing one. Sorry. But from the looks of the drift, and the description "they both press out together", from any one end will do it.

    • Like Like x 3
  5. PaulLev

    PaulLev New Member

    Mar 24, 2021
    5
    3
    Hailsham, East Sussex
    Fantastic...,made a drift and it worked perfectly. Thanks so much for you're help

    • Like Like x 4
  6. Mark9

    Mark9 Noble Member

    Jul 13, 2020
    564
    343
    Derby
    Great when someone asks for help, gets it and fixes the issue, also good that the OP came back and confirmed success, so many threads end without a conclusion, usually the ones that I’m trying to get info from! :)

    • Agree Agree x 2
    • Like Like x 1
  7. Baza

    Baza Elite Member

    Jul 25, 2020
    2,564
    750
    Home of Amazing Grace
    THIS IS SPAM. ALL OF HIS TWENTY POSTS ARE THE SAME, NOTHING TO DO WITH BIKES
