Hi Everyone, Need Help

Discussion in 'Technical Help' started by Radovan, May 25, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #1 Radovan, May 25, 2019
    Hi again,
    I am from Serbia and sorry if my english is not good.
    I have trouble with my Daytona 955i 2006y
    she does not get it pulse on injector.
    I check conection, wires, everything is fine
    constant + is present.
    but negative it is not.
    if somebody can help I'll be grateful.
    thanks Radovan

    • Useful Useful x 1
  2. freck

    freck Elite Member

    May 4, 2017
    1,721
    750
    Preston, Lancs, UK
    #2 freck, May 25, 2019
    Welcome Radovan, is it just one injector that isn’t getting a signal or all 3?

    • Like Like x 1
    • Agree Agree x 1
  3. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #3 Radovan, May 25, 2019
    Hi freck,
    All 3 injector does not have signal,
    Permanent + (12V) present

    • Agree Agree x 1
  4. freck

    freck Elite Member

    May 4, 2017
    1,721
    750
    Preston, Lancs, UK
    #4 freck, May 25, 2019
    Not too sure on your bike but I think they’re all fed signals directly from the ECU. The +ve feed is from the main power relay and -ves switched.
    Have you got Tuneecu to connect to the ECU and read codes?
    Have you looked at the connection at the ECU, for bent or broken pins?
    Also check the Crank Position Sensor connection, r/h side coming out of the top of the side cover.

    • Like Like x 1
    • Agree Agree x 1
  5. Tricky-Dicky

    Tricky-Dicky Crème de la Crème

    Dec 12, 2016
    2,441
    1,000
    Norfolk UK
    #5 Tricky-Dicky, May 25, 2019
    Injectors are usually fired by a pulse on the negative side so you will only see a signal when the engine is running, its normal to see the 12v+ side with ignition on, and you will normally need an oscilloscope unless you have some ECU software then you will be able to log injector pulse width etc.

    • Agree Agree x 1
  6. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #6 Radovan, May 26, 2019
    I have broken wire on contact of mass on the housing, problem solved. :grinning:
    Does anyone know how much compression should be per cylinder? thanks

    • Like Like x 1
    • Agree Agree x 1
  7. joe mc donald

    joe mc donald Joe
    Subscriber

    Dec 26, 2014
    16,004
    1,000
    slough / burnham
    #7 joe mc donald, May 26, 2019
    Radovan.
    Welcome to the family. Glad you are sorted. Do drop us a picture of the steed.
    Ride Safe & Enjoy
    Joe.

    • Like Like x 2
  8. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #8 Radovan, May 26, 2019

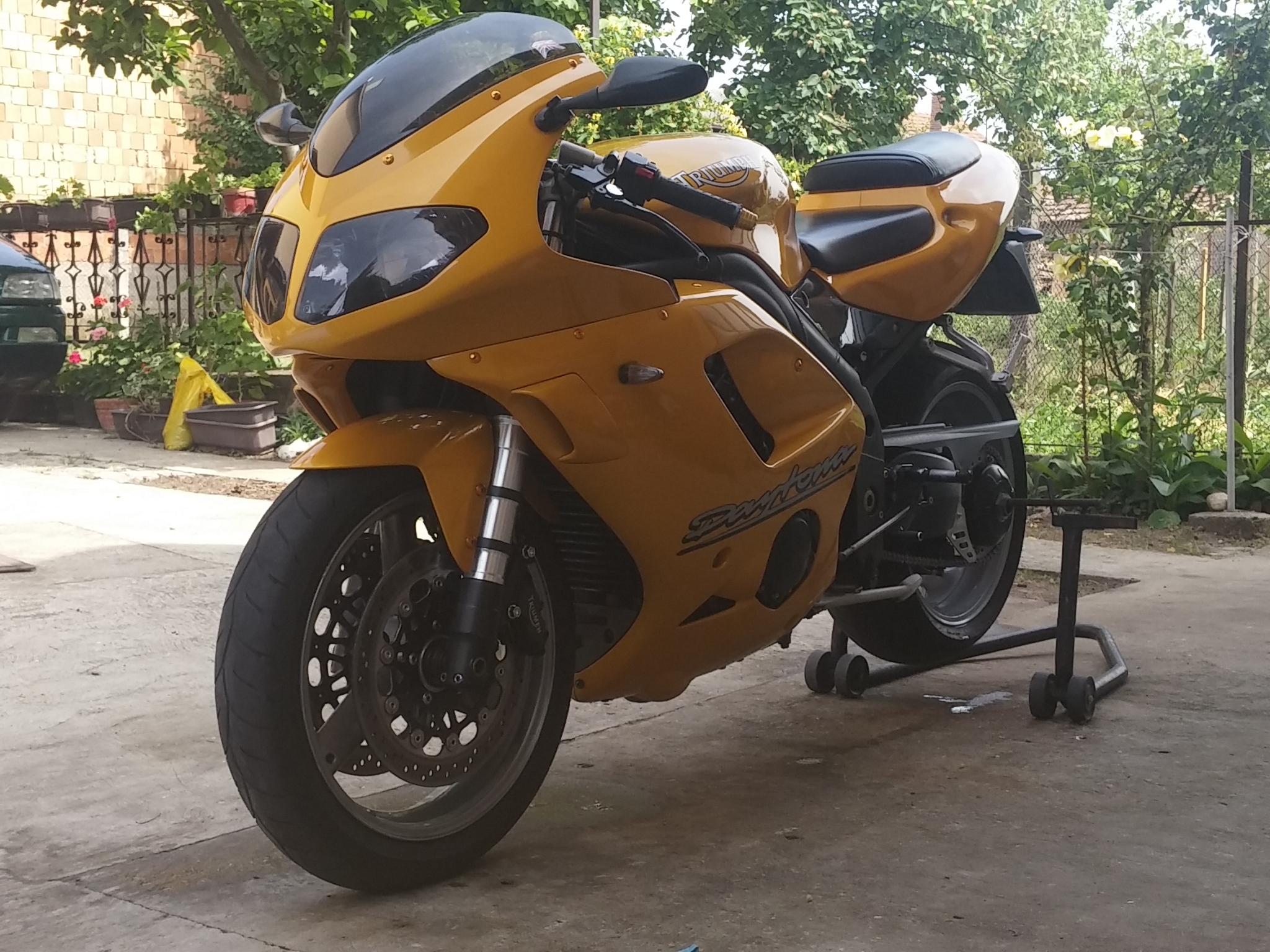

    This is my baby :grinning: :heart:


    • Like Like x 8
  9. joe mc donald

    joe mc donald Joe
    Subscriber

    Dec 26, 2014
    16,004
    1,000
    slough / burnham
    #9 joe mc donald, May 26, 2019
    Radovan.
    It's a real cracker. Don't you just love the sound of those engines.
    Regards
    Joe

    • Like Like x 2
  10. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #10 Radovan, May 26, 2019
    Do you now something about comression?

    • Agree Agree x 1
  11. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #11 Radovan, May 26, 2019
    Yes I do , I have aftermarket silencer Akrapovic and the sound is WOW . :heart_eyes:

    • Agree Agree x 1
  12. Tricky-Dicky

    Tricky-Dicky Crème de la Crème

    Dec 12, 2016
    2,441
    1,000
    Norfolk UK
    #12 Tricky-Dicky, May 26, 2019
    In what context? are you talking ratio or are you talking compression test reading? if the latter it really depends on ratio and things like volume, but as an average most should come back at around 140-160psi if in good condition.

    • Like Like x 1
    • Agree Agree x 1
  13. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #13 Radovan, May 27, 2019
    Yes I do , I have aftermarket silencer Akrapovic and the sound is WOW . :heart_eyes:
    Ok, thanks. Tomorrow I’ll check and see condition (odo 45000km)

    • Agree Agree x 1
  14. stollydriver

    stollydriver Elite Member

    Apr 25, 2015
    2,075
    800
    north wales
    #14 stollydriver, May 27, 2019
    Welcome Radovan - trust me your English is very good, enjoy the bike and the forum

    • Like Like x 1
    • Agree Agree x 1
  15. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #15 Radovan, May 27, 2019

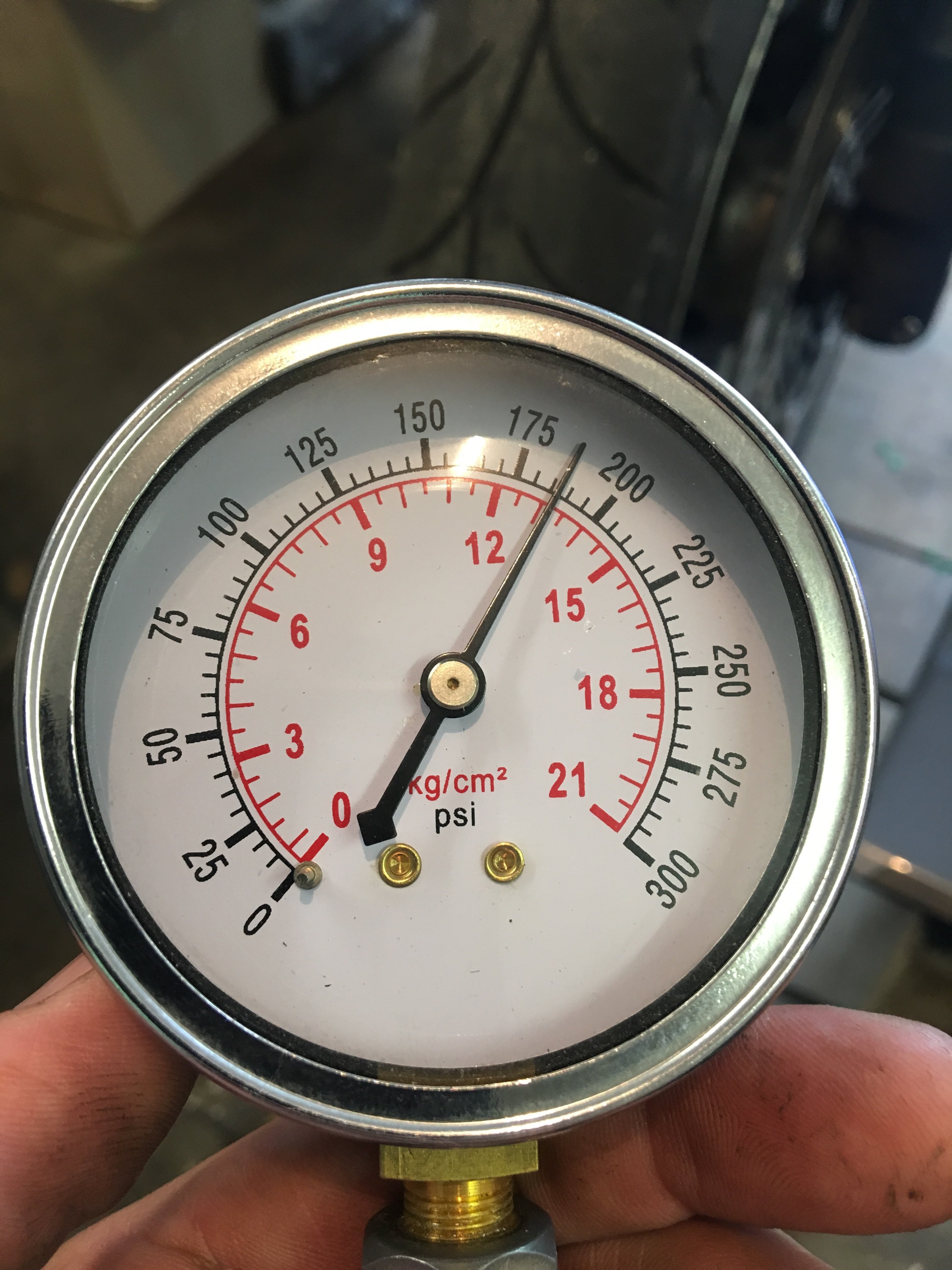

    Compression checked
    I check compression


    • Like Like x 1
  16. Tricky-Dicky

    Tricky-Dicky Crème de la Crème

    Dec 12, 2016
    2,441
    1,000
    Norfolk UK
    #16 Tricky-Dicky, May 27, 2019
    Looks good to me where all cylinders within 10% of each other?

    • Agree Agree x 1
  17. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #17 Radovan, May 28, 2019
    Yes all 3 cylinder have such compression.
    I check ignition coil and it's ok
    spark plugin - ok
    injector now is ok
    timming perfect
    But it will still not start.
    Can anyone help? Thanks

    • Agree Agree x 1
  18. Tricky-Dicky

    Tricky-Dicky Crème de la Crème

    Dec 12, 2016
    2,441
    1,000
    Norfolk UK
    #18 Tricky-Dicky, May 29, 2019
    Have you got an alarm/imobiliser fitted? have you checked the lock out switches etc, does the starter actually turn the engine.

    • Agree Agree x 1
  19. Bad Billy

    Bad Billy Baddest Member

    Jun 1, 2017
    6,801
    1,000
    Southern Softyville
    #19 Bad Billy, May 29, 2019
    Hi & Welcome to the Forum, nice bike, glad you found the problem with injectors :cool:

    • Agree Agree x 1
  20. Radovan

    Radovan New Member

    May 25, 2019
    14
    3
    Serbia
    #20 Radovan, May 29, 2019
    hi again
    the engine is on, but it does not work very well.
    Do you know these parameters?
    Thanks

    question 1.png

    • Agree Agree x 1
