Help Please 2020 Bonneville T120

Discussion in 'Technical Help' started by Ajay24, Sep 28, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Ajay24

    Ajay24 New Member

    Jan 28, 2021
    17
    3
    Denbighshire
    Help please. Bike electrics completely dead. Think maybe its the main fuse as all fuses in fuse box are good. CAN SOMEBODY TELL ME WHERE TO FIND IT.

  2. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Oct 3, 2018
    6,262
    1,000
    Three Counties
    Stupid question time and sorry in advance but have you checked the battery hasn't flattened?

  3. Ajay24

    Ajay24 New Member

    Jan 28, 2021
    17
    3
    Denbighshire
    The battery is fine. Problem started when I plugged a Hella power plug into the Triumph accessory socket. Cant find any fuses blown

    • Informative Informative x 1
  4. Smilinjack

    Smilinjack Guest

    Normally a 30A fuse is located in a holder next to the starter solenoid. Not sure with your bike but I think I've got a Haynes manual for it upstairs. I'll have a quick gleg.....

    • Agree Agree x 1
  5. Smilinjack

    Smilinjack Guest

    #5 Smilinjack, Sep 28, 2021
    Last edited by a moderator: Sep 28, 2021

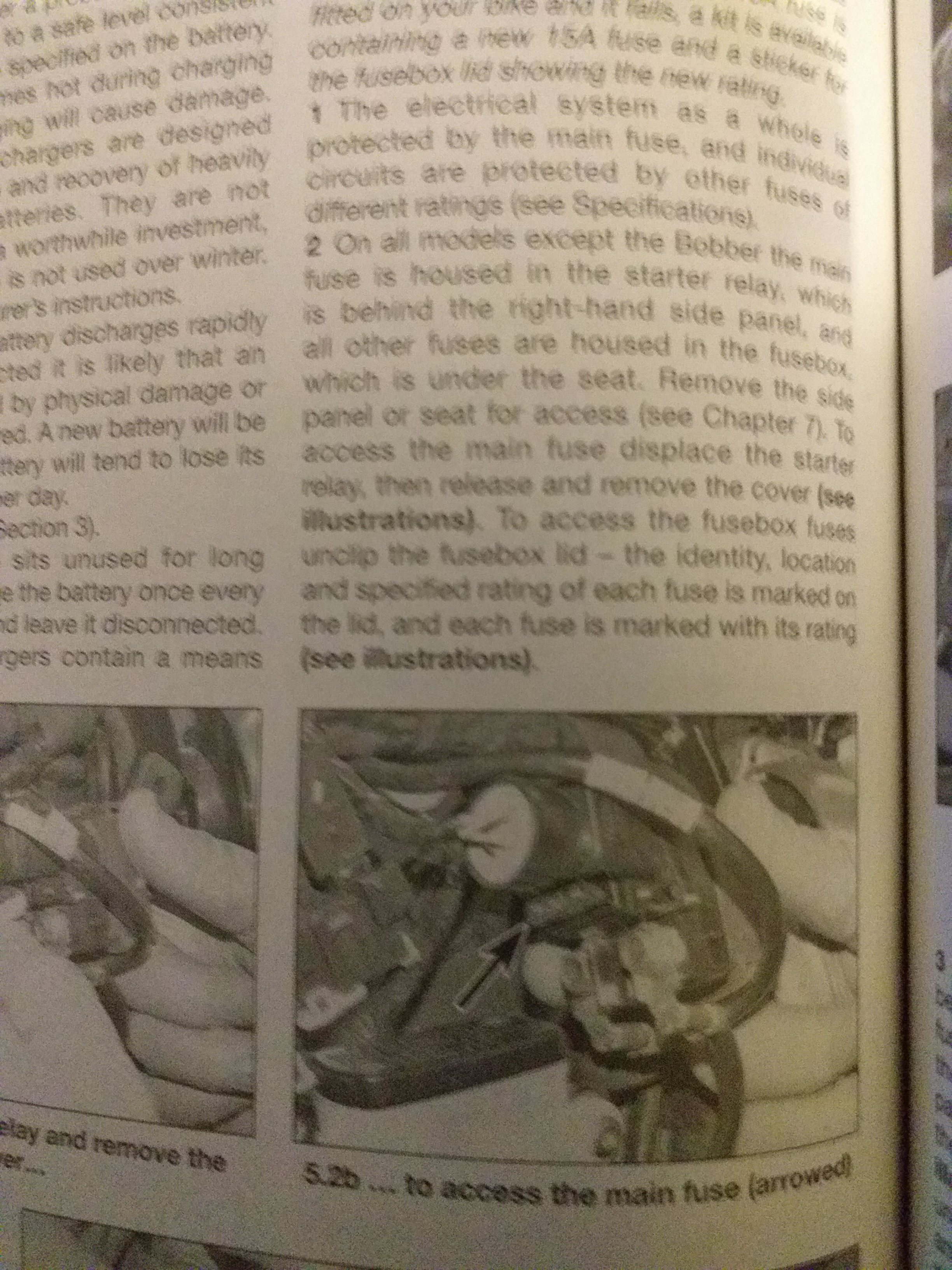

    "On all models except the Bobber the main fuse is housed in the starter relay, which is behind the right hand side panel.....To access the main fuse displace the starter relay, then release and remove the cover.."

    • Useful Useful x 2
  6. Smilinjack

    Smilinjack Guest

    #6 Smilinjack, Sep 28, 2021
    Last edited by a moderator: Sep 28, 2021

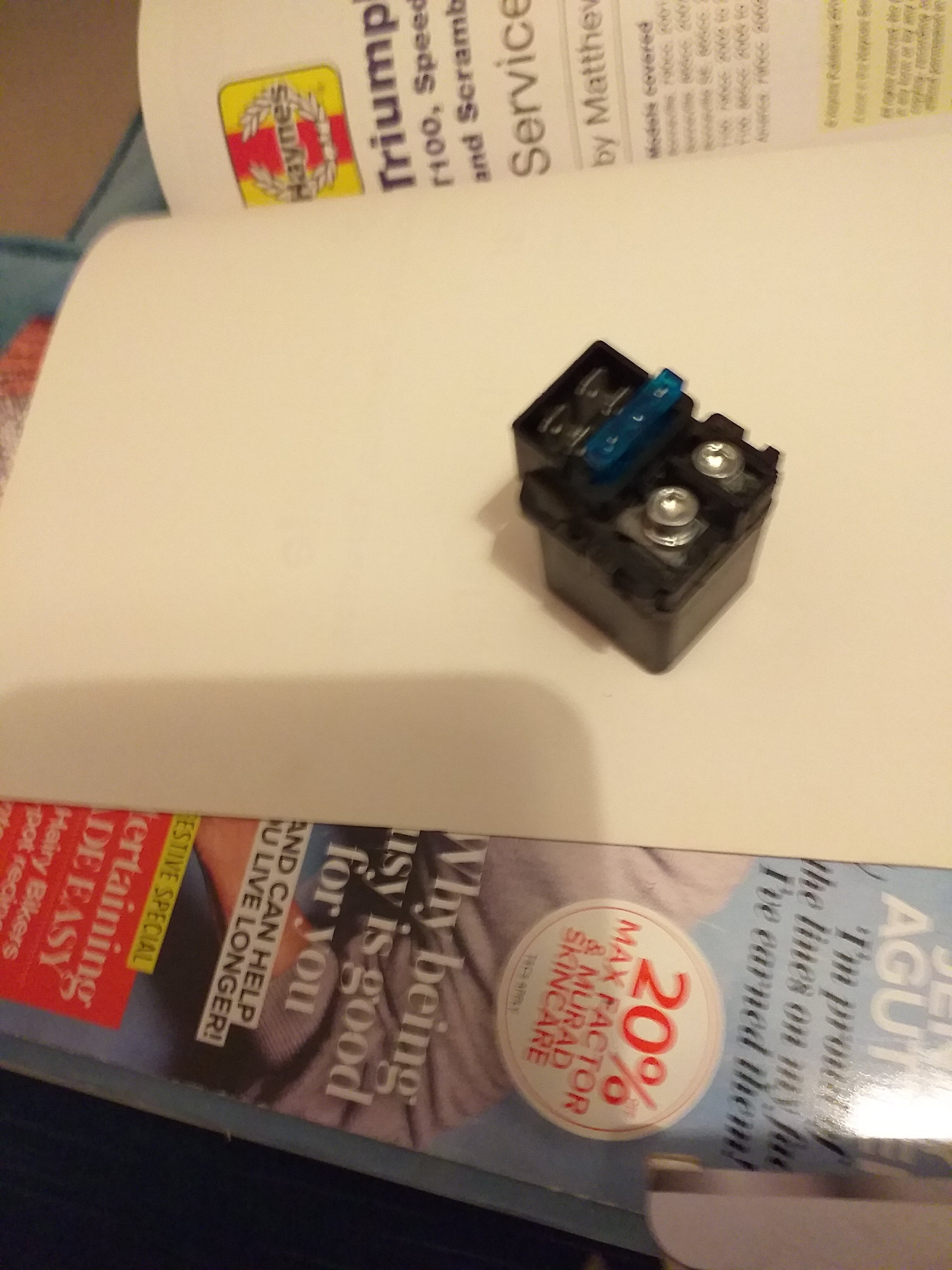

    20210928_184336.jpg Sorry the pic's a bit spawny. :confused:


    Similar one off my Kawasaki to give you an idea of scale

    • Like Like x 2
    • Useful Useful x 1
  7. Smilinjack

    Smilinjack Guest

    • Useful Useful x 2
  8. Ajay24

    Ajay24 New Member

    Jan 28, 2021
    17
    3
    Denbighshire
    Found it behind right hand cover. Put new fuse in and bingo - all ok now.
    Sorry about my panic.:poop::D

    • Like Like x 5
  9. MICK64

    MICK64 Active Member

    Sep 15, 2020
    89
    28
    NEW FOREST. ENGLAND
    No idea where it is on your bike. But it's usually behind the right hand side cover, close to , if not attached to, the solenoid.

  10. MICK64

    MICK64 Active Member

    Sep 15, 2020
    89
    28
    NEW FOREST. ENGLAND
    Those relays are generic, and cost about £6. Check out what the dealers want for them. Robbing bastards.
