Help For Handlebar Switch Dead Speed Triple 1050 Rs

Palpal34270 · Oct 10, 2024

Hello everyone,

I'm facing a problem with my 2019 Speed Triple 1050 RS.
Due to an accident my right handlebar switch exploded and I bought a used one to replace.
Once plugged in it doesn't work much better.
I tried to schunt the connectors and the speedometer lights up.

How can I test the bike's wiring with a multimeter to make sure it's working properly?
What values should I be getting exactly (ohms, volts, continuity, etc.)?

Thank you in advance for your invaluable help.

Palpal34270 · Oct 12, 2024

I'm answering to me...
Problème solved by replacing key battery

joe mc donald · Oct 12, 2024

Palpal34270 said: ↑

Hello everyone,

I'm facing a problem with my 2019 Speed Triple 1050 RS.
Due to an accident my right handlebar switch exploded and I bought a used one to replace.
Once plugged in it doesn't work much better.
I tried to schunt the connectors and the speedometer lights up.

How can I test the bike's wiring with a multimeter to make sure it's working properly?
What values should I be getting exactly (ohms, volts, continuity, etc.)?

Thank you in advance for your invaluable help.

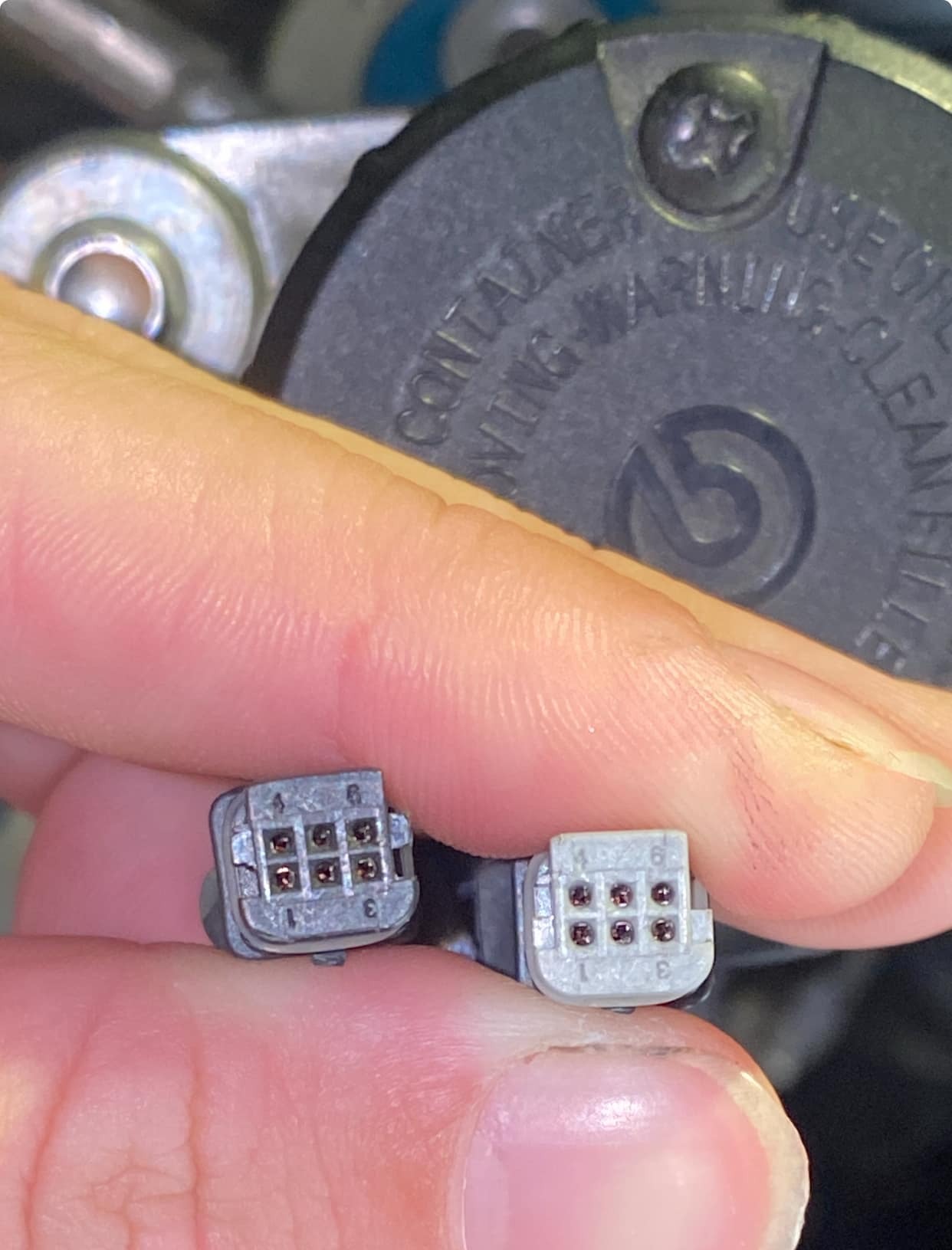

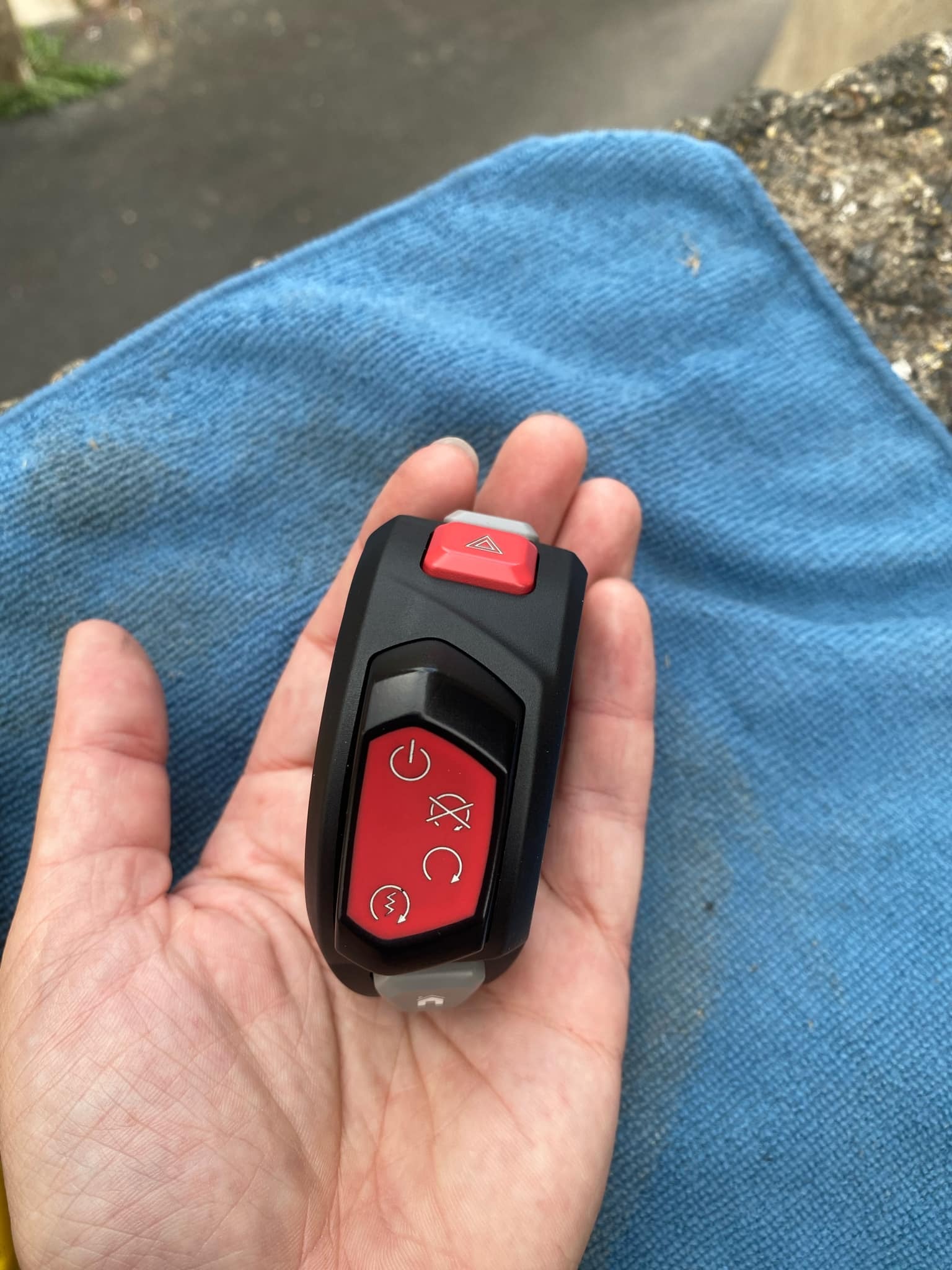

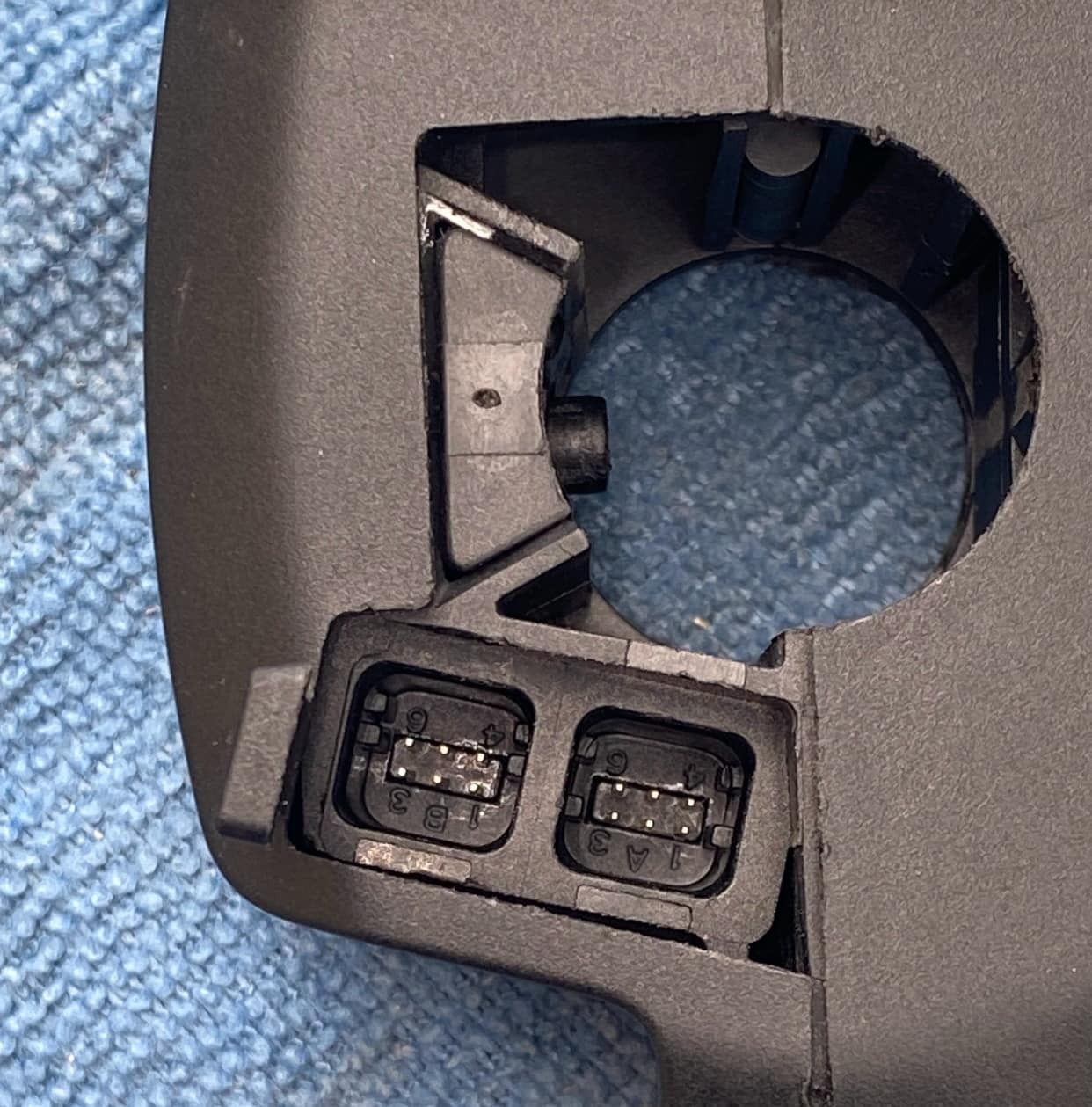

View attachment 170626

View attachment 170625

View attachment 170627
Click to expand...

@Payal34270.
Hope one of the inmates comes to help you soon. Me i am at a loss about switches you may need a a tune to set it properly or should i say remap

TRIPLE X · Oct 12, 2024

Palpal34270 said: ↑

Hello everyone,

I'm facing a problem with my 2019 Speed Triple 1050 RS.
Due to an accident my right handlebar switch exploded and I bought a used one to replace.
Once plugged in it doesn't work much better.
I tried to schunt the connectors and the speedometer lights up.

How can I test the bike's wiring with a multimeter to make sure it's working properly?
What values should I be getting exactly (ohms, volts, continuity, etc.)?

Thank you in advance for your invaluable help.

View attachment 170626

View attachment 170625

View attachment 170627
Click to expand...

Is it possible that something shorted out when the switch got damaged and blew a fuse. What else got damaged? I take it you are unable to start the engine now? The switch connectors look ok.
