Heated Grips

Discussion in 'Speed Triple' started by MattP, Jan 31, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. MattP

    MattP Member

    Feb 27, 2018
    71
    18
    Leeds
    • Like Like x 2
  2. splodge

    splodge New Member

    Aug 21, 2017
    11
    3
    York
    Hi Matt

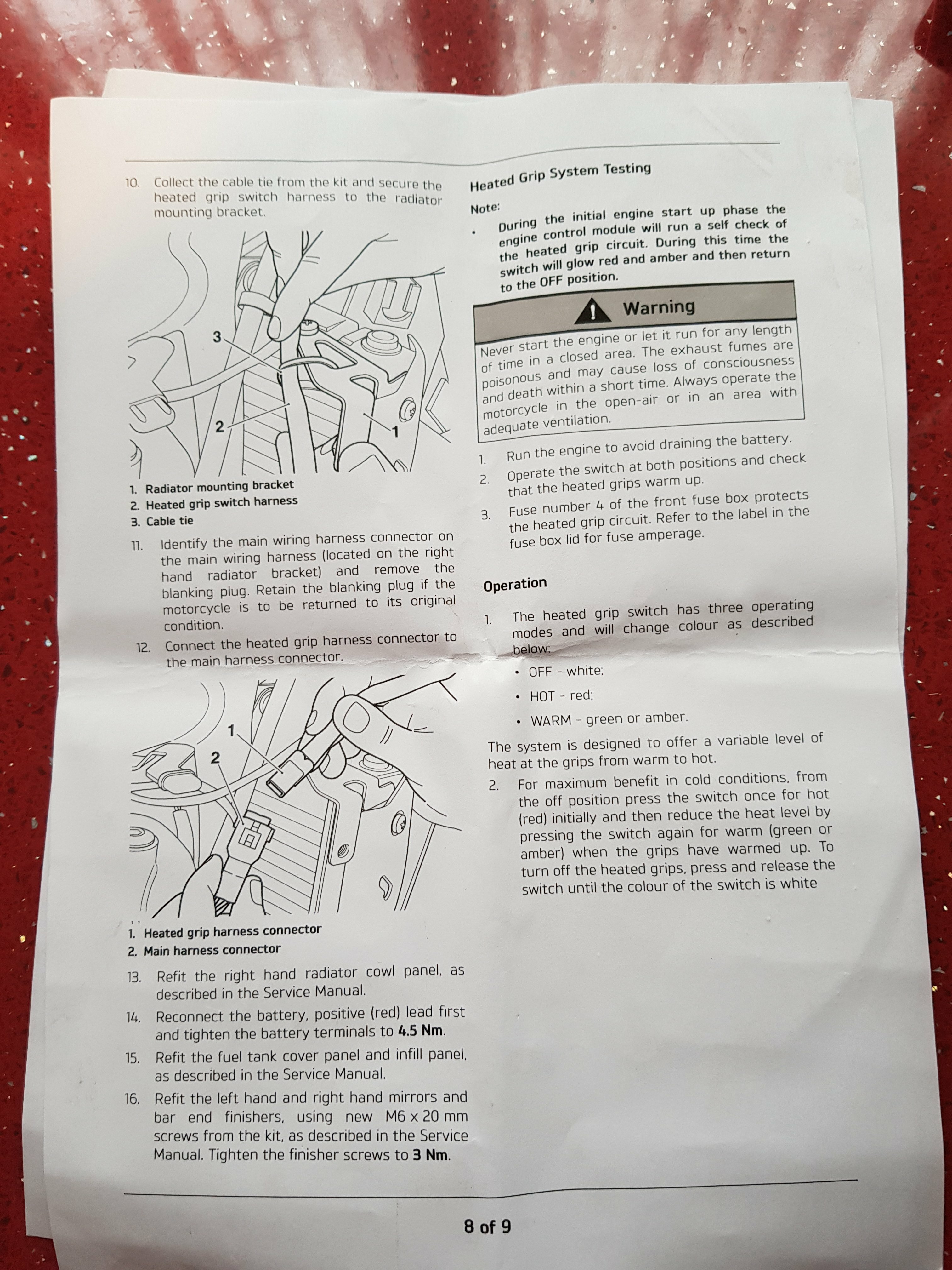

    Could you let me know where the Triumph grips instructions tell you to connect to wire them up. I have some oxford grips (currently on sale at m and p) and I’d like to connect them to a switched live so I’m hoping the Triumph installation instructions can help with the best connection point.

    Thanks
    Paul

  3. Red Thunder

    Red Thunder Elite Member
    Subscriber

    Dec 2, 2014
    1,475
    700
    High Wycombe
    Good question, my Oxford grips fitted by a previous owner and fitted to the rear live brake switch
    I too would like to rewire them to a better live, may wire direct to the battery as they have the auto shut off feature when the engine is turned off

  4. Captain Trips

    Captain Trips New Member

    Feb 4, 2019
    12
    3
    Surrey, UK
    Hi guys, I'm a noob on here, but Triumphinstructions.com is the place for all fitting instructions as long as you can get a part number. You don't say what bike you have, but the part number for 2016 speedy grips is A9638095. Enter that and you should get the full pdf instructions.

  5. BATEBY45

    BATEBY45 Active Member

    Apr 29, 2014
    248
    43
    Hi, I have read some reports of variable effectiveness of heated grips, I have been using heated gloves for many years, the first ones in the 19 60's were home made from a stripped down electric blanket! cut out all the cable, divide the length of 240 volt by 20 and you have a 12 volt length, stitch into a silk inner glove (twice for two hands) connect up like kiddie gloves inside over sized gauntlets and plug into a fused connector to the battery. Then I found Widder from the US and wore them out over many years ( they are no longer made) Now I have Gerbing with temperature control (luxury) I ride most days except in snow and rarely have cold hands unlike most of the groups I ride with.

    • Like Like x 2
    • Funny Funny x 1
  6. Moe

    Moe Active Member

    Jun 10, 2015
    172
    43
    Colchester
    Hi Paul, there is a dedicated connection behind the right front indicator (rear brake side) you can push it out of its clip without taking off the cowl. Theres a bung in it that needs to bw taken out to then connect the triumph heated grips.



    • Like Like x 2
    • Useful Useful x 1
  7. splodge

    splodge New Member

    Aug 21, 2017
    11
    3
    York
    Thanks, I’ll check for that connection on my 17R.

    • Like Like x 1
  8. MattP

    MattP Member

    Feb 27, 2018
    71
    18
    Leeds
    Yes, that's the one. I guess you'll have to cut the connector off and use a different one. Sorry for the delay in replying, I've been away.

  9. splodge

    splodge New Member

    Aug 21, 2017
    11
    3
    York
    The connector is called econoseal in case anyone wanted to get the corresponding connector. Apparently the Triumph grips have a relay included so you will have to add that to the wiring set up for aftermarket grips. After finding out about the relay I’m just going to wire mine direct to the battery and out my faith in the auto shutdown feature.

  10. Moe

    Moe Active Member

    Jun 10, 2015
    172
    43
    Colchester
    I had oxford gribs on my cbr and they shut off auto, actually come tot hink I've got them on the blade and they turn off too.
    Shouldn't be a problem

    • Agree Agree x 1
