Handle Bar Clamp Bolt

Discussion in 'Technical Help' started by crispey, Apr 18, 2019.

  1. crispey

    crispey crispey creme de la creme

    Nov 6, 2014
    7,274
    1,000
    Uk
    started on the task of changing the fork seals on my tiger and straight into trouble!

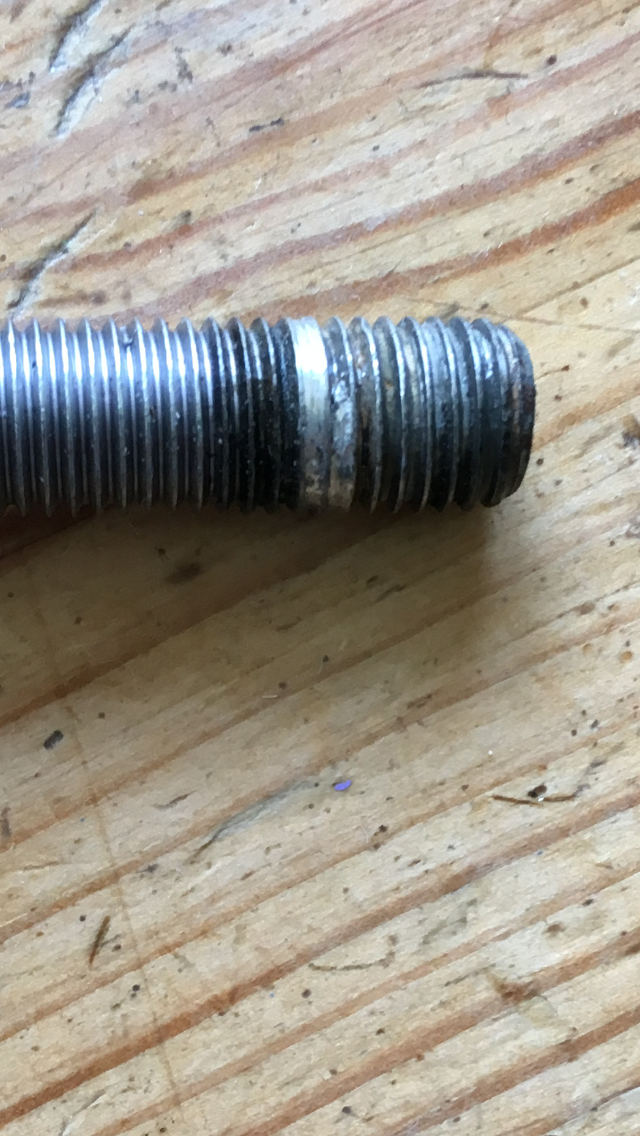

    The long bolt holding the handlebar clamp was seized. I was able to turn it 3 or 4 times then stuck, the clamp was loose now. I could screw it back in 2 turns then it stuck again, could turn it 2 times in and out but no further. Applied DD’s bolt I un seizer to no avail, finally decided to gently but forcefully apply pressure and eventually little by little it came out and this is what I saw
    The thread inside the yoke had “welded” to the bolt. I had to chip it out with a small screwdriver. I have had these bolts out a couple of times over the last year and copper slipped them but obviously to no avail! Luckily it will go back in and tightens up but what the F*#k are you meant to do to prevent this? Doesn’t bode well for all the other bolts I’m going to have to undo.

  2. RSReggie

    RSReggie Active Member

    Apr 9, 2019
    114
    43
    North West UK
    Thats a pain ! If there is water getting in the thread, may be worth applying a corrosion resistant, water resistant grease to stop water/corrosion Also a good idea to run a tap / die over the threads to ensure proper clearances are resumed .

    Hope the rest of the job goes better !

    • Like Like x 1
    • Agree Agree x 1
