Fuel Tank Filler Cap

Discussion in 'Technical Help' started by Tony Hayden, Dec 26, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Tony Hayden

    Tony Hayden Member

    Dec 9, 2019
    31
    18
    Leicester
    Hi Everybody, Merry Christmas and a happy new year. Right yet another problem. The filler cap on the fuel tank will not unlock with the key, it will only turn part way. I have sprayed everything into the keyway over the past few days, all to no avail. Will I have to replace the filler cap and if so how do you get the old 1 off?.
    Cheers all.

    • Like Like x 1
  2. Tony Hayden

    Tony Hayden Member

    Dec 9, 2019
    31
    18
    Leicester
    Thanks for the reply, but it is this type. 1995 750 trident.


    • Like Like x 1
  3. JerryBB

    JerryBB Noble Member

    Oct 6, 2019
    1,169
    443
    Wales

    I want one of these for my bonnie, out of stock now[/QUOTE]

    • Like Like x 1
    • Agree Agree x 1
  4. Tony Hayden

    Tony Hayden Member

    Dec 9, 2019
    31
    18
    Leicester
    It looks like I am going to have to force it, but where do I get a replacement?.

    • Agree Agree x 1
  5. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    Try a bit of penetrating oil on the seal allowing it to soak in. It wont damage the seal or the paintwork and might just free things up so you can remove the whole lot. Then deal with the lock when it's free from the tank and you can see what's stopping it from working.

    • Agree Agree x 1
  6. Tony Hayden

    Tony Hayden Member

    Dec 9, 2019
    31
    18
    Leicester

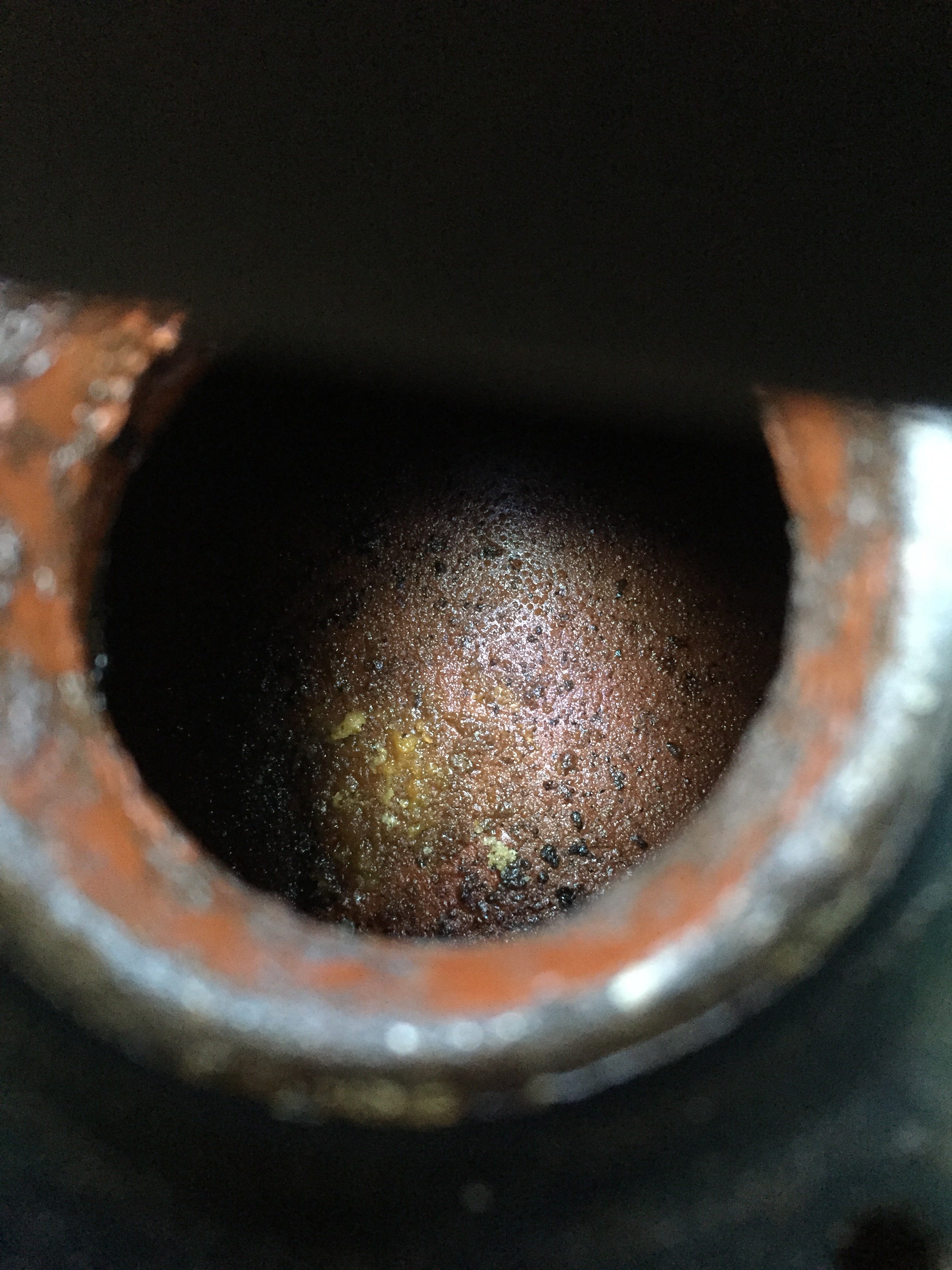

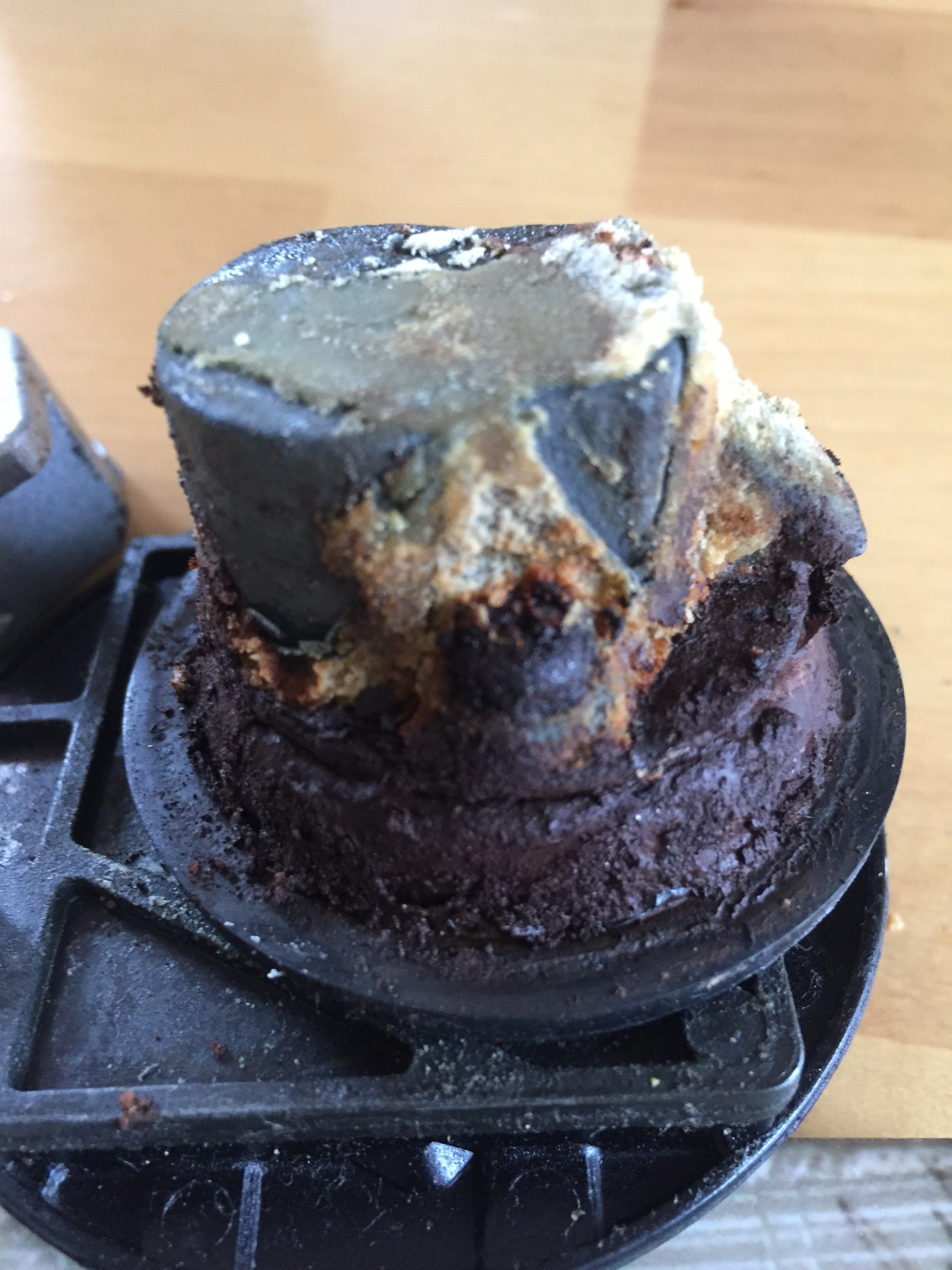

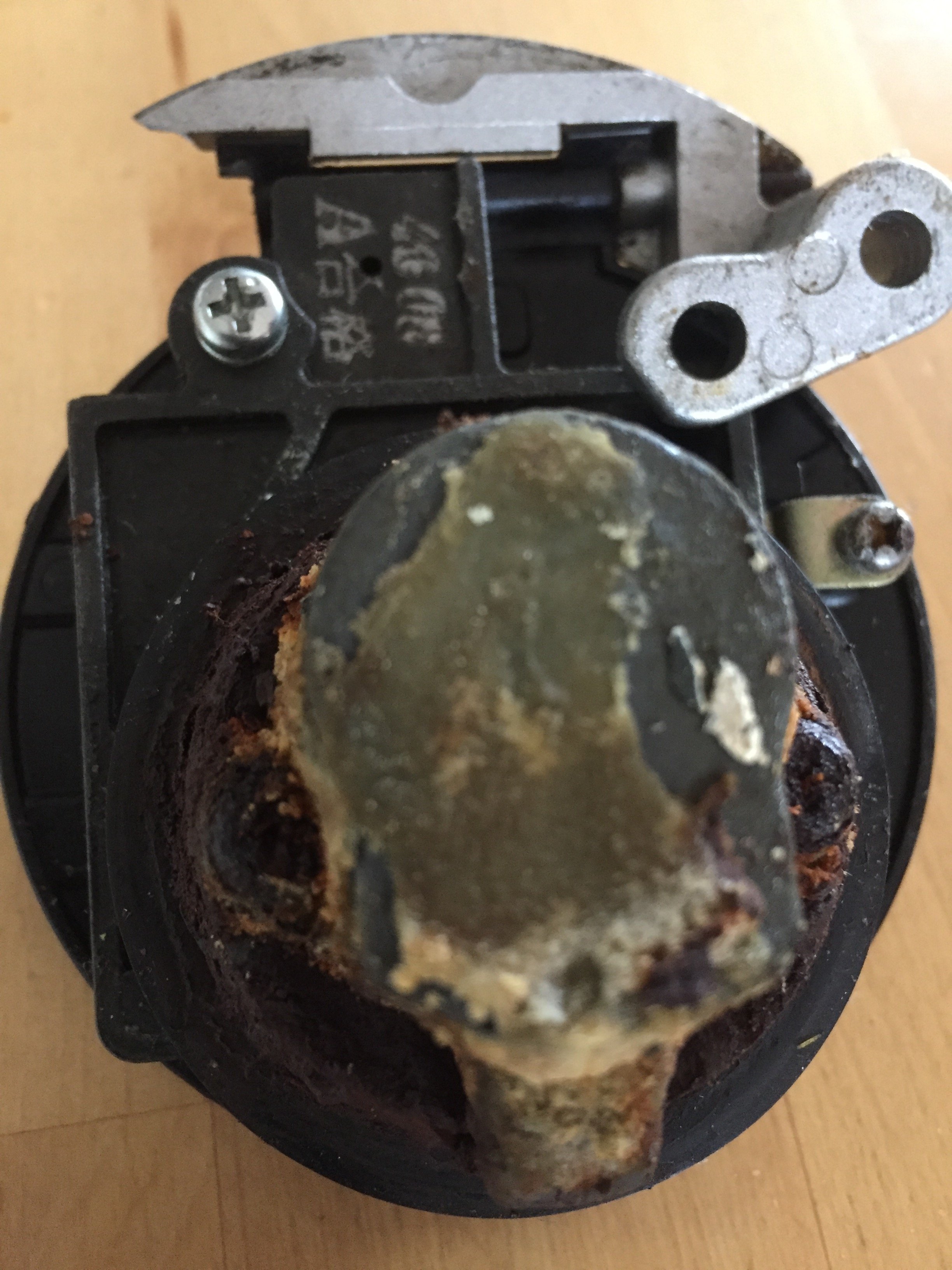

    Happy new year everybody, update on the fuel cap issue (see photos). No wonder it wouldn't unlock, the inside of the tank doesn't look too clever either. So new fuel filler cap and associated parts plus possibly a new tank?. Took the opportunity to take the carbs off as well, will pull them apart later. Now pros and cons on re-fitting original air box or fitting K&N filters, thoughts please.






    • Like Like x 2
    • Useful Useful x 1
  7. Retired Phil

    Retired Phil Well-Known Member

    Jun 22, 2017
    211
    93
    San Rafael
    lol. Barn find? If the rest of the bike is in similar condition you’ve got a big project ahead of you.

    • Agree Agree x 3
  8. Samsgrandad

    Samsgrandad Senior Member

    Dec 15, 2019
    500
    243
    Somerset
    Before you bin the tank, or try expensive cleaning treatments try ordinary cheap vinegar.
    Almost fill the tank with vinegar, add a few large nuts shake the tank and then leave it for a few hours, shaking to rattle the nuts about, drain out the tank, separate the sediment and then put the vinegar back and repeat for several times. It might take several days but you will be surprised at the difference.
    When finished with the vinegar neutralise the tank with a solution of bicarbonate of soda.

    I did this on an old moped tank and the inside of the tank ended up looking like new - Best of luck!!!

    • Like Like x 2
    • Useful Useful x 1
    • Agree Agree x 1
  9. Samsgrandad

    Samsgrandad Senior Member

    Dec 15, 2019
    500
    243
    Somerset
    Before you bin the tank, or try expensive cleaning treatments try ordinary cheap vinegar.
    Almost fill the tank with vinegar, add a few large nuts shake the tank and then leave it for a few hours, shaking to rattle the nuts about, (which help to loosen the rust) drain out the tank, separate the sediment and then put the vinegar back and repeat for several times. It might take several days but you will be surprised at the difference.
    When finished with the vinegar neutralise the tank with a solution of bicarbonate of soda.

    I did this on an old moped tank and the inside of the tank ended up looking like new - Best of luck!!!

    • Like Like x 3
    • Useful Useful x 2
  10. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    Go for the K&N’s :cool:








    if you want to spend a lot of time and money buying jets, air screws and the like to get it to run half decent.
    That was my experience with them anyway, oh and don’t park it in the rain and expect it to run right if water gets on them.:confused:
    Kind of a long winded way of saying stick with the original air filter arrangement. :)

    • Like Like x 2
    • Agree Agree x 1
  11. JerryBB

    JerryBB Noble Member

    Oct 6, 2019
    1,169
    443
    Wales
    Wow, that really is bad

    • Agree Agree x 2
  12. Sprinter

    Sprinter Kinigit

    Aug 17, 2014
    6,027
    1,000
    uk
    Wow seconded.
    Replace the air box and get everything running, if you want upgrade later then fine.
    At least, that way you know whats to blame if you have problems.

    • Agree Agree x 3
  13. Tony Hayden

    Tony Hayden Member

    Dec 9, 2019
    31
    18
    Leicester
    Thanks for all of the replies. I have just found out from the previous owner that the bike hadn't been in the shed for 2 years, in fact it has been in the shed since July 2007 and it hadn't been run for 2 years. No wonder it is in a state.
    Am I right in thinking that the filler cap is a "non vented type".

    • Agree Agree x 1
  14. Samsgrandad

    Samsgrandad Senior Member

    Dec 15, 2019
    500
    243
    Somerset
    It's certainly non vented now!!!

    • Funny Funny x 3
    • Agree Agree x 1
  15. MadMrB

    MadMrB Elite Member

    Dec 24, 2018
    3,562
    800
    Northamptonshire, UK
    • Like Like x 2
    • Agree Agree x 1
  16. JerryBB

    JerryBB Noble Member

    Oct 6, 2019
    1,169
    443
    Wales
    • Agree Agree x 2
  17. Tony Hayden

    Tony Hayden Member

    Dec 9, 2019
    31
    18
    Leicester
    Not helpful.

    • Agree Agree x 1
    • Face Palm Face Palm x 1
  18. Tony Hayden

    Tony Hayden Member

    Dec 9, 2019
    31
    18
    Leicester
    My bike isn't listed, so looks like it wouldn't fit.

    • Agree Agree x 3
  19. JerryBB

    JerryBB Noble Member

    Oct 6, 2019
    1,169
    443
    Wales
    Fits all the classic bonnies

    • Agree Agree x 1
  20. MadMrB

    MadMrB Elite Member

    Dec 24, 2018
    3,562
    800
    Northamptonshire, UK
    No it won't fit, its a Bonneville part, replaces the standard screw filler cap.

    • Agree Agree x 1
