Front Wheel not central in forks

Discussion in 'Technical Help' started by QuadumphUK, Mar 15, 2017.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. QuadumphUK

    QuadumphUK Noble Member

    Aug 14, 2014
    425
    313
    Boscombe
    Have a bit of a problem .
    Am fitting Daytona 955 front end etc to my Trophy 1200.
    Now is bolted in, from front of bike the wheel is about 2-3mm off to the rightside of forks.
    Not got calipers at moment as waiting to buy them so can see if they clear discs or scrape
    Also add that its a Speed Triple 955 front wheel I`m using
    Just wondered if anyone else has had this problem.
    Can`t get pic at moment as camera is playing up but will upload asap.
    Cheers

  2. MickEng

    MickEng Noble Member

    Sep 29, 2016
    1,805
    450
    West Yorkshire
    It sounds like you will have to adjust/make new spacers to centralise the wheel.
    Take some accurate measurements, sketch it out and make the adjustments, you could do with access to a small lathe or a local friendly engineering workshop.

  3. Sprinter

    Sprinter Kinigit

    Aug 17, 2014
    6,026
    1,000
    uk
    When you say Front End do you mean yokes and forks or just forks?

  4. QuadumphUK

    QuadumphUK Noble Member

    Aug 14, 2014
    425
    313
    Boscombe
    Complete front end , yokes, forks, wheel, discs, mudguard.
    I had a thought if there was a difference in the size of the wheel spacer ?

  5. Sprinter

    Sprinter Kinigit

    Aug 17, 2014
    6,026
    1,000
    uk
    some times you just need to slacken off pinch bolts and axle to bring it back


    • Like Like x 3
  6. QuadumphUK

    QuadumphUK Noble Member

    Aug 14, 2014
    425
    313
    Boscombe
    Cheers JTD will give that a look, will also take some pics just in case someone sees something have done wrong.
    Hopefully get pics later

    • Like Like x 1
  7. QuadumphUK

    QuadumphUK Noble Member

    Aug 14, 2014
    425
    313
    Boscombe

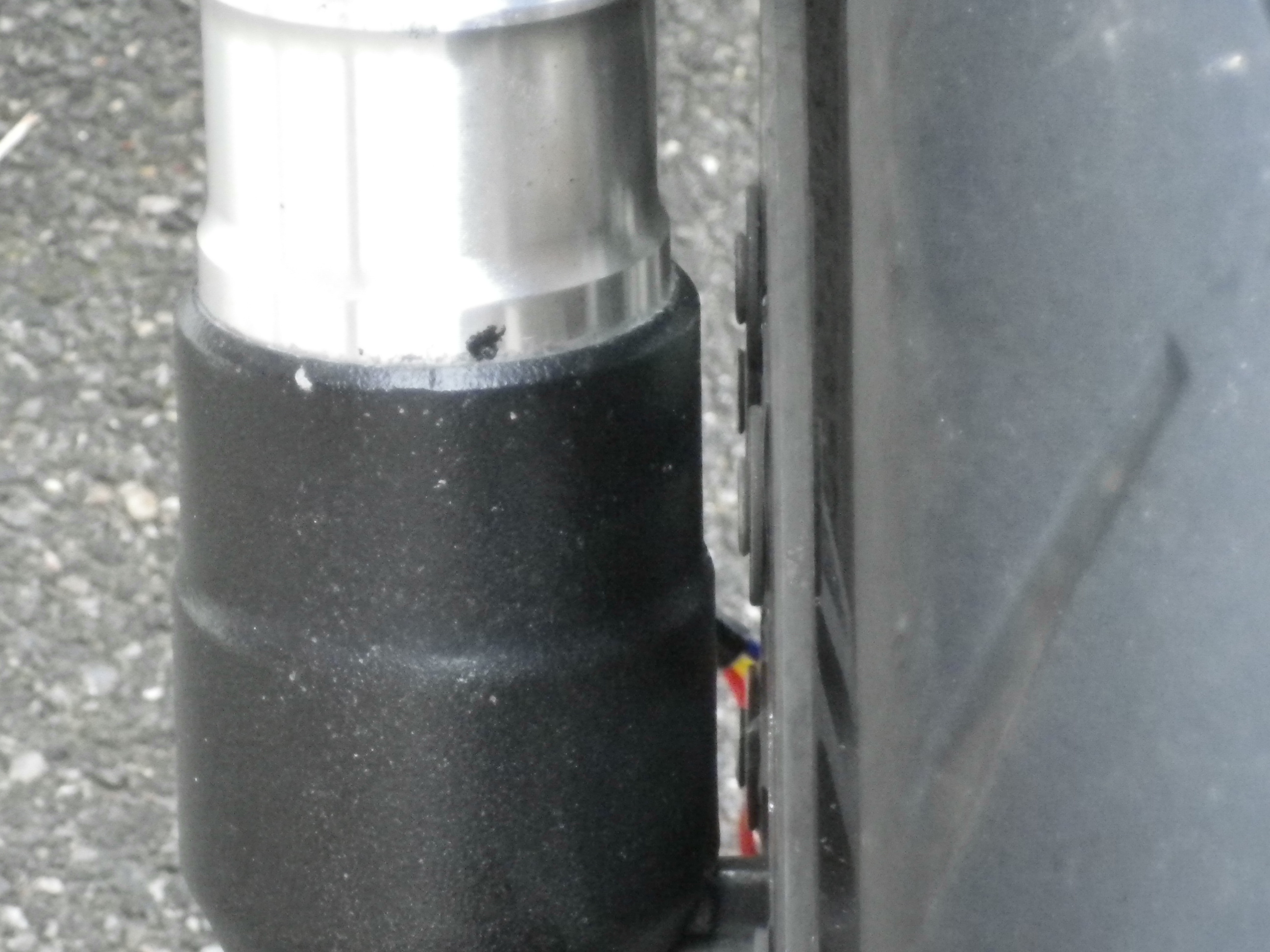

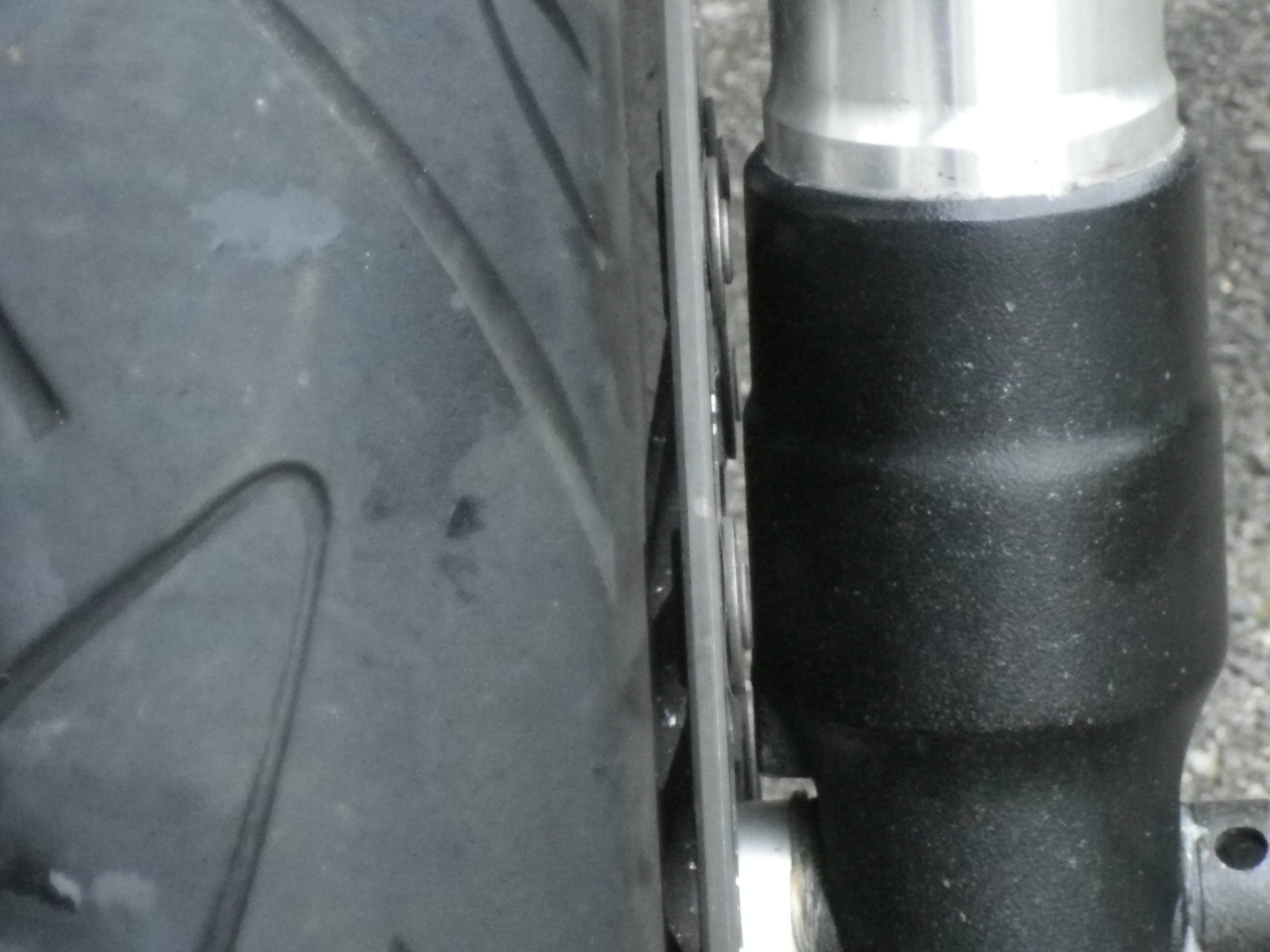

    here are some pics of alignment also condition of forks.

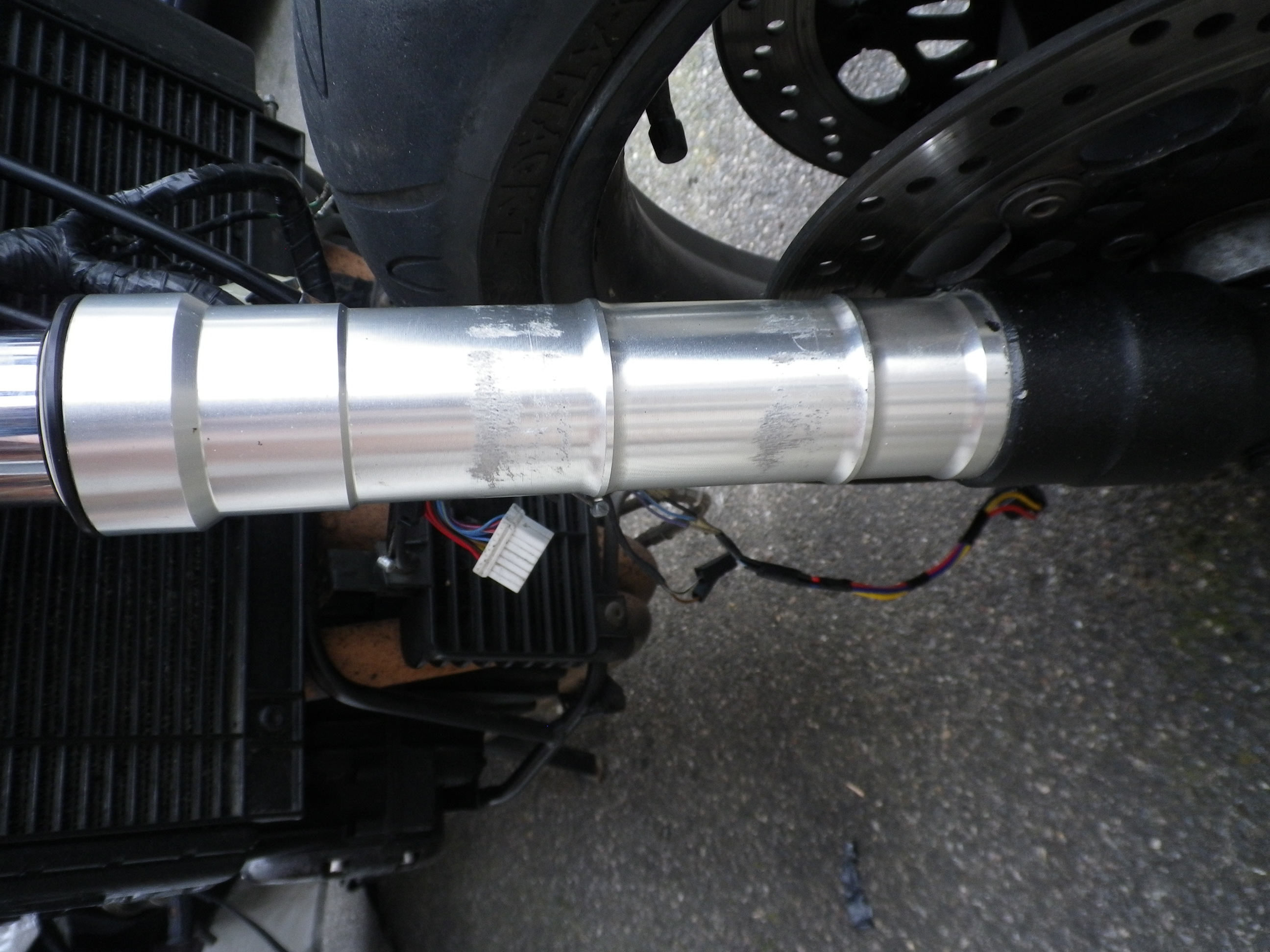

    I did buy these cheap off e-bay and as shown is some scrape marks to sides. Bought them with a view to getting better set when can afford them. Then break these ones for p IMGP4704.JPG IMGP4703.JPG IMGP4694.JPG IMGP4693.JPG arts to sell IMGP4704.JPG IMGP4703.JPG IMGP4704.JPG IMGP4703.JPG IMGP4704.JPG IMGP4703.JPG IMGP4694.JPG IMGP4693.JPG IMGP4704.JPG IMGP4703.JPG IMGP4694.JPG IMGP4693.JPG



  8. QuadumphUK

    QuadumphUK Noble Member

    Aug 14, 2014
    425
    313
    Boscombe
    Post seems to have gone a bit funny :)

    • Like Like x 1
  9. Jody

    Jody Active Member

    Oct 9, 2016
    143
    43
    Nuneaton
    Is it purely spacing ie. Needs shifting left or right

    or are the forks pinching together at the axle meaning only one side needs spacing

    Is there much space to get the wheel and spacers inbetween the forks as it should be quite a snug fit with the correct overall width

  10. Dougie D

    Dougie D Crème de la Crème

    Jan 30, 2016
    10,664
    1,000
    Blairgowrie Perthshire
    whats with all the scraping on the forks,has the bike been dropped?

  11. t552

    t552 Senior Member

    Nov 17, 2014
    415
    113
    Bristol UK
    How has that affected head angle/trail?
    thought they are a bit on the short side.

  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,545
    1,000
    Southcoast of the UK Earth
    When you have the calipers you will be able to determine how much you will have to move the wheel, this can be done by shaving one spacer down and making a new bigger one, the marks on the forks are the mudguard mountings :)

    • Like Like x 2
  13. Sprinter

    Sprinter Kinigit

    Aug 17, 2014
    6,026
    1,000
    uk
    Not being funny , is there actually an issue or do you think there might be?

  14. t552

    t552 Senior Member

    Nov 17, 2014
    415
    113
    Bristol UK
    Is it the same if you turn the station. Just incase it has a slight bend in it.

  15. QuadumphUK

    QuadumphUK Noble Member

    Aug 14, 2014
    425
    313
    Boscombe
    I think it is like darkman says once have calipers will be a bit wiser. Might just need, as t552says, the fork swiveling to get it to fit. If this happens then would indicate that fork is probably a bit bent. Just have to wait and see. Cheers for advice etc

  16. QuadumphUK

    QuadumphUK Noble Member

    Aug 14, 2014
    425
    313
    Boscombe
    Has lowered front of bike a bit, which in turn steepens head angle and with the fork centres closer to stem will reduce trail so should make the old girl steer a bit quicker. Can`t see any problems with that but once get on road will be able to see and let people know

    • Like Like x 1
