Tiger 1050 Error C1623 Rear Wheel Pulser Gear Missing Teeth

Discussion in 'Tiger / Explorer' started by france_54, Mar 10, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    does anyone have any ideas on this one or can explain the fix for me?

  2. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    Is it something to do with the ABS ring? I know you had trouble with the sprocket carrier bearing. If it is then inspect the ring itself for damage and also the ABS sensor which could be just dirty and need cleaning.

    • Like Like x 2
    • Agree Agree x 1
  3. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    yes its an ABS light that come on with a few issues.

    Recently hand the rear wheel off for a bearing change and since then the lights been on so hooked up TUNE ECU. I'll pop out and look over the sensor and ring - cheers

  4. Tiglet

    Tiglet Vintage Member

    Mar 28, 2016
    4,433
    1,000
    Cheshire
    As above inspect the ring or could just be a dirty sensor especially if you’ve been using the bike in winter.

    • Like Like x 1
    • Agree Agree x 1
  5. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    I've just looked at the pictures again of your bearing failure and the ABS ring looks a bit rusty so i'd suggest a good clean and a look at the sensor, poss cleaning it with brake cleaner?

    • Like Like x 1
  6. Sprinter

    Sprinter Kinigit

    Aug 17, 2014
    6,026
    1,000
    uk
    Distance of the sensor from the ring, can cause an issue.

    • Agree Agree x 1
  7. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    So cleaned up the sensor and rode to work this morning after clearing the codes.

    Had a new batch of different codes pop through. Ill post below.

  8. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    As others have said, and pending sight of the error codes, a corroded reluctor ring is a problem on two counts: loss of material to trigger a pulse and physical growth that knocks out the sensor itself.....potentially worsened by a bearing failure.

  9. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire

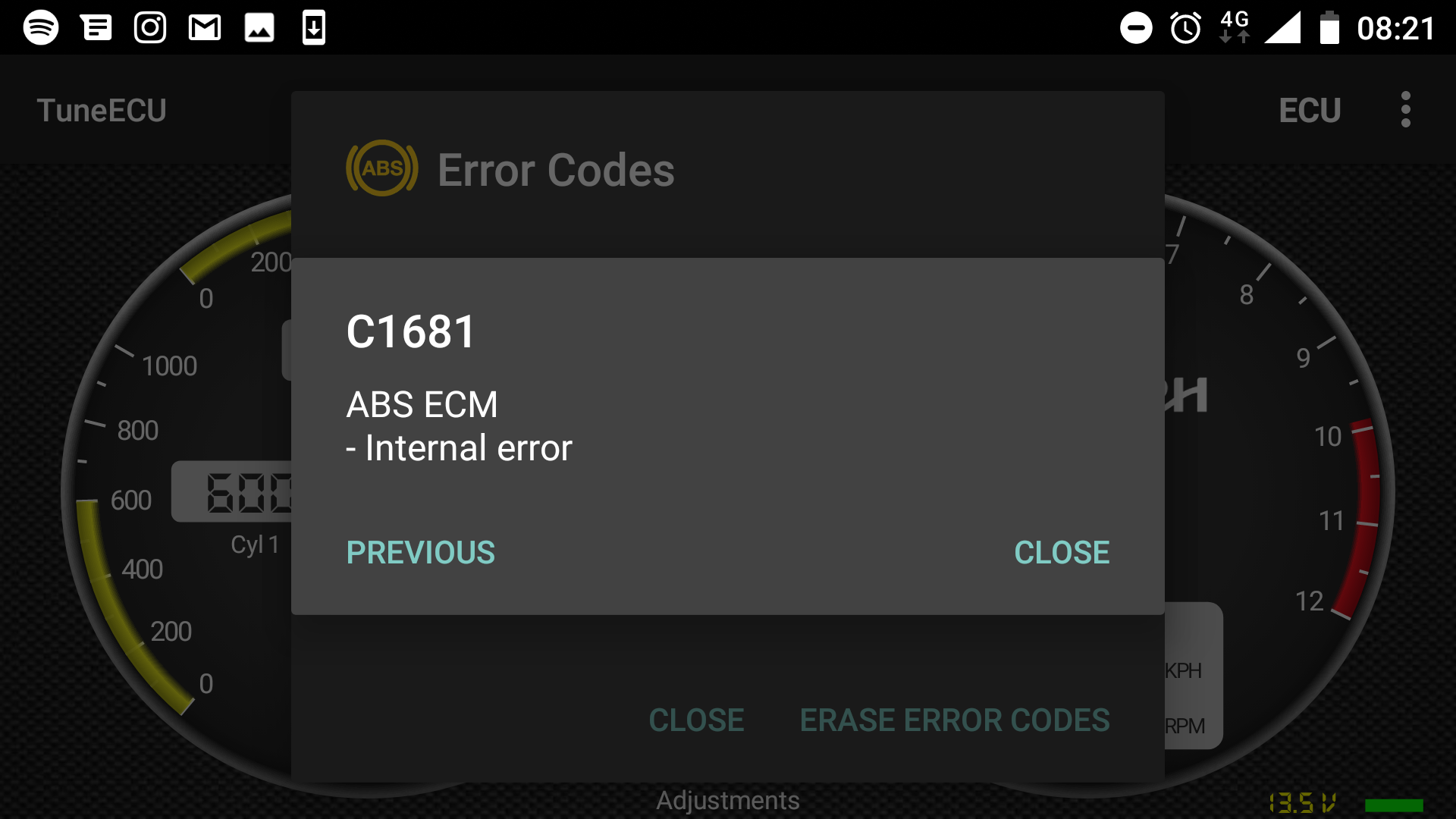

    Error codes from this morning




  10. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    Can you simply remove the pulsar ring, fine wire wool it to clean it up and win or is it coated with anything that would cause this to worsen if removed?

    I want to be damn sure its the pulsar ring prior to buying one as new its 70+ - might be able to source a 2nd hand one but theres no guarantee it'll be in good condition

  11. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    • Like Like x 1
  12. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    interesting read.

    So looking at that most likely that the sensor error is caused by something else other than the actual sensor most of the time.

    I am suspicious that my R/R is on the way out which may account for a low voltage being supplied to the sensor...? Does that seem reasonable...

    As for ABS I will take the back wheel off tonight and take a full look at it.

    Cheers

  13. Callumity

    Callumity Elite Member

    Feb 25, 2017
    3,358
    800
    Nr Biggar
    Are you confusing the lambda sensor with the unrelated abs sensor?

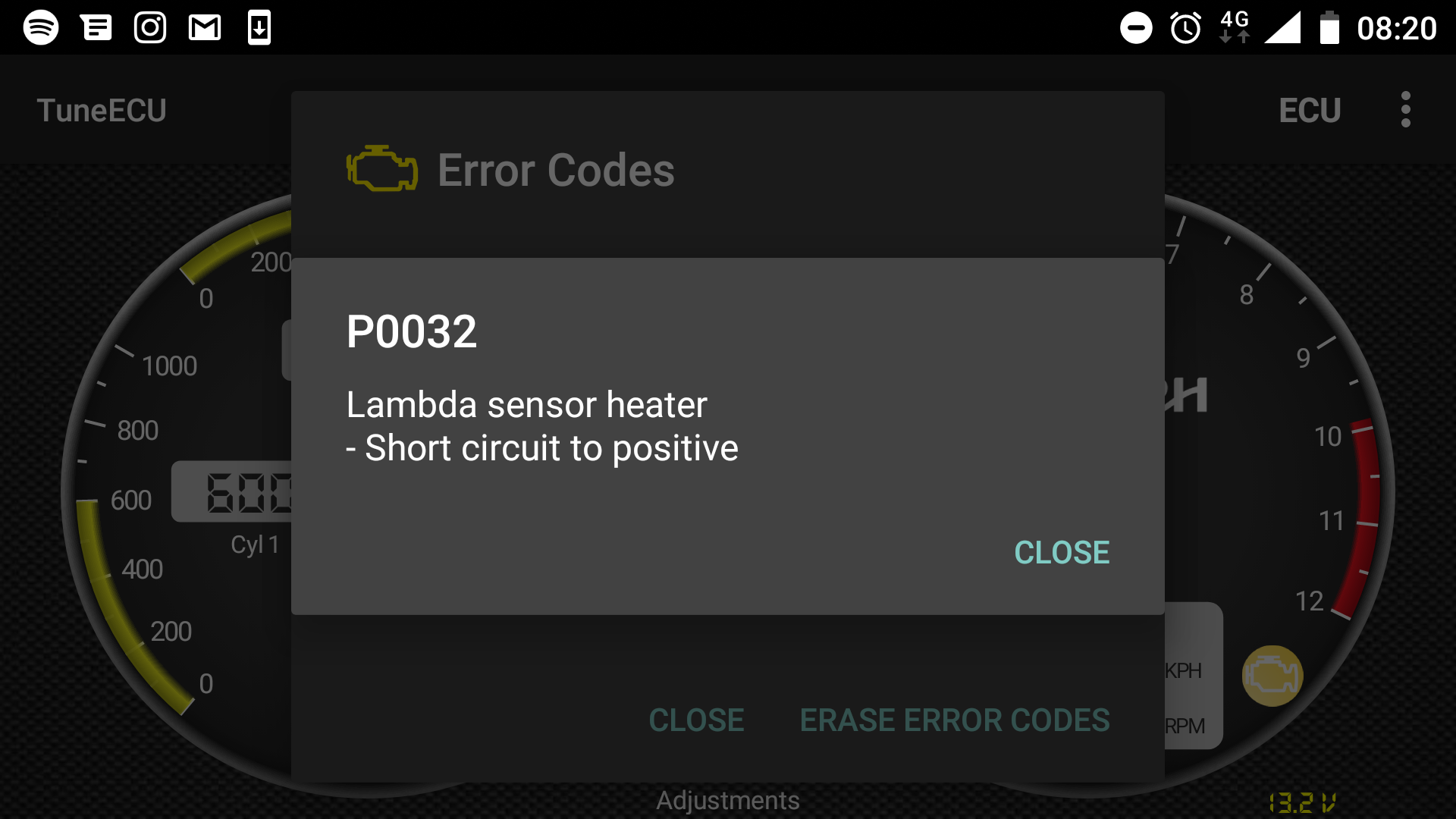

    P0032 appears to relate to your exhaust sensor pre-heater to ensure the ECU gets the correct signal from cold. The lambda may work perfectly well when warm.

    The reluctor and abs sensor supply information about wheel speed to release brake fluid pressure in a skid situation and in some applications compare front and rear wheel speeds for traction control.

  14. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire

    Reading up from the Lambda sensor - if there are supplied with inconsistent or low voltage they can return false error codes so I was wondering if therefore that error could be related to a battery/charging issue.


    As for the ABS - I think your evaluation that either the pulser ring or the sensor is shot. I have popped out to look at the ring and it is clean, dull like the finish has been taken off but it is clean. So I am leaning towards the sensor unless the coating/finish on the ring is relevant

  15. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    The coating is irrelevant, what counts is the gaps, that’s what the sensor looks for.

    • Agree Agree x 2
    • Like Like x 1
  16. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    I thought it wouldn't be, means I can give it a solid clean at least

    • Like Like x 1
  17. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    So update - I detached the sensor and put the volt meter on it to measure the resistance and surely enough the ohms is ever rising rather than that constant...

    just ordered a replacement and will post back here with the results.



    As for the O2 sensor - I am thinking that the O2 eliminator is probably the best option. Has anyone had experience with these? Would it still pass on the MOT for emissions?

    • Like Like x 1
  18. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    Good news on the ABS sensor.
    Haven't run a bike with the O2 sensors eliminated but bikes aren't emmissions tested so no worries on that score .

    • Like Like x 1
    • Agree Agree x 1
  19. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    Cheers for the emission heads up, it's a no brained then £15 compared to OEM lambda sensor £145

  20. france_54

    france_54 Member

    Apr 17, 2018
    26
    18
    Shropshire
    O2 eliminator worked a treat.

    Fitted a new rear ABS sensor and still get the same error code. I've got a 2nd hand pulser so going to pop that on tomorrow. Other than that I'm at an end.
