    So, don't know why I thought this but it's just dawned on me, a 'parallel' twin (to which I referred to as an ordinary twin) is different from an 'in line' twin.
    I thought all the twins from years ago which I owned were just all the same less the obvious 'v' twin configurations but they are not. That answers the fact that my Chinese touring bike (ER6 based) being an 'inline' twin doesn't have anywhere near the big bollocks of my Bonneville 'parallel' twin torque.
    So, that brings me onto another matter, Yamaha's R1 these days sound like 'V' fours from changing the firing orders from the traditional 'inline fours' to the new configuration but..........
    Has there ever been a 'parallel' four unlike an 'inline' four where all four pistons rise together and fire at the same time i.e. same similarities to the Bonneville?
    First one to answer that will get a sticky bun at the GMU2017!! Yum yum

    • Like Like x 1
  2. Havit

    Havit Admin
    Staff Member Subscriber

    Jul 17, 2015
    9,567
    1,000
    Kent
    No :) I look forward to my bun :p

    • Funny Funny x 2
  3. Tigcraft

    Tigcraft Unheard of Member

    Mar 29, 2014
    2,565
    800
    Holmfirth West Yorkshire
    Bet you will , Waynetta!!

    • Funny Funny x 1
  4. DCS222

    DCS222 Guest

    #4 DCS222, Jun 25, 2017
    Last edited by a moderator: Jun 25, 2017

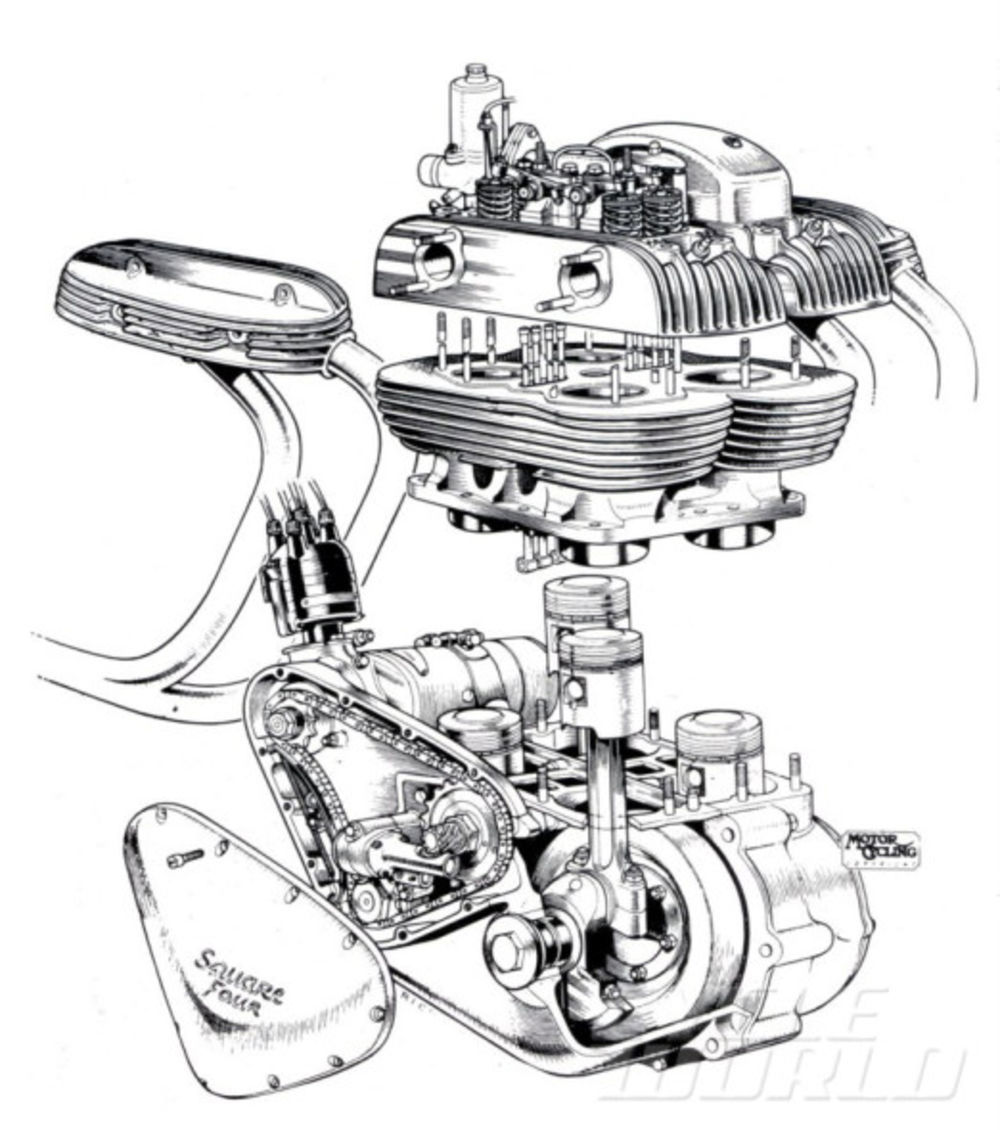

    Not sure, but wasn't the Ariel Square 4 essentially 2 parallel twin engines bolted together???

    Edit, just checked... opposing action.


    • Like Like x 1
    • Useful Useful x 1
  5. DCS222

    DCS222 Guest

    To build an inline 4 with all pistons rising and falling together is to manufacture imbalance into a system and require a large counter balance fly wheel or similar... the opposing rise and fall naturally counters that imbalance.

    • Agree Agree x 2
  6. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,401
    1,000
    Barnsley
    Thinking of the cross plane four that is in the R1 I wondered years ago why four cylinder four stroke engines had their cranks designed so that two pistons were at TDC and two at BDC not understanding about the forces involved that need balancing so the engine can run without vibrating itself to bits. I was brought up on two strokes, singles then twins and eventually triples which had even firing spaced at 120degrees of crank rotation like our speed and street triples. If only I'd learned about that kind of stuff I could have invented the cross plane four and been a brazillionaire by now.

    • Funny Funny x 2
    • Like Like x 1
  7. Havit

    Havit Admin
    Staff Member Subscriber

    Jul 17, 2015
    9,567
    1,000
    Kent
    Still think the buns mine :relieved:

    • Funny Funny x 1
  8. Tigcraft

    Tigcraft Unheard of Member

    Mar 29, 2014
    2,565
    800
    Holmfirth West Yorkshire
    Yes your right but has it been done?

  9. Tigcraft

    Tigcraft Unheard of Member

    Mar 29, 2014
    2,565
    800
    Holmfirth West Yorkshire
    Sos Wayne, I spelt bun wrong but it's waiting for you 'Gloria ' heh heh

    • Funny Funny x 1
  10. Havit

    Havit Admin
    Staff Member Subscriber

    Jul 17, 2015
    9,567
    1,000
    Kent
    As its sticky does that mean its 2nd hand :D

    • Funny Funny x 2
    • Drama Queen Drama Queen x 1
