Diagnostic Plug

Discussion in 'Bonneville' started by Bryn, Jun 13, 2020.

  1. Bryn

    Bryn Well-Known Member

    Jun 10, 2020
    161
    93
    Croft, Leicestershire
    #1 Bryn, Jun 13, 2020
    Can someone tell me where the diagnostic plug is on a 2013 Bonneville SE please?
    Ordered an OBD2 ...

    thanks

  2. Bryn

    Bryn Well-Known Member

    Jun 10, 2020
    161
    93
    Croft, Leicestershire
    #2 Bryn, Jun 13, 2020
    Thanks for the reply, having had a look, is it the one that seems to go nowhere with a looped connector plugged into it which is situated to the rear of the battery resting on the mudguard?

  3. Bryn

    Bryn Well-Known Member

    Jun 10, 2020
    161
    93
    Croft, Leicestershire
    #3 Bryn, Jun 13, 2020
    Great, thank you should get the OBD 2 tomorrow so I’ll have a mess with it ;)

    • Like Like x 3
  4. Jadorff

    Jadorff Noble Member

    Apr 14, 2019
    879
    443
    Adelaide Australia
    #4 Jadorff, Jun 14, 2020
    This is it


    • Like Like x 5
    • Thanks Thanks x 1
  5. Bryn

    Bryn Well-Known Member

    Jun 10, 2020
    161
    93
    Croft, Leicestershire
    #5 Bryn, Jun 14, 2020
    Excellent :) thank you....so the OBD 2 just arrived , downladed the app, plugged the reader into the port , it threw up one error ( which I didn’t note but I think it was the battery...cleared the fault and the engine light went out :eek:
    so that looks like a good £11 spent

    • Like Like x 8
  6. Jadorff

    Jadorff Noble Member

    Apr 14, 2019
    879
    443
    Adelaide Australia
    #6 Jadorff, Jun 14, 2020
    Money well spent

    • Agree Agree x 2
    • Cheers Cheers x 1
  7. Mischa Vladivostok

    Mischa Vladivostok Well-Known Member

    Feb 9, 2015
    234
    93
    Dublin, Ireland
    #7 Mischa Vladivostok, Jun 15, 2020
    One of the best investments for this bike, man. The amount of time and money I've saved by not having to bring the bike to the dealer every time a warning light comes on!...
    Also great for synching throttle heads.

    • Like Like x 3
  8. Bryn

    Bryn Well-Known Member

    Jun 10, 2020
    161
    93
    Croft, Leicestershire
    #8 Bryn, Jun 15, 2020
    It surprised me it actually worked :eek:

  9. brown mouse

    brown mouse Elite Member

    Sep 15, 2018
    2,288
    943
    East Midlands, UK
    #9 brown mouse, Jun 15, 2020
    I'm thinking I should get an ODB2 reader that understands bikes. Which reader did you get and what system does the app run on? I don't have a Windows PC but have an old Android mobile I can sacrifice for running dodgy apps.

  10. Bryn

    Bryn Well-Known Member

    Jun 10, 2020
    161
    93
    Croft, Leicestershire
    #10 Bryn, Jun 15, 2020
    Last edited: Jun 15, 2020
    The box has a QR code in it...which directs you to the app....inCarDoc... that is the one that worked, but on a you tube video I watched ( posted somewhere on here) the app was called Car Scanner...I’ve got both and will try that one next time

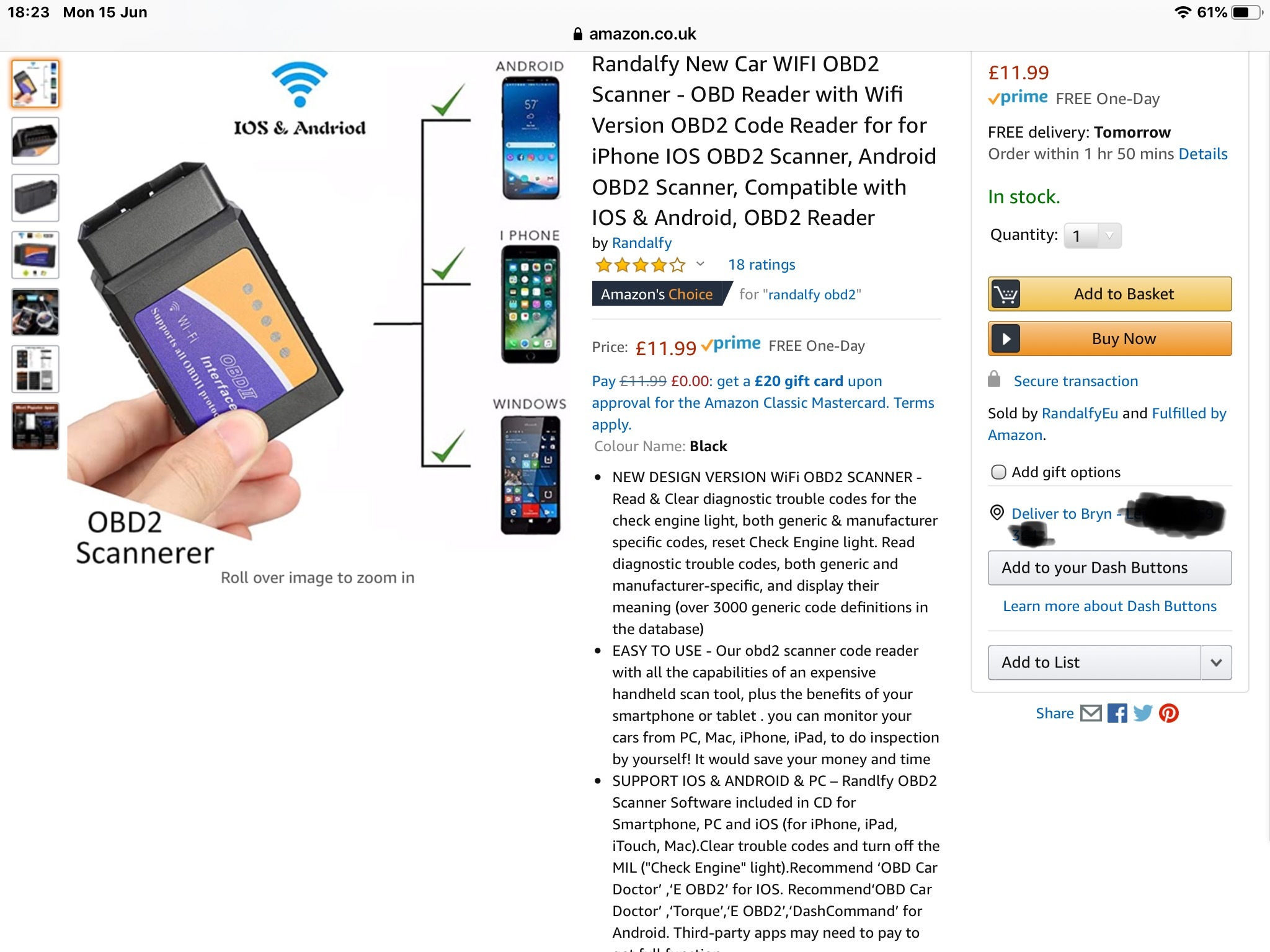

    picture below.... £11.99

    • Like Like x 1
    • Thanks Thanks x 1
  11. Bryn

    Bryn Well-Known Member

    Jun 10, 2020
    161
    93
    Croft, Leicestershire
    #11 Bryn, Jun 15, 2020
    ...... 8515C033-59AA-4FBF-907D-9F9EBE072B5F.jpeg

    • Like Like x 1
  12. Jadorff

    Jadorff Noble Member

    Apr 14, 2019
    879
    443
    Adelaide Australia
    #12 Jadorff, Jun 16, 2020
    That’s the same as I have well worth it these trimuphs through up codes for everything if it takes a bit longer to start it will come up with the eng magment light the biggest pain is removing the seat

    • Like Like x 1
    • Agree Agree x 1
