Featured Cyl Head Refurb

Discussion in 'Builds & Projects' started by darkman, Nov 27, 2020.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth

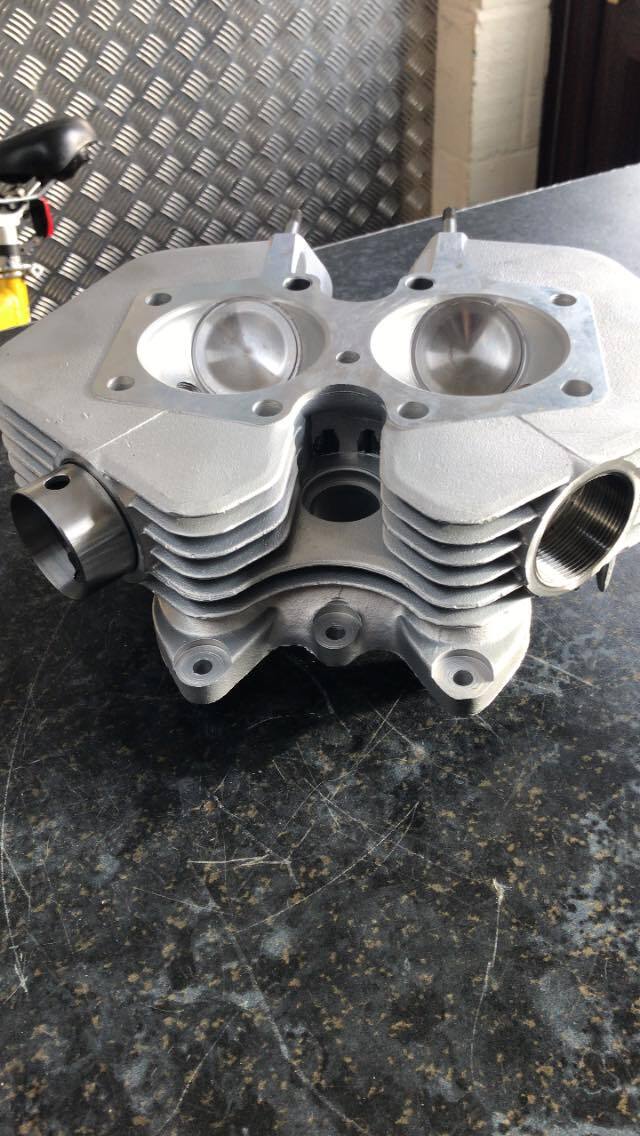

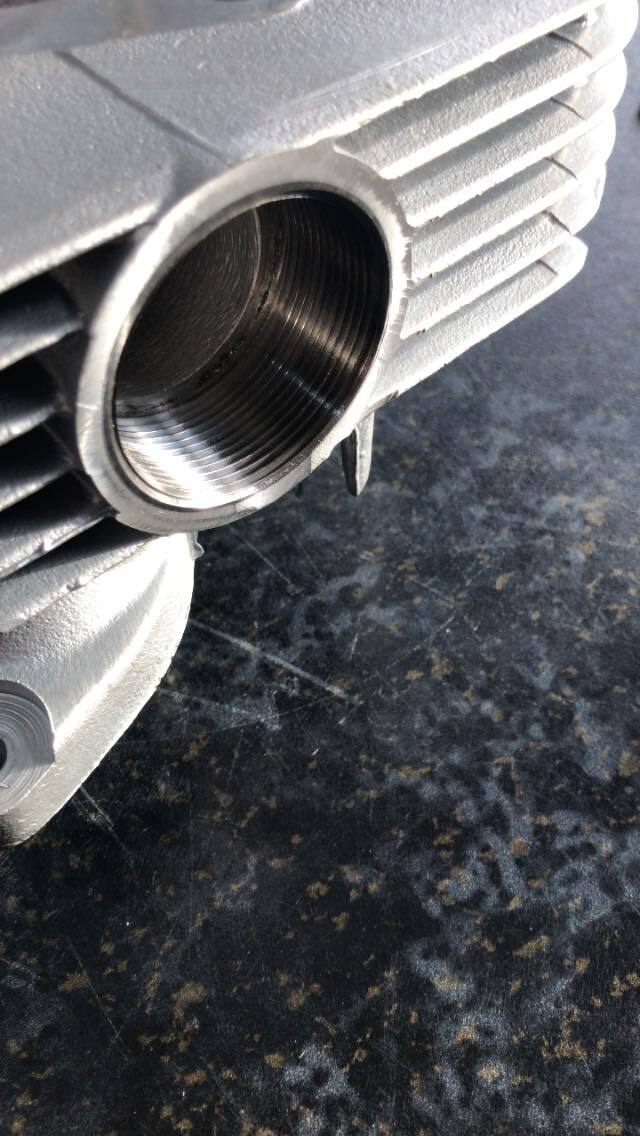

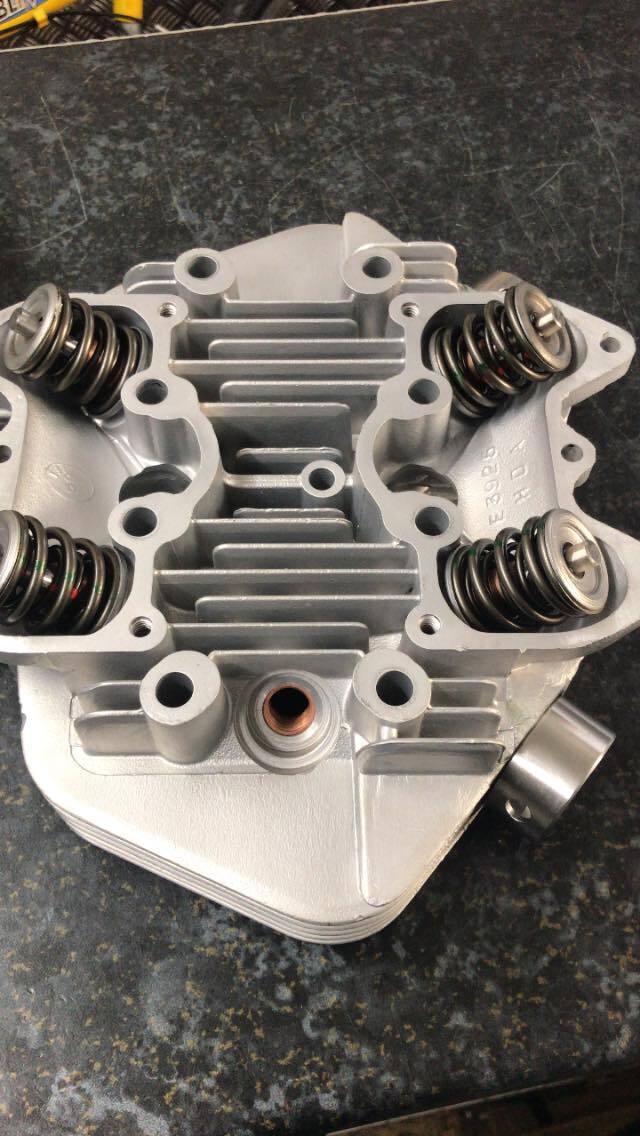

    Found a suitable correct year head for my 70C at long last and had Patric at Seager Engineering sort the ex ports valves n guides for me so i can now finish the bikes off properly [​IMG]




    • Like Like x 25
  2. curly

    curly Noble Member

    Jul 3, 2016
    758
    443
    Burton Upon Trent
    Looking tip top!

    • Agree Agree x 6
    • Like Like x 1
  3. OsteKuste

    OsteKuste Intergalactic Warlord
    Subscriber

    Oct 22, 2017
    2,197
    943
    Tennessee, United States
    Shiny!

    • Like Like x 1
    • Agree Agree x 1
  4. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,317
    1,000
    North West England
    I just have to admire how clean you get your engine bits. Hats off to you mate :)

    • Agree Agree x 5
    • Like Like x 1
  5. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth
    Thanx. Exciting bit is getting it fitted next week and finishing off the job as i should have a few years ago instead of making do with the head i had at the time :)

    • Like Like x 5
    • Agree Agree x 1
  6. Tiglet

    Tiglet Vintage Member

    Mar 28, 2016
    4,433
    1,000
    Cheshire
    • Agree Agree x 1
  7. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth
    #7 darkman, Nov 28, 2020
    Last edited: Nov 28, 2020
    Yes this one was :) some dry glass bead blasting, same result :)


    • Like Like x 11
    • Useful Useful x 1
  8. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth
    Managed to get the engine cleaned off and get the bike in the workshop and remove the cyl head :) A bit more cleaning and prep then the refurbished head can go back on.


    • Like Like x 8
  9. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth

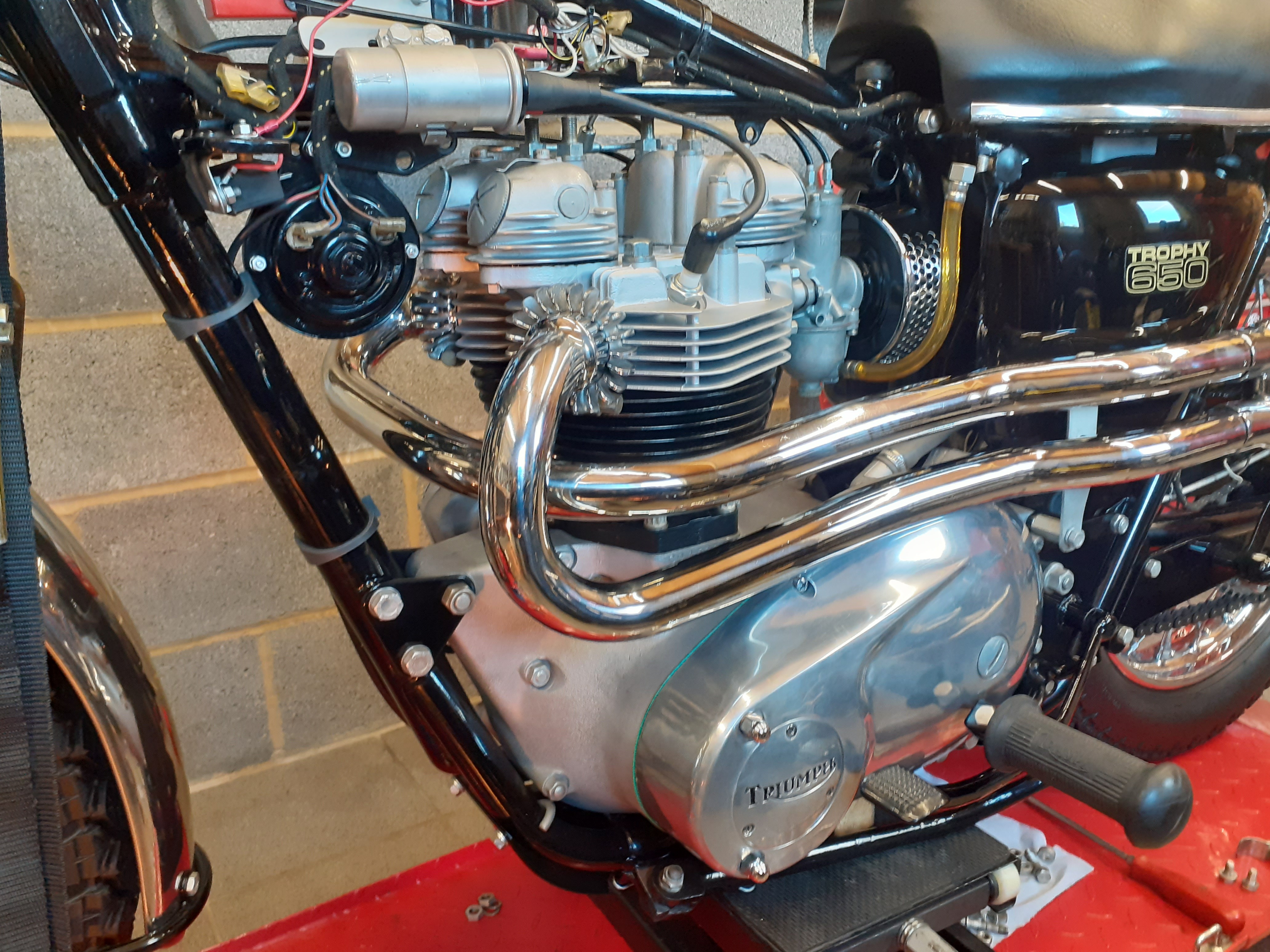

    Head back on and one heat cycle, will retorque head and adjust tappets next week n finish off the job.


    • Like Like x 17
  10. Don the Don

    Don the Don Bigger Than The Average Bear

    Nov 5, 2019
    2,947
    800
    MORAY UK
    Looking good mate

    • Agree Agree x 2
    • Like Like x 1
  11. joe mc donald

    Dec 26, 2014
    13,874
    1,000
    slough / burnham
    Darkman
    Wouldn't Have expected any less from your good self. You are one in a million.
    Joe.

    • Like Like x 3
    • Agree Agree x 1
  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth

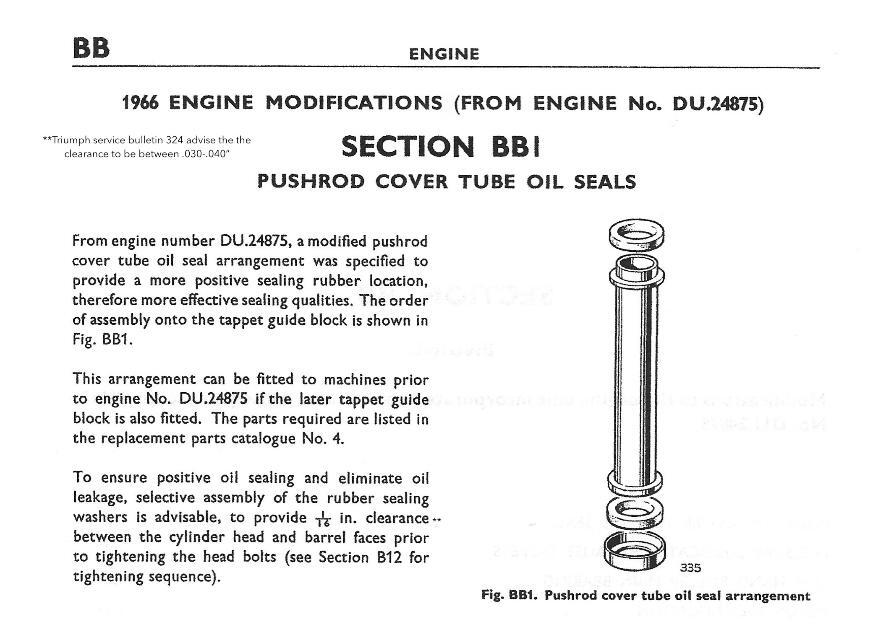

    For anyone doing a similar job, some factory info on head to tube seal crush. Figure given for crush is with gasket in place.


    • Like Like x 2
  13. Sprinter

    Sprinter Kinigit

    Aug 17, 2014
    6,026
    1,000
    uk
    How long is an air cooled heat cycle, and do you use a fan?

  14. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth
    I run my engines until i feel warmth in the oil/tank and some times use a fan if its warm, sorry if its a bit vague but that what i have done for years,

    • Like Like x 2
    • Useful Useful x 2
  15. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    7,535
    1,000
    Southcoast of the UK Earth

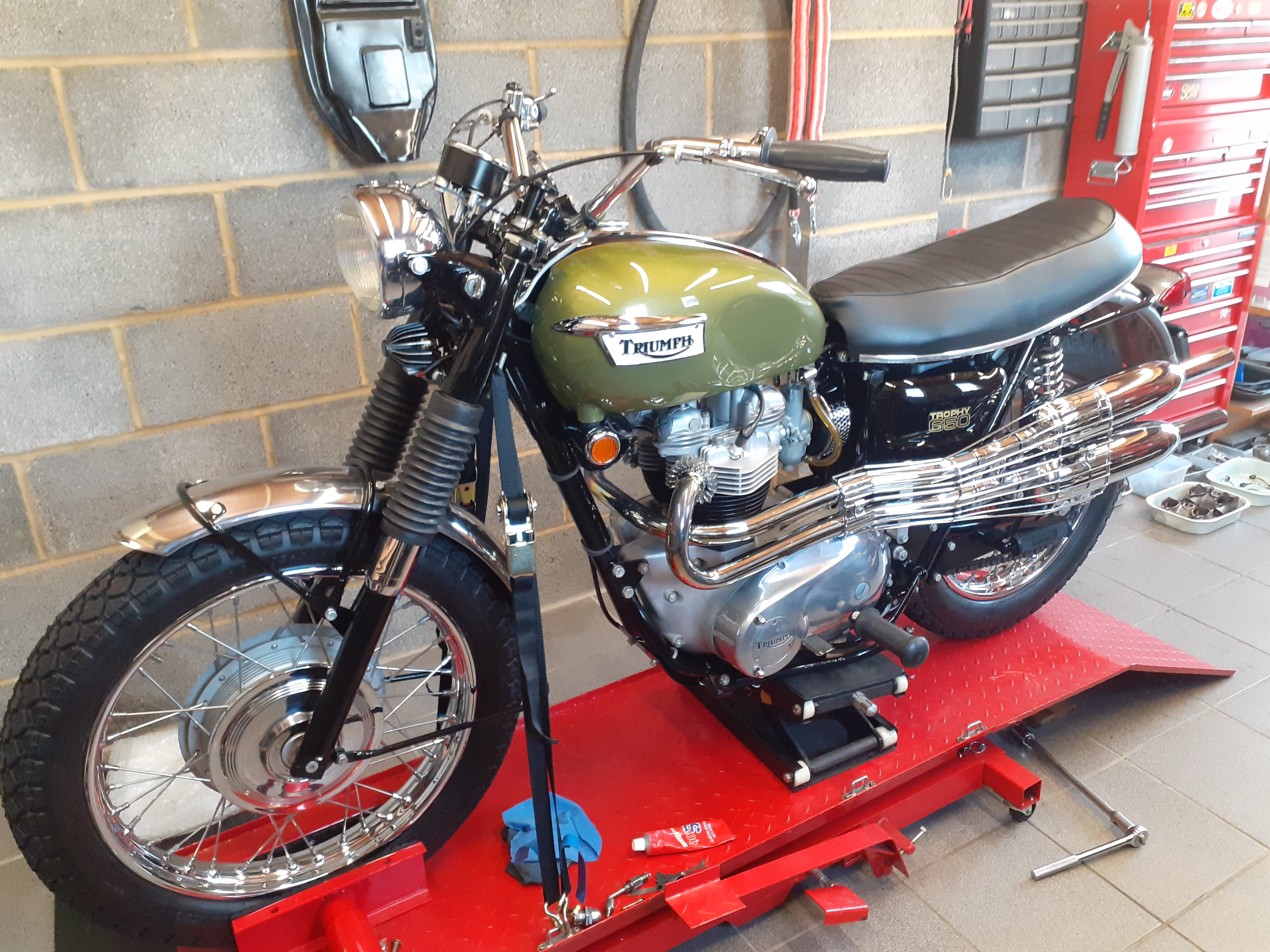

    In between striping a pre unit 6T for a rebuild i finished off the head job at last.


    • Like Like x 10
  16. Wessa

    Wessa Cruising

    Apr 27, 2016
    11,317
    1,000
    North West England
    looks stunning mate :):)

    • Agree Agree x 3
    • Like Like x 2
