Charging Issue 1050 Tiger

Hi all,

So a month into my 1050 and I'm suffering from the typical charging issues.

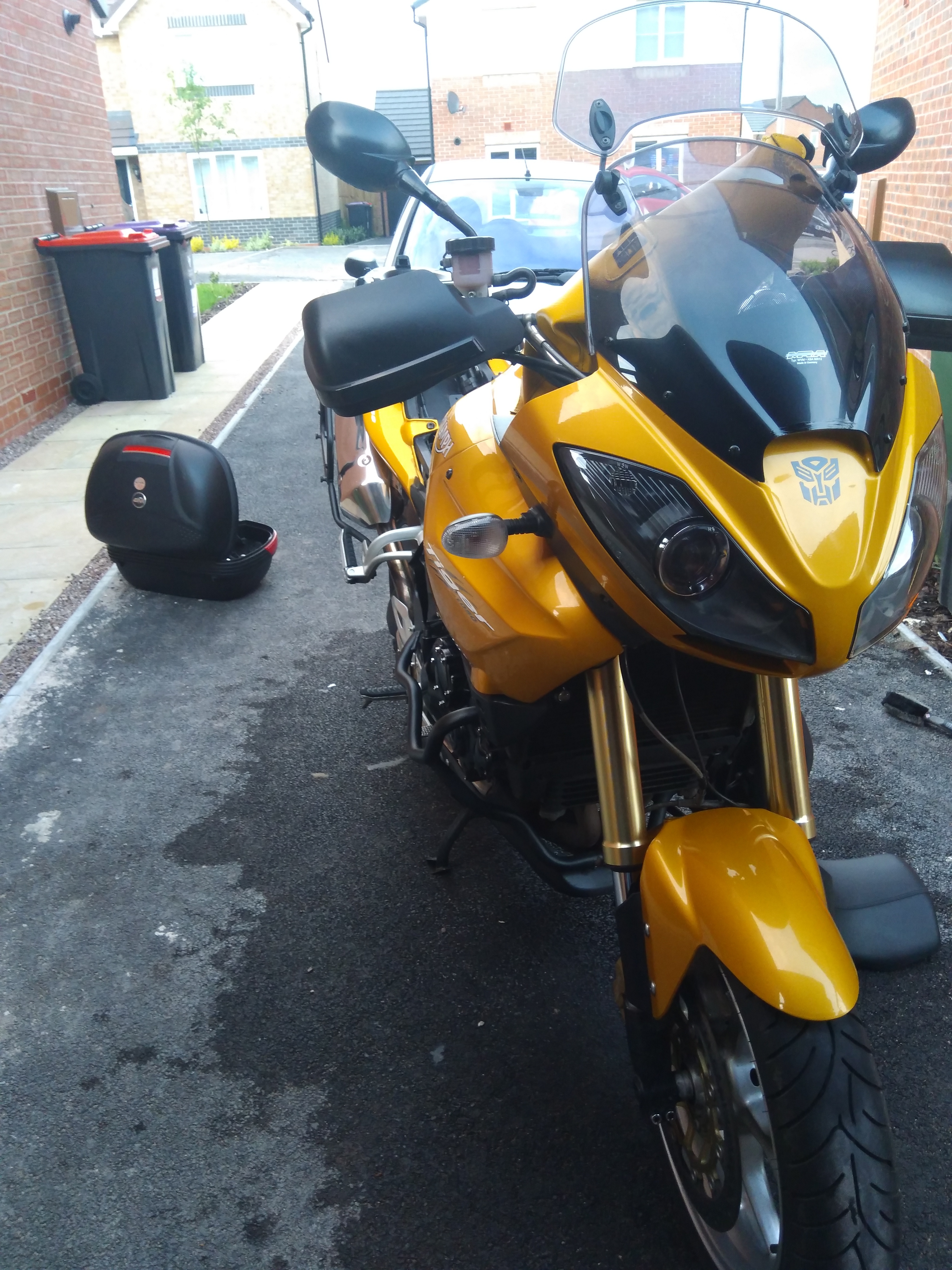

It's an 07 tiger 1050 abs model.

So I took a ride out 40 minutes later the ABS light comes on followed by the electrics dropping out then quickly after the engine.

I've run a diode check on the RR and a spare I got with the bike and both are showing fine.

I've run a resistance test on the stator again fine - all consistent. I also ran a ground check that came back fine.

Tried and tested the system with two bsttbatte that have also been checked so it's not a battery issue either.

Any ideas??

Could it still be the stator even though all tests are coming back fine? Or are there other possibilities?

Cheers

Craig



Enough damage to stop the stator working?

Tests came back fine



Cheers Capt, I hadn't thought about the state of it changing as the engine warmed!

All of the tests I did were ''cold" engine off style checks.



I've got an after market stator on the way which comes recommend over the triumph part.
Triumph stator I was quoted £270
After market supposedly better one £98.
£10 for a new gasket, hopefully it all works out - I'll keep posting here until resolved.



Winner - as suggested the stator which was showing up fine on a cold tests was indeed shot.

Replaced the stator and RR while the bikes was in pieces. Fitted an aftermarker voltmeter to the dash too so I can monitor charging whilst riding.

Been commuting on it for two weeks now without a single issue.

Good to know even with all those checks that you can run...you should still trust your intuition over tools.



Checked - all was fine but it was the original so 10 years old so I swapped it out whilst the beast was in pieces as a precaution



YouTube has some great videos of how to check voltage, dioides and so on this one is the best for the RR.

What bike you having trouble with?



Not sure,

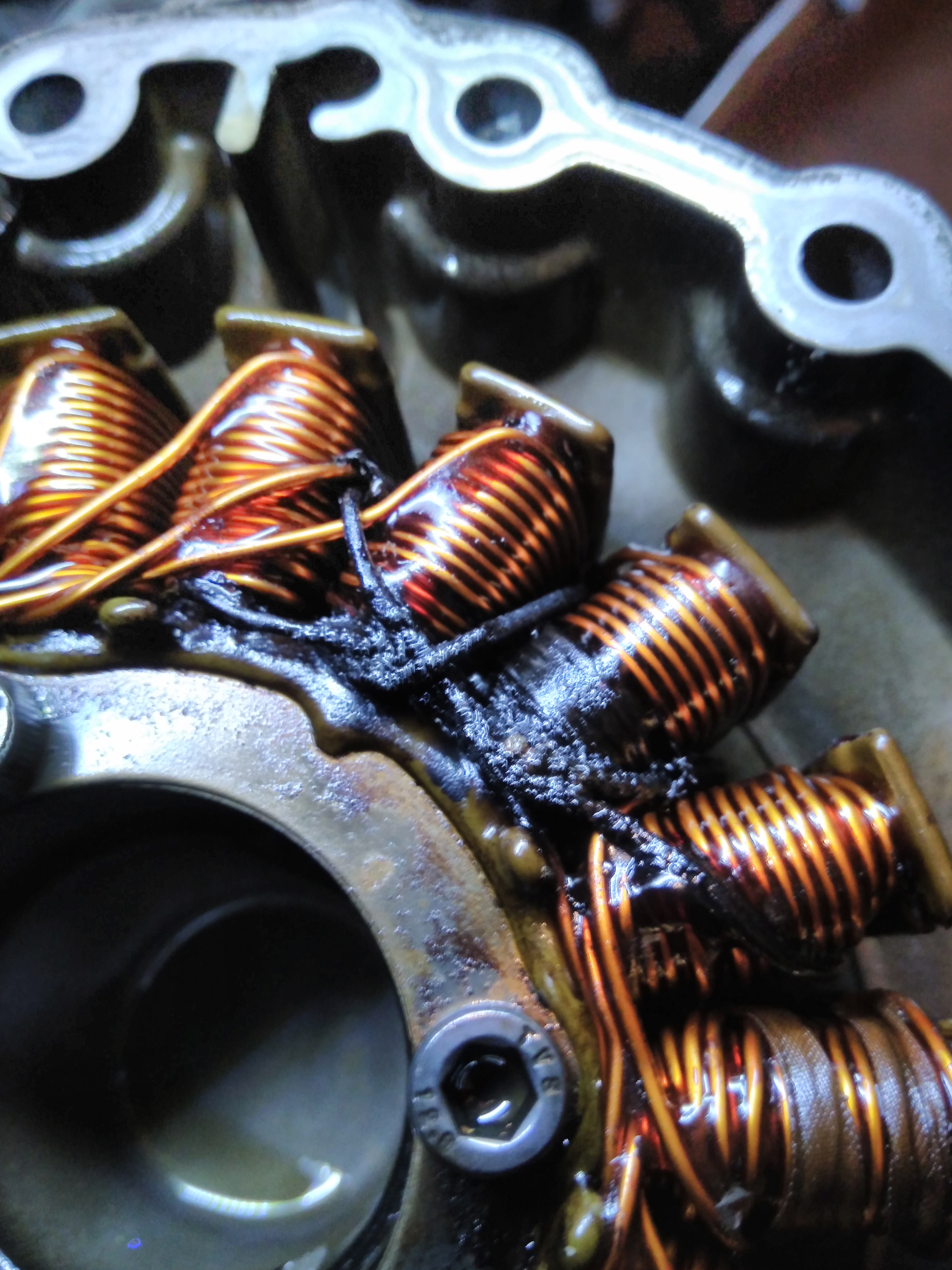

You problem sounds just like mine, I had none of the tests comeback negative...so I bit the bullet and opened the stator anyway and sure enough a burnt out element.

My conclusion was that as the stator warmed up it opened up a split in the stator.
