Broken Seal

Discussion in 'Bonneville' started by Wayne 69, Aug 12, 2025 at 10:57 AM.

  1. Wayne 69

    Wayne 69 New Member

    Jun 15, 2025
    1
    0
    Sydney Australia

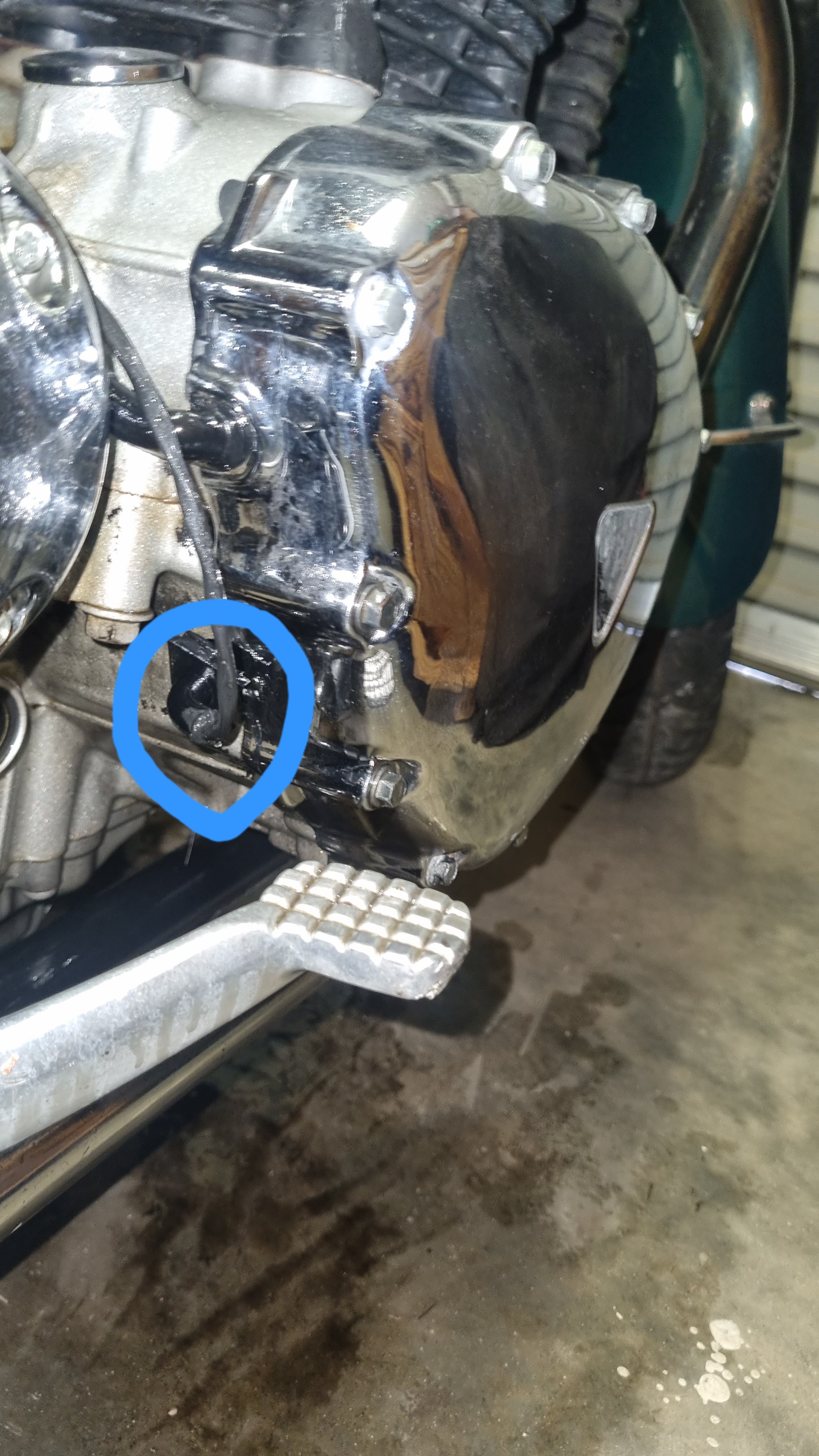

    I have oil leaking from this seal which is broken and fallen out. Can anyone tell me what it is called so that I can order a new one. It seals where wire enters into the alternator cover. 2001 Bonneville 650 20250615_130100.jpg

    • Like Like x 1
  2. joe mc donald

    Subscriber

    Dec 26, 2014
    15,102
    1,000
    slough / burnham
    @Wayne 69 Welcome to the family. I take it you are after a new electrical Gromet to replace. Hopefully one of the wise one will be along soon and for the price of a big thanks they may provide you with a part number. Or try somewhere like Fowlers.

  3. Eldon

    Eldon Elite Member

    Nov 14, 2018
    7,412
    800
    North Yorkshire
    #3 Eldon, Aug 16, 2025 at 8:24 AM
    Last edited: Aug 16, 2025 at 2:29 PM
    Triumph 675 triples also leak from the wire grommet. I'd be surprised if a new grommet would be any better.

    Remove the case and apply a gasket sealant both in the wire holes and around the outside. Don't blather it on but ensure to coat the faces.
    Reassemble.
    Also ensure the engine breather is free to flow and not kinked or trapped anywhere, blow down it to confirm. This grommet maybe acting as a breather otherwise.

    • Useful Useful x 2
    • Agree Agree x 2
    • Creative Creative x 1
  4. Pegscraper

    Pegscraper Elite Member

    Jun 12, 2020
    3,564
    800
    Yorkshire
    Just clean up the grommet and mating surfaces use some decent RTV sealer, not the cheap bathroom stuff.

    • Agree Agree x 2
  5. Eldon

    Eldon Elite Member

    Nov 14, 2018
    7,412
    800
    North Yorkshire
    Creative or true @Markus ?

    I've seen numerous things act as breathers when the intended item was blocked.

    • Agree Agree x 1
  6. Markus

    Markus Crème de la Crème
    Subscriber

    Oct 28, 2020
    4,226
    1,000
    AUSTRIA
    @Eldon:
    I am not sure. But it sounds interesting.

    • Like Like x 1
    • Agree Agree x 1
