Bonneville Ignition Relocation

Discussion in 'Bonneville' started by Rudeboy, May 5, 2017.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Rudeboy

    Rudeboy Senior Member

    May 2, 2017
    394
    113
    Bristol

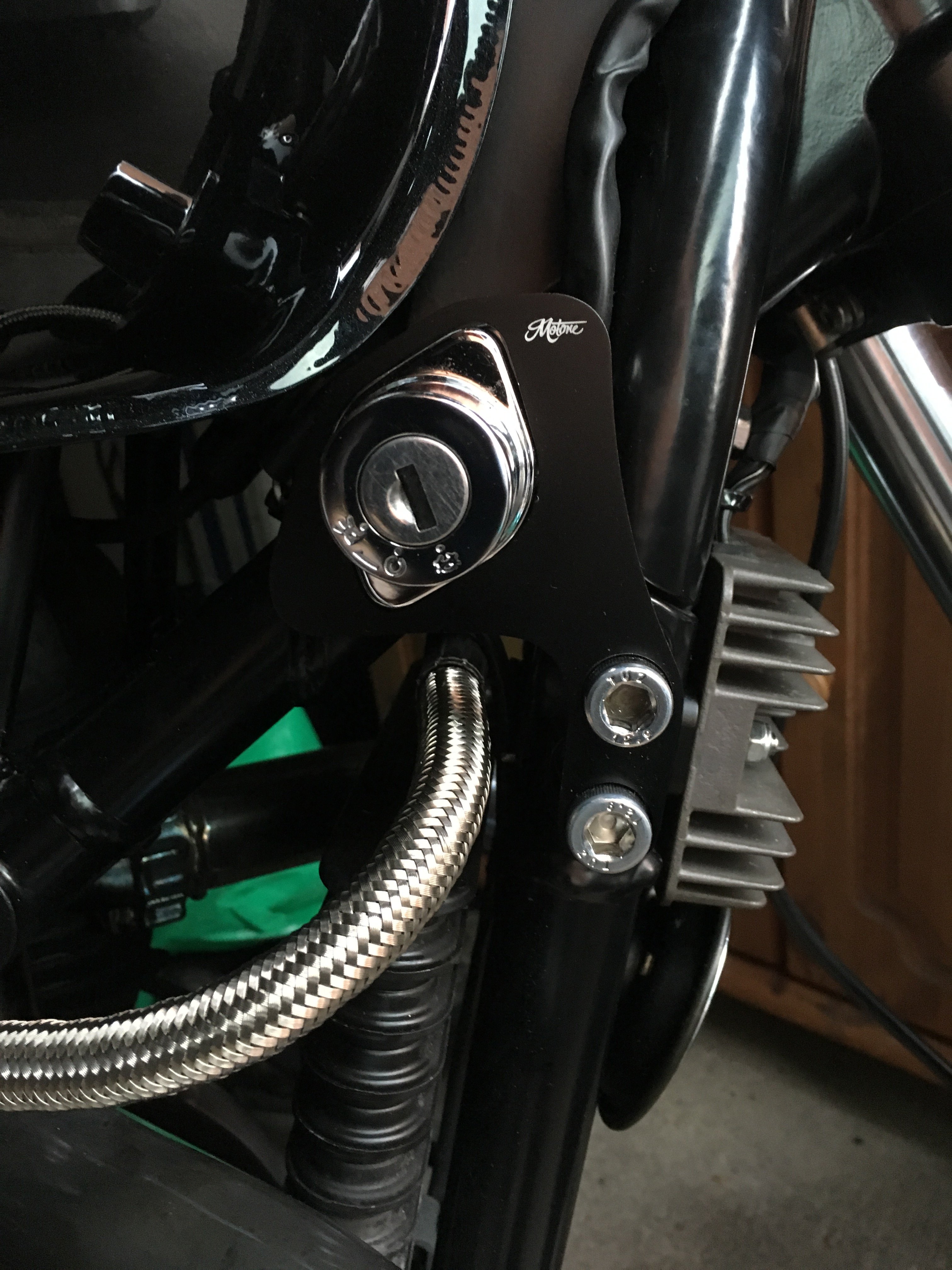

    I did this mod earlier on my 2010 se easy enough to carry out and no cutting into the loom bracket inc all bolts and spacers from Evilbay Motone just thought I'd share this if anybody else fancies swapping the switch from the left of the headlamp


    • Like Like x 4
  2. Scoot65

    Scoot65 Well-Known Member

    Dec 3, 2015
    215
    93
    DURHAM
    Nice one! Delboy's Garage on youtube did a good step by step video


    • Like Like x 3
    • Useful Useful x 1
  3. Rudeboy

    Rudeboy Senior Member

    May 2, 2017
    394
    113
    Bristol
    Excellent step by step video I basically followed this I'm sure this has been done before or posted on the site was so pleased with the outcome thought I'd share

    • Like Like x 1
    • Agree Agree x 1
  4. tcbandituk

    Subscriber

    Apr 8, 2016
    2,330
    1,000
    Reading
    Just curious, what's behind the thinking in swapping it from one side to the other ?

    • Agree Agree x 1
  5. Rich Bryce

    Rich Bryce Dead Eye Dick
    Subscriber

    Sep 18, 2015
    3,034
    1,000
    Bedford
    It improves the aesthetics when relocated and tucked away on the frame. As standard it spoils the lines around the headlamp cluster. At least that's why I did mine.

    • Like Like x 2
    • Agree Agree x 1
  6. MickEng

    MickEng Noble Member

    Sep 29, 2016
    1,831
    450
    West Yorkshire
    I have a bikini fairing which I think sort of disguises the aesthetics of the ignition location.
    I also fitted fork gaiters which 'blends' the rectifier horizontal fins.
    So for me, both fine where they are, I tend to leave well alone.

    • Like Like x 1
    • Agree Agree x 1
  7. steve lovatt

    steve lovatt Something else
    Subscriber

    May 12, 2014
    8,461
    1,000
    Winchester
    Just posted about this on the other thread - when I moved the switch on my old T100 i didn't find it any easier to use and actually thought it looked worse and spoiled the look of the bike more than than the original.
    Surely this would be the best position?
    Bonneville Key Relocation.jpg

    • Like Like x 3
  8. curly

    curly Noble Member

    Jul 3, 2016
    610
    443
    Burton Upon Trent
    I would certainly say so!
    Curly

    • Like Like x 1
    • Agree Agree x 1
  9. swampy61

    swampy61 Well-Known Member

    Mar 29, 2020
    123
    93
    Shropshire
    I was thinking of moving my ignition to the right on my Thruxton, as I find it a pain having to go into neutral to free my left hand up to turn key off when I pull up, and then have to put it back in gear when I park.

    • Agree Agree x 1
  10. swampy61

    swampy61 Well-Known Member

    Mar 29, 2020
    123
    93
    Shropshire
    To be able to stay in gear when I pull up and turn off as I always leave it in gear when I park.

    • Agree Agree x 1
  11. johne

    johne Senior Member

    If I was going to the trouble to move the ignition switch I'd go for the between the clocks position, as per Steve's photo. I can't see any real advantages to swapping sides for the hassle involved in doing so.

    • Like Like x 1
    • Agree Agree x 1
  12. Jadorff

    Jadorff Noble Member

    Apr 14, 2019
    683
    343
    Adelaide Australia
    I move mine its much better especially as I put shorter indercaters on and I had to push the indicator forward to get the key in plus I think it looks better


    • Like Like x 2
  13. almegro

    almegro New Member

    Nov 18, 2017
    14
    3
    hants
    Hello,

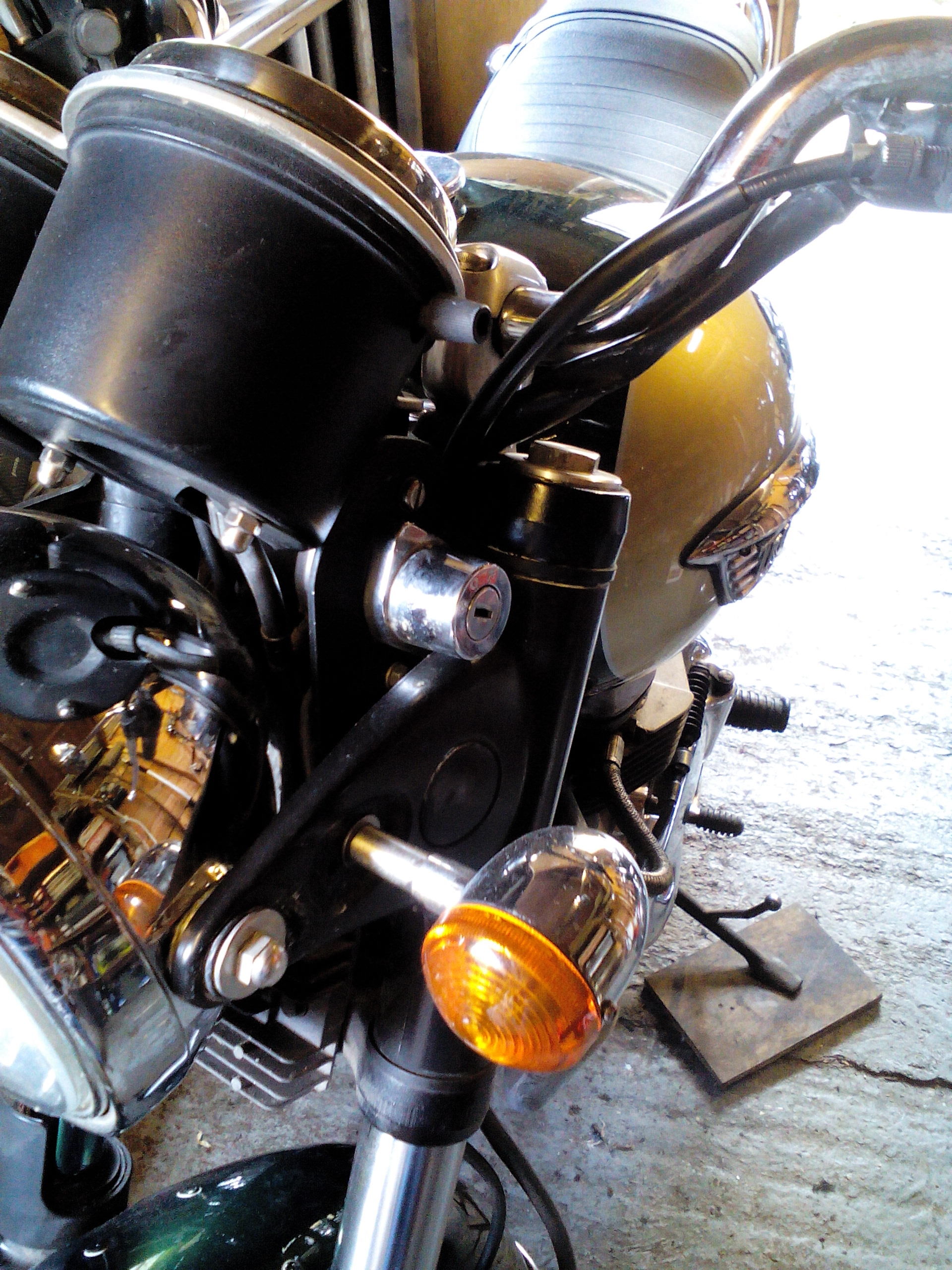

    This is how I moved mine, when I fitted shorter indicators it made it difficult to get the key in the hole so I made up an ally bracket and sprayed it black, then found a blanking grommet for the redundant hole. It is a lot easier to use being slightly higher up. Hopefully have added some photos.



    • Like Like x 1
  14. Jadorff

    Jadorff Noble Member

    Apr 14, 2019
    683
    343
    Adelaide Australia
    The diference is on a 2009 all the lights are there under the gauges u have to buy a complet new insterment braket where as shifting to below the tank is 50cents for a plug and $40 for the ignition braket
