Are These The Correct Relays??

Discussion in 'Speed Triple' started by RokitJon, May 16, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. RokitJon

    RokitJon Active Member

    Nov 11, 2018
    89
    28
    North Florida
    #1 RokitJon, May 16, 2019
    I ordered direct replacement relays from eBay, with metal cap and identical schematic.

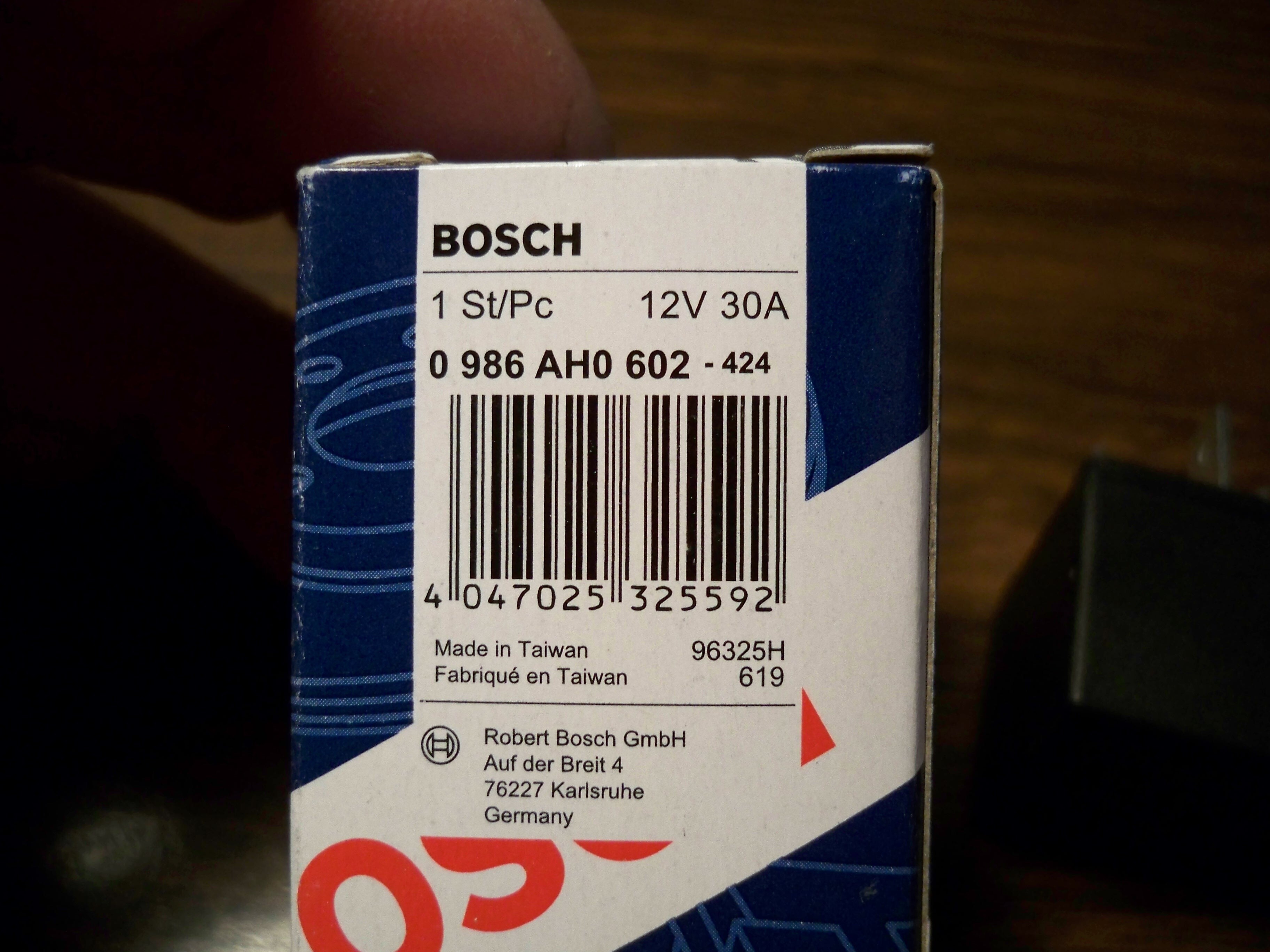

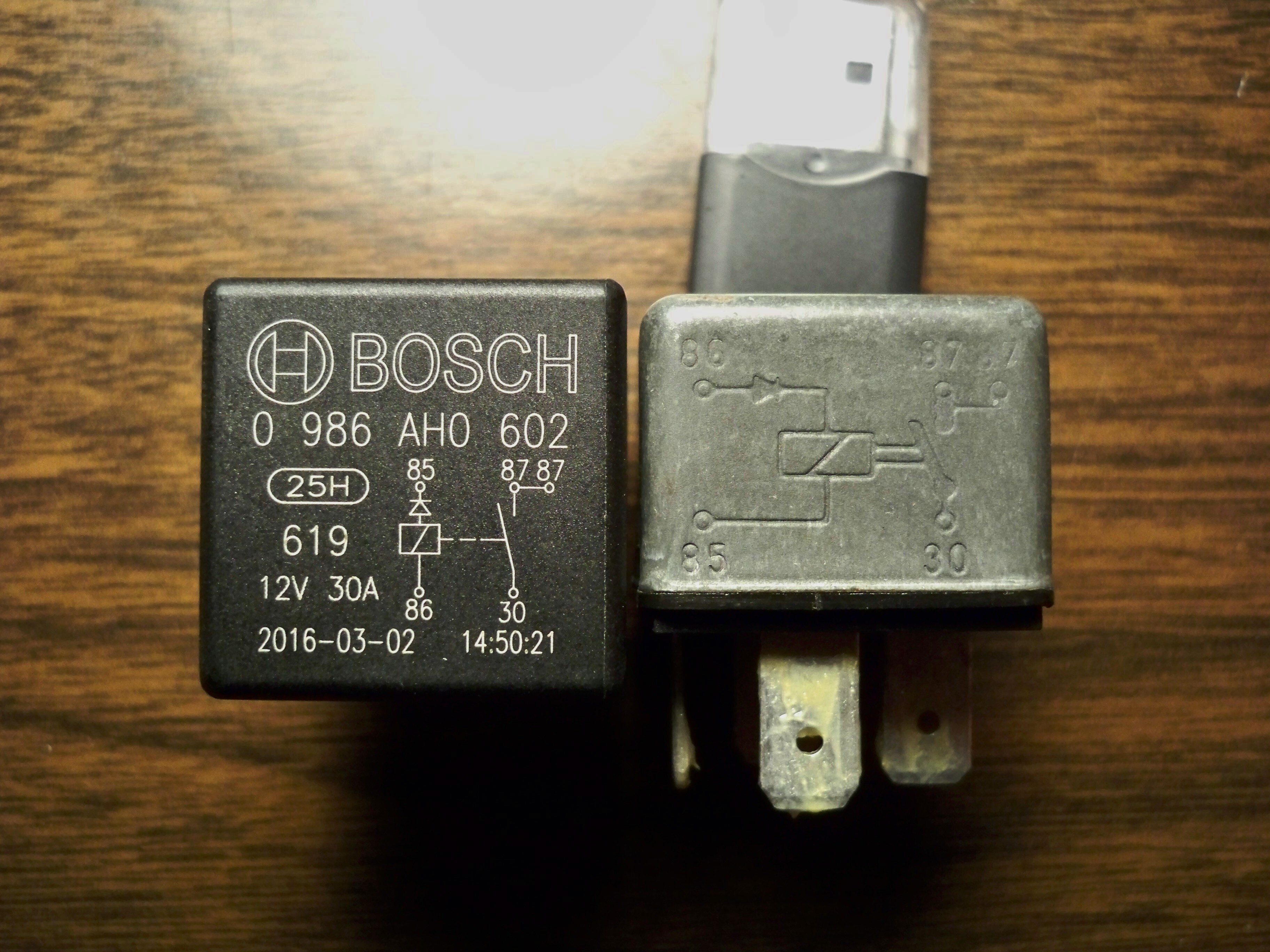

    Was sent these - different part number and the poles on 85 and 86 are reversed from the OEM...but the diode appears to be situated in the proper direction. Are these correct and usable? Tried contacting the seller but no response after 2 days so I need to figure out whether to return them or not..



  2. freck

    freck Elite Member

    May 4, 2017
    1,719
    750
    Preston, Lancs, UK
    #2 freck, May 16, 2019
    Yep, they’re the same configuration. Don’t worry about the diode being on the other side of the coil, it’ll work just the same. The diode is just there to stop reverse voltages when the coil de-energises

    • Like Like x 3
  3. RokitJon

    RokitJon Active Member

    Nov 11, 2018
    89
    28
    North Florida
    #3 RokitJon, May 16, 2019
    Thanks a lot Freck, you've been a help once again!

    • Like Like x 1
  4. freck

    freck Elite Member

    May 4, 2017
    1,719
    750
    Preston, Lancs, UK
    #4 freck, May 17, 2019
    No problem, I try and help where I can, when I’m not being a hindrance ;)

    • Funny Funny x 1
  5. RokitJon

    RokitJon Active Member

    Nov 11, 2018
    89
    28
    North Florida
    #5 RokitJon, May 17, 2019
    We have to do something to get thru those pearly gates!
