96 Adventurer Stalls (engine Dies) After 10 Miles Of Running Fine.

Discussion in 'Newbies Hangout' started by Pat Connor, Jun 7, 2020.

Tags:
Page 1 of 2
  1. Pat Connor

    Pat Connor New Member

    Joined:
    Jun 7, 2020
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    eden prairie, mn
    My 96 Adventurer starts fine and idles fine. I burn some gas every week with a 20 mile ride at highway speeds. After 10 miles or so in normal 70F weather, the engine sputters and dies. I let it cool down and 10 minutes later it starts fine and will do OK for about 5 miles and then engine stalls and dies. Repeat cool down to get home. I have had my gas tank coated inside for rust and used gas stabilizer over the winter, starting it every 2 weeks or so. What gives? Any ideas would help. Thanks.

    #1
    Pat Connor, Jun 7, 2020
    • Useful Useful x 1
  2. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Joined:
    Oct 3, 2018
    Messages:
    7,385
    Likes Received:
    6,335
    Trophy Points:
    1,000
    Location:
    Three Counties
    Howdy Pat, and welcome in :cool::cool:
    Have you tried opening your gas tank when it stalls? If the fuel breather is blocked it will cause a vacuum and cut out ;);)

    #2
    Helmut Visor, Jun 7, 2020
    • Like Like x 1
    • Agree Agree x 1
  3. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Joined:
    Oct 3, 2018
    Messages:
    7,385
    Likes Received:
    6,335
    Trophy Points:
    1,000
    Location:
    Three Counties
    He knows more than me @Pat Connor, would pay far more attention to his diagnosis :p:p

    #3
    Helmut Visor, Jun 7, 2020
    • Like Like x 1
    • Agree Agree x 1
  4. Steve Hill

    Steve Hill Senior Member

    Joined:
    Dec 26, 2019
    Messages:
    456
    Likes Received:
    557
    Trophy Points:
    193
    Location:
    Somerset
    Welcome to the forum Pat

    #4
    Steve Hill, Jun 7, 2020
    • Agree Agree x 1
  5. Wessa

    Wessa Cruising

    Joined:
    Apr 27, 2016
    Messages:
    13,732
    Likes Received:
    11,710
    Trophy Points:
    1,000
    Location:
    North West England
    Hi and welcome....

    #5
    Wessa, Jun 7, 2020
    • Agree Agree x 1
  6. Pat Connor

    Pat Connor New Member

    Joined:
    Jun 7, 2020
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    eden prairie, mn
    thanks to everyone above. now to track down an ignition pick up coil.
    gracias

    #6
    Pat Connor, Jun 7, 2020
    • Like Like x 1
    • Agree Agree x 1
  7. stevethegoolie

    stevethegoolie Elite Member

    Joined:
    Oct 16, 2014
    Messages:
    3,015
    Likes Received:
    2,455
    Trophy Points:
    800
    Location:
    East Riding of Yorkshire
    Classic symptom of crank position sensor failure. It's the cable entering the right side of the crankcase at about the eleven o'clock position.

    #7
    stevethegoolie, Jun 7, 2020
    • Agree Agree x 1
  8. Pat Connor

    Pat Connor New Member

    Joined:
    Jun 7, 2020
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    eden prairie, mn
    Steve the goolie:
    so if it this sensor, it must be heat sensitive.
    if this sensor is the problem, it kills the
    engine if it fails. Right?

    #8
    Pat Connor, Jun 7, 2020
    • Agree Agree x 1
  9. stevethegoolie

    stevethegoolie Elite Member

    Joined:
    Oct 16, 2014
    Messages:
    3,015
    Likes Received:
    2,455
    Trophy Points:
    800
    Location:
    East Riding of Yorkshire
    Yes. Apparently when it gets hot it fails, but comes back to life when it has lost some of the heat. It is a known fault. Not attacked my '95 Trident 900 yet, but give it time ........ !:cold_sweat:

    #9
    stevethegoolie, Jun 7, 2020
    • Agree Agree x 1
  10. Pat Connor

    Pat Connor New Member

    Joined:
    Jun 7, 2020
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    eden prairie, mn
    thanks much. it looks like an important - integral part to running smoothly.

    #10
    Pat Connor, Jun 7, 2020
    • Agree Agree x 1
  11. stevethegoolie

    stevethegoolie Elite Member

    Joined:
    Oct 16, 2014
    Messages:
    3,015
    Likes Received:
    2,455
    Trophy Points:
    800
    Location:
    East Riding of Yorkshire
    Yes ... I suppose it has its uses!!

    #11
    stevethegoolie, Jun 7, 2020
    • Funny Funny x 1
    • Agree Agree x 1
  12. Pat Connor

    Pat Connor New Member

    Joined:
    Jun 7, 2020
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    eden prairie, mn

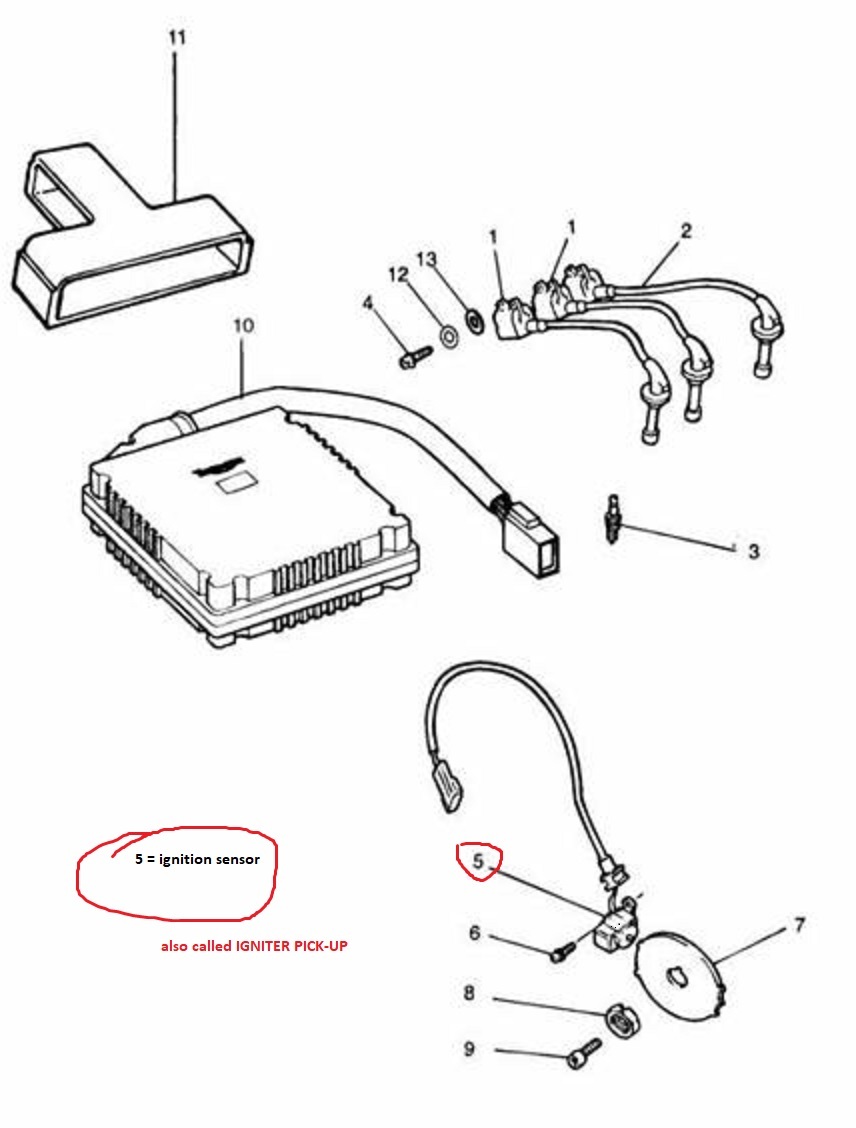

    looking at the official Triumph manual Adventurer wiring circuit diagram, 16.52, 16.53 , number 27 is labeled "IGNITER PICK-UP", which to me looks like the IGNITION SENSOR. I am just trying to make sure of the nomenclature of suspect part prior to ordering. Replacing the Ignition Coil won't help me if the problem is the Ignition sensor. thanks for advice

    IGNITION sensor aka igniter pickup.jpg

    #12
    Pat Connor, Jun 7, 2020
    • Like Like x 2
  13. joe mc donald

    joe mc donald Joe
    Subscriber

    Joined:
    Dec 26, 2014
    Messages:
    9,273
    Likes Received:
    14,709
    Trophy Points:
    1,000
    Location:
    slough / burnham
    Pat Connor
    Welcome to the family. Check your plugs now and see what colour they are. And the air vent to the tank seems a good stab at it. Also you mentioned you had the tank treated just make sure they haven't partially blocked the fuel out let and the bike is not getting enough fuel. Its a tricky one.
    Regards
    Joe.

    #13
    joe mc donald, Jun 7, 2020
    • Like Like x 1
  14. Thripster

    Thripster Elite Member

    Joined:
    Feb 21, 2020
    Messages:
    1,238
    Likes Received:
    1,061
    Trophy Points:
    750
    Location:
    Northampton, UK
    Welcome Beanage

    #14
    Thripster, Jun 8, 2020
  15. Vulpes

    Vulpes Confused Member

    Joined:
    Mar 14, 2018
    Messages:
    9,966
    Likes Received:
    18,478
    Trophy Points:
    1,000
    Location:
    Netherlands
    Hi and welcome.

    #15
    Vulpes, Jun 8, 2020
  16. steve lovatt

    steve lovatt Something else

    Joined:
    May 12, 2014
    Messages:
    9,929
    Likes Received:
    9,228
    Trophy Points:
    1,000
    Location:
    North Yorkshire
    Welcome to the forum :cool:

    #16
    steve lovatt, Jun 8, 2020
  17. David Cooper

    David Cooper Triumph Rocketeer.
    Subscriber

    Joined:
    Jun 23, 2018
    Messages:
    15,034
    Likes Received:
    26,675
    Trophy Points:
    1,000
    Location:
    The Land of the Prince Bishops.
    Hello and welcome to the forum Pat.


    #17
    David Cooper, Jun 8, 2020
  18. Easy Tiger

    Easy Tiger Elite Member

    Joined:
    Jan 2, 2020
    Messages:
    1,662
    Likes Received:
    1,585
    Trophy Points:
    800
    Location:
    Wirral England
    Welcome to the forum mate. Good luck with your diagnosis.

    #18
    Easy Tiger, Jun 8, 2020
  19. Tiglet

    Tiglet Vintage Member

    Joined:
    Mar 28, 2016
    Messages:
    7,472
    Likes Received:
    4,434
    Trophy Points:
    1,000
    Location:
    Cheshire
    Hello Pat and welcome to the forum :)

    #19
    Tiglet, Jun 8, 2020
  20. Pat Connor

    Pat Connor New Member

    Joined:
    Jun 7, 2020
    Messages:
    12
    Likes Received:
    4
    Trophy Points:
    3
    Location:
    eden prairie, mn
    thanks for advice.
    I am going to try and replace this ignition sensor myself.
    ...If I don't tear or booger up the gasket...
    I should be able to do it without any special tools.

    #20
    Pat Connor, Jun 8, 2020
