2019 Rs Wiring For Accessories

Discussion in 'Speed Triple' started by Simon P, Mar 9, 2019.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Simon P

    Simon P Well-Known Member

    Dec 19, 2018
    34
    68
    New Zealand
    On my last bike there was wiring on the loom to power accessories like radar, where power automatically cuts when you shut off the ignition. Is there something like this on the RS or will I need to splice into something else? If the latter, any recommendations? Thanks

  2. Arno triple

    Arno triple Senior Member

    Aug 26, 2018
    615
    243
    Netherlands
    Yes there is, underneath the seat cover there is a plug available. (Right Hand side) My dealer installed my sat nav to it.

    • Like Like x 1
  3. Simon P

    Simon P Well-Known Member

    Dec 19, 2018
    34
    68
    New Zealand
    Excellent, thanks

  4. mappster

    mappster Member

    Jan 24, 2017
    60
    18
    North Wales
    Probably a silly question but... by under seat cover do you mean remove the actual seat cover? What will I be looking for? This would be great for me as I need to connect my phone to use as a Sat Nav for when I go to France in May.

  5. Sideburn

    Sideburn Well-Known Member

    Nov 27, 2018
    134
    93
    Colorado
    Can you send a pic?

  6. Arno triple

    Arno triple Senior Member

    Aug 26, 2018
    615
    243
    Netherlands

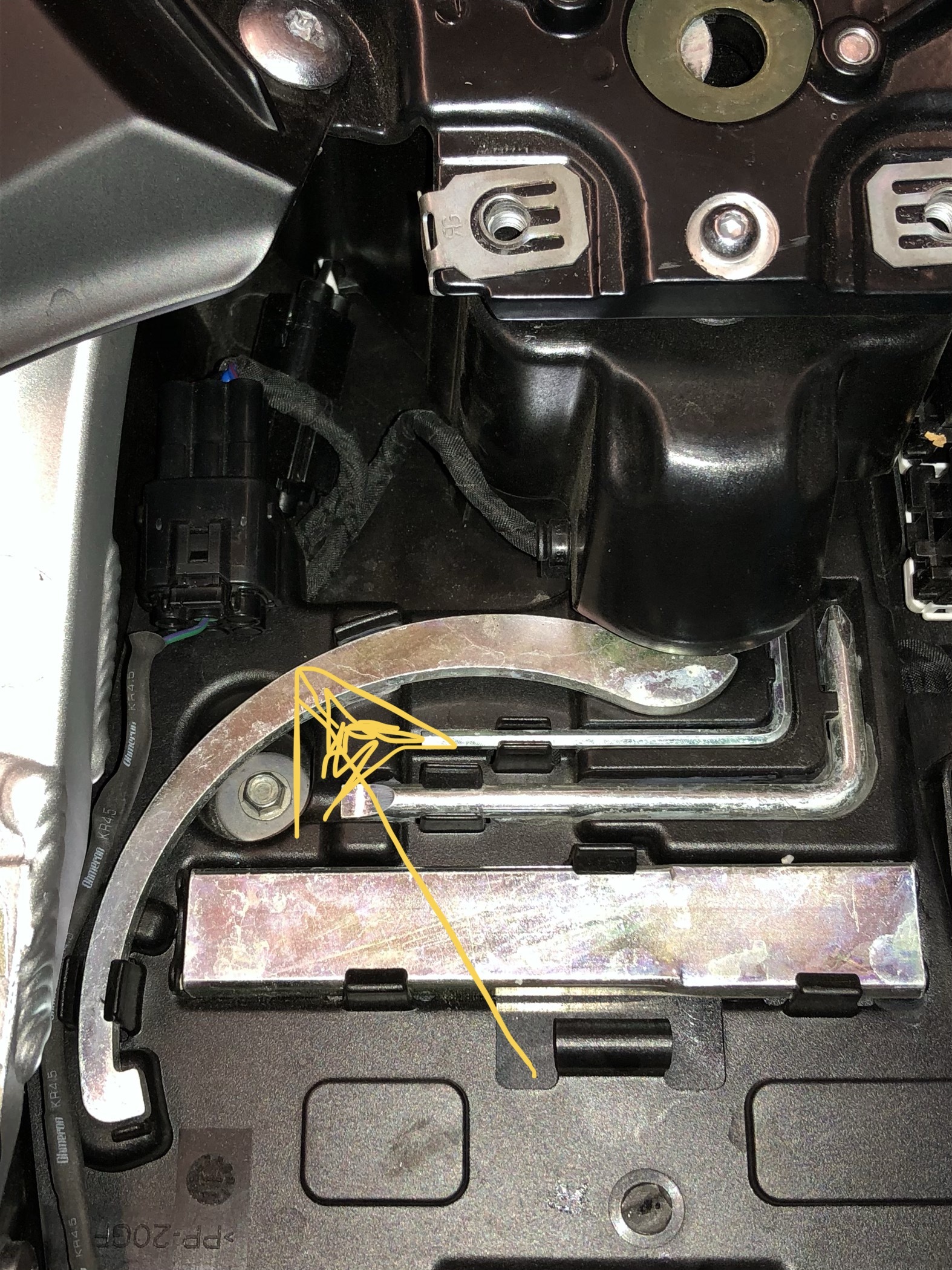

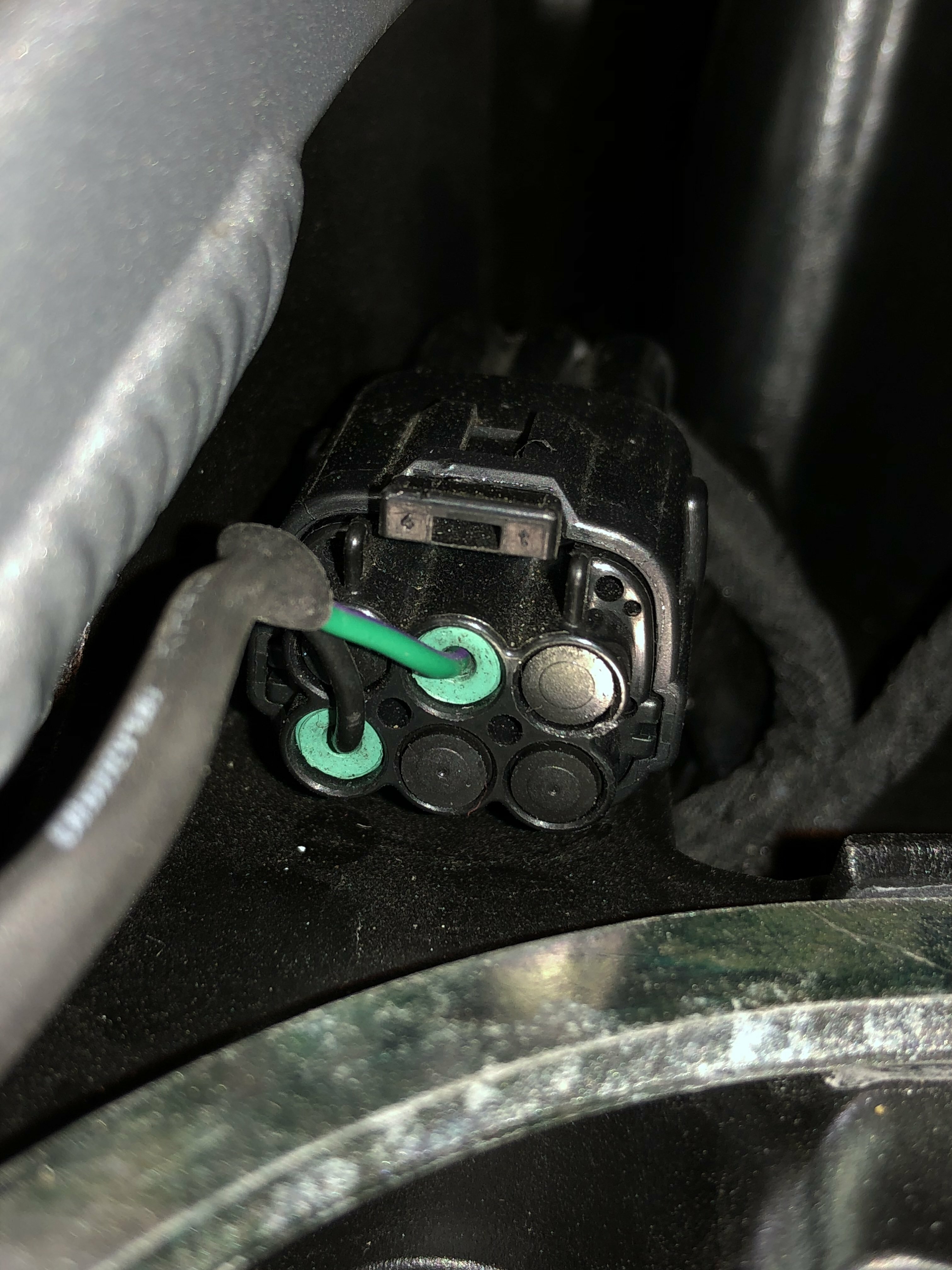

    Right, obviously I’m mistaking.the connector is under neath the DRIVER seat. So took this off and made a couple pictures.
    Don’t know if connector is standard present, otherwise your dealer or internet may be of use.



  7. mappster

    mappster Member

    Jan 24, 2017
    60
    18
    North Wales

    Thanks for the pic. I will have a look at mine this week

    • Like Like x 1
  8. Arno triple

    Arno triple Senior Member

    Aug 26, 2018
    615
    243
    Netherlands
    Found it?

    • Like Like x 1
  9. Simon P

    Simon P Well-Known Member

    Dec 19, 2018
    34
    68
    New Zealand
    Yes thanks, wondering if the wires need some form of connector to fit into that socket, or if they just push in. I’m no electrician!

  10. Arno triple

    Arno triple Senior Member

    Aug 26, 2018
    615
    243
    Netherlands
    I think they need a connector, since my dealer switched pos en neg by mistake
    and could switch them in the connector. Might need to visit your dealer to sort this out.

  11. Simon P

    Simon P Well-Known Member

    Dec 19, 2018
    34
    68
    New Zealand

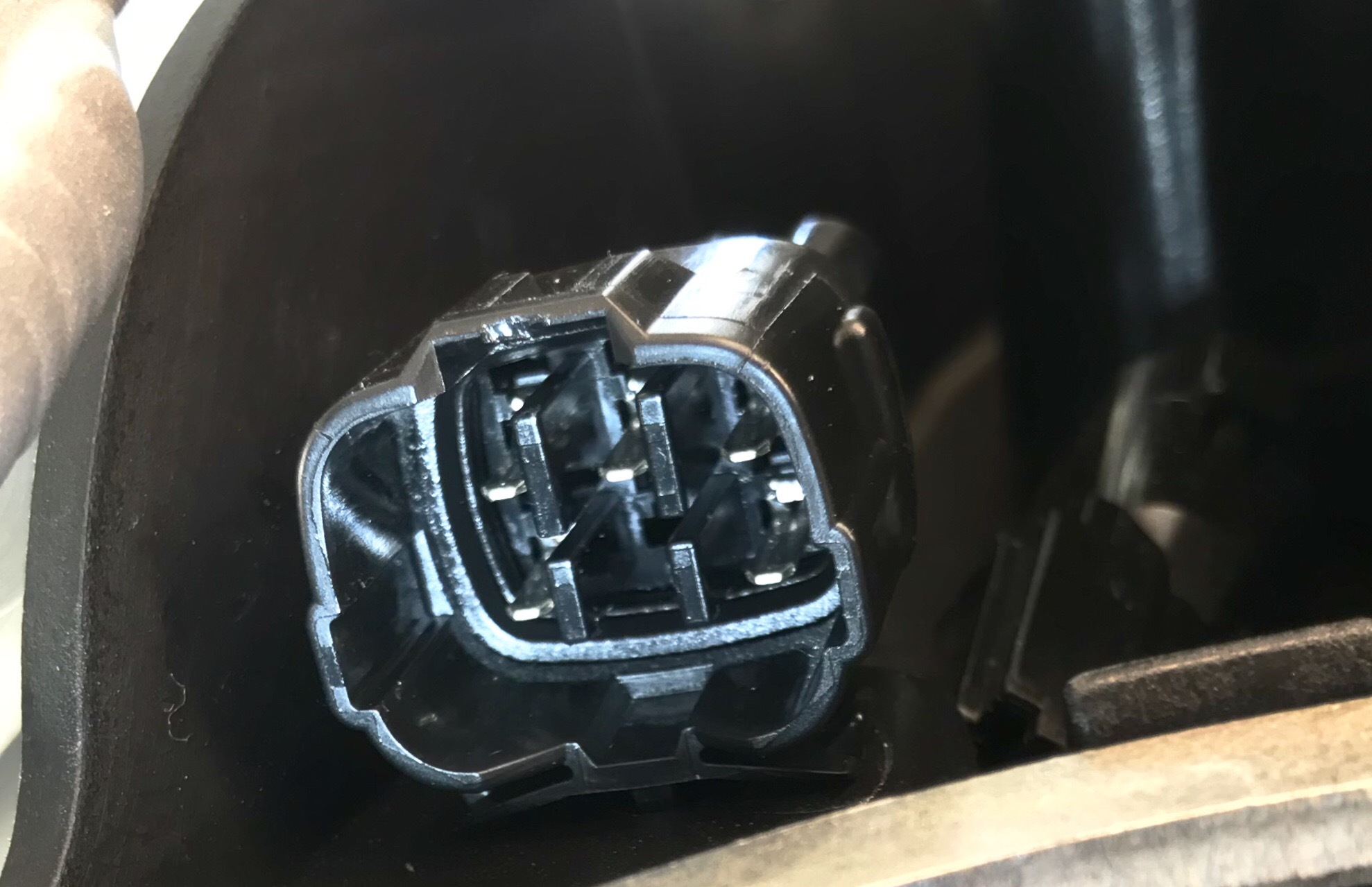

    So under this connector there are 5 tiny spade connectors; if you take the cover plug off, pull out the rubber bungs, you can wire to these with 3mm female spade connectors. Got the volt meter out today, the bottom left connector is live and middle connector on top is neutral, power switches off with ignition. Bit of soldering and heat shrink tube and my radar is fitted and goes on and off with ignition. Job done!





    • Like Like x 3
  12. Eldon

    Eldon Elite Member

    Nov 14, 2018
    4,063
    800
    North Yorkshire
    What do you mean by radar?

    Did you see in the news recently a woman had a jamming device. A speed camera tried to take four shots and they were repeatedly blocked. She got taken to court for perverting the course of justice and ended up with £2k court costs, points, blah blah blah.
    An expensive day out for her.

  13. Simon P

    Simon P Well-Known Member

    Dec 19, 2018
    34
    68
    New Zealand
    Detector, not illegal in NZ (yet)

    • Like Like x 2
  14. Icarus

    Icarus Member

    Sep 11, 2017
    18
    18
    Salisbury
    Many thanks for the info Arno...wired mine up this evening....In case anyone is interested, the connectors are easily available (electrodart on e-bay) and are made by Sumitomo as with many Triumph connectors...took some detective work to find this out!

    • Like Like x 3
    • Useful Useful x 1
  15. David_RS

    David_RS Well-Known Member

    May 7, 2019
    69
    68
    Singapore
    I just wanted to thank Graham at ElectroDart for my (very reasonably priced) connectors. I now have a very neat plug in for a switched power source without clipping any cables. Nice.

    If anyone wants some connectors they are available at https://www.ebay.co.uk/str/electrodartconnectors

    Cheers, David.
