I'm never quite sure where I should post stuff like this. Just received a recall notice for my 2019 Street Scrambler: "Your motorcycle could have misrouted harness wiring that may become damaged by the lower lug on main frame headstock when the handlebars are rotated, resulting in an engine stall, which increases the risk of a crash." https://www.triumphmotorcycles.co.uk/recall-search
I got one of these for my new Street Twin a couple of weeks ago. Still waiting for my dealer to receive the mod kit. Have had a look, though, and I can't really see what all the fuss is about. I'll just keep an eye on it while I wait for the fix. It's not going to turn into a sudden catastrophic failure from what I can see.
Yep got one of those for my 6 month old SS. Gives me an excuse to go to Fowlers and look at stuff and eat bad things.
Got mine today also. My friend from Germany has his ages ago. The Germans thrive on efficiency. Glad Fat 999 cant see what the fuss is about, as I am planning to use mine tomorrow.
Same if not similar recall to gen 1 Streets, my loom was changed entirely after recall as abrasion damaged witing
Had my letter. Called the dealer and booked in. Not a big issue, a re route of the wires to give more play on full fork turn.
Are you sure they need parts? I thought it was a re-routing of the harness to give a bit more play when you turn full lock to one side with the forks ?
Are you sure they need parts? I thought it was a re-routing of the harness to give a bit more play when you turn full lock to one side with the forks ?

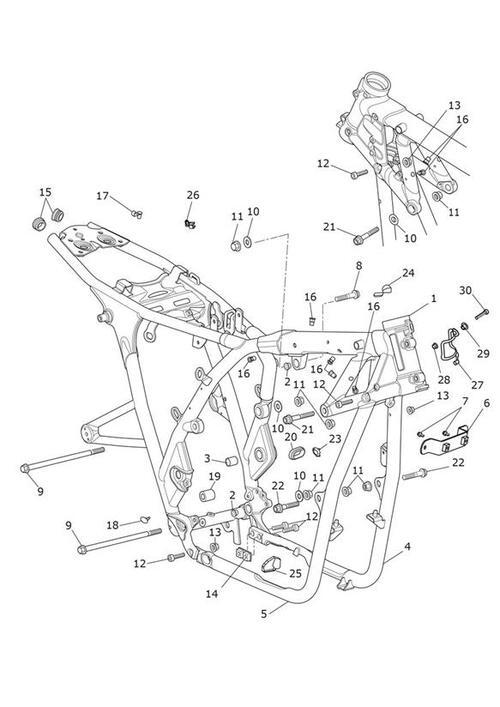

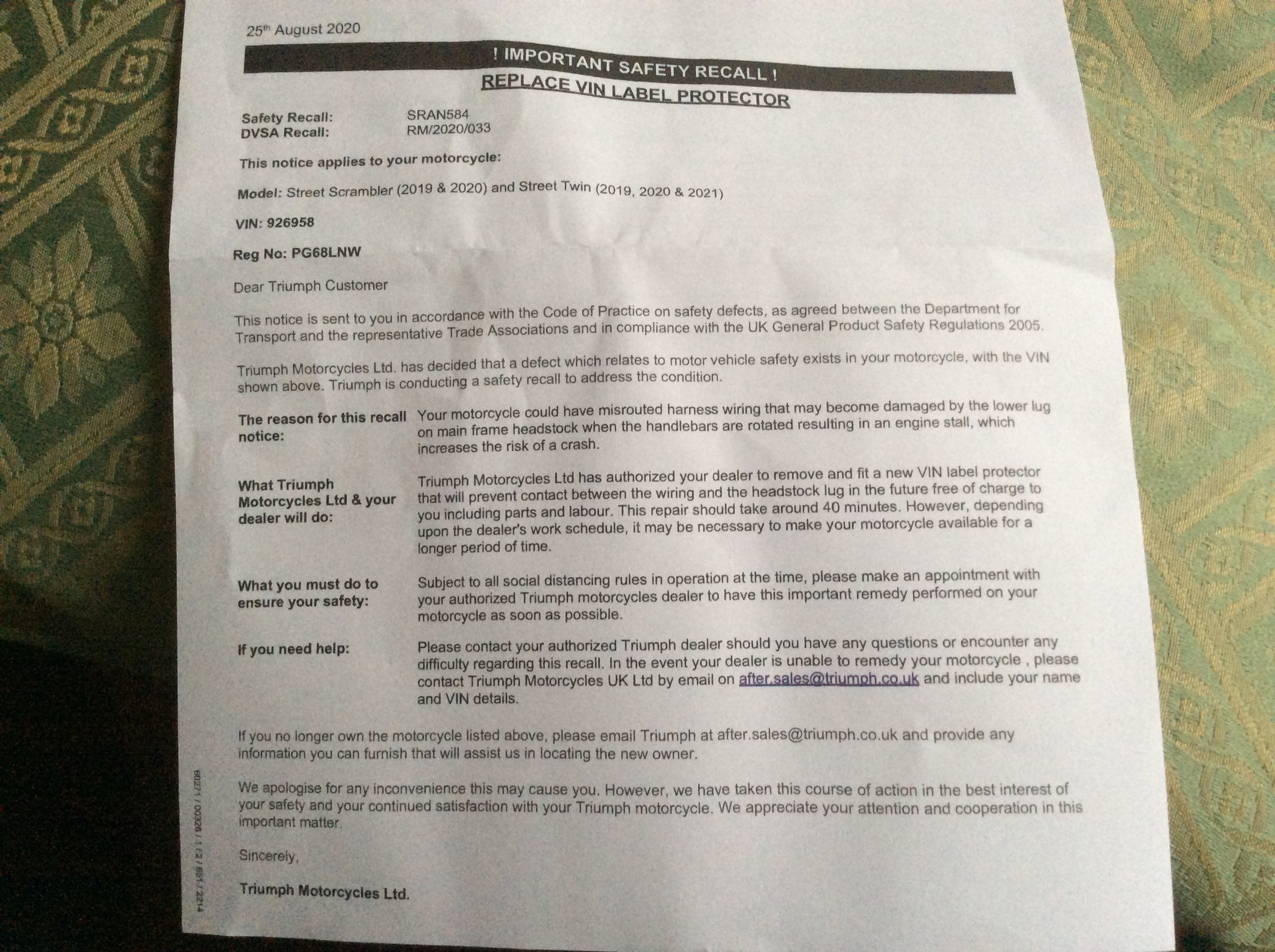

The letter says that they will "fit a new VIN label protector that will prevent contact between the wiring and the headstock lug". I assume that it's no. 27 - T2071077 : Moulding, Edge, Vin Label - in this diagram >> https://www.worldoftriumph.com/collections/100094605-1-2?type=street-scrambler-from-vin-914448 Apparently the job takes 40 minutes, although I'm not sure how they make it last that long.
I got an email today saying my 19 plate Street Scrambler is subject to the recall for the wiring at the headstock area. This is the second wiring issue thats required a recall and my dealer says it’s because the harness is just too short. This recall is where the harness is rubbing on a different point and they are fitting a plastic shim to protect it whereas the first required it being re routed a bit higher up. Think it’s a bit poor where designers can’t get something as basic as the correct length for a wiring loom on a motorbike right first time... let alone second time ... but at least it’s booked in next Weds so fingers crossed will be sorted.
As suspected, they replace part no. 27 in that diagram. The new part bolts to the lug above the VIN plate and protects the wiring harness by covering the lug below the VIN plate.
This is the plastic bit fitted for the recall thats just been done on my bike ... can’t really see what it’s shielding as the wiring seems a way away from it ... the brackets seen attached to the forks in pic are for a windscreen
