Anyone know the size of the bore in the Brembo MC on a 2016 Speed Triple R. There is a No. "14" cast on the body so I assume 14mm diameter but that seems very small. I was expecting 16mm or 19mm dia. Anyone have the correct data in the specification section of a maintenance manual? I cant seem to find a workshop manual for the bike or the answer in a Google search. Separate question. If anyone does know where there is a workshop manual for the 2016 Speed Triple R please let me know. Thanks

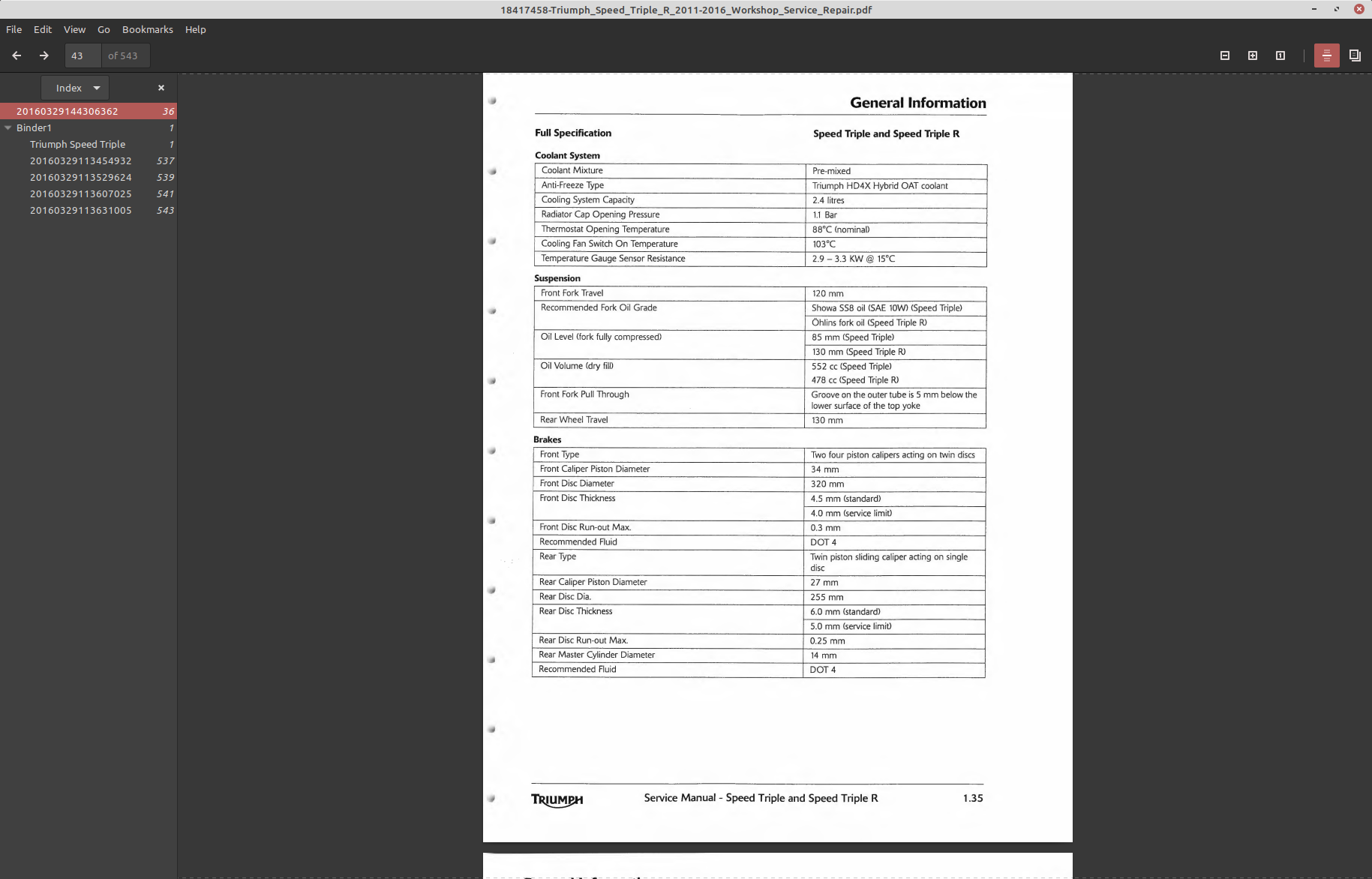

It looks as though it is actually 14mm. If it's the same as the rear. Weirdly there's no spec for the front, only the rear MC. I've been right through the manual and there are zero other indications as to it's size.
hi. fairly sure its 19mm if it has brembo m4 calipers. 16mm is normally on m50 calipers as they have smaller pistons in them there should be an etched number near the brake line
I was looking to upgrade to the RS MCS Master. The RS is fitted with M4 & has a 16mm bore master with the variable ratio lever. But not sure if it will be of any great effect. Equally fitted a Brembo RCS master to my ‘10 Blade & wow what a lovely lever feel.
