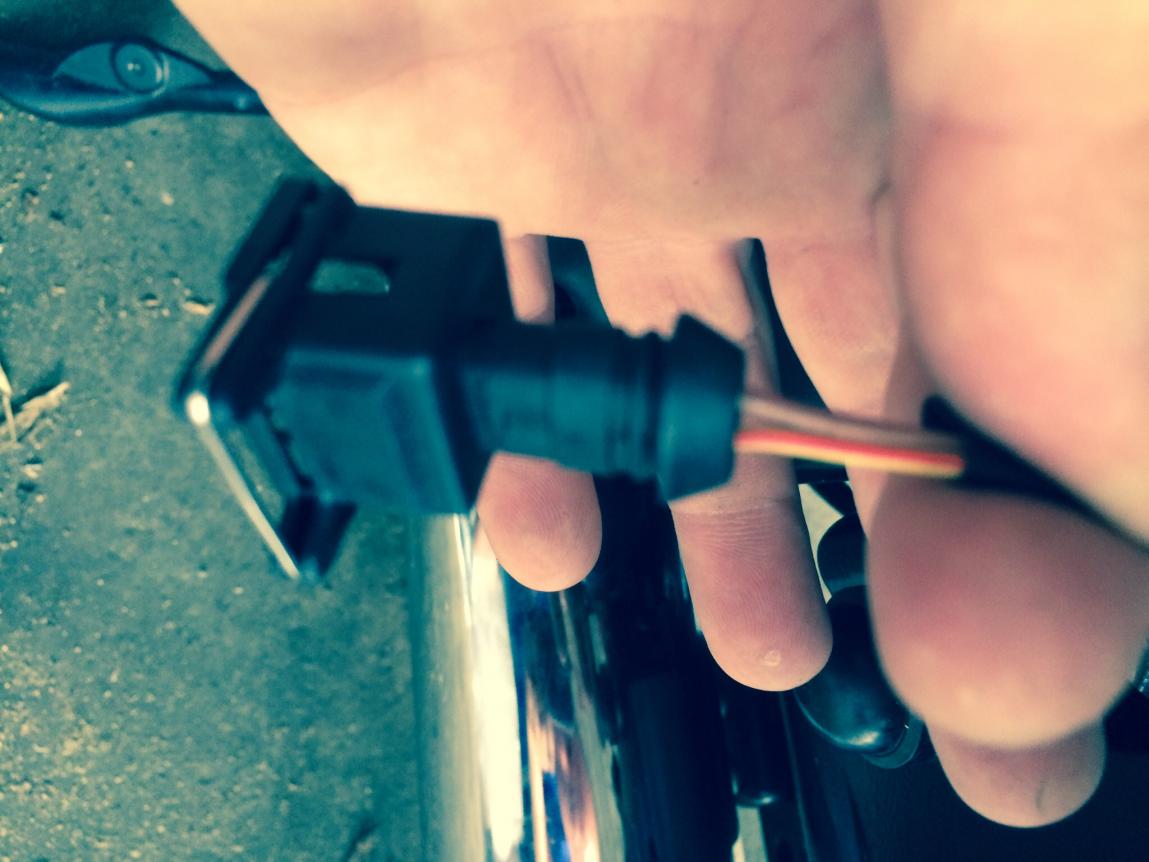

Hi there can anyone advise me as I changed the airbox to kn filters on my triumph speedmaster 2013 and now won't turn over . Have checked everything and have this plug from the wiring harness and have searched everywhere and can't find where it goes
Air temperature sensor?? Okay that was a guess. Right have a look at this, as it is the parts catalouge for your bike and you might be able to figure out where everything is meant to go. http://www.worldoftriumph.com/triumph_motorcycle_parts_catalogue.php?model_id=233222 I also had a quick look on E Bay but could not find a manual that covered your bike, which is a bit of a pain. Cheers Steve
Was it situated somewhere hanging down/tied up between the carbs & the battery area or underneath the fuel tank? If so, it goes nowhere, I have a spare plug just like that on my America & i'm pretty sure it's something to do with California emissions only & connects to the purge valve for the fuel emissions canister. The purge valve & emissions canister is only fitted to bikes destined for the California market so the wiring harness is redundant & is either tied up out the way or just left hanging/tucked in somewhere on the loom on non California models. Hope this helps!

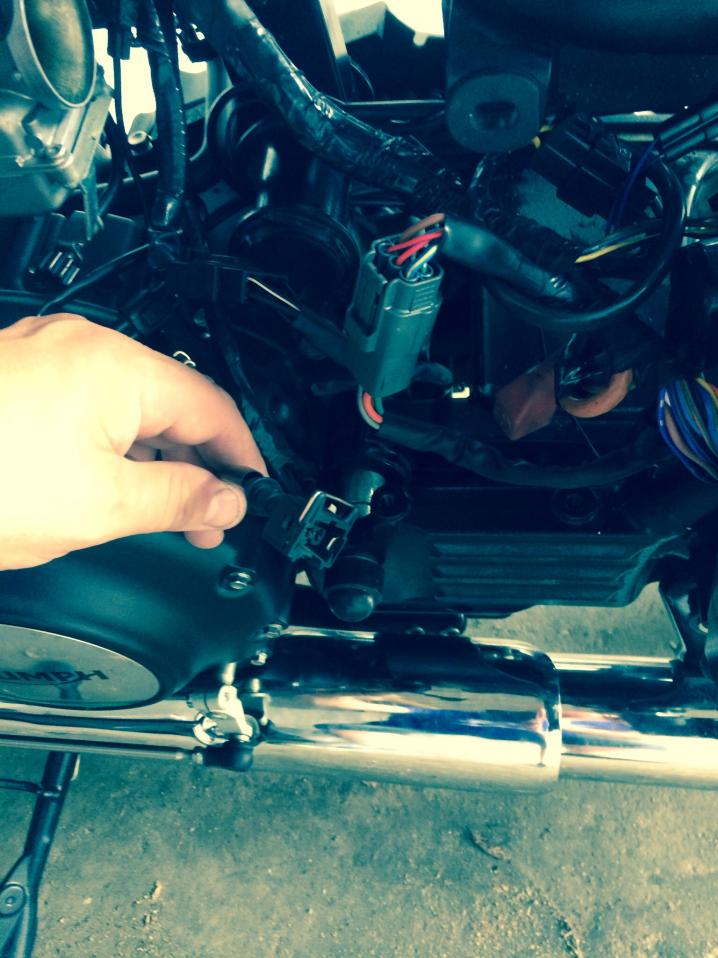

Yes it's behind the battery and can't find anywhere for it to go , so that could be right . Now am really puzzled as to why the bike won't turn over !!
Is it totally dead? Kill switch Or turning over slowly/clicking? Battery voltage low or lose battery connection
probably talkin rubbish but have you maybe disconnected a wire accidentally, clutch switch, sidestand switch. Check fuses, you may have blown one accidentally too. Dont worry if you have hit the kill switch,I bet most of us have done it once at least. Did you disconnect the battery to do the job?? have you reconnected properly and securely??
Thanks everyone for your help went through everything again tonight and found a fault with the tilt sensor unplugged it and the bike runs fine . Must have knocked it or something doh !! New sensor ordered . Thanks again for all your help folks .
Glad you got it sorted :upyeah: Stuff like that is the worst thing to find and usually takes forever to fix. Cheers Steve
Hi, I am having the same problem. I have the same plug with nowhere to plug it in. Did you ever find out what it is for? Also, how did you find out your tilt sensor went bad? Where is it, do you have a photo of it?
This thread is from 2014 Doubt you’ll get an answer from anyone If you read the full thread someone suggested it was for the California market
