2013 Speed Triple Clutch Nut Issue

Discussion in 'Technical Help' started by brodes, Oct 13, 2021 at 4:14 PM.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. brodes

    brodes New Member

    Wednesday
    6
    3
    U.S.
    Hey everyone! I'm new to the world of Triumph and just picked up a 13 Speed Triple. About a week into ownership the clutch went out and upon inspection the clutch basket nut had become completely loose. Is it common for this to happen on Triumphs?

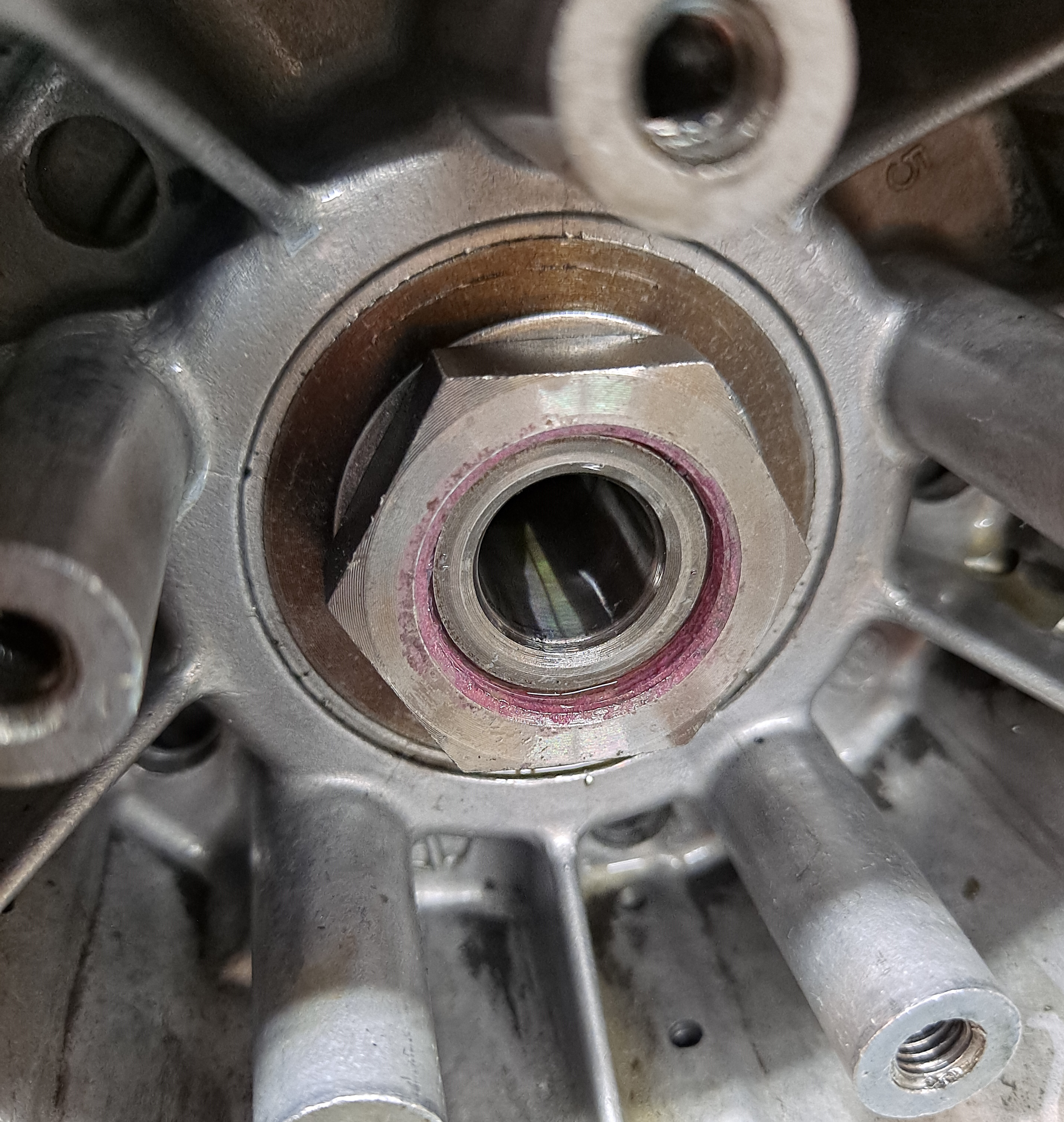

    I ordered a new Triumph clutch basket nut and washer but when I torqued it down to spec there are still open threads left on the nut as you can see with the pinkish-red loctite exposed. This doesn't seem right to me and I don't want to put the bike back together if it's not. Not sure if the outer drum behind the basket isn't seated all the way but it felt like it was. Any help would be greatly appreciated.

    View attachment 20211012_194937.jpg

    View attachment 20211012_195006.jpg

    • Agree Agree x 1
  2. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,174
    1,000
    Barnsley
    #2 Yorkshireman, Oct 13, 2021 at 5:26 PM
    Last edited: Oct 13, 2021 at 5:32 PM
    That doesn’t look right. There is usually a thin washer behind the clutch nut that you bend over onto one side of the nut to hold it in place. Also there is usually a few threads showing on the shaft so I’d say the clutch has been assembled incorrectly. Have a look at a schematic diagram on world of triumph parts, select your bike from the vin number and see if your parts are the same, in the same order.

    • Agree Agree x 3
  3. Ducatitotriumph

    Ducatitotriumph Crème de la Crème
    Subscriber

    Apr 25, 2019
    1,774
    1,000
    Rothwell
    That really doesn’t look like i'd expect it to look.
    I've never seen inside but i'd not be entirely happy at that tbh

    • Agree Agree x 1
  4. Ducatitotriumph

    Ducatitotriumph Crème de la Crème
    Subscriber

    Apr 25, 2019
    1,774
    1,000
    Rothwell

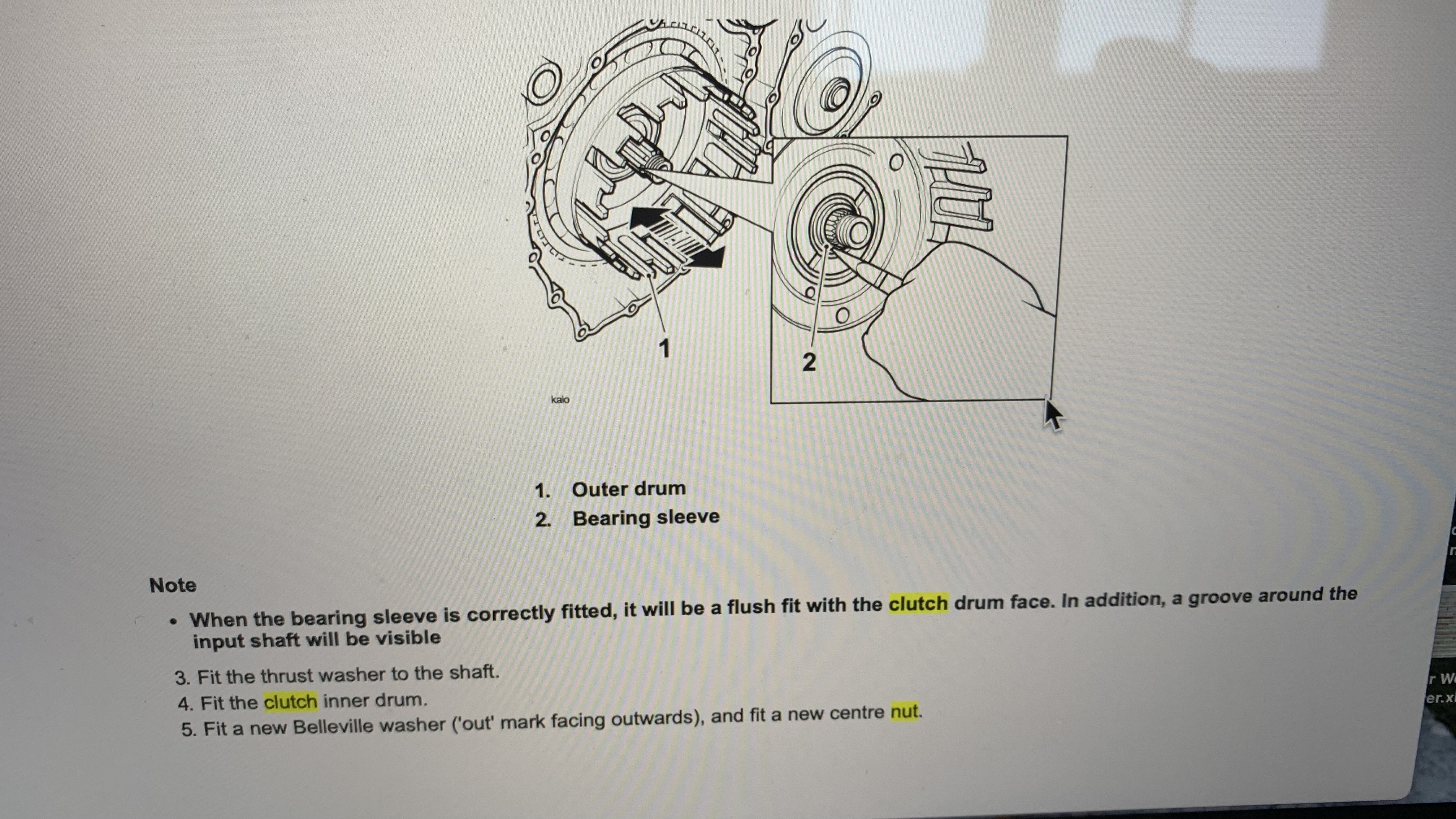

    All I could see in the le manual…



    • Like Like x 1
  5. Ducatitotriumph

    Ducatitotriumph Crème de la Crème
    Subscriber

    Apr 25, 2019
    1,774
    1,000
    Rothwell
    That washer behind the nut looks like it is the type used on the back wheel?
    The conical one?

    • Useful Useful x 1
  6. Ducatitotriumph

    Ducatitotriumph Crème de la Crème
    Subscriber

    Apr 25, 2019
    1,774
    1,000
    Rothwell
    I have posted the service man for free on this forum if you search for it.
    Free download etc...

    • Agree Agree x 1
  7. brodes

    brodes New Member

    Wednesday
    6
    3
    U.S.
    #7 brodes, Oct 13, 2021 at 5:39 PM
    Last edited: Oct 13, 2021 at 5:44 PM
    I bought that washer as well which is behind the nut. Parts are accurate looking at the diagram. Someone prior to my ownership messed with the clutch at one point because the cover was sealed up with silicone as opposed to an actual gasket. Not sure if they didn't install something correctly or not with the outer drum or the drum moved out of position when the nut came loose. But yeah, I expected the nut to be on more threads of the shaft which is why I didn't put the rest of it back together.

    • Agree Agree x 2
  8. brodes

    brodes New Member

    Wednesday
    6
    3
    U.S.
    It has a concave shape to it with the word "out" stamped into it to ensure it's installed in the correct direction. It's shaped similarly to the judder spring

  9. TRIPLE X

    TRIPLE X New Member

    Sep 1, 2021
    7
    3
    Downham Market, Norfolk
    The silicone is a good sign that a bodger has been at work trying to skimp on the price of a proper gasket. Definitely something is not right and needs a complete clutch strip to investigate further.

    • Agree Agree x 3
  10. brodes

    brodes New Member

    Wednesday
    6
    3
    U.S.
    That's what my line of thinking is. If I had to guess, they either forgot to torque it down or didn't torque it to the correct spec which caused it to come loose. It was something I completely overlooked when I bought it which is my fault.

    • Agree Agree x 1
  11. brodes

    brodes New Member

    Wednesday
    6
    3
    U.S.

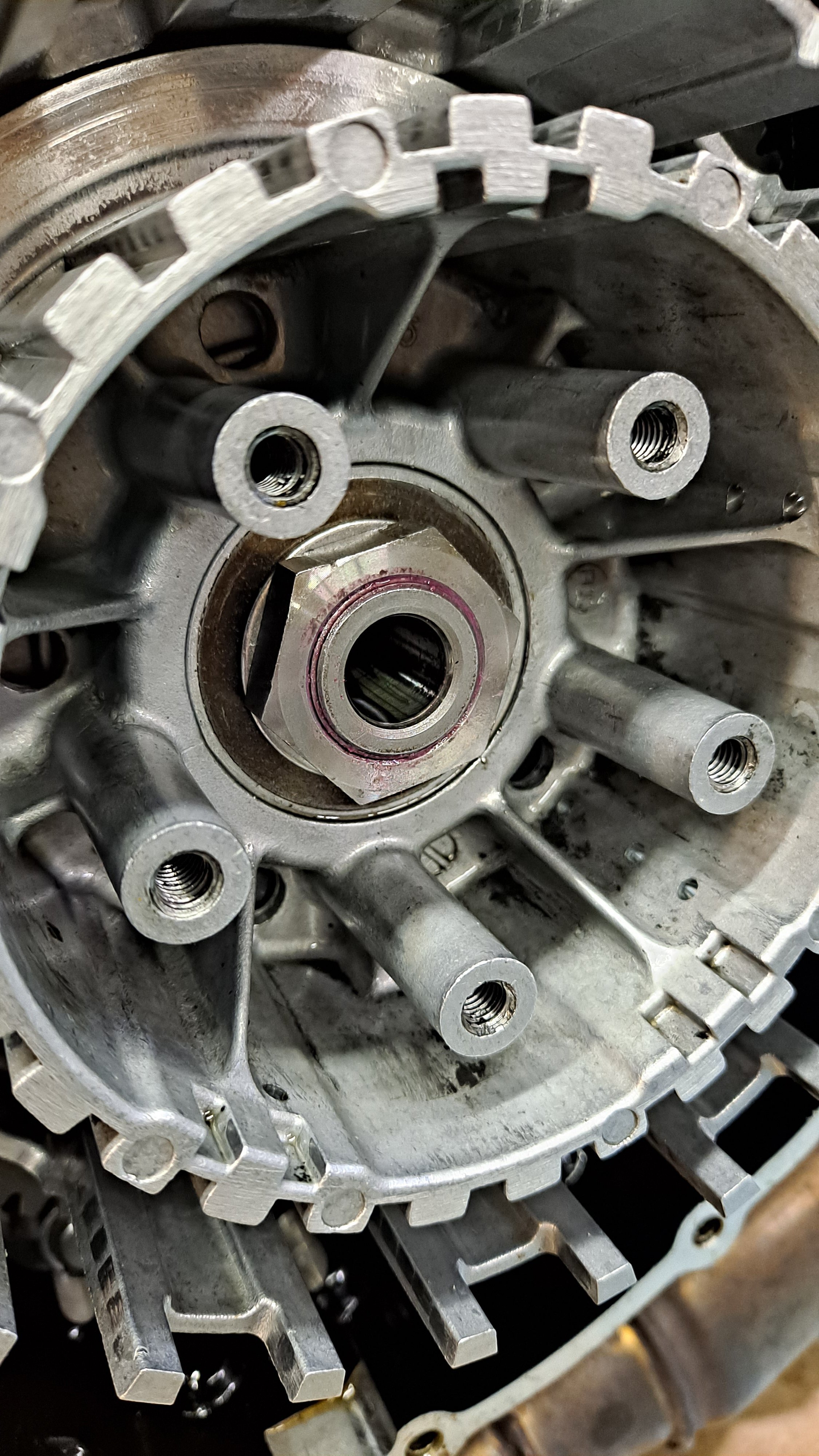

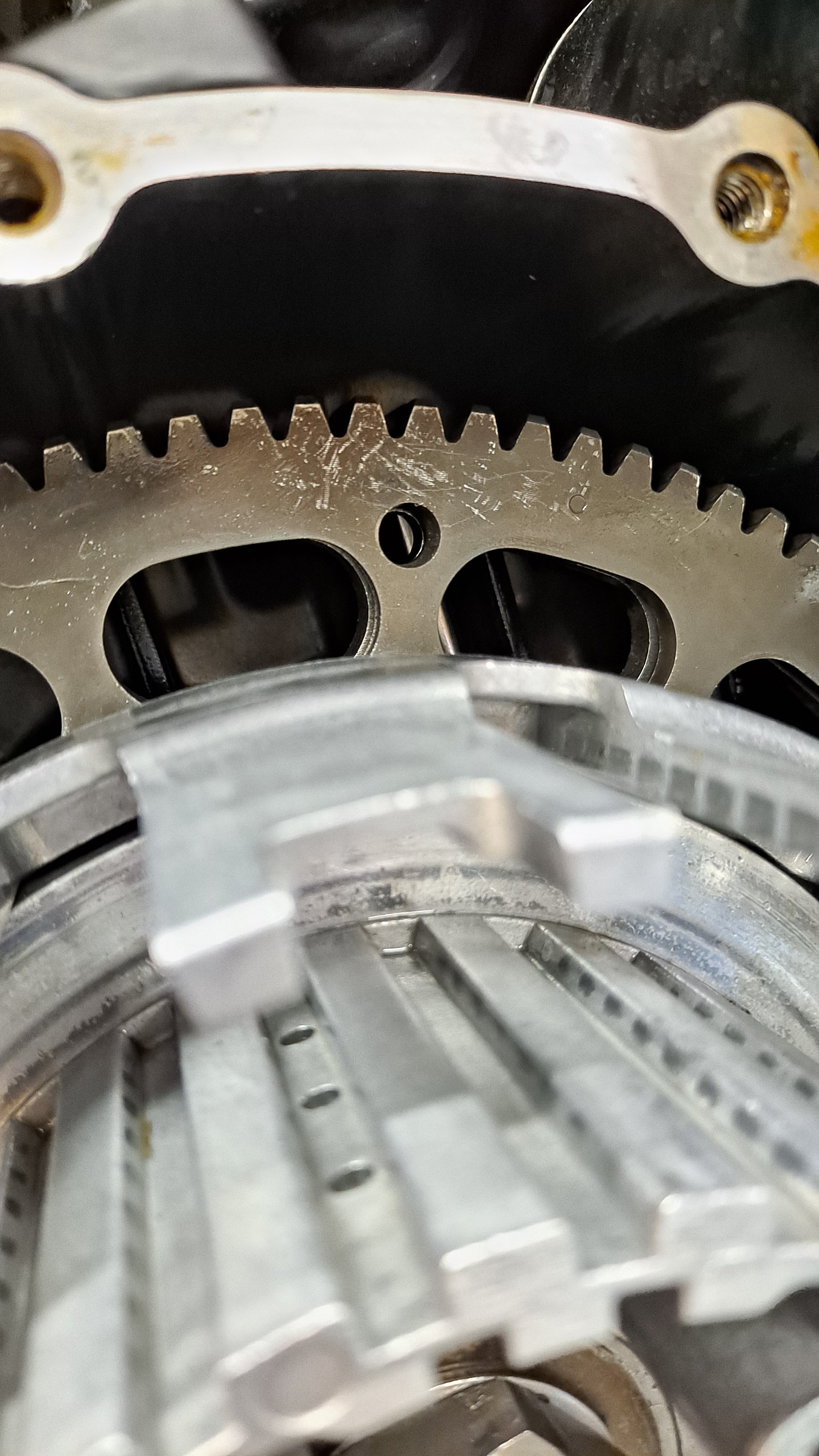

    Alright, so after a little more work I discovered my issue. While looking at the service manual, I was being a dumb dumb and completely overlooked one crucial step after I went ahead and took the entire clutch drum out. It turns out there is a hole on the top of the gear that you have to press in in order to slightly move the two gears on the clutch drum for it to fully mesh with the gear on the crank. After I did that and made sure it was seated on the oil pump gear, I test fit the basket and the nut, and it all fits beautifully now. Thank you everyone for all of your help and input. I'll probably update you guys again once the bike is running.



    • Like Like x 4
    • Useful Useful x 1
    • Informative Informative x 1
  12. Yorkshireman

    Yorkshireman Crème de la Crème

    Dec 12, 2015
    3,174
    1,000
    Barnsley
    Nice one fella, looks to be correct now and I wouldn’t bet against the previous owner missing that step too leading to your clutch problem.

    • Like Like x 2
    • Agree Agree x 2
  13. Ducatitotriumph

    Ducatitotriumph Crème de la Crème
    Subscriber

    Apr 25, 2019
    1,774
    1,000
    Rothwell
    #13 Ducatitotriumph, Oct 17, 2021 at 8:26 AM
    Last edited: Oct 17, 2021 at 11:27 AM
    Well done bud!
    Great for sticking with it and enjoy it when you are on the road!
    Ps, use a proper gasket!!!

    • Agree Agree x 4
  14. brodes

    brodes New Member

    Wednesday
    6
    3
    U.S.
    Thanks! I got all new gaskets so everything will be nice and new and put together how it should be

    • Like Like x 2
  15. TRIPLE X

    TRIPLE X New Member

    Sep 1, 2021
    7
    3
    Downham Market, Norfolk
    Great result. All looks good now.:cool:

    • Agree Agree x 1
  16. joe mc donald

    Subscriber

    Dec 26, 2014
    12,412
    1,000
    slough / burnham
    Brodes
    Welcome to the family. Great result glad you got it sorted and done properly.
    Joe.

  17. brodes

    brodes New Member

    Wednesday
    6
    3
    U.S.
    Well to throw another wrench into things, one of the bolts for the pressure plate broke off as I was tightening it down . At least it could be backed out with a small screwdriver so I fortunately won't have to buy a new basket
