2005 Triumph Daytona 955i - Rr Connector Conundrum!

Discussion in 'Daytona' started by Jonathan moore, May 8, 2025.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Jonathan moore

    Jonathan moore New Member

    Nov 25, 2022
    0
    0
    London
    Hello first post here so to introduce myself, i'm a rider of 5 years, still with my first 'big' bike; my 2005 Triumph Daytona 955i. It's been a dream for the 3 years that i've had it, but I have had intermittent electrical issues. These peaked last month and after replacing the battery (a veteran of several Winters) and I decided to change the RR.

    The replacement I bought has a 3 pin connector in a triangle arrangement for AC power and a 4 pin connector in a square arrangement for the battery (2 red wires, 2 black wires).

    The old one that I removed has a 3 pin connector in a flat arrangement for the AC power and a green and a red wire with ring terminals for the battery.

    The question is how can I fit the new one in place of the old one?

    3 PIN AC
    Can I change the connector over? And am I right in thinking it doesn't matter which order around the wires connect in?

    BATTERY
    Can I just de-pin the connector on the new RR and fit ring terminals to the two red and two black wires, and connect to the battery terminals?

    Hopefully it's not too much of a head scratcher. Any advice is greatly appreciated!

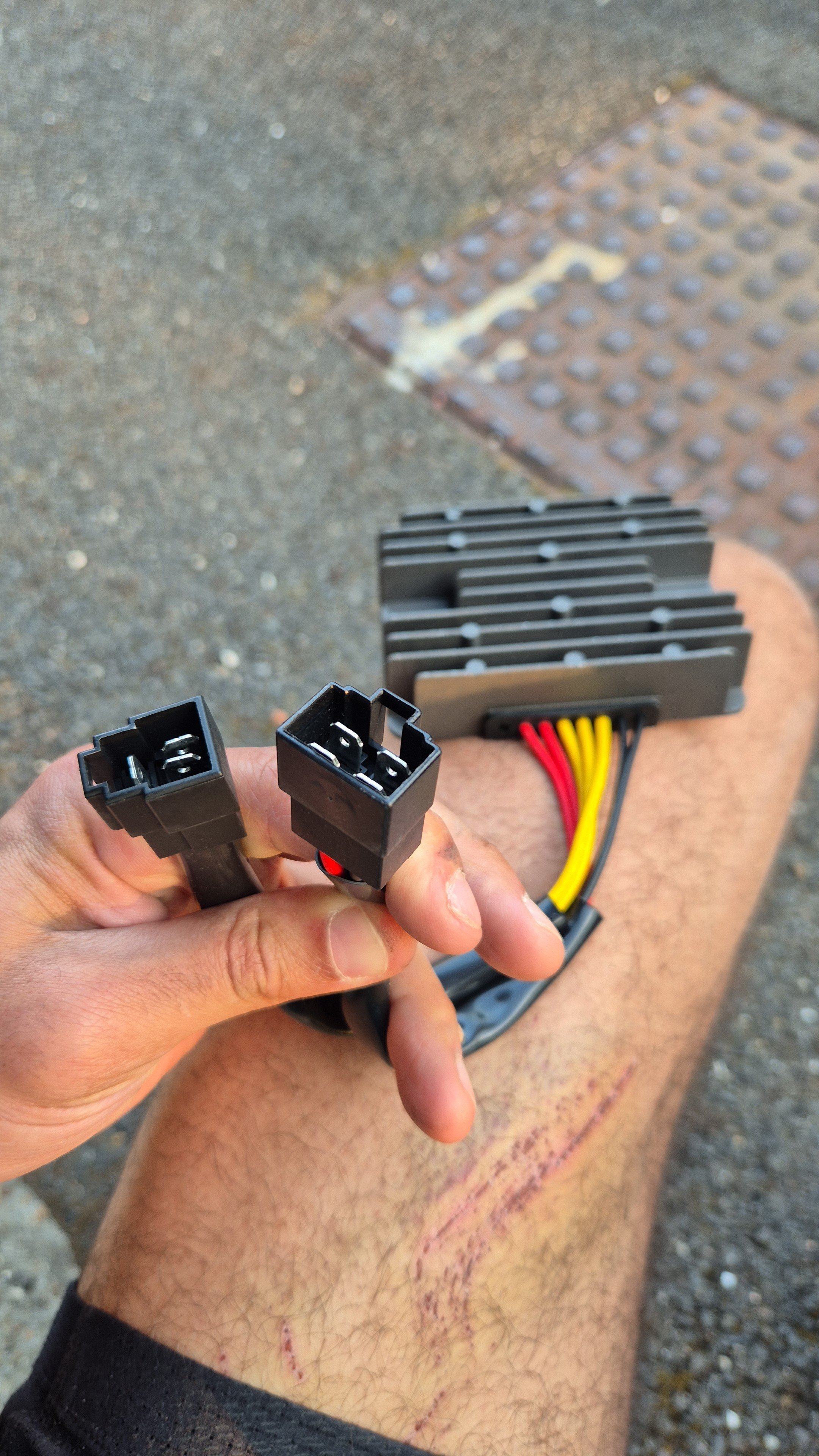

    Image 1: New RR

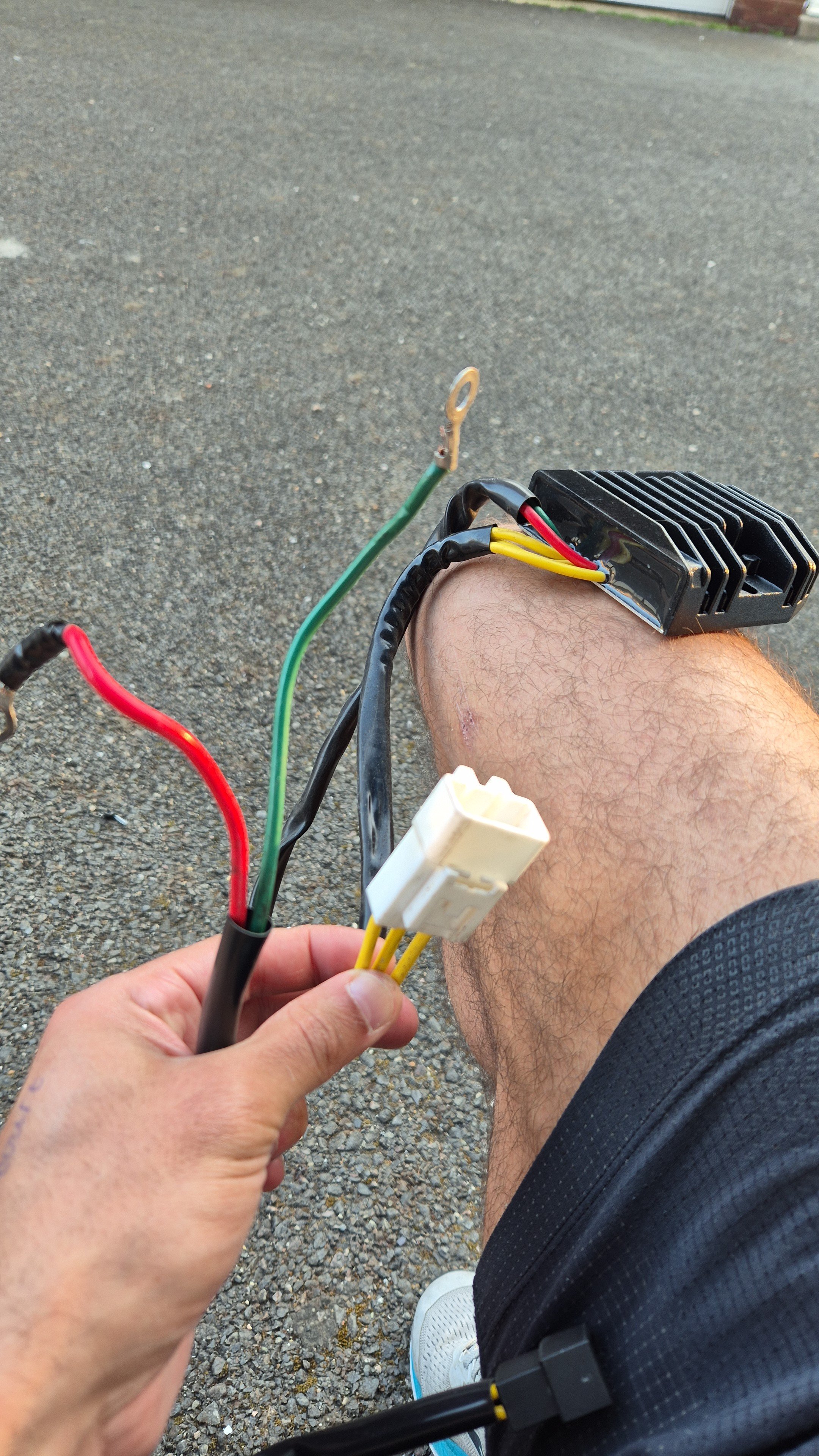

    Image 2: Old RR showing both AC power & battery connectors

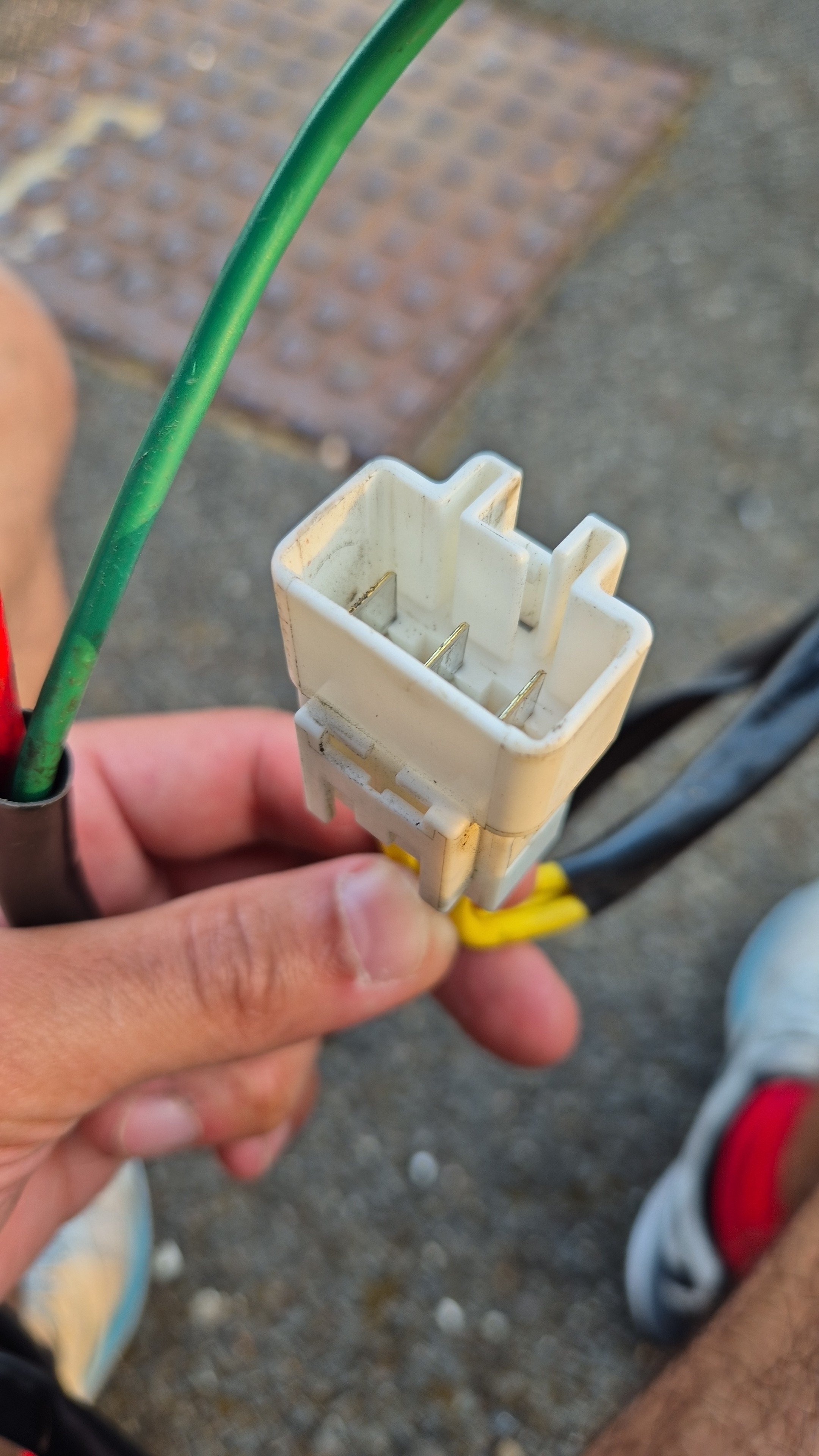

    Image 3: Old RR showing AC power connector pin arrangement
