2000 Sprint Rs 955i Mystery Wire?!!

Discussion in 'Technical Help' started by James Prete, Jun 26, 2020.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island

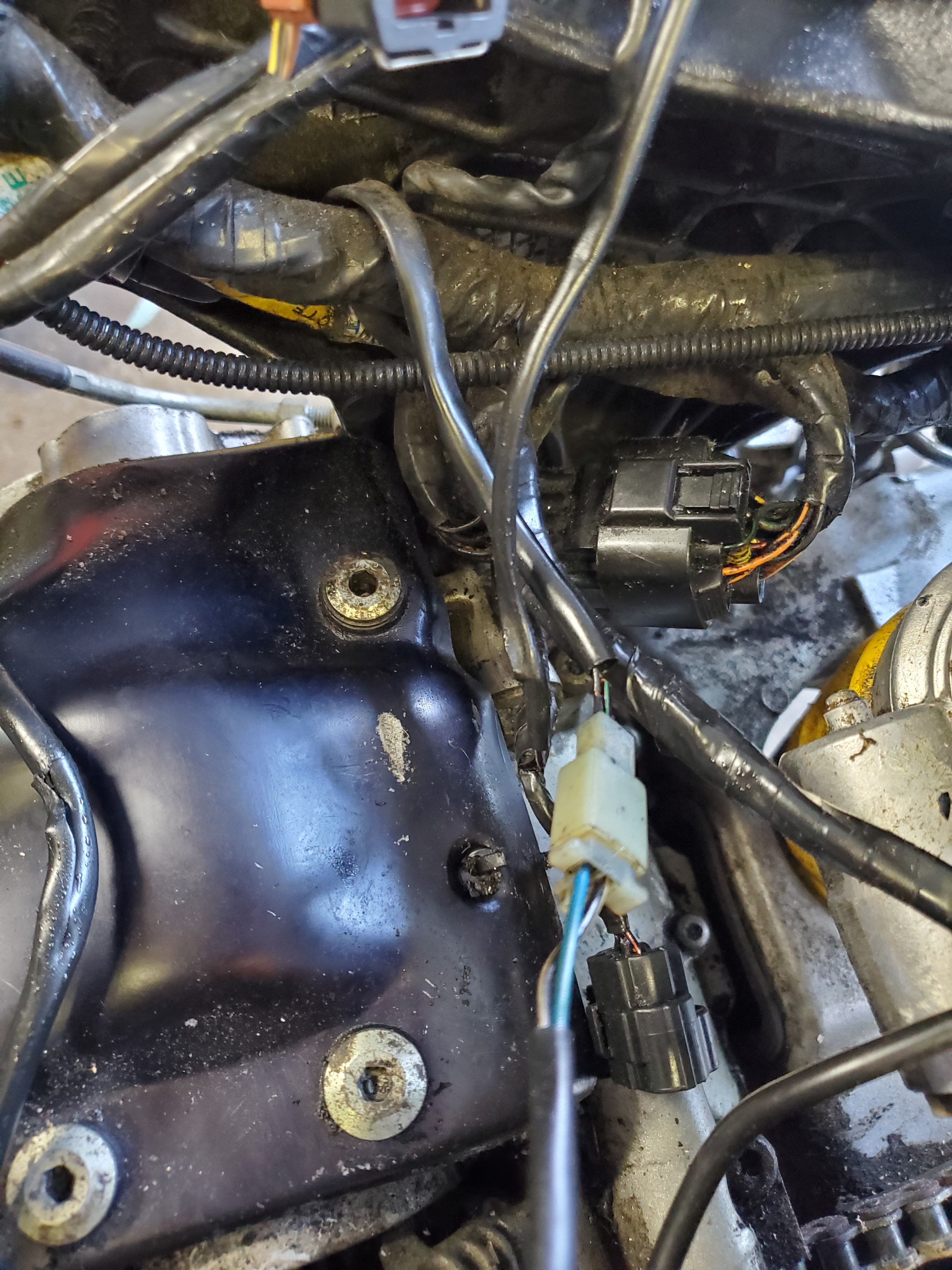

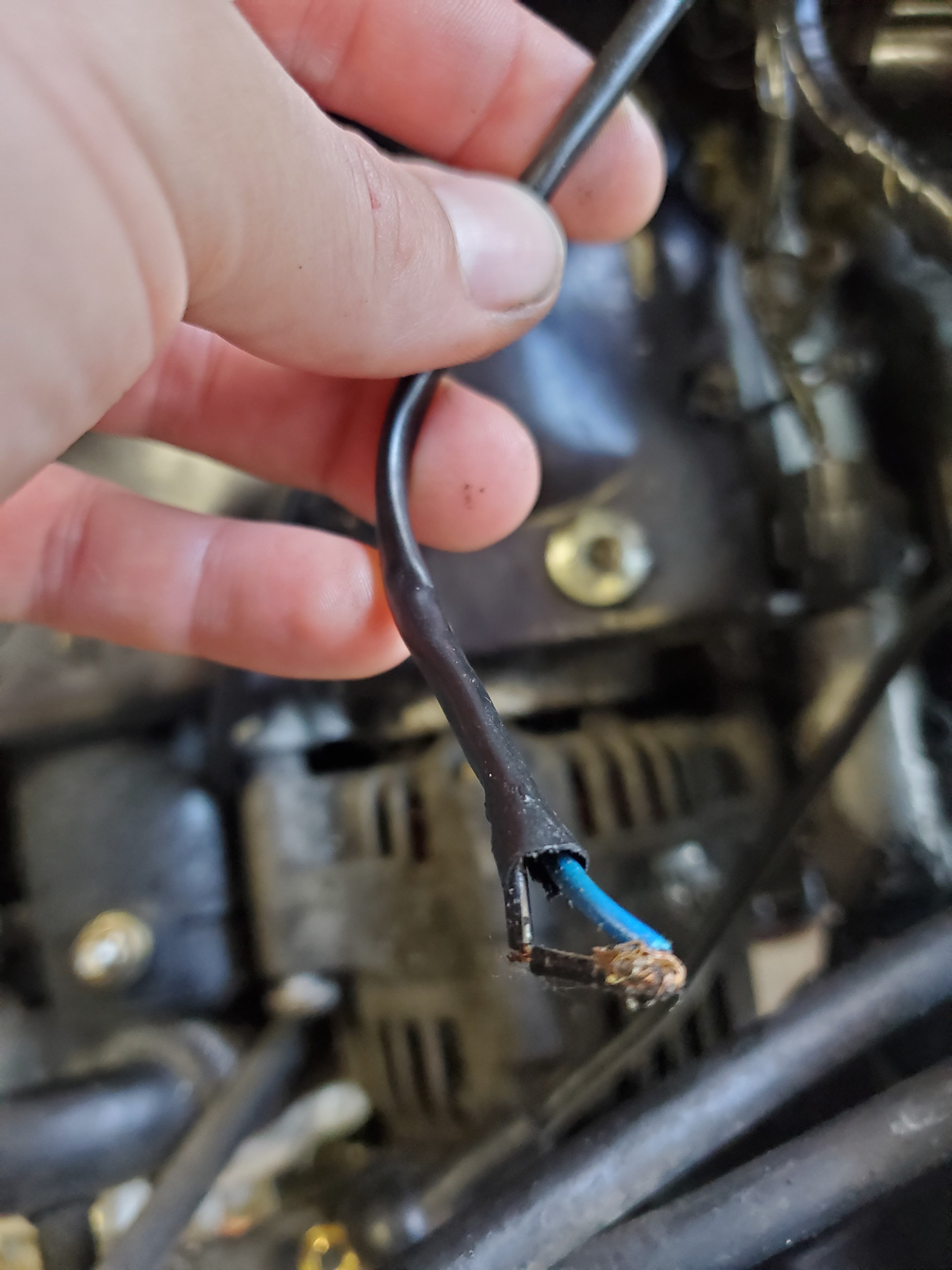

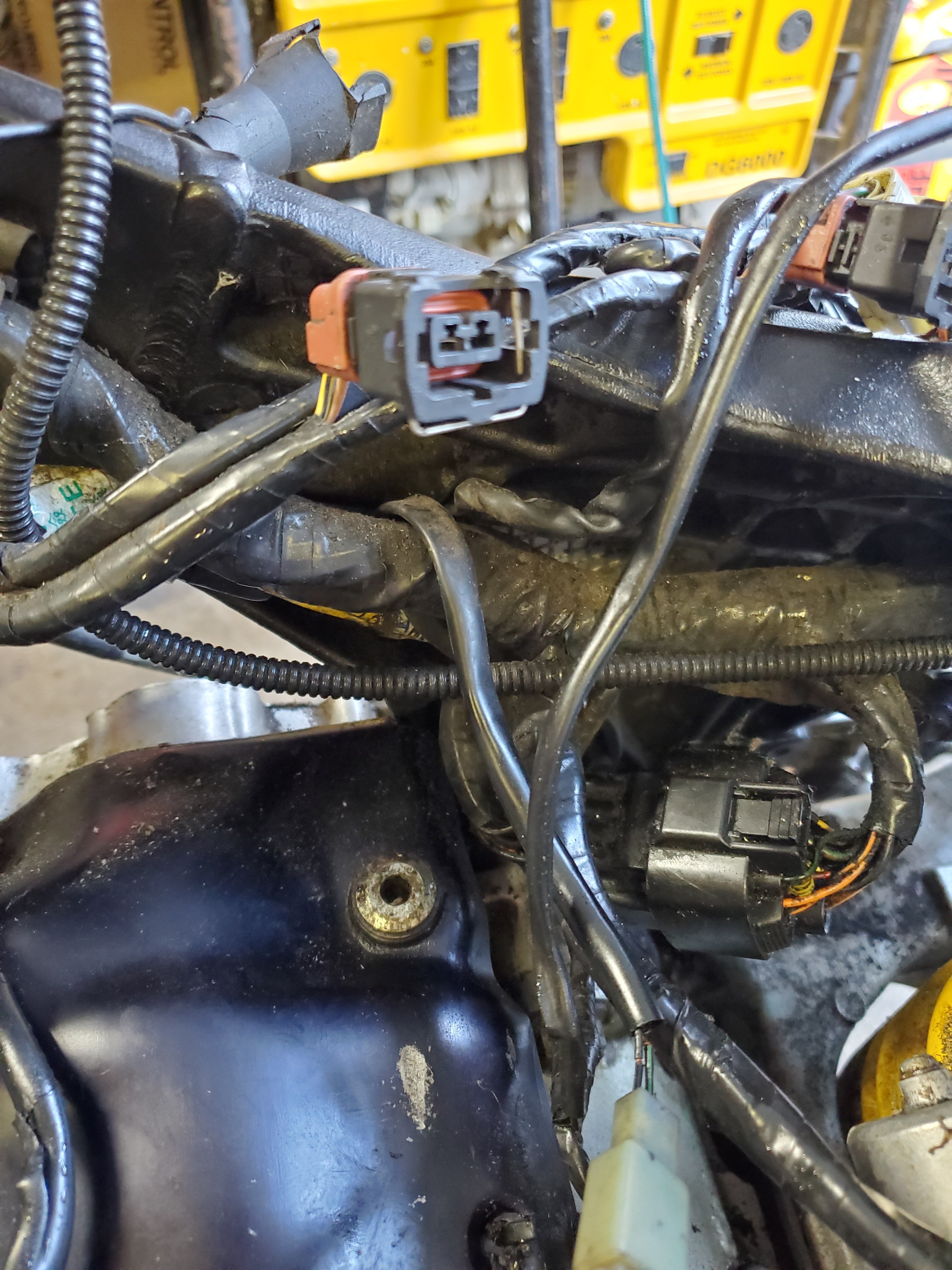

    Its me again! Lol. Stressing you folks out yet? I am ready to lower the motor out of this puppy and have a friend coming over Sunday to help me do so to play it safe. Everything looks to be good and disconnected. While removing all the connections I stumbled across this little gal and I dont see any missing connections and or places where it may have been spliced in. Kickstand switch and neutral switch I think are accounted for. So not sure where this belongs. I did not remove this connection, I simply stumbled across it. Sadly I got the bike not running so I can't use previous misfunction to trouble shoot what isn't working.





    • Like Like x 1
  2. Hobnail

    Hobnail Well-Known Member

    Jan 4, 2020
    514
    93
    USA
    Looks like what's left of the low fuel indicator sensor connections. Check the fuel tank bottom to see.

    • Like Like x 1
  3. Smilinjack

    Smilinjack Crème de la Crème

    Aug 14, 2016
    1,442
    1,000
    Nottingham
    We found a spare connector like that while checking that alternator with @Duckadiledundee. Maybe a spare switched live for charging socket or something. :)

    • Like Like x 1
  4. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island
    DING DING DING we have a winner! There is so little left to the ones coming out of the tank I missed it on the first once over. I took that plate as a bung or something. Then after your response went back over it and you can feel a few copper strands poking out of that sealed area of the sensor. What a weird way to do it! Just two copper wires sticking out. Im assuming thats just for a low fuel idiot light right and not a shutoff of any sort?

    • Like Like x 2
  5. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island
    I wish but he was correct. They were broken off at the sensor and there is no possibility of reconnect :( So I have to replace that sensor it looks like.

    • Like Like x 1
  6. freck

    freck Elite Member
    Subscriber

    May 4, 2017
    1,853
    750
    Preston, Lancs, UK
    Glad you’ve found the culprit James. :cool:
    It is worth noting that on some models there are a couple of connectors that don’t connect to anything due to the loom being standard across different models and markets.

    • Like Like x 1
  7. Duckadiledundee

    Duckadiledundee Peasant First Class
    Subscriber

    Jun 24, 2019
    5,146
    1,000
    High Peak

    Fuel level sensor wires are very fragile where they actually connect to the column which fits into the tank..new fuel sensor comes chamfered and non chamfered and about a ten quid price difference...I think mine was £73 from W.O.T...I snipped off the plastic lever locking mechanism on mine because I'm forever taking the tank off and it's the most awkward b#stard connector ever made to disconnect...
    The brown and black connector looks like it may come from your fuel rail..its hard to tell without actually being there...if it is and it was plastic tied up its nothing to concern yourself with as it's for the California model and triumph just made em with them on just in case the part went to the states...if it's not that then it connects to the air box most likely...
    Good luck...its a learning curve...frustrating as duck but well worth it in the end...:)


    • Like Like x 1
  8. Duckadiledundee

    Duckadiledundee Peasant First Class
    Subscriber

    Jun 24, 2019
    5,146
    1,000
    High Peak
    The one your on about if i remember right was the auxiliary connector socket which you said would come in handy if I wanted to bang something extra on...I'm thinking a mini gatling gun :p

    • Funny Funny x 1
    • Agree Agree x 1
  9. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island

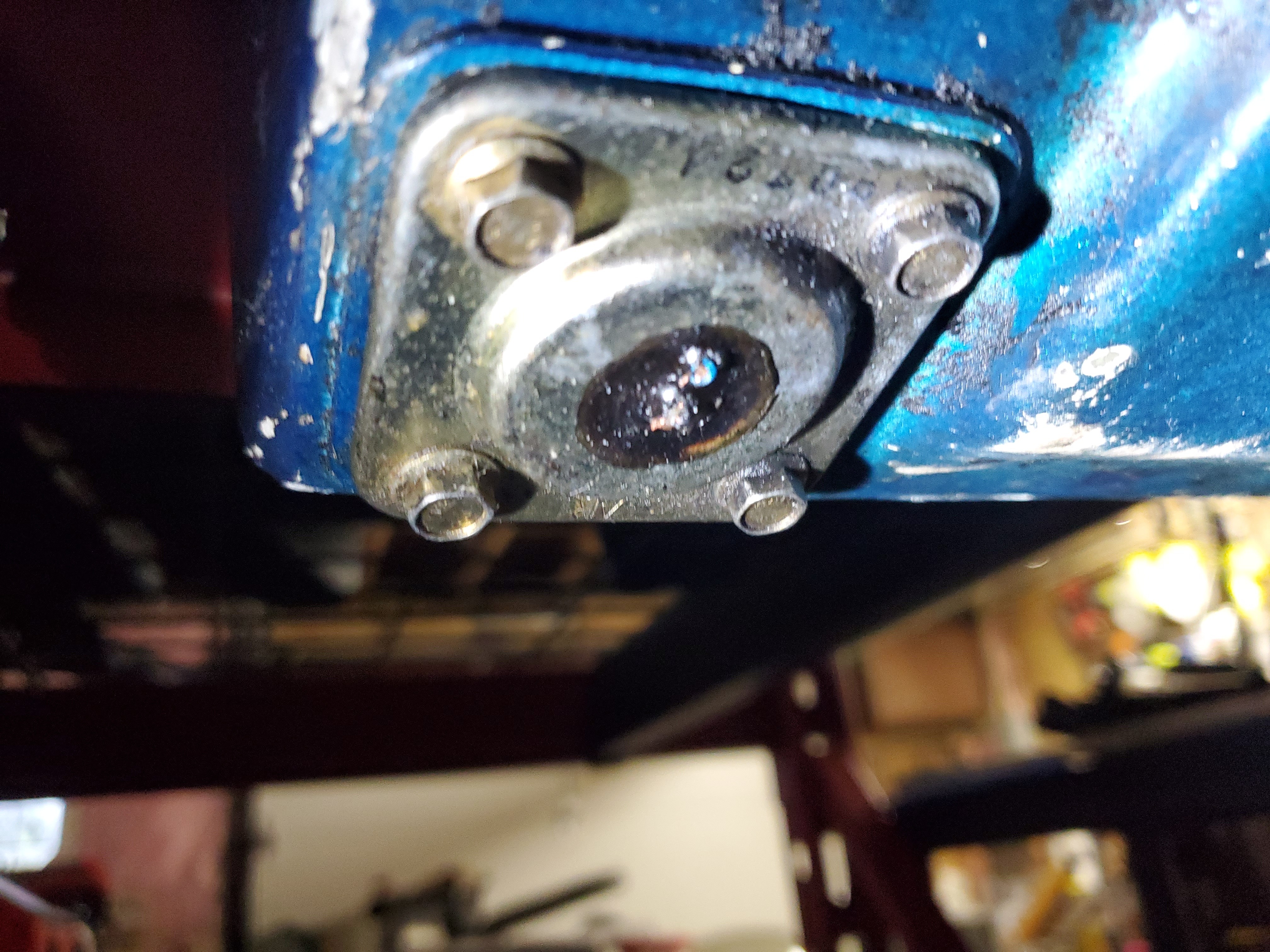

    Yeah I've got plenty of those connection to redo for sure hah. But the one in question is white that I show in my first pictures. The problem area is here on the tank. They literally broke right at the tank. :( But I'm at least happy someone was able to tell me to look there lol


    • Like Like x 2
  10. Duckadiledundee

    Duckadiledundee Peasant First Class
    Subscriber

    Jun 24, 2019
    5,146
    1,000
    High Peak

    I had exactly the same problem with mine...very cheaply wired up if you ask me...keep us posted with your progress...be interesting to see how you get on...:):):)

    • Like Like x 1
  11. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island

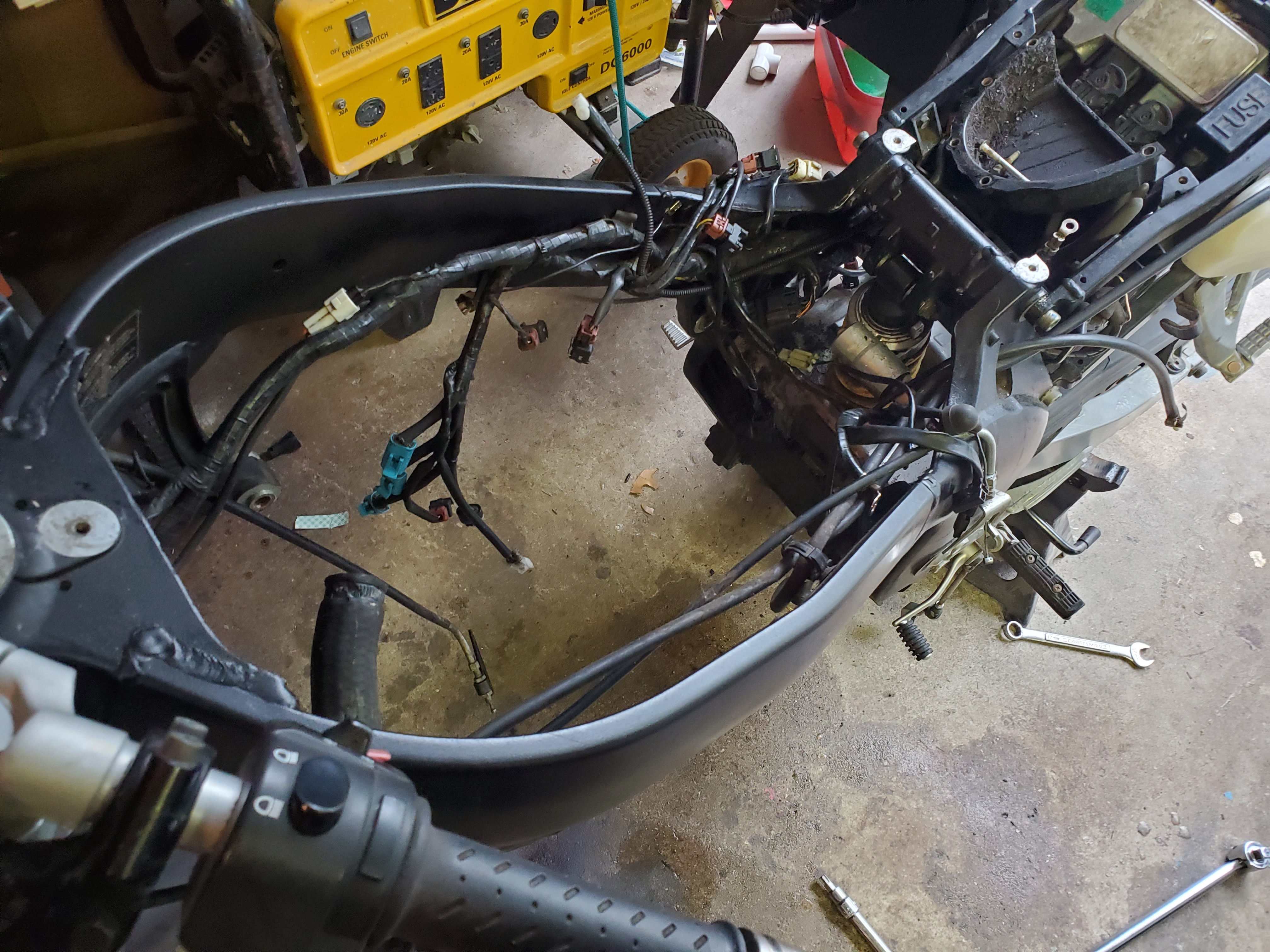

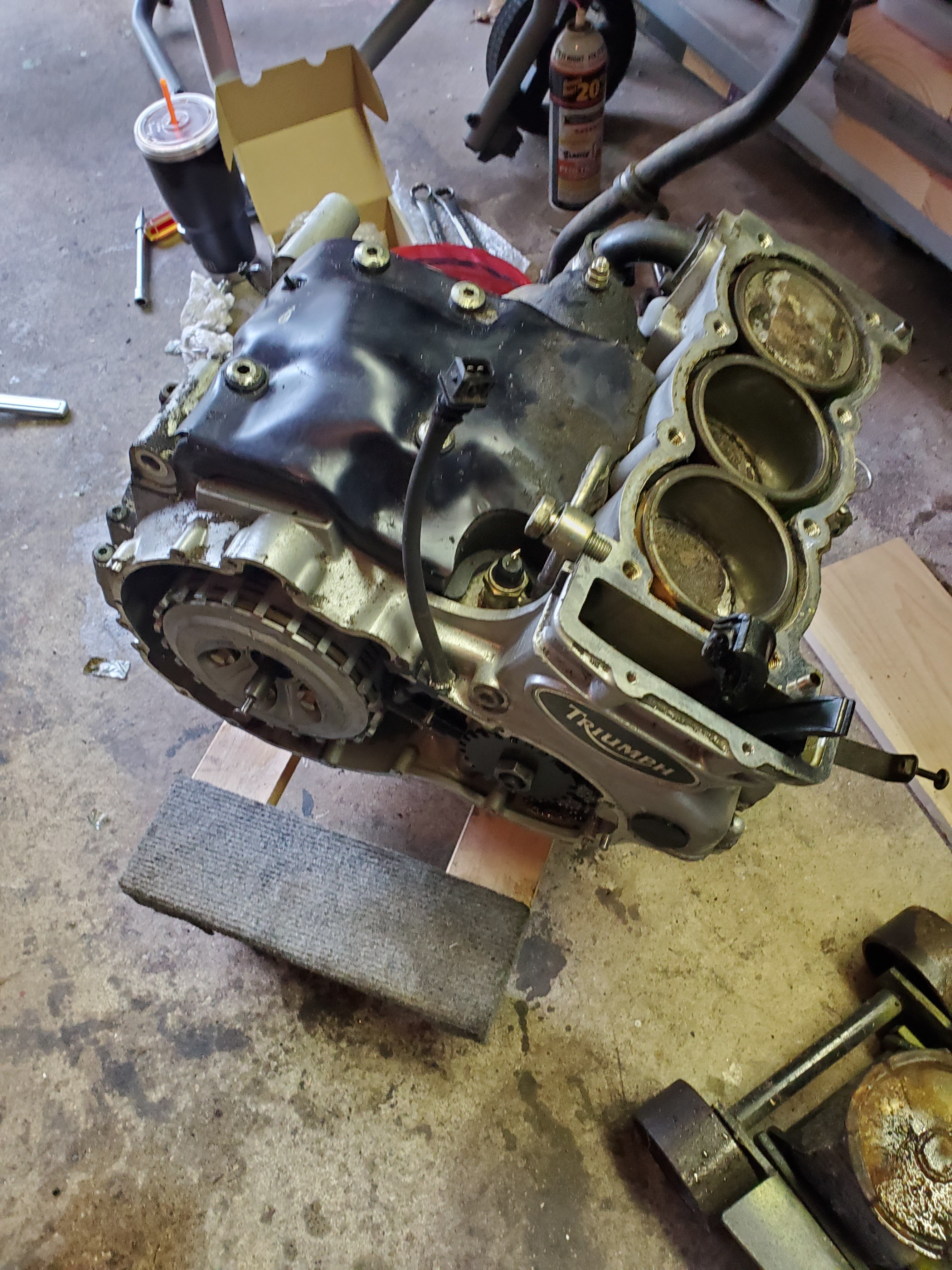

    Will do. This is the current state lol. New motor comes tomorrow



    • Like Like x 3
  12. Hobnail

    Hobnail Well-Known Member

    Jan 4, 2020
    514
    93
    USA
    The low fuel indicator will not cut anything out, just it lights the indicator on the dash. Tape them off or, unplug and discard. I filled the bottom of the tank with epoxy to seal things off. Not positive it makes any difference. No worries.

    • Like Like x 1
  13. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island
    It really does bother me when things don't work for some reason. Ill probably try to add a new sensor to my list of parts. Tomorrow when I get the motor and give it a once over ill be placing my order for needed gaskets and such. I'm anxious to get this on the road and get my wings back

    • Like Like x 2
    • Agree Agree x 1
  14. Duckadiledundee

    Duckadiledundee Peasant First Class
    Subscriber

    Jun 24, 2019
    5,146
    1,000
    High Peak

    Damn...you really are going for it...what's the story behind the bike and what are your plans for the bikes final appearance...is it a project for yourself and your own enjoyment or something else???

  15. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island
    Well I dont know much of the story. I only just got the bike. A friend who is a fan of Triumphs got it from a friend of his in non running condition. It was supposed to be a head swap that was needed. So he purchased it planning on getting it back on the road. He also purchased a head for it. He decided not to do it and I happened to be talking about wanting to get back on the road. So he said hey take this one and the head and if you get it running and like it just give me what I have into it. So in comes this bike into my life a week or so ago lol. I dug in immediately and realized the extent of the damage to the head, and that the purchased head wasn't right for this bike. So getting the bike and repairing the top end turned into needing a full engine replacement. It is entirely for me project wise. I will finish the engine swap and make sure she runs and then as quickly as I can cover every nook in terms of repairs. Couple of broken lights, vacuum hoses, and that sort of thing. Once she is running and 100 percent mechanically I will start on the looks. I am a fan of this bikes color but it is scratched and some are deeper and wont buff out. I will be painting the bike myself as well. I do hope I get everything worked out because for some reason I do feel like I have something slightly special. Considering its age and maker I wont likely see many of them.

    • Like Like x 2
  16. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island
    It also has the ST rack on the back and came with the hard bag painted to match the bike. So my end goal is adding the side bags, maybe some custom ones i work up myself. I spent 8 years in the Marines so I half thought I would do a coyote tan paint job and some cool pelican case looking side bags but we shall see lol

    • Like Like x 2
  17. Duckadiledundee

    Duckadiledundee Peasant First Class
    Subscriber

    Jun 24, 2019
    5,146
    1,000
    High Peak
    Cor blimey chief...you got a lot going on there..To take on a project like that takes time effort dedication and you really gotta have a love and passion for the bike..I reckon despite all the frustrations and swearing yet to come your gonna do alright and have a great bike at the end of it...
    I wish you the best with it and look forward to following your progress..
    Ex mil people tend to be brilliant people by the way...I'm not ex forces myself but the few friends I have are all ex military...Biker people I've learned tend to be good people also..straight talk no bs for the best part..you always get the odd exception to the rule though...
    Anyway back to bikes...All the best keep us posted..:):):)

    • Like Like x 2
  18. James Prete

    James Prete Well-Known Member

    Jun 21, 2020
    47
    63
    Rhode Island

    Will do my friend. I am bound to run into an issue very soon I will need to ask about. Freight company just called. It will be Friday the engine gets here now so I may get to Cerakoting some pieces now. But updates to follow soon

    • Like Like x 2
