    #161 Iron, Jan 28, 2022
    Last edited: Jan 29, 2022

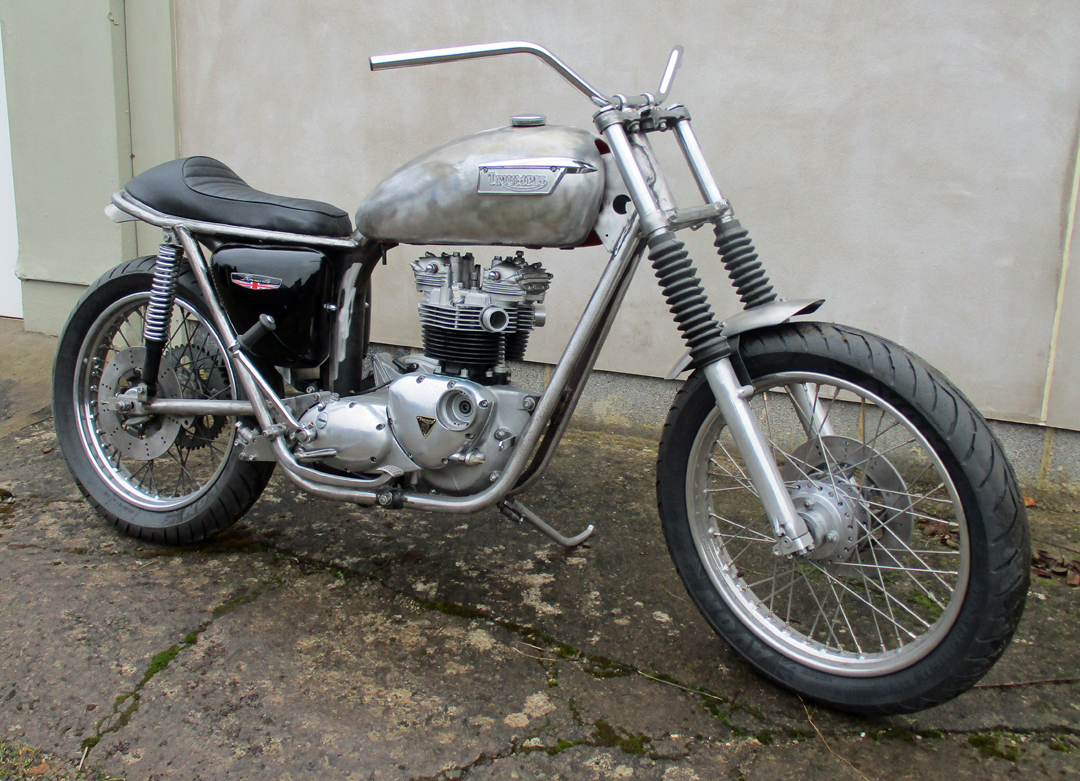

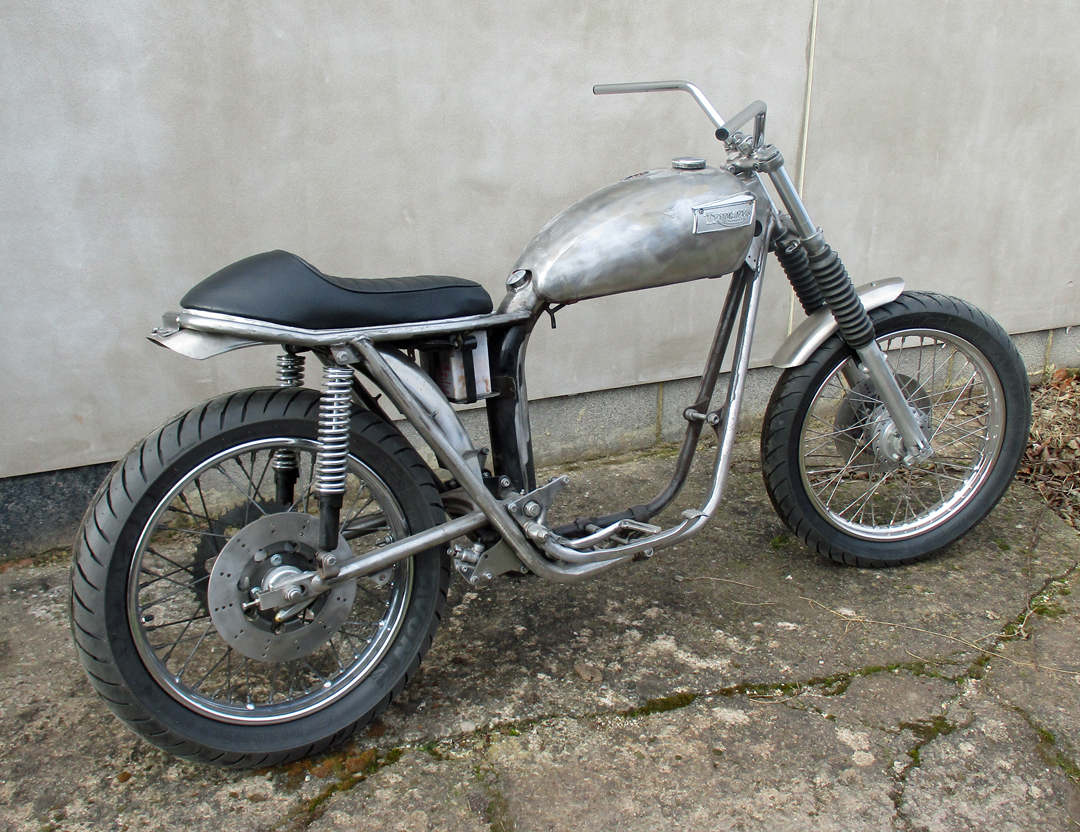

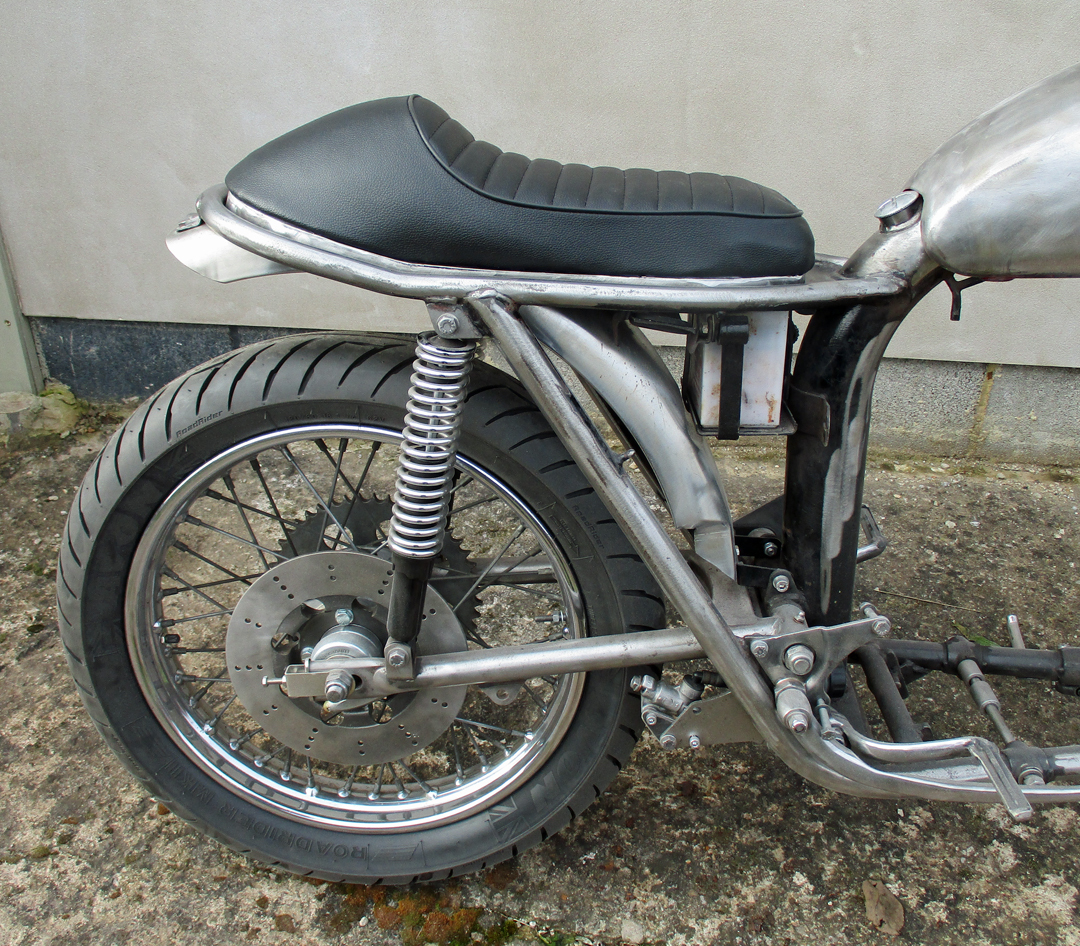

    And here it is on the bike:


    Well chuffed with that for a first try. I might even paint triumph on the back of it :cool:


    So, seat number 4 it is. Good choice all...

    • Like Like x 14
  2. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    #162 Iron, Jan 28, 2022
    Last edited: Jan 28, 2022
    I'd like to get TT pipes onto this but there's a couple of issues with those. T140V bikes have push-in exhausts of 1 3/8 inch (35mm) diameter. They have a balancing pipe that connects the two exhausts together which also keeps the pipes in the head. I've never really had much problems with these but they are known to rattle around causing the head to wear and allow the pipes to blow.

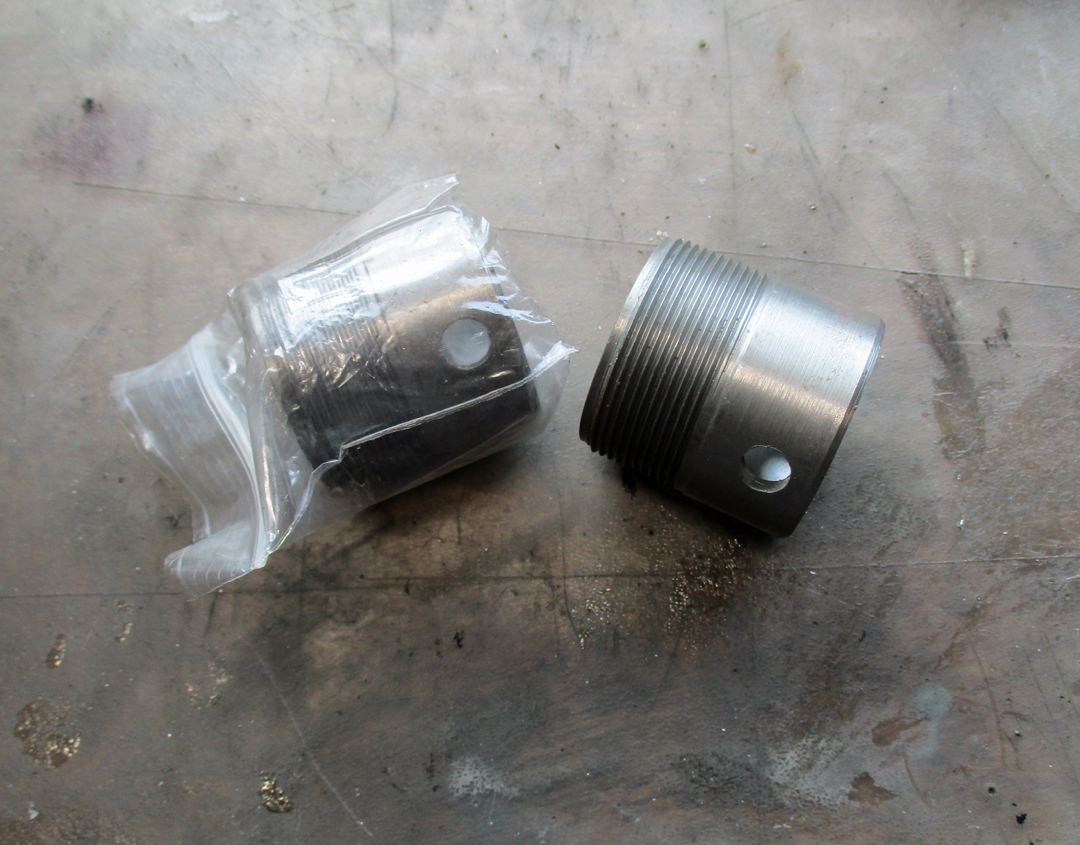

    T120 pipes are 1 1/2 inch (38mm) diameter and push over a spigot that is screwed into the head. Here are the spigots:


    IMO the larger diameter pipes look better, give a deeper sound and are readily available in lots of styles. However, the T120 engines were 'taller' than the later T140 engines. Even though the larger "750" engine has bigger pistons it has 1/2 inch shorter conrods, pushrods etc.
    So the pipes vary in the bends and the length but only slightly and the differences are hard to spot.
    T140 TT zorsts come in at about £250 and T120 TT's are about £150. So cheaper as well as nicer.

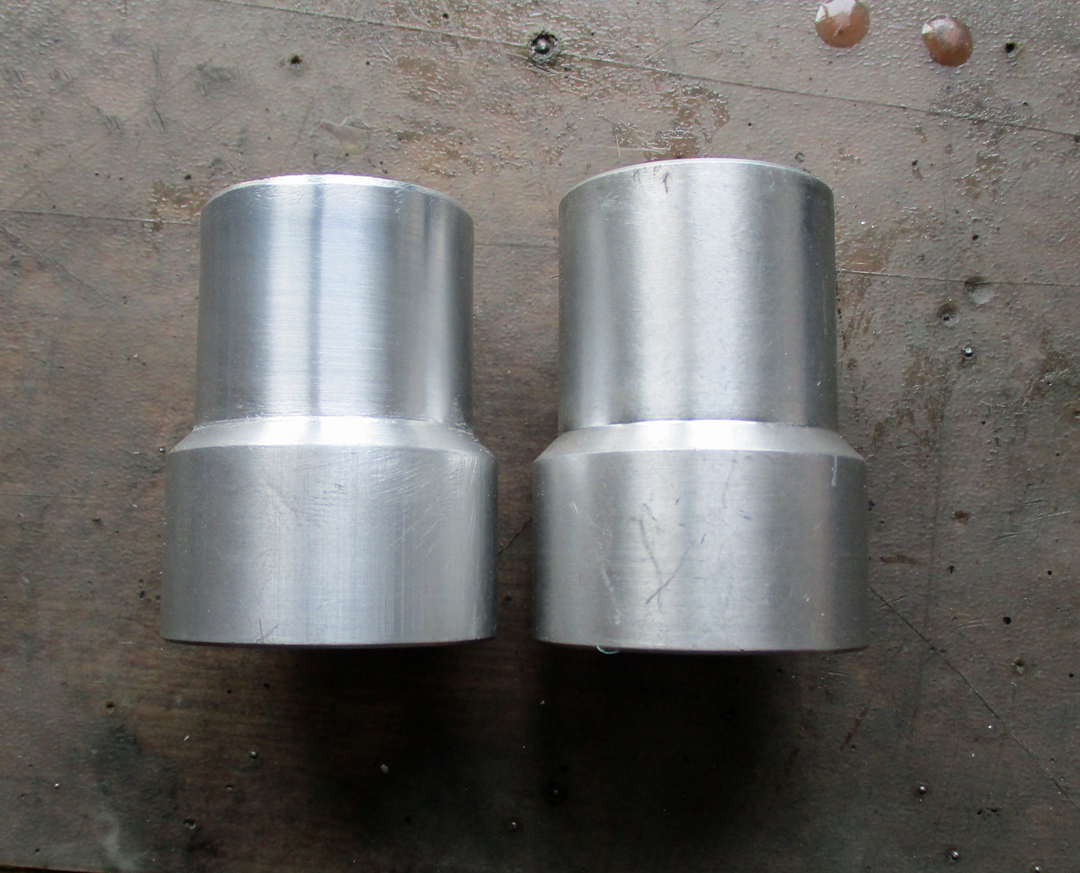

    However, for the 1 1/2 inch pipes to fit you either have to get the head machined to fit the above spigots or you can fit these spigots:


    The T120 spigots are about 15 squids while the push in ones are about 50 squids. Take your pick, ok I will....

    • Like Like x 3
    • Informative Informative x 2
  3. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    18,926
    1,000
    Tucson Arizona
    Wow, that looks amazing! Excellent work, @Iron. And kudos to you for giving it a go. I'd say your first try at this was a resounding success. Kudos to Admin, too. ;):grinning:

    • Agree Agree x 5
    • Thanks Thanks x 1
  4. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    #164 Iron, Jan 28, 2022
    Last edited: Jan 28, 2022
    I really want to try the T120 pipes and have to whack the engine in with some TTs on, so I can check all is ok, before I strip everything down to clean, sand, paint, powder coat etc. before the rebuild, electrics and the like.
    So, I'm gonna go for some T120 TTs and will try the push in spigots. I figure I'll be able to get them out again if need be.

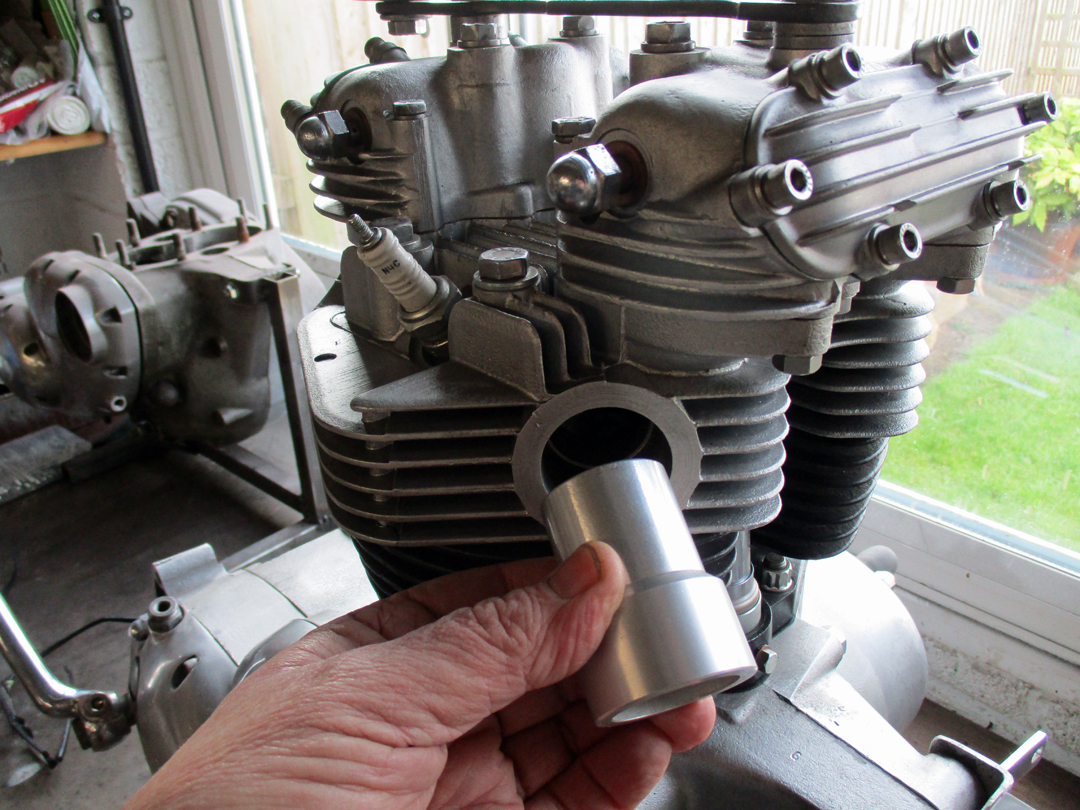

    However, I'm sure they are made as well as they can be given the variation across all these engines. But they are a gnats todger tight just to hammer in. They are also a bit long. The recess in the head measures just under 30mm while these spigots are 31mm to the lip.



    So I took a couple of thou off of the diameter and took a couple of mm off the length. I don't have a lathe so I used my skills with ye olde long strips of wet and dry and a sander for the length. And a hand file.



    Operator error again I'm afraid on picture uploads, soz :worried:

    • Like Like x 7
  5. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    Thanks for that. Yes I was gonna sulk, throw it all in the rubbish, pack it in and go shoot some aliens on the computer. A star she is, a complete star. I now have a way forward on other builds as well. :)

    • Like Like x 3
    • Agree Agree x 2
  6. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,856
    1,000
    Southcoast of the UK Earth
    That should work just fine as you have the two straps half way down the pipes and the two rear fittings at the rear of the pipes that use the centre stand lugs on a pre oil bikes but you might have to adjust/fabricate the rears.

    • Like Like x 1
    • Thanks Thanks x 1
    • Useful Useful x 1
    • Agree Agree x 1
  7. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios

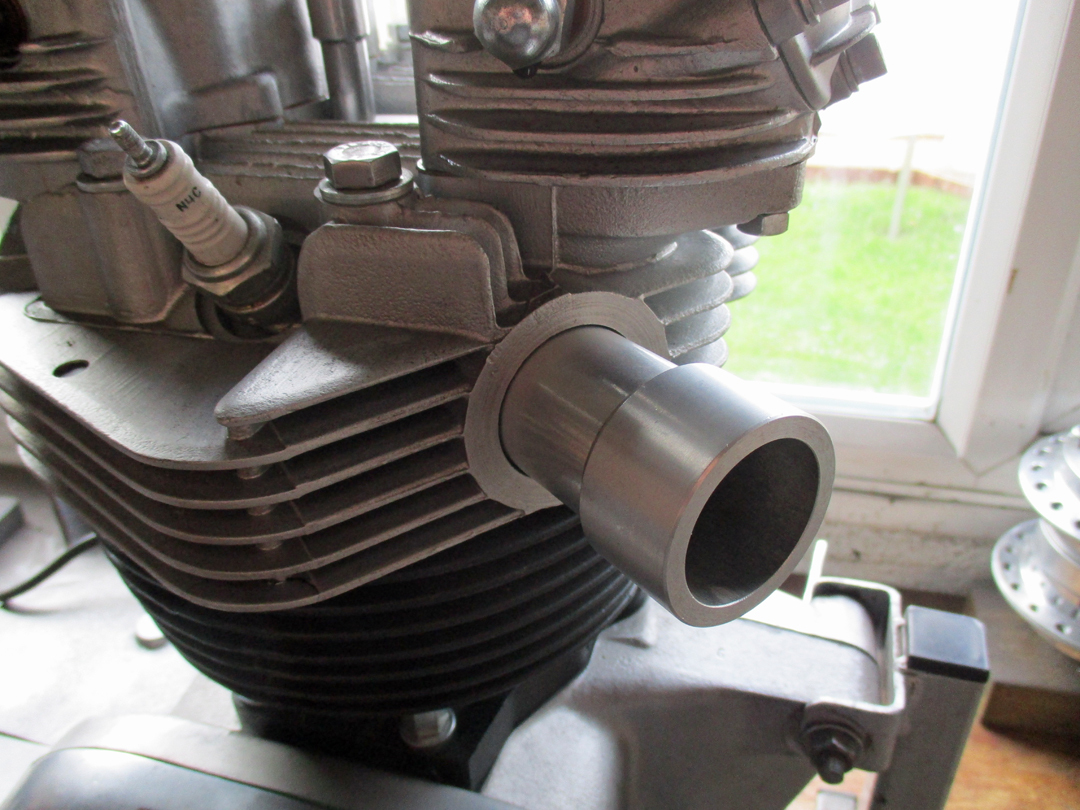

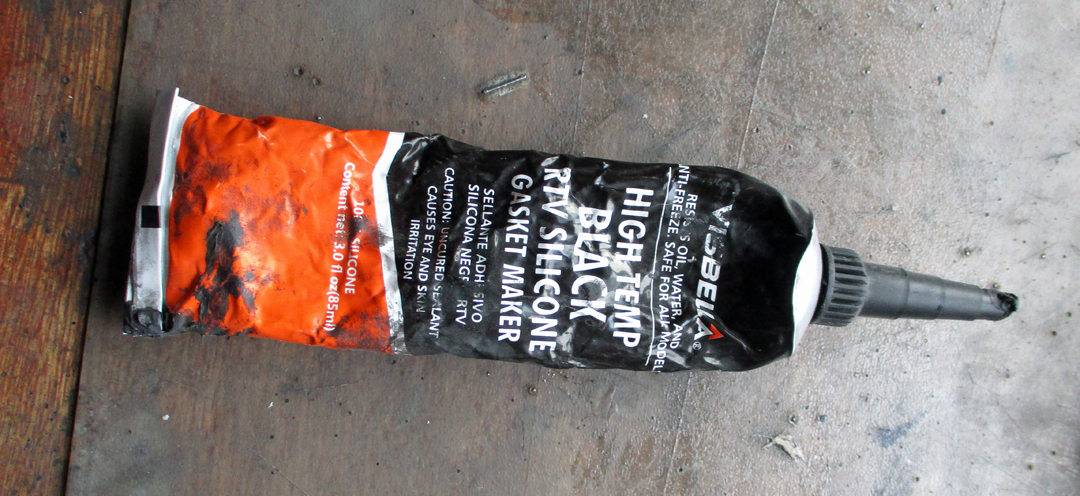

    Now the slightly less tight size has been achieved I applied some High Temp RTV silicon

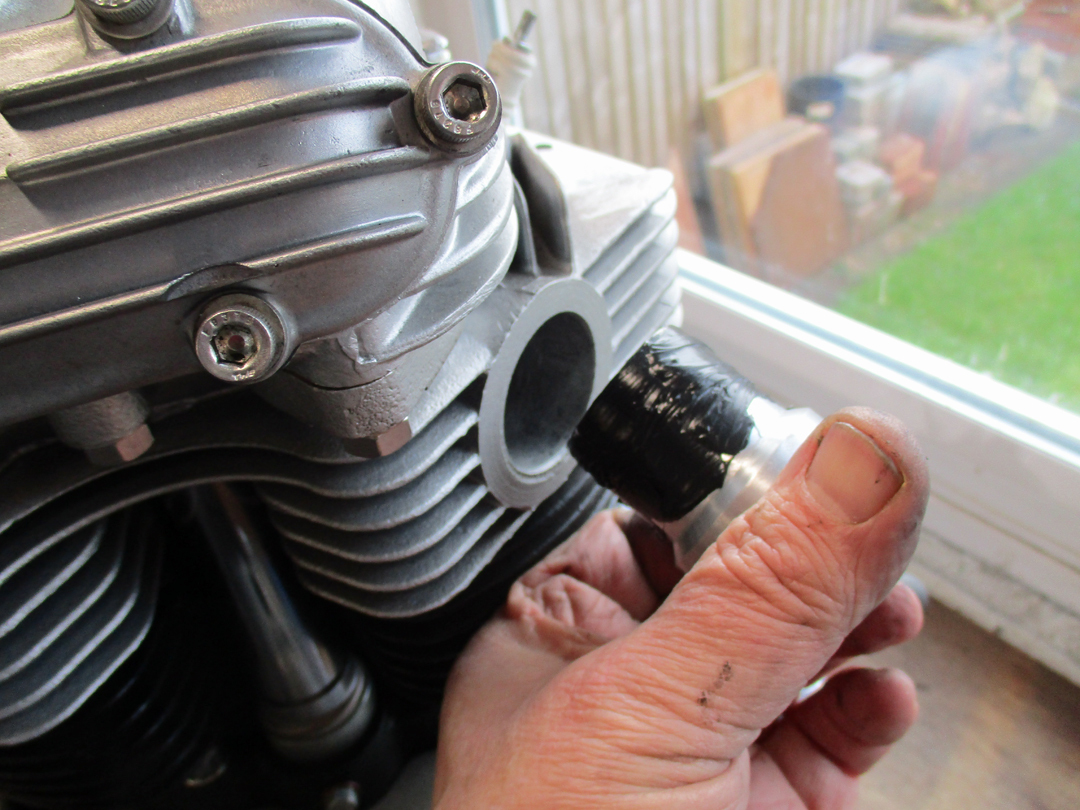

    around the spigots

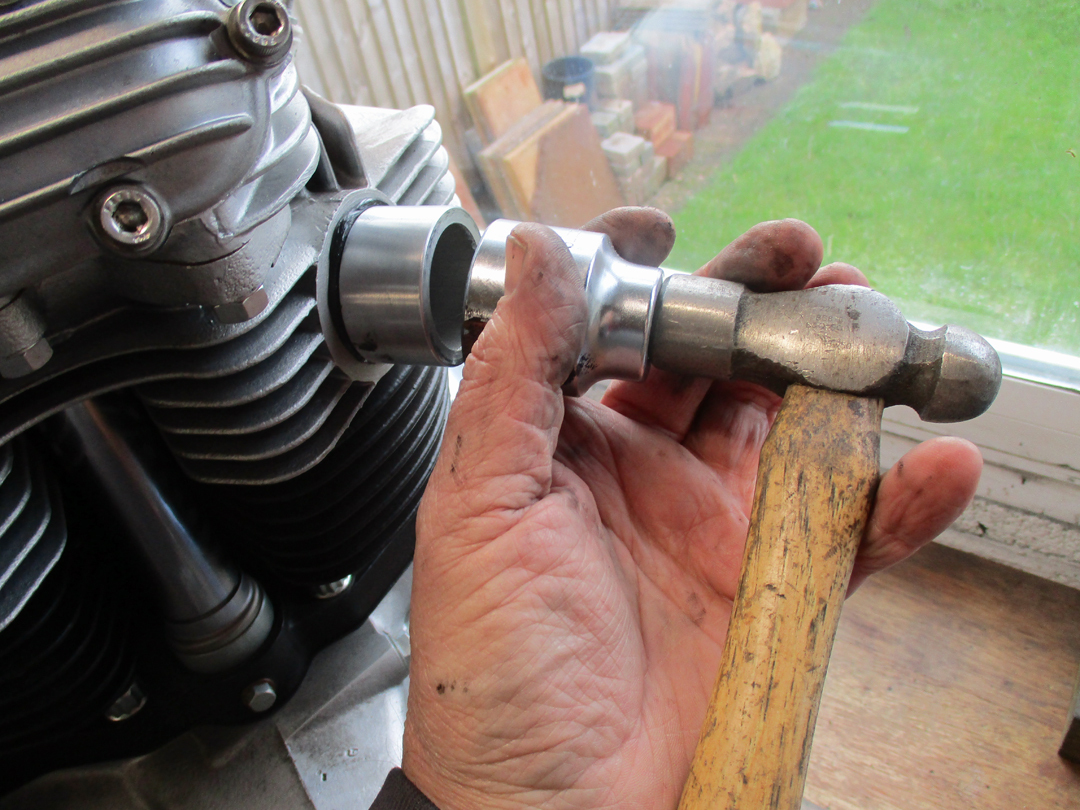

    and bashed 'em in wiv me weenie toffee hammer

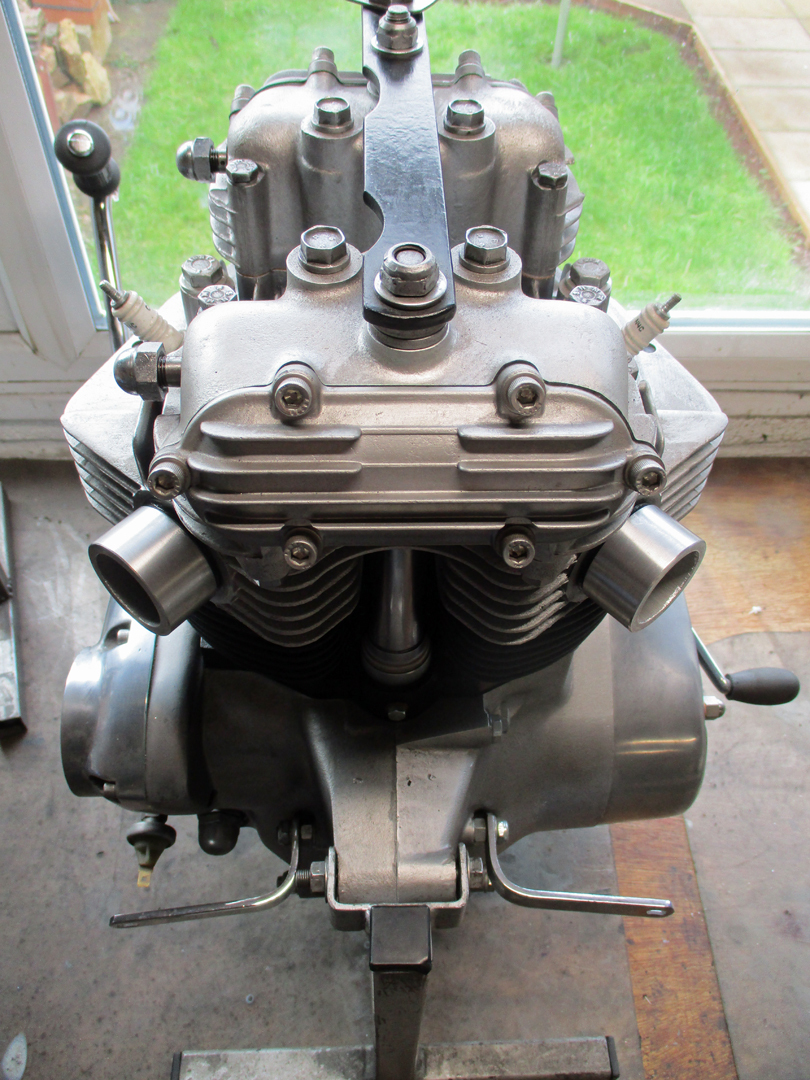

    And job looks to be good. Now just gotta wait for pension pay day and I'll order some T120 TT zorsts. Thankyou and over....:)


    • Like Like x 8
  8. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    Yes, I was figuring I'd have to make up some fixings for the pipes around the centre stand lugs which is why I didn't cut them off. I'd also like to see if I can keep the centre stand operational. Again, why I want to do this before the tear down and paint etc.
    I'd like to get into TIG welding so I can do stainless in the future so I can make up my own pipes. I'd like the TTs to kick out on each side like sidewinders but that's a few builds away I think :confused:

    • Like Like x 3
    • Agree Agree x 1
  9. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    #169 Iron, Jan 29, 2022
    Last edited: Jan 29, 2022

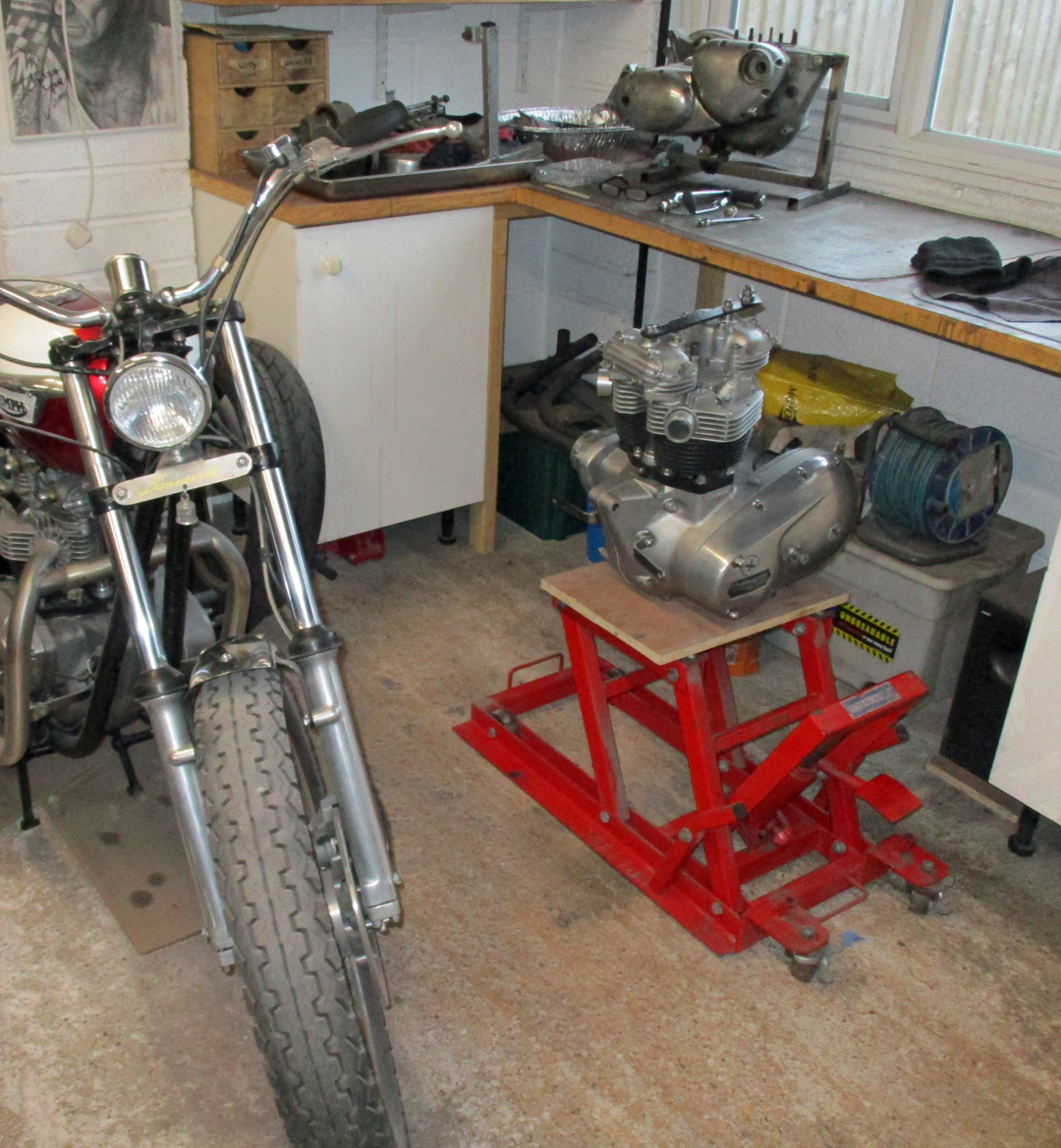

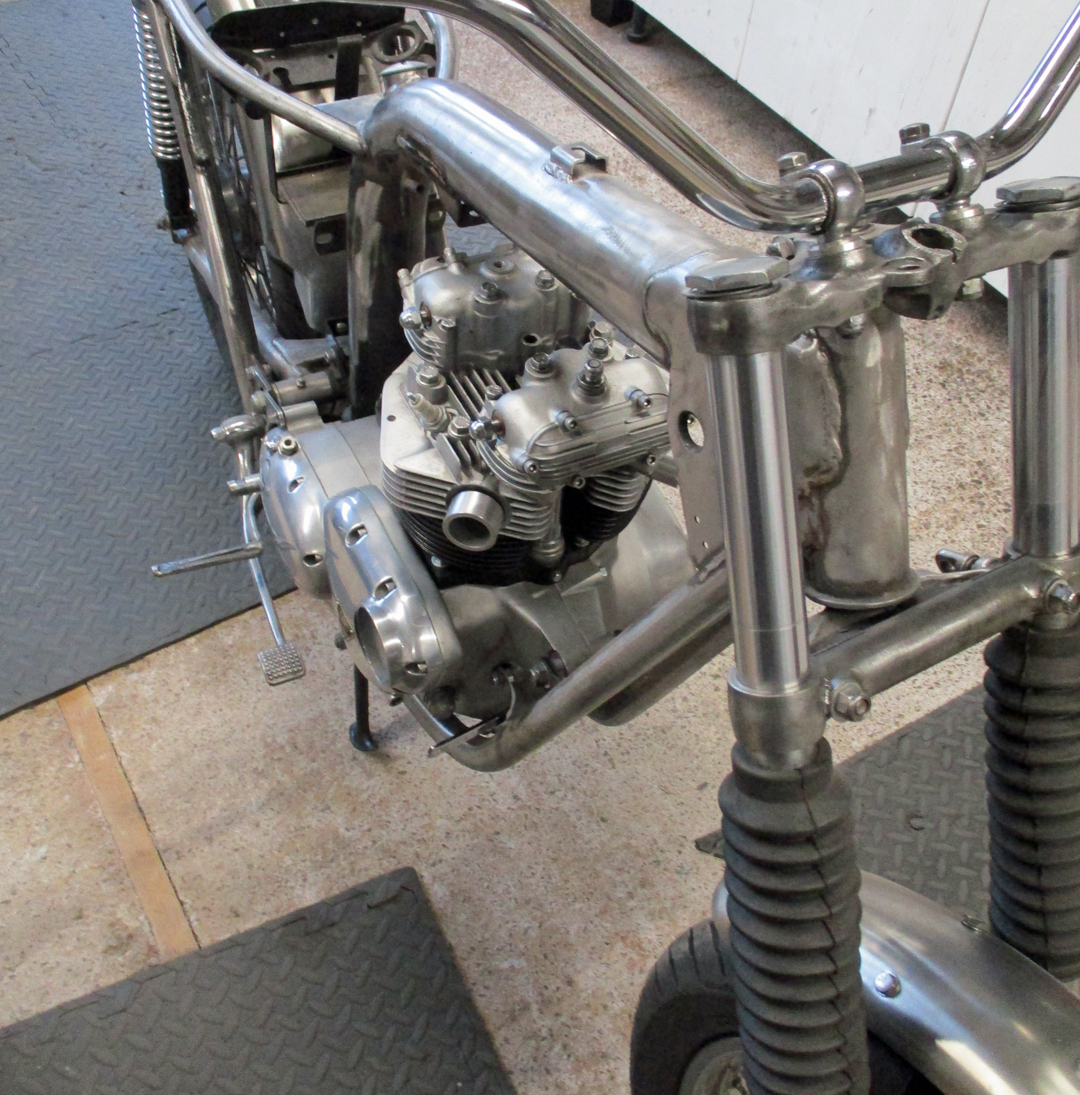

    Engine in today. I've tried every which way and this is the easiest if you are putting in a full engine by yourself. I know on T120s the rockers need to come off but not on T140s the whole thing fits in as is but take the engine top steady off and remove the left side footrest and engine plate.


    I lift it from the bike lift while straddling the bike into the left side holding onto the head. Note I've put the main stand temporarily back in


    Then move it to centre and get the front engine bolt and spacers in. The thin one on the left. Then lever the engine up with a big screwdriver and push the bottom engine bolt through also threading on the spacers as you go. Sometimes it's a bit of a fiddle getting the wider spacer in but this one slipped in first time. Put the engine plate back on along with the left footrest.


    Or I could have just asked Randy to help:


    • Like Like x 11
    • Funny Funny x 1
  10. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    #170 Iron, Jan 29, 2022
    Last edited: Jan 29, 2022

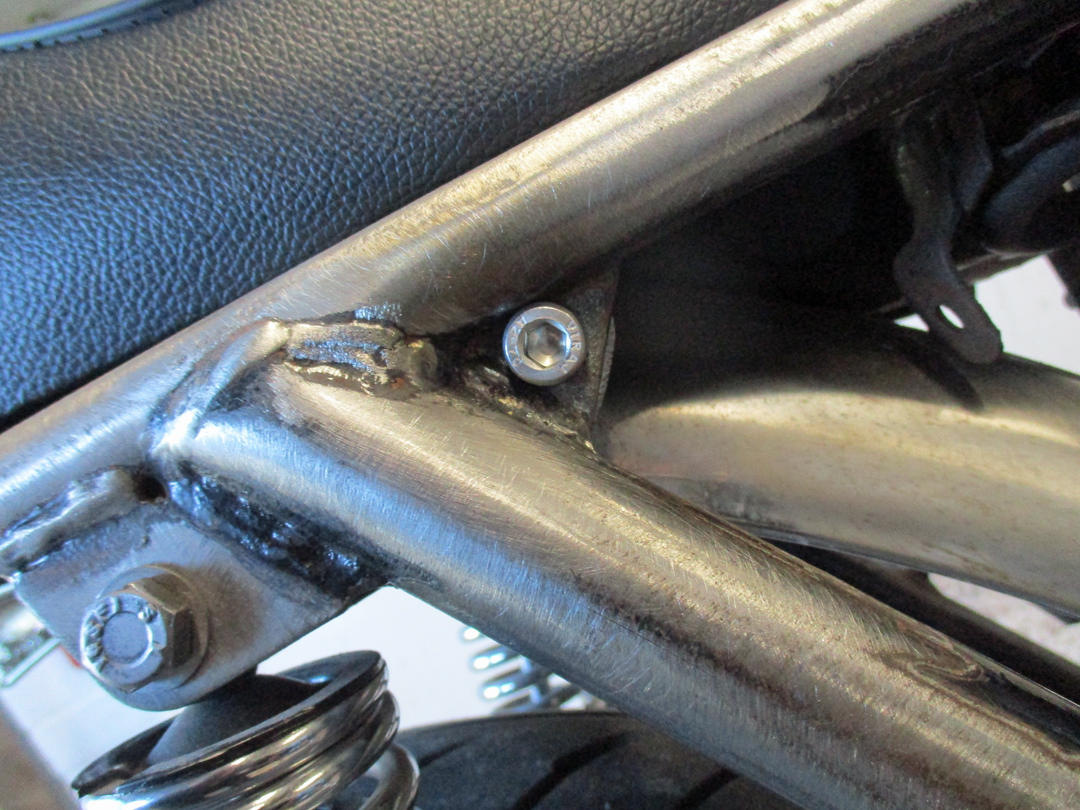

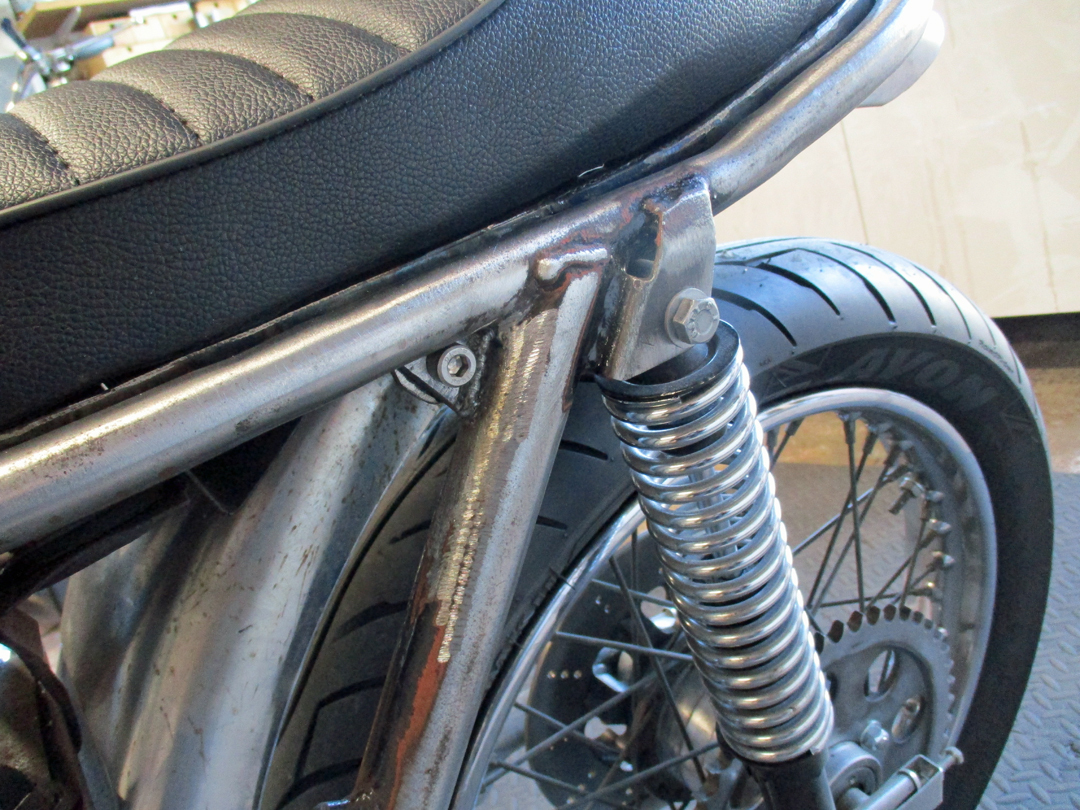

    The seat was wobbling a bit so I needed to cut a bit more from the seat frame over the shock mounts. But I also made and welded on a couple of tabs to drill and bolt. Guess what shape the tabs were


    Awaiting zorsts but farting around with the frame, cutting the tabs and welding everything up took me all day.......over :)


    • Like Like x 10
  11. DCS900

    DCS900 Careful, man! There’s a beverage here!
    Subscriber

    Sep 11, 2021
    2,331
    1,000
    LA
    That’s looking sweet dude… really enjoying this build!


    (There’s a spare engine in the box… but it’s off a Kawasaki h2r… so you’re not interested)

    • Funny Funny x 1
    • Agree Agree x 1
  12. Sandi T

    Sandi T It's ride o'clock somewhere!
    Subscriber

    Dec 3, 2018
    18,926
    1,000
    Tucson Arizona
    Very amazing and impressive to me how you put that engine in, @Iron. It would have been cool to see a video of it. But you did a great job of describing the process. I'm really enjoying your project and watching it all come together.

    • Agree Agree x 3
    • Thanks Thanks x 1
  13. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    Pfffffft 2 strokes, no chance. Nope sorry......:)

    Oops major edit: Got that wrong, it's a new fangled thingy that starts at £49000 and not for road use. If I had one it'd already be sold to finance more T140s (blimey I'd need a bigger garage :D)

    • Funny Funny x 4
    • Like Like x 1
    • Useful Useful x 1
  14. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    Went to visit the market but did a couple of fiddly bits today


    And, and, there's only a day left

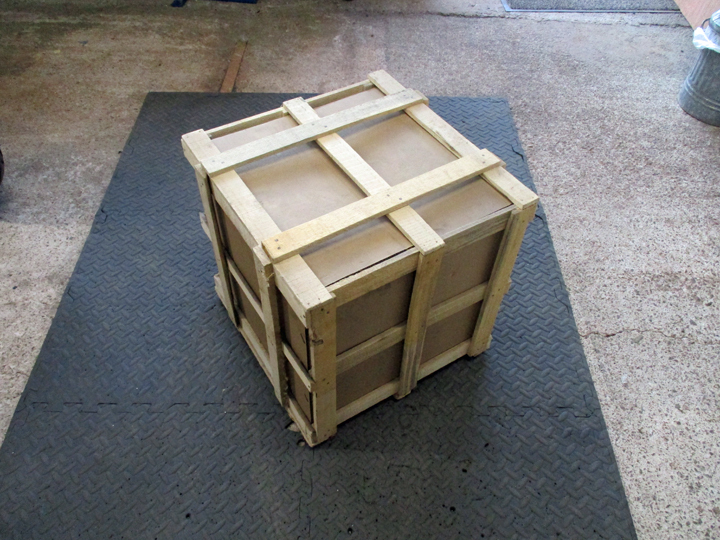

    Here it is from one side

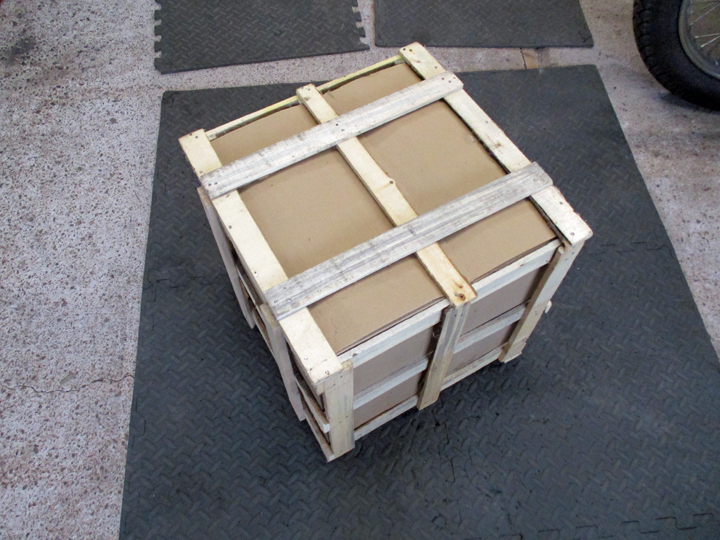

    And the other


    And the bottom


    And I got it out. And, my pedigree chums, it still works. Ha, that's pretty good. :laughing:

    • Like Like x 4
    • Useful Useful x 1
  15. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Oct 3, 2018
    4,440
    800
    Three Counties
    • Funny Funny x 5
    • Agree Agree x 1
  16. Vulpes

    Vulpes Confused Member
    Subscriber

    Mar 14, 2018
    14,033
    1,000
    Netherlands
    • Funny Funny x 3
    • Like Like x 1
    • Agree Agree x 1
  17. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    Alas, no puppies.....sorry

    • Like Like x 1
    • Agree Agree x 1
  18. DCS900

    DCS900 Careful, man! There’s a beverage here!
    Subscriber

    Sep 11, 2021
    2,331
    1,000
    LA
    Crikey chaps... we’ve done miserable here on the “what’s on the end of the stick Vic?” type challenge... but a strong, final push may yet see us Victorious (see what I did there?)

    Is it an oil dispenser?

    • Funny Funny x 2
    • Agree Agree x 1
  19. Iron

    Iron First Class Member

    Dec 29, 2021
    1,936
    643
    Bob Ross Studios
    Errr....nope sorry :confused:

    • Agree Agree x 1
  20. DCS900

    DCS900 Careful, man! There’s a beverage here!
    Subscriber

    Sep 11, 2021
    2,331
    1,000
    LA
    I’m gonna go full Mrs Doyle…Spark plug tester?

    • Funny Funny x 1
