Featured 1976 One For 2022

Discussion in 'Builds & Projects' started by Iron, Dec 31, 2021.

  1. This site uses cookies. By continuing to use this site, you are agreeing to our use of cookies. Learn More.
  1. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios

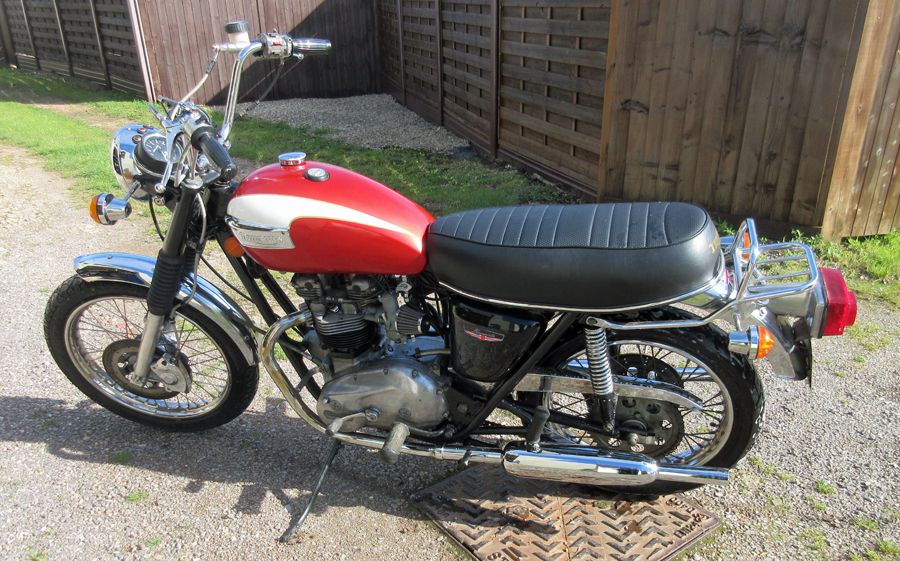

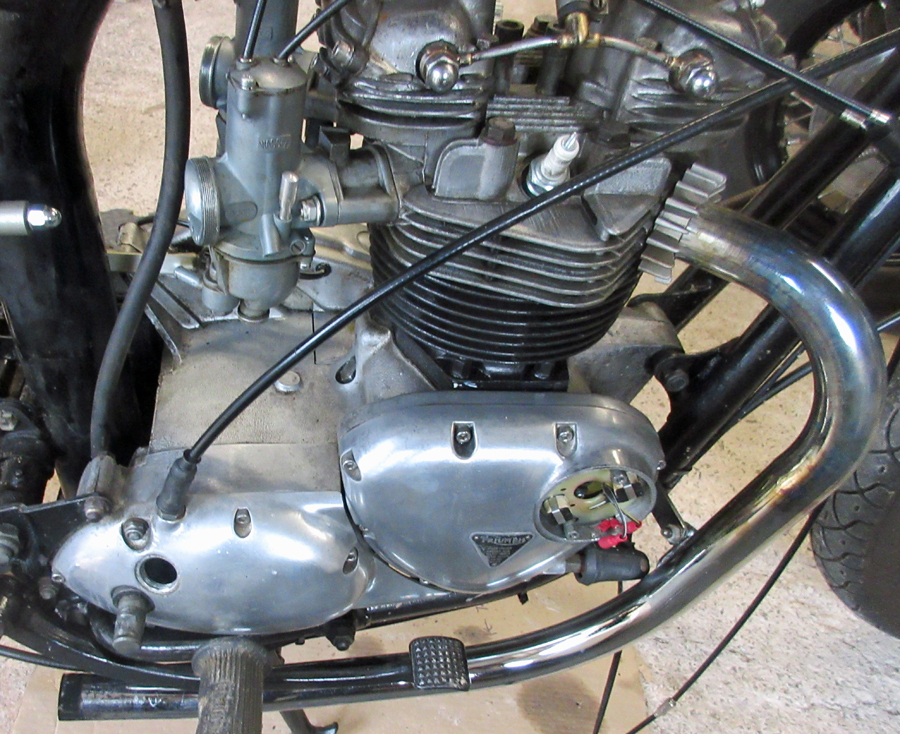

    This came off the delivery van and made it to the garage. The clutch freed off pretty easily and it started with a few kicks. I was tempted to have a zoom around but it was a bit too rough for that.

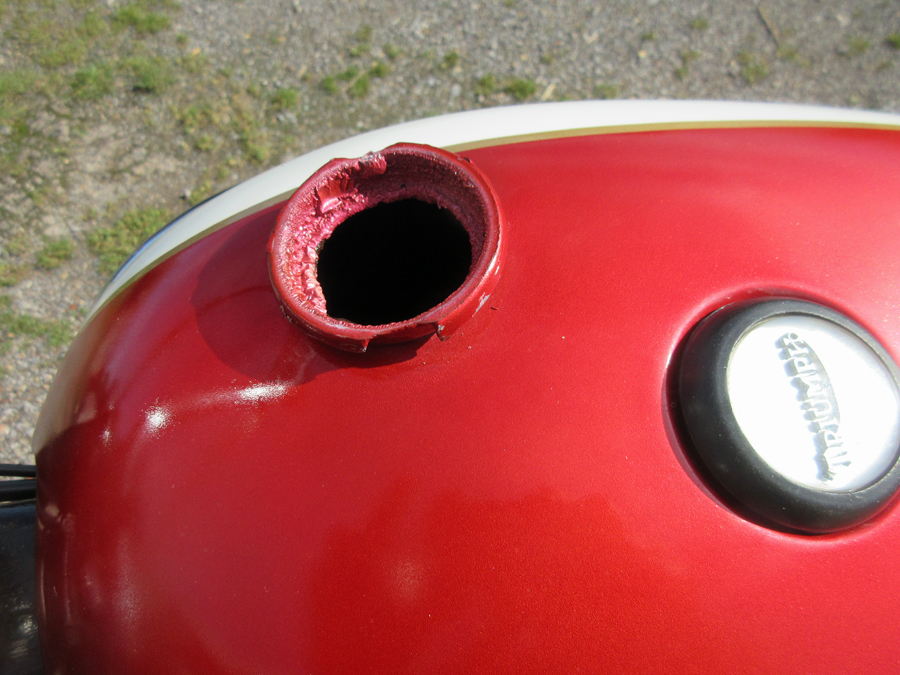

    Have a general look around it for a few days. The paintwork on the tank looks new but sketchy :eek:


    • Like Like x 13
  2. Golgotha

    Golgotha Guest

    *jealousy increases*

    • Like Like x 3
  3. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios

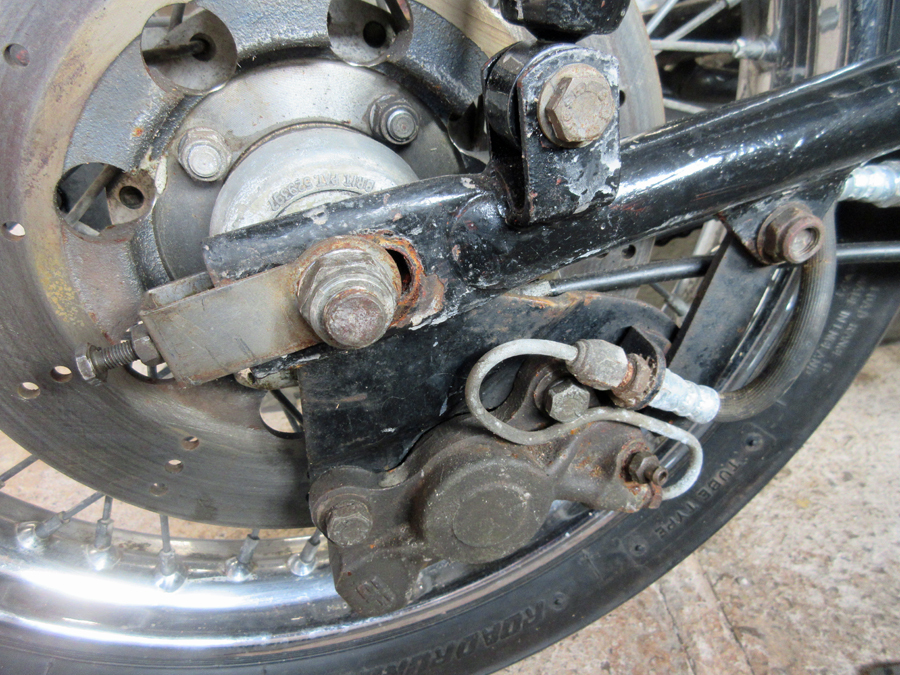

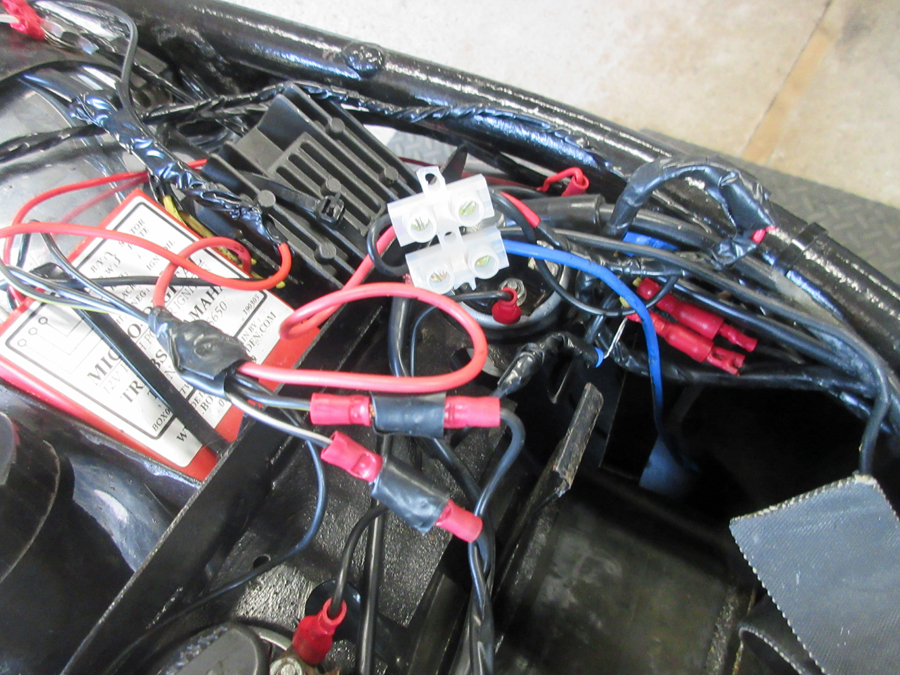

    And the wiring, although working, is probably best renewed :)

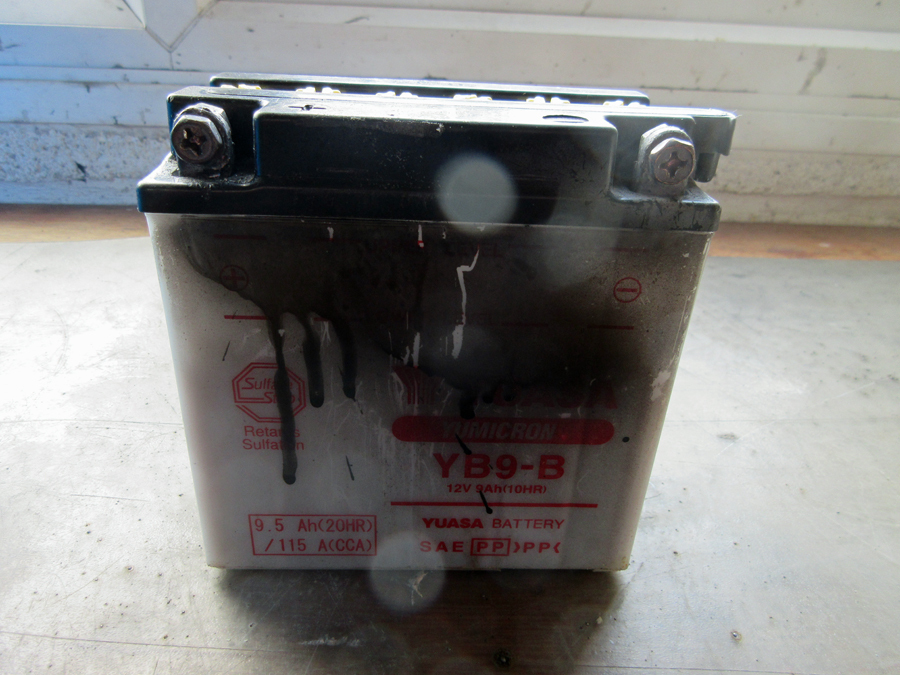

    I'll use chocolate blocks like the next chap , and I'd say the battery was left in place while the tray and general surrounds were rattle sprayed :expressionless:


    Generally it's sound but needs a rebuild and a rethink


    • Like Like x 13
    • Funny Funny x 2
  4. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios

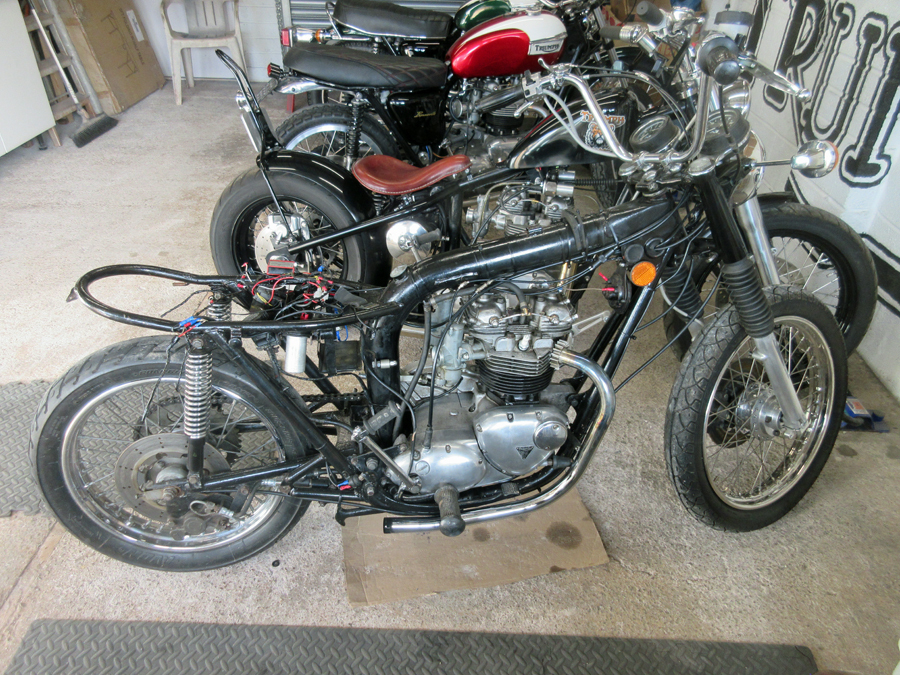

    So, out with the spanners and off with the tins


    Bare bones are looking good but engine out next


    Over...

    • Like Like x 14
    • Funny Funny x 1
  5. Wessa

    Wessa Cruising

    Apr 27, 2016
    10,455
    1,000
    North West England
    Yes looking forward to following your rebuild :)

    • Agree Agree x 3
    • Like Like x 1
    • Thanks Thanks x 1
    • Useful Useful x 1
  6. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    So, out with more spanners, and out with the engine


    Off with the rockers

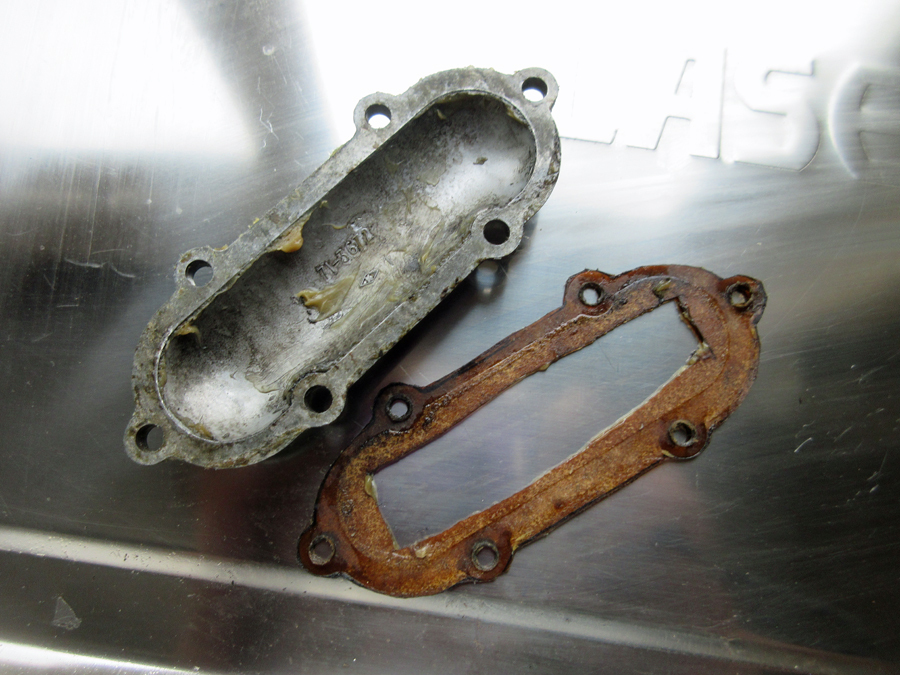

    Nice to see some homemade gaskets just like we all did. There was some printing on it but couldn't see Kellogg's


    • Like Like x 9
    • Funny Funny x 1
    • Useful Useful x 1
  7. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios

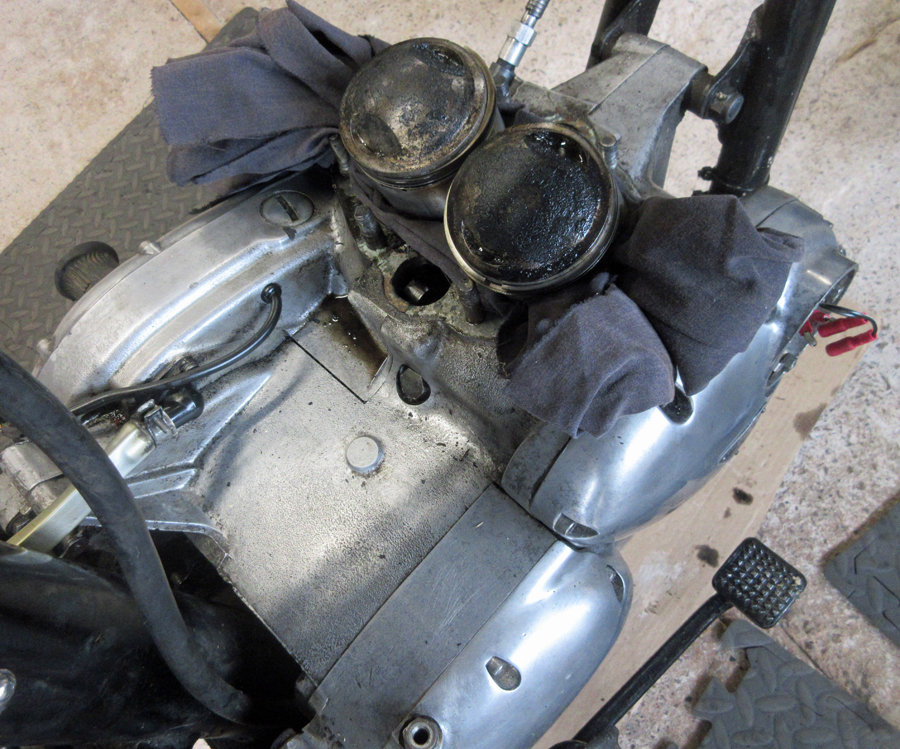

    And off with the head......skreeeeetch! No chance. It would only lift about a 16th. Bugger.


    Tempting to go to wedges, rubber mallet, stronger person etc. but I really didn't want to break or mark joint surfaces. Failed on the head removal so resorted to removing head and barrels complete.

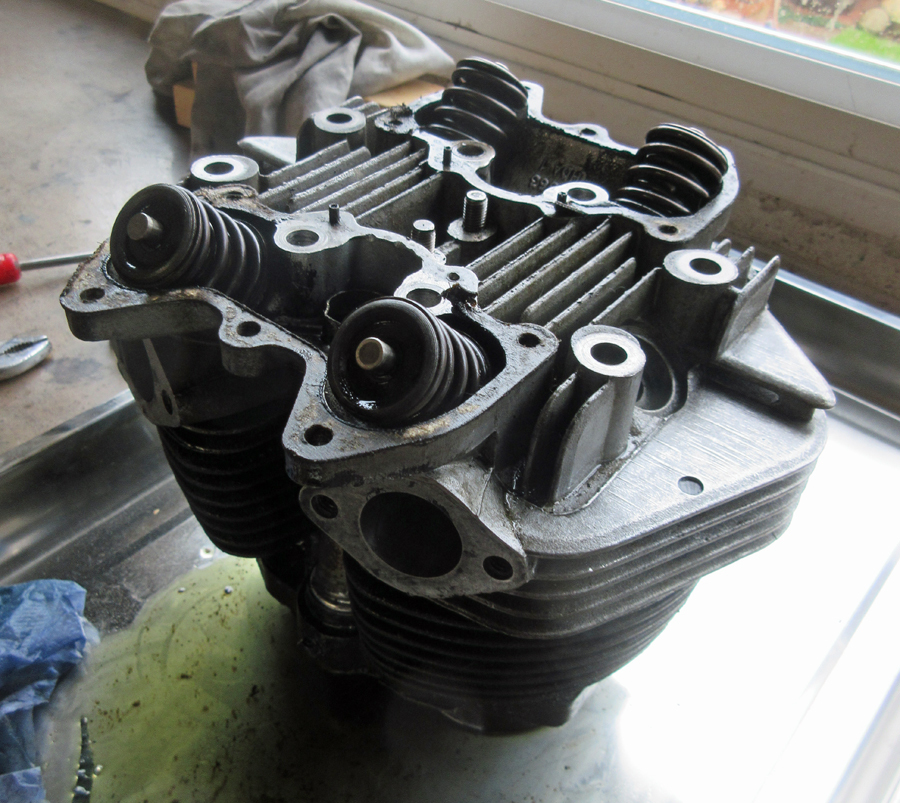

    A bit of carbon but not too bad. Now the stuck head and barrels are at least on the bench.


    • Like Like x 12
  8. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    #8 Iron, Dec 31, 2021
    Last edited: Dec 31, 2021
    All the larger dia head bolts came out but those centre two proved difficult.

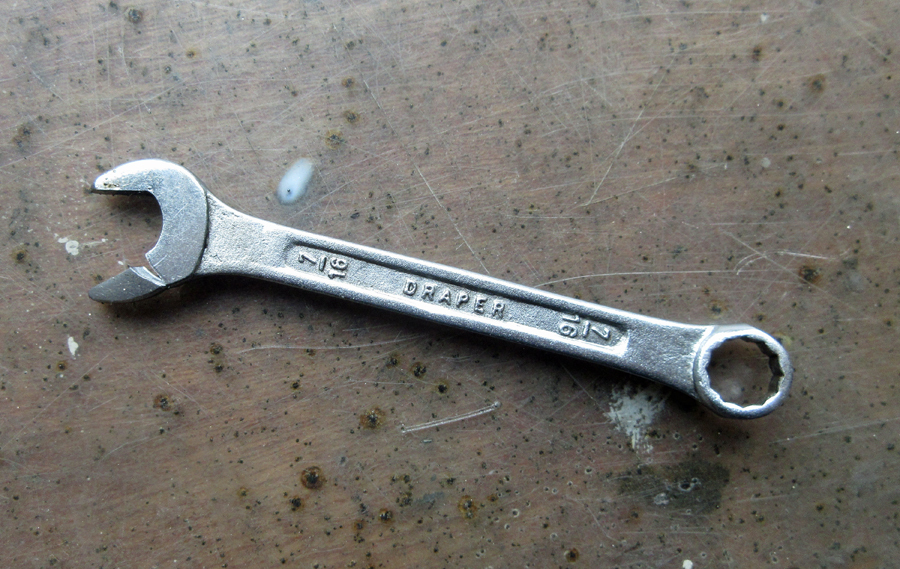

    I double nutted them, got one out and broke the spanner on the stuck one (nearly broke my fingers too when it went). Just shows you how steel and ally can weld themselves together through that electrol....electrici...going rusty problem.

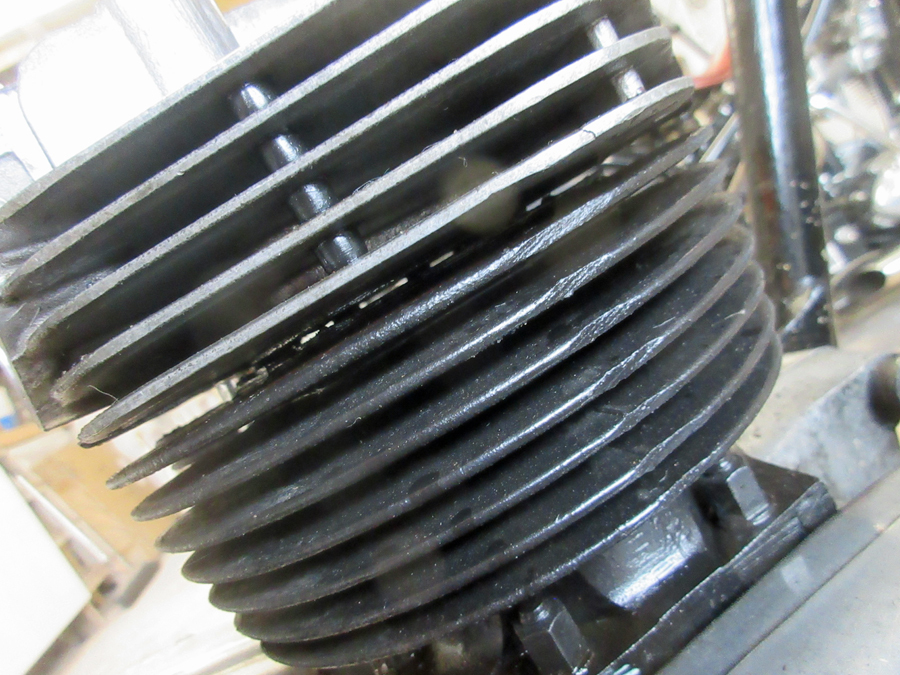

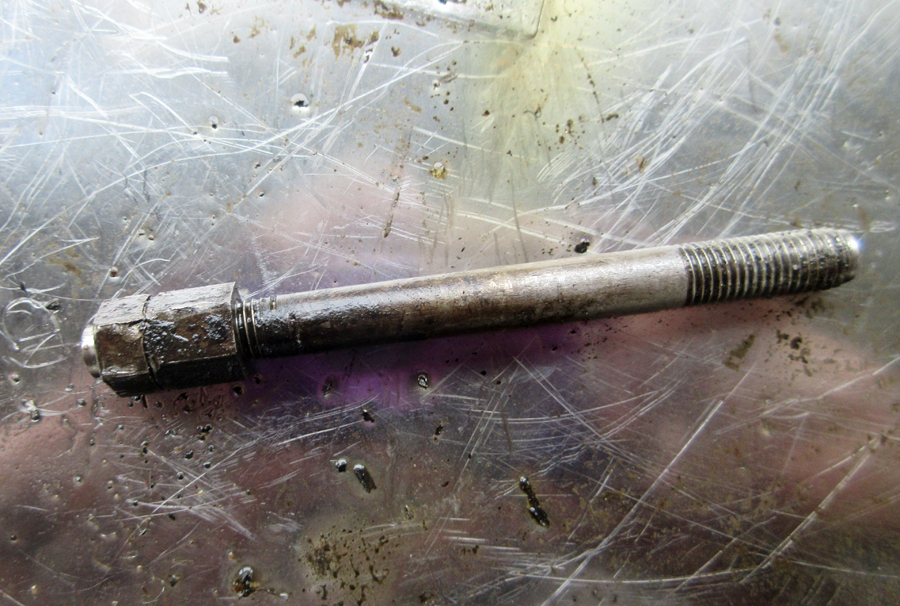

    Here's the little bugger that I just couldn't budge. But now we're only down to one stud. Maybe it'll twist off if I can get the head to turn.....next exciting episode after dinner gang....:p....over

    • Like Like x 11
    • Funny Funny x 1
  9. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Oct 3, 2018
    4,429
    800
    Three Counties
    Steady on there @Iron or you'll have nothing to do in 2022 :joy:

    • Funny Funny x 5
    • Like Like x 1
    • Thanks Thanks x 1
    • Agree Agree x 1
  10. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios

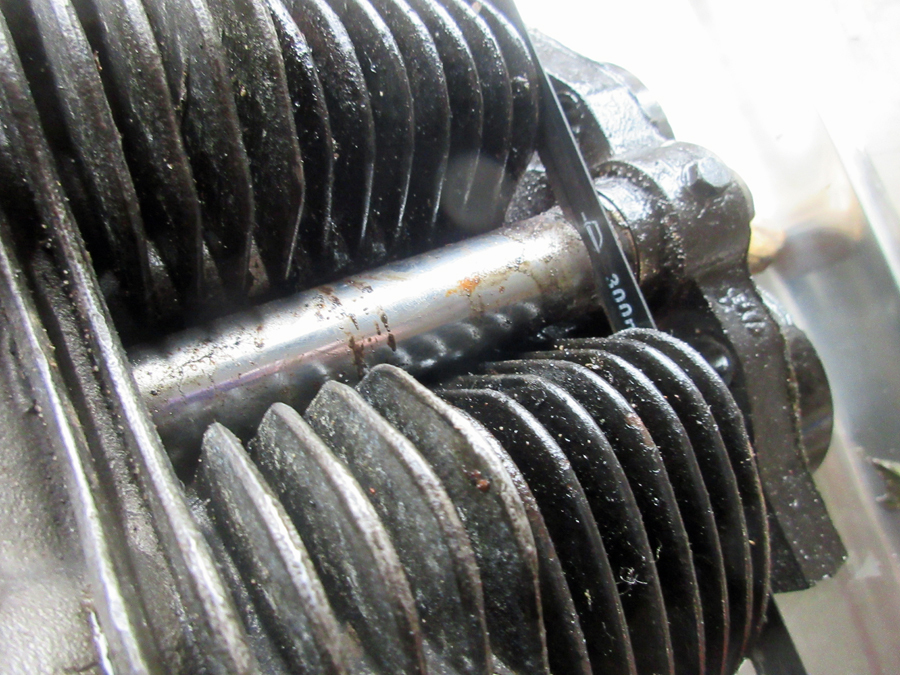

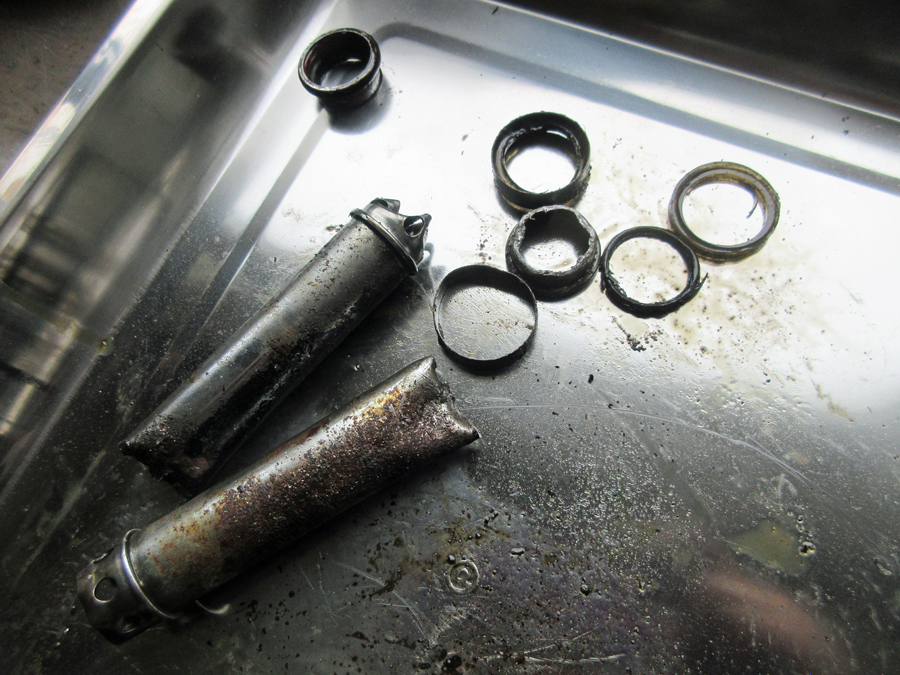

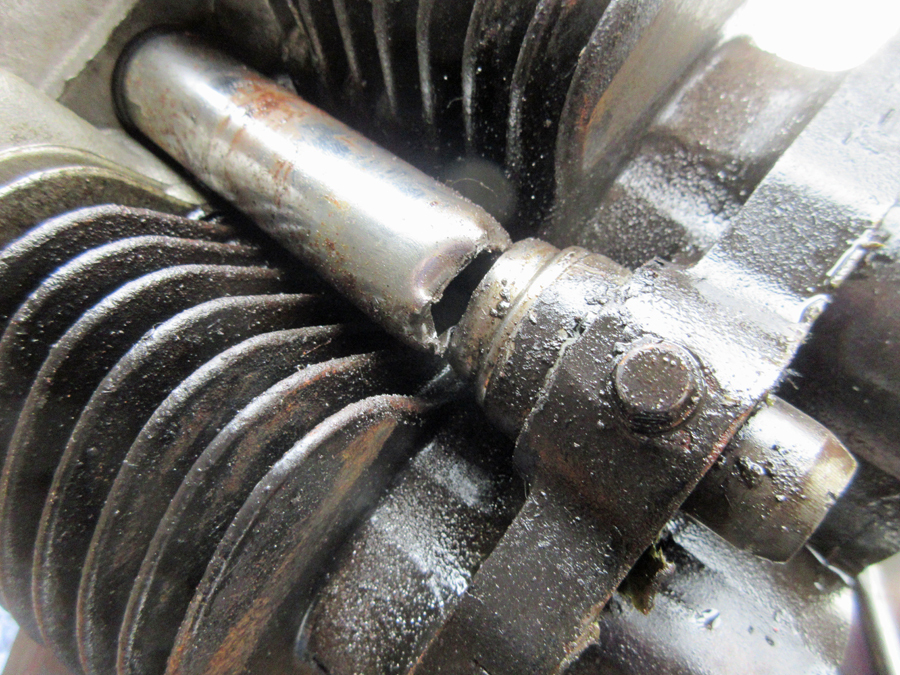

    Full belly, just awaiting the charabanc to take me out to frolic the night away in the armchair. So, any old end up, had to cut through the pushrod tubes to allow the head to turn with ye olde hacksaw. :eek:


    Took a bit of doing but could only cut through the bottom and had to bend the tops to get room to get the pesky things out


    Broke one of the tappet blocks but new ones on order. And after a bit of faffing they're out.


    • Like Like x 7
  11. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    #11 Iron, Dec 31, 2021
    Last edited: Dec 31, 2021

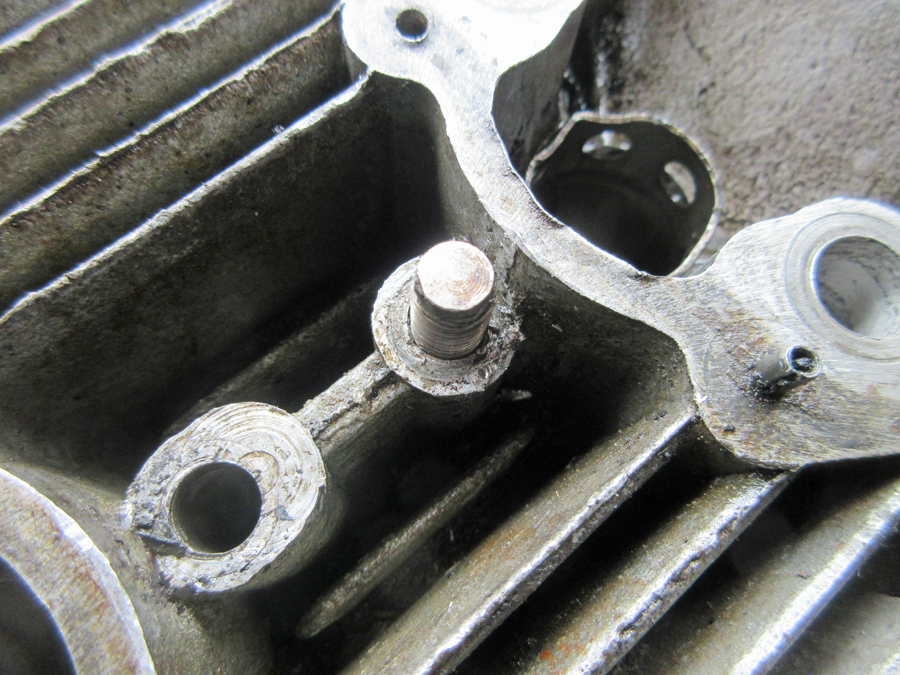

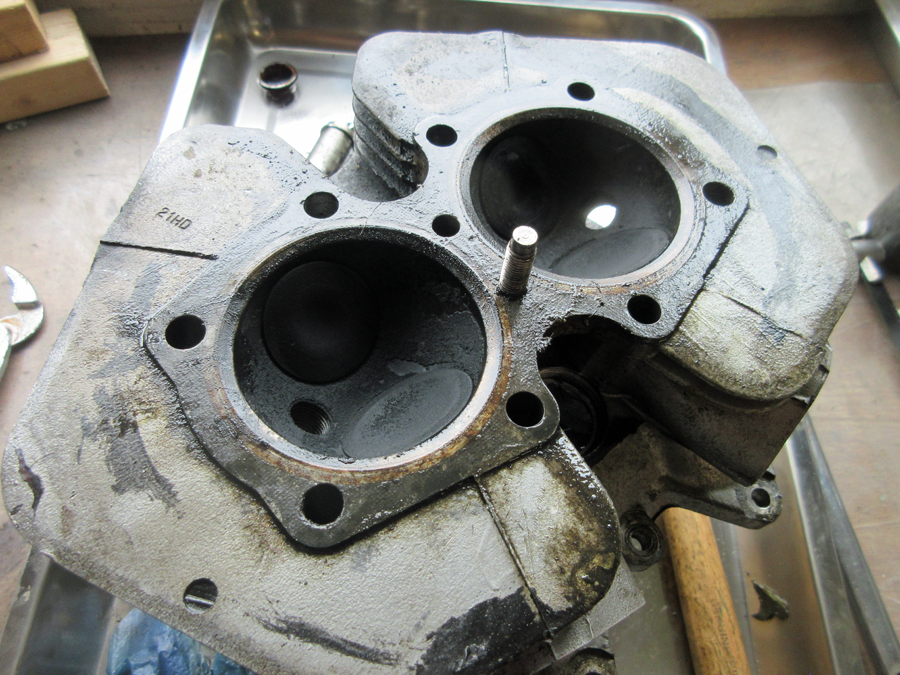

    And, as planned, the head spins off complete with offending stud.


    Tightly double nut it, and out it comes, hooray :neutral:

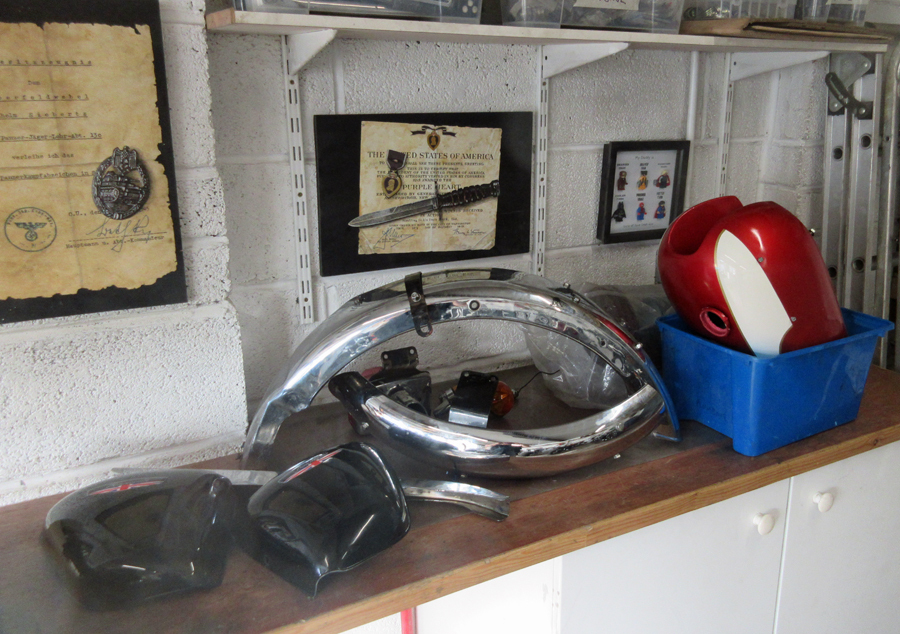

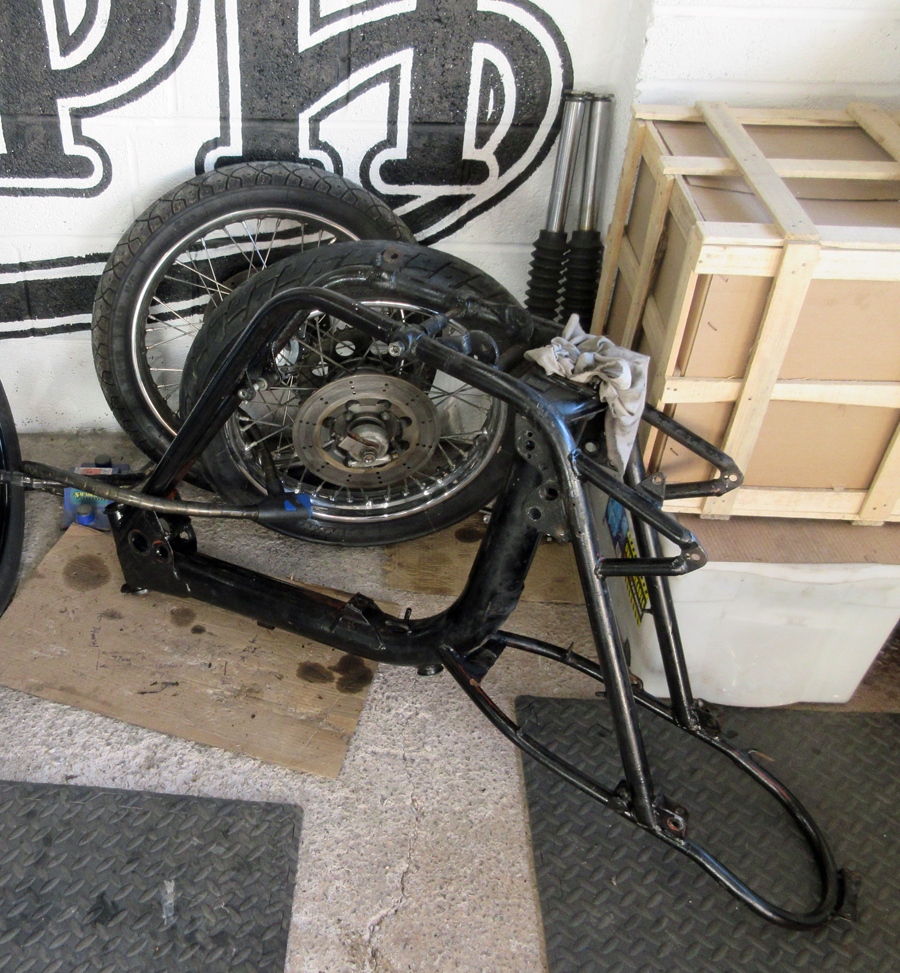

    A surprisingly lack of rust or anything else that looks solid enough to stop it being removed. So, took engine out and dismantled rest of bike. Stashed against the wall while I rebuild engine. Bet you can't guess what's in the crate - If you guess, and wanna pay the postage (it won't be cheap), you can have it. Or, you can come round and pick it up and have a tea while you're here. :)


    • Like Like x 10
  12. darkman

    darkman Crème de la Crème

    Oct 26, 2015
    6,844
    1,000
    Southcoast of the UK Earth
    I dare not ask :) is this one going to be a standard restoration o_O Great work so far.

    • Like Like x 2
  13. Helmut Visor

    Helmut Visor Only dead fish go with the flow
    Subscriber

    Oct 3, 2018
    4,429
    800
    Three Counties
    Is it this? :joy:
    https://www.thetriumphforum.com/threads/new-member-new-build.27394/

    • Like Like x 1
    • Funny Funny x 1
  14. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    • Like Like x 1
    • Agree Agree x 1
  15. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    Thanks and well, sort of standard ;). I've had a Trackmaster alloy tank on order for ages but, sadly, the metal magician passed away. Really sad about that. But another wonder person who can make flat bits of aluminium into a tank has been found.

    • Like Like x 2
    • Useful Useful x 1
    • Agree Agree x 1
  16. joe mc donald

    Subscriber

    Dec 26, 2014
    13,691
    1,000
    slough / burnham
    Iron
    Boy you don't hang around do you. Will be watching eagerly.
    Joe.

    • Like Like x 3
    • Thanks Thanks x 1
    • Agree Agree x 1
  17. Dartplayer

    Dartplayer Crème de la Crème

    Aug 8, 2018
    5,753
    1,000
    New Zealand
    Loving your return already @Iron. Build progression is interesting as usual :skull:

    • Agree Agree x 3
    • Thanks Thanks x 1
  18. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    #18 Iron, Jan 1, 2022
    Last edited: Jan 1, 2022
    Yes, I've been having a bit of a bike frenzy for the last few weeks in anticipation of the cold weather. Rippin' through and catching up on here :D

    Climb into engine. Covers off and some 'orrible green/brown/sludge type oil ooozed out, luvly.

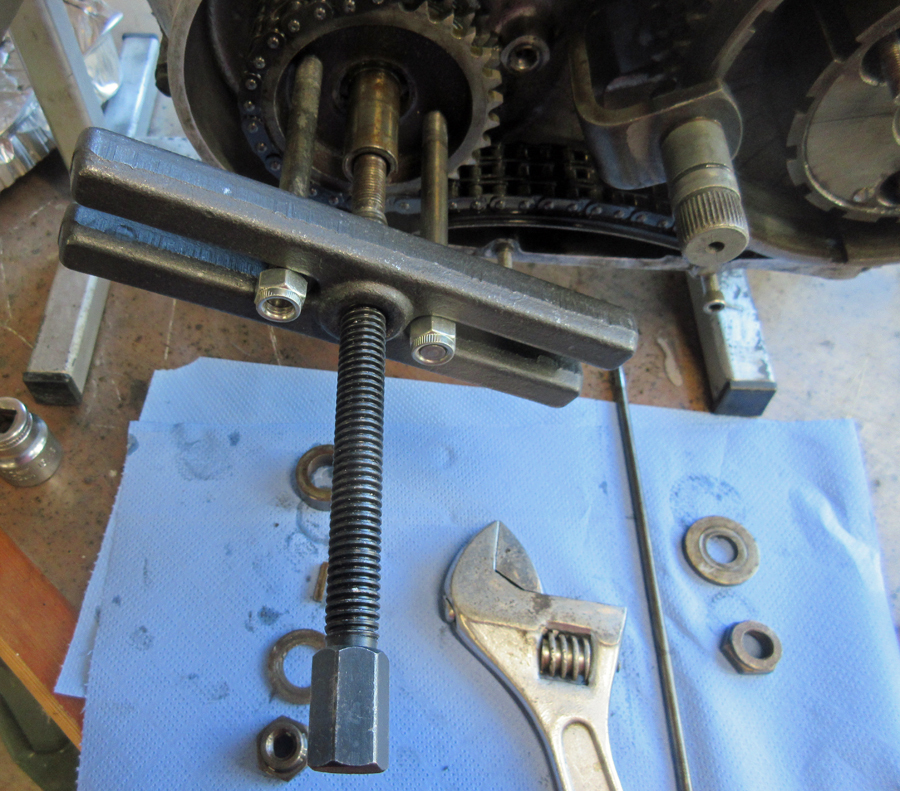

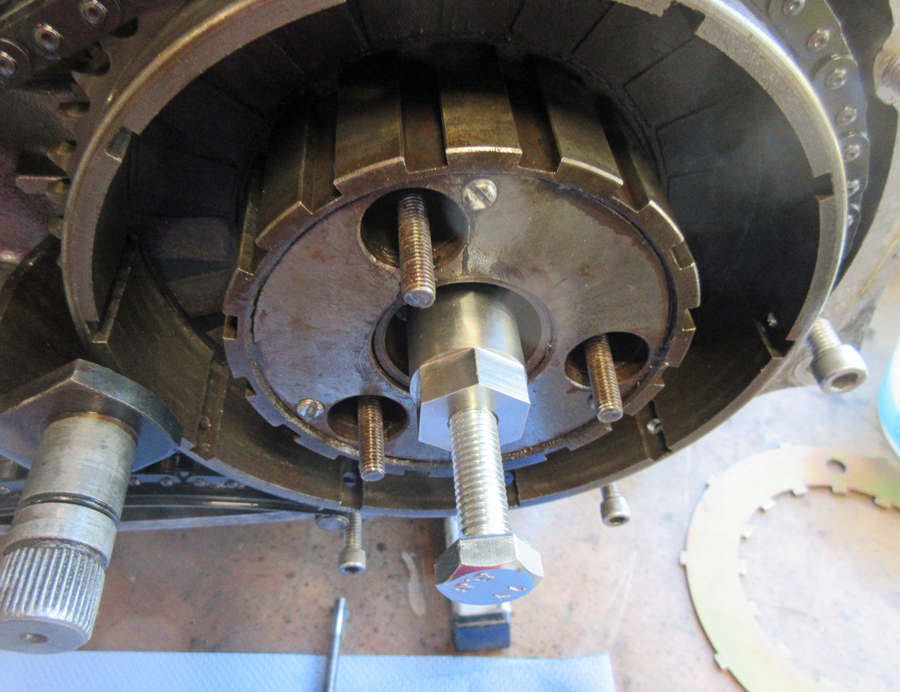

    After undoing the nuts, (I use a rubber to wedge into the primary chain to stop anything turning.), clutch centre puller



    Don't know why that picture went in twice! :eek: Operator error I suspect.

    Front primary puller made up with some old head bolts as they have correct thread.


    • Like Like x 7
    • Useful Useful x 1
  19. Iron

    Iron First Class Member

    Dec 29, 2021
    1,914
    643
    Bob Ross Studios
    #19 Iron, Jan 1, 2022
    Last edited: Jan 1, 2022
    And whip all the primary side stuff out. Some additional lumpy bits in the goop.


    On closer inspection it's the little primary oil feed pipe from the breather that's been mashed up. I'm quite glad I didn't run this any more than getting to the garage from the van.

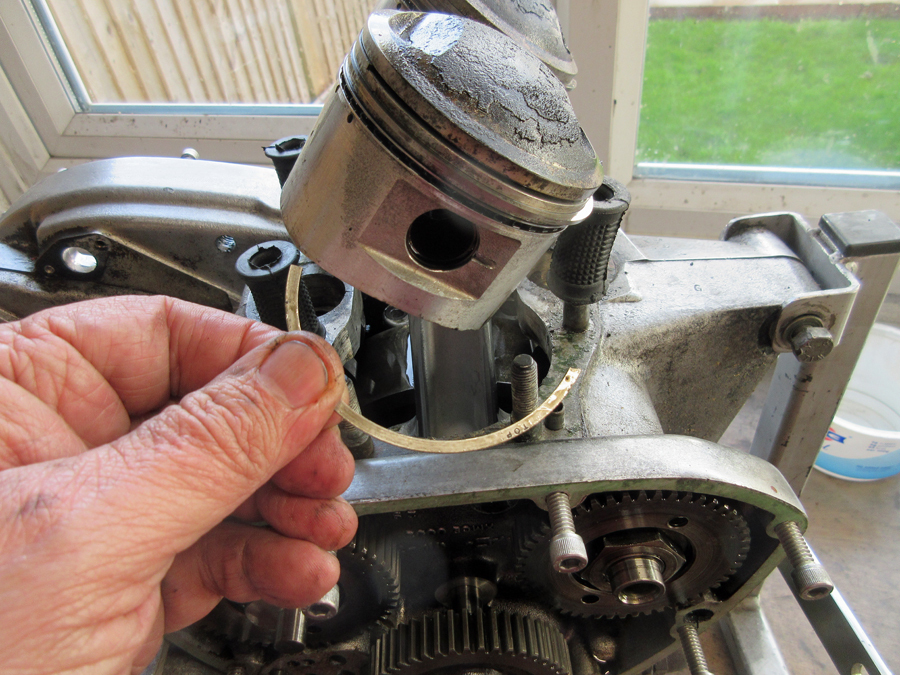

    Remove pistons and, oh dear, look what we've found here. I wonder when that happened?

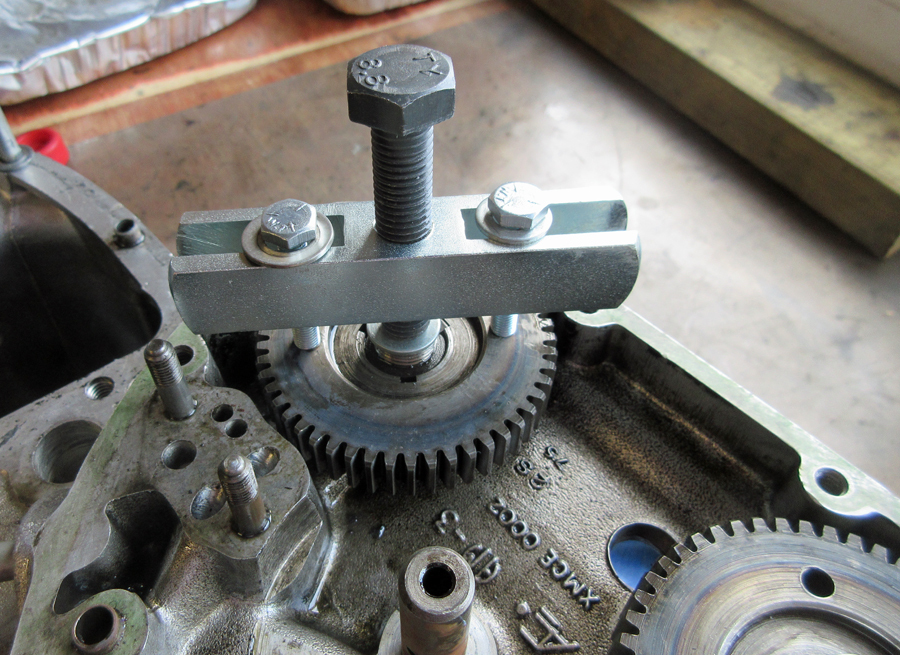

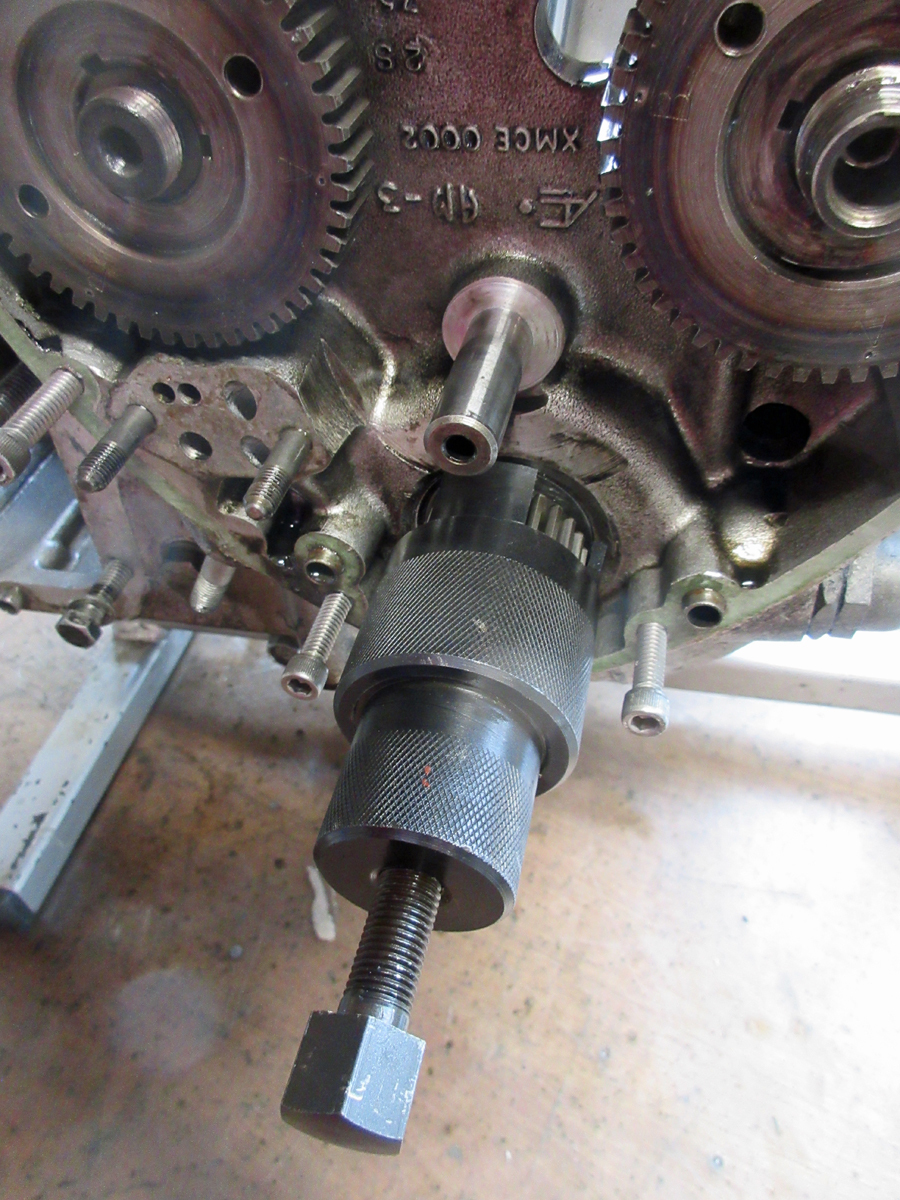

    Undo the pinion nut using an old pinion gear to lock up the gears. And another tool to get the pinion out. And another puller to get the cam gears off.


    • Like Like x 9
  20. stollydriver

    stollydriver Elite Member
    Subscriber

    Apr 25, 2015
    2,007
    800
    north wales
    Interesting thread - you are an asset to the forum. Keep up the great work...

    • Like Like x 2
    • Agree Agree x 2
    • Thanks Thanks x 1
